A bad fuel pump relay can significantly disrupt a vehicle’s performance, as it plays a critical role in delivering power to the fuel pump, ensuring proper fuel delivery to the engine. When the relay fails, it can cause symptoms such as difficulty starting the engine, stalling, or a complete loss of power, often mimicking issues with the fuel pump itself. Common causes of relay failure include electrical wear, overheating, or corrosion, and diagnosing the problem typically involves checking for power at the relay, testing for continuity, or swapping it with a known good relay. Ignoring a faulty fuel pump relay can lead to further damage or leave the vehicle stranded, making prompt inspection and replacement essential for maintaining reliable operation.
| Characteristics | Values |
|---|---|
| Engine Stalling | Engine stalls while driving or idling due to inconsistent fuel delivery. |
| Difficulty Starting | Engine cranks but fails to start, or starts after multiple attempts. |
| No Fuel Pressure | Fuel pressure gauge reads zero or below normal levels. |
| Fuel Pump Noise | No humming sound from the fuel pump when the ignition is turned on. |
| Intermittent Power Loss | Engine loses power or sputters during acceleration or at high speeds. |
| Check Engine Light | Illuminated check engine light with fuel system-related error codes. |
| Fuse Blowout | Fuel pump fuse blows repeatedly due to relay malfunction. |
| Overheating Relay | Relay feels hot to the touch after driving or attempting to start. |
| Inconsistent Voltage | Voltage to the fuel pump fluctuates or drops below required levels. |
| Physical Damage | Visible cracks, corrosion, or burnt marks on the relay body. |
| Diagnostic Code | OBD-II scanner shows codes related to fuel pump circuit or relay failure. |
Explore related products
What You'll Learn
Symptoms of a failing fuel pump relay
A failing fuel pump relay can manifest in subtle yet impactful ways, often leaving drivers puzzled by their vehicle’s erratic behavior. One of the earliest signs is difficulty starting the engine, especially in colder temperatures. This occurs because the relay fails to provide consistent power to the fuel pump, resulting in insufficient fuel pressure for ignition. If you notice the engine cranks but doesn’t catch, or if it takes multiple attempts to start, the fuel pump relay may be the culprit.
Another symptom is stalling or misfiring during acceleration or at high speeds. When the relay malfunctions, it can intermittently cut power to the fuel pump, causing the engine to lose fuel supply momentarily. This disruption leads to a sudden loss of power, which is both frustrating and dangerous, particularly in traffic or on highways. Drivers often describe this as a "sputtering" sensation, as if the vehicle is running out of gas despite a full tank.
Unusual noises from the fuel tank area can also signal a failing relay. A whining or humming sound that varies with engine speed may indicate the fuel pump is struggling to operate due to inconsistent power delivery. While this noise can stem from the pump itself, the relay’s inability to maintain a steady electrical connection often exacerbates the issue. Ignoring this symptom can lead to premature fuel pump failure, compounding repair costs.
Lastly, a failing fuel pump relay can trigger the check engine light, accompanied by error codes related to fuel system performance. Modern vehicles rely on sensors to monitor fuel pressure and delivery, and a malfunctioning relay disrupts this process. Using an OBD-II scanner to retrieve codes such as P0087 (low fuel pressure) or P0191 (fuel injector circuit malfunction) can help pinpoint the issue. However, these codes alone aren’t definitive proof of a bad relay—further testing, such as checking voltage at the relay terminals, is necessary for confirmation.
To mitigate these symptoms, drivers should inspect the relay for signs of corrosion, loose connections, or overheating. A multimeter can verify if the relay is functioning within its specified voltage range (typically 12–14 volts). Replacing a faulty relay is a straightforward task, costing between $20 and $100 for the part, depending on the vehicle. Addressing the issue promptly not only restores performance but also prevents potential damage to the fuel pump or injectors, saving time and money in the long run.
Prevent Fuel Pump Failure: Essential Tips for Longevity and Reliability
You may want to see also
Explore related products
Common causes of fuel pump relay failure
Fuel pump relay failure can stem from electrical overloads, a common culprit in modern vehicles with complex wiring systems. When the relay is subjected to excessive current, often due to a short circuit or a malfunctioning component, its internal contacts can weld together or burn out. This results in the fuel pump either running continuously, draining the battery, or failing to engage at all, leaving the engine starved for fuel. To prevent this, regularly inspect the wiring harness for frayed wires or loose connections, especially near the relay and fuel pump. Using a multimeter to check for continuity can help identify issues before they escalate.
Another frequent cause of fuel pump relay failure is environmental exposure, particularly in regions with extreme temperatures or high humidity. Relays are not immune to corrosion, and moisture infiltration can cause the contacts to oxidize, leading to poor conductivity or intermittent operation. Similarly, prolonged exposure to heat can degrade the relay’s plastic housing, making it brittle and prone to cracking. Installing the relay in a more protected area of the engine bay or using a waterproof relay cover can mitigate these risks. For vehicles in harsh climates, consider replacing the relay every 50,000 to 70,000 miles as a preventive measure.
Wear and tear from age and usage also contribute significantly to fuel pump relay failure. Over time, the internal components of the relay, such as the coil and contacts, degrade due to repeated activation and deactivation cycles. This gradual deterioration can lead to inconsistent performance, where the relay fails to send the correct signal to the fuel pump. Symptoms may include difficulty starting the engine, stalling, or a noticeable drop in fuel efficiency. If your vehicle is over 10 years old or has high mileage, proactively replacing the relay during routine maintenance can save you from unexpected breakdowns.
Lastly, incorrect installation or compatibility issues can render a fuel pump relay ineffective. Using a relay with the wrong amperage rating or one not designed for your vehicle’s specific make and model can lead to immediate failure or long-term damage. Always consult the vehicle’s manual or a trusted mechanic to ensure the replacement relay meets the required specifications. Additionally, improper grounding during installation can cause the relay to malfunction. Double-check that all connections are secure and the ground wire is firmly attached to a clean, metal surface before finalizing the installation.
Why Holley Fuel Pumps Are Mounted Upside Down: Explained
You may want to see also
Explore related products
How to test a fuel pump relay
A bad fuel pump relay can leave you stranded, but testing it doesn’t require advanced mechanics skills. The relay acts as a switch, controlling power to the fuel pump. When it fails, symptoms like engine stalling, difficulty starting, or no fuel pressure arise. Testing involves verifying its ability to close the circuit and allow current flow. Armed with a multimeter and basic knowledge, you can diagnose the issue in under 30 minutes.
Begin by locating the fuel pump relay, typically found in the fuse box under the hood or near the driver’s side firewall. Consult your vehicle’s manual for its exact position. With the ignition off, remove the relay by pulling it straight out. Inspect for visible damage like burnt pins or melted plastic, which indicate a clear failure. If it looks intact, proceed to electrical testing.
Using a multimeter set to the ohms (resistance) setting, test the relay’s internal contacts. Identify the relay’s control circuit pins, usually labeled 85 and 86, and the power pins, often 30 and 87. Apply power to the control circuit pins (85 and 86) using a 12V test light or jumper wire. If the relay is functional, you’ll hear a click, and the multimeter will show continuity between the power pins (30 and 87). No click or continuity suggests a faulty relay.
For a more dynamic test, reconnect the relay and use the multimeter’s voltage setting. Have an assistant crank the engine while you measure voltage at the fuel pump connector. If voltage drops during cranking, the relay may be failing under load. Alternatively, swap the fuel pump relay with another identical relay in the fuse box (like the horn relay) to see if the issue persists. If the problem moves, the relay is confirmed bad.
Testing a fuel pump relay systematically narrows down potential causes of fuel system issues. By combining visual inspection, static resistance testing, and dynamic voltage checks, you can confidently diagnose whether the relay is at fault. Always prioritize safety—work with the ignition off and avoid short-circuiting during testing. A failed relay is inexpensive to replace, making this a worthwhile first step before diving into more complex fuel system repairs.
Unlock Free Fuel: Smart Strategies to Save at the Pump
You may want to see also
Explore related products
Cost to replace a bad fuel pump relay
A bad fuel pump relay can leave you stranded, but replacing it doesn’t have to break the bank. The cost to replace a fuel pump relay typically ranges from $50 to $200, depending on the vehicle make and model, labor rates, and whether you opt for OEM or aftermarket parts. For DIY enthusiasts, the relay itself costs between $10 and $50, while professional installation adds $40 to $150 in labor. This makes it one of the more affordable repairs in automotive maintenance, especially compared to replacing the fuel pump itself, which can cost upwards of $500.
Analyzing the factors influencing the cost reveals a clear pattern. Luxury or high-performance vehicles often require more expensive relays, pushing the price toward the higher end. Labor costs also vary significantly by location—urban areas with higher living costs tend to charge more for mechanic services. Additionally, some relays are located in hard-to-reach areas, increasing the time and effort required for replacement. Understanding these variables allows you to budget effectively and avoid surprises when addressing a faulty relay.
For those considering a DIY approach, replacing a fuel pump relay is a straightforward task in most vehicles. Start by locating the relay, often found in the fuse box under the hood or near the battery. Use a multimeter to test the relay for continuity; if it fails, purchase a compatible replacement. Swap the relays by pulling out the old one and inserting the new one, ensuring it clicks into place. Always disconnect the battery before beginning to avoid electrical hazards. This method saves on labor costs and empowers you to handle the issue promptly.
Comparing the cost of replacement to the consequences of ignoring a bad relay highlights its importance. A failing fuel pump relay can cause the engine to stall, misfire, or refuse to start, posing safety risks and potentially damaging the fuel pump or engine. While $50 to $200 may seem like an unnecessary expense, it’s a small price to pay to prevent more costly repairs down the line. Regularly inspecting the relay during routine maintenance can catch issues early, saving both money and hassle.

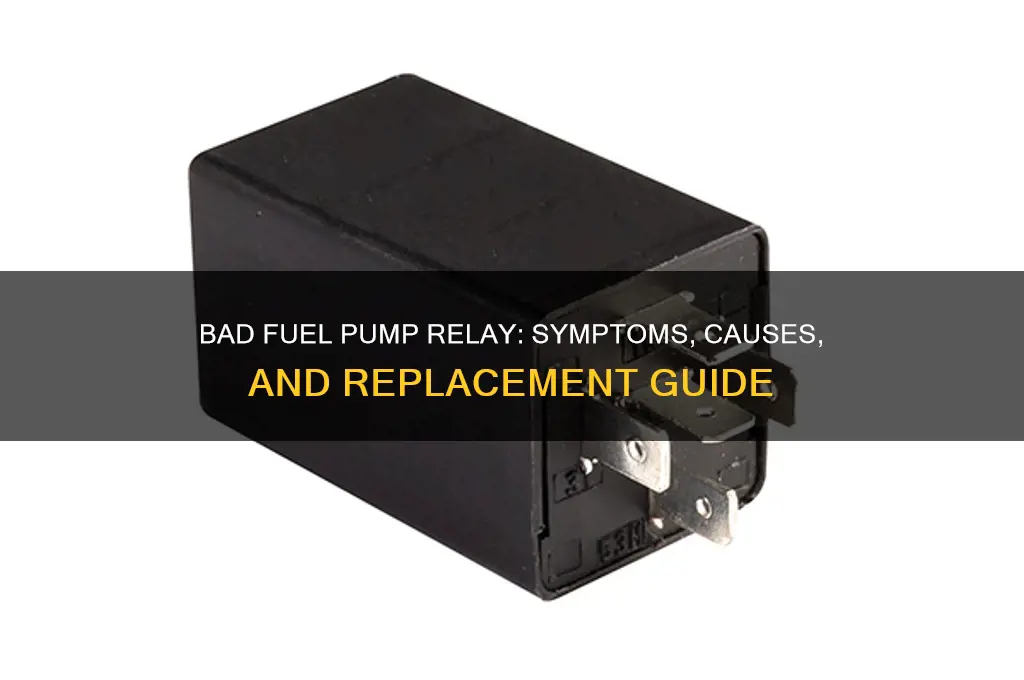

Finally, a descriptive look at the relay itself provides context for its role and value. The fuel pump relay is a small, unassuming component, typically no larger than a matchbox, but it plays a critical role in delivering fuel from the tank to the engine. Its internal contacts and coil work together to control the flow of electricity to the fuel pump, ensuring it operates only when the engine is running. Despite its simplicity, the relay’s failure can disrupt the entire fuel system, underscoring the importance of timely replacement. By understanding its function and cost, you can approach this repair with confidence and clarity.
Does Your Fuel Pump Make Noise? Causes and Solutions Explained
You may want to see also
Explore related products
Preventive measures to avoid fuel pump relay issues
A failing fuel pump relay can leave you stranded, but proactive maintenance can significantly reduce the risk. Regularly inspect the relay for signs of corrosion, overheating, or physical damage. Corrosion often manifests as a greenish residue around the terminals, while overheating may cause discoloration or warping of the relay’s housing. Address these issues promptly by cleaning terminals with electrical contact cleaner and replacing the relay if damage is severe. Ignoring these early warnings can lead to a complete failure, leaving your vehicle inoperable at the worst possible moment.
Preventive maintenance extends beyond visual inspections. Test the relay’s functionality annually using a multimeter to ensure it’s operating within the manufacturer’s specified voltage range, typically 12–14 volts. If the reading falls outside this range, replace the relay immediately. Additionally, check the wiring harness connected to the relay for frayed or loose wires, as these can cause intermittent power delivery to the fuel pump. Securing these connections with dielectric grease can prevent moisture intrusion, a common culprit in relay failure.
Environmental factors play a significant role in relay longevity. If you frequently drive in dusty or wet conditions, consider installing a waterproof relay cover or relocating the relay to a drier area of the engine bay. For older vehicles, upgrading to a higher-quality relay with a higher amperage rating can provide added durability. However, ensure compatibility with your vehicle’s electrical system to avoid overloading circuits.
Finally, monitor your vehicle’s fuel system performance for subtle changes. A relay beginning to fail may cause the engine to sputter at high speeds or struggle to start after sitting overnight. These symptoms often precede complete failure, giving you a window to act. Pair this vigilance with a consistent maintenance schedule, and you’ll minimize the chances of a fuel pump relay issue disrupting your journey.
Bypassing Fuel Pump Relay in Jeep Cherokee: Step-by-Step Guide
You may want to see also
Frequently asked questions
Common signs of a bad fuel pump relay include the engine not starting, stalling, or struggling to maintain power, as well as unusual noises from the fuel tank area or a lack of fuel pressure.
Yes, a faulty fuel pump relay can cause intermittent power loss or stalling while driving, as it may fail to consistently deliver power to the fuel pump, disrupting fuel delivery to the engine.
No, driving with a bad fuel pump relay is not recommended, as it can lead to unpredictable engine behavior, potential stalling, and increased risk of breakdowns or accidents. Have it inspected and replaced promptly.
