Mercedes Mullins
The Volkswagen Beetle has undergone several design changes since its inception, with one of the most notable being the fuel tank position. Early models of the Beetle, from its design in 1938 until its major update in 1968, featured an in-trunk fuel filler, accessible from the side of the car. This design was not unique to the Beetle, with other Volkswagen models such as the Karmann-Ghia and Type 3s adopting a similar approach. However, the exact year when Volkswagen transitioned the fuel tank to the front of the Beetle is a bit unclear. Some sources mention that the 1961 Beetle introduced a redesigned fuel tank that increased boot capacity, while others recall owning a 1967 Beetle with a fuel tank on the side. It is important to note that the VW Bugs up to and including 1970 had a fuel capacity of 40 litres, while the Superbugs from 1971 onwards boasted a slightly larger 42-litre tank.
| Characteristics | Values |
|---|---|
| Year | 1938 until its first major update in 1968 |
| Fuel Tank Capacity | 40 litres (10.6 US gallons, 8.8 UK gallons) |
| Superbugs Fuel Tank Capacity | 42 litres (11.2 US gallons, 9.2 UK gallons) |
| Long Range Fuel Tank Capacity | 15 gallons |
| Other Design Decisions | Fuel filler located in the trunk, next to the driver's door, or on the side of the car |
| Other Cars with Similar Design | Karmann-Ghia, Type 3s, Fiat 500 and 600, DeLorean, Mercedes 300SL Gullwing, Porsche 356s |
Explore related products
What You'll Learn
VW Beetle's fuel tank location
The Volkswagen Beetle has had various fuel tank locations over the years. From its design in 1938 until its first major update in 1968, Beetles had an in-trunk fuel filler. This design was also used in other VWs like the Karmann-Ghia and Type 3s. However, this design decision has been criticised as it was easy to spill gasoline from the trunk.
In 1967, VW Beetle owners filled up their gas tanks from the side of the car, not under the hood. This change may have occurred earlier, as one owner of a 1967 Beetle noted that the exact dates of this switch are unclear.
From 1971 onwards, the standard Beetles had a 40-litre tank, while the superbugs had a 42-litre tank. The introduction of the side filler in 1970 may have caused a temporary reduction in tank capacity.
Replacing the fuel tank in a VW Beetle is a straightforward process that can be done by an average mechanic or even a DIY Bug owner. The process involves emptying the tank, disconnecting the fuel line and wiring, and then dropping and reinstalling the tank in the opposite order. Removing the axle beam and replacing the fuel lines may also be necessary.
Fuel Stabilizer: Full Tank Addition, Safe or Not?
You may want to see also
Explore related products
$12.99 $13.99
Beetle design changes in 1968
The Volkswagen Beetle, originally called the Volkswagen Type 1, received its official name in 1968. That year, the Beetle underwent several design changes, including some stylistic improvements and the introduction of an external fuel cap.
The 1968 Beetle featured a manual four-on-the-floor transmission, crank windows, and a German AM transistor radio. The car's exterior remained largely consistent with previous models, but Volkswagen implemented subtle alterations to its colours and lighting.
One notable change in 1968 was the introduction of an external fuel filler flap, eliminating the need to open the front bonnet for refuelling. This was a significant update, as prior to 1968, Beetles had the in-trunk fuel filler, which was designed in 1938.
The Beetle's engine also saw some improvements in 1968, with the 1200 receiving fully independent suspension and the 1300 transitioning from six-volt to twelve-volt electrics, dual-circuit braking, and a fuel gauge. The 1500 model, which was introduced in 1967, continued to be enhanced with carburettor improvements.
The Volkswagen Beetle's design changes in 1968 were part of the car's incremental updates over its lifespan, ensuring its lasting popularity and impact on automotive history.
Best Paint for Fuel Tanks: A Comprehensive Guide
You may want to see also
Explore related products
Beetle's fuel tank capacity
The Volkswagen Beetle has had various iterations over the years, and the fuel tank capacity has changed with each version. The VW Beetle was first introduced in 1938 and underwent its first major update in 1968. During this period, the Beetle had an in-trunk fuel filler, which was a design feature that VW also used on its more up-market Type 3s and Karmann-Ghias.
While the exact fuel tank capacity of the early VW Beetles is not readily available, owners of the 1967 model have reported a capacity of around 8.3 gallons (31.4 litres). This is based on how much fuel was needed to fill up the tank after running out of gas. However, it is important to note that this could also indicate a partially blocked strainer inside the tank, preventing the last inch of fuel from reaching the engine.
From 1971 onwards, the VW Superbug was introduced, boasting a larger fuel tank capacity of 42 litres (11.2 US gallons or 9.2 imperial gallons). Meanwhile, the standard bugs from 1971 onwards retained a fuel tank capacity of 40 litres (10.6 US gallons or 8.8 imperial gallons).
It is worth noting that some sources mention a "Long Range" option for the VW Bug, which offers a 15-gallon (56.8-litre) fuel tank. This larger tank is said to be a direct replacement for the stock tank, requiring no modifications to brackets or the filler neck.
Additionally, the fuel filler location on the VW Beetle has varied over the years. Early models featured an in-trunk fuel filler, while later models, such as those from 1967 onwards, had the fuel filler located on the side of the car.
How Water in Fuel Tank Affects Your Car's Performance
You may want to see also
Explore related products
1961 Beetle's redesigned fuel tank
The Volkswagen Beetle is renowned for its unconventional design, particularly its fuel tank placement. From its inception in 1938 until its first major redesign in 1968, the Beetle featured an in-trunk fuel filler. This design was also seen in other VW models like the Karmann-Ghia and Type 3s, as well as cars from other manufacturers, such as Fiat, DeLorean, and Mercedes.
However, the fuel tank placement evolved over time, and by 1961, the Beetle's fuel tank design had undergone some changes. This is evident from the availability of fuel tanks and filler necks specifically for the 1961 Volkswagen Beetle. While there is limited information specifically about the 1961 model, it is known that the fuel tank capacity for Beetles up to and including 1970 was 40 litres (10.6 US gallons or 8.8 Imperial gallons).
The 1961 Beetle may have retained the in-trunk fuel filler design, which was a source of controversy due to the potential safety hazards it posed. Placing the fuel filler in the trunk increased the risk of spilling gasoline, and in an era before automatic shut-off gas pumps, a minor mistake could have led to disastrous consequences.
To address this issue, Volkswagen introduced the "Jigsaw" fuel tank raise system for Beetles from 1961 to 1979. This system allowed for a rigid fixing of the fuel tank, with each module stacking in 6mm increments to achieve the desired height. This modular design compensated for tank dimension and year variations, ensuring a discreet and invisible fit.
In conclusion, while the exact details of the 1961 Beetle's fuel tank design are scarce, it is clear that Volkswagen made efforts to improve the fuel tank system during this period, likely in response to safety concerns associated with the in-trunk fuel filler design. These improvements aimed to enhance the overall functionality and safety of the iconic Beetle model.
Understanding Fuel Tank Pressure: What's Normal?
You may want to see also
Explore related products
Beetle's fuel gauge
The VW Beetle is a much-loved car, but some owners have experienced issues with the fuel gauge. The fuel gauge on Beetles from the years 1969, 1971, and 1972 has been known to malfunction, with the gauge not always providing an accurate reading of the fuel level.

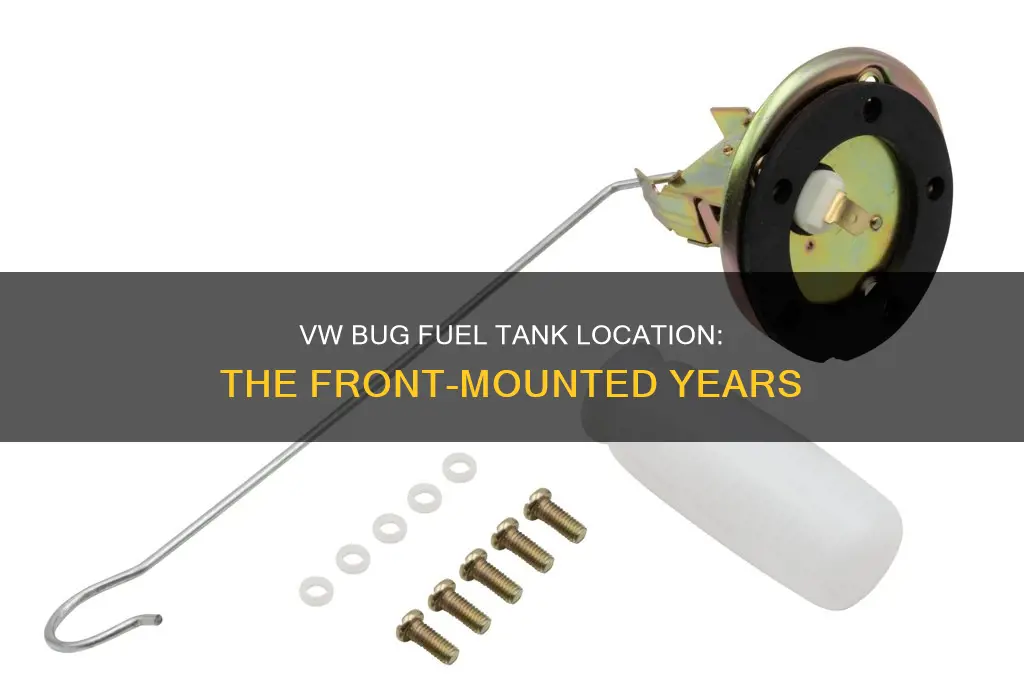

Owners of the 1969 VW Beetle have reported that the gauge can read as full when the tank is not, and sometimes it doesn't show full when the tank has been filled. This issue is possibly due to the sender, which can get dirty or worn out, and small cracks in the sender unit can fill with fuel, leading to poor readings. The sender is inexpensive to replace, and owners can also try to bend the float mount to get a more accurate reading.
Owners of the 1971 VW Beetle have reported a similar issue, with the gauge never reading above 70% full, even when the tank is completely full. As a workaround, owners can use the odometer as a reference for when the gauge is nearing the bottom.
The 1972 Super Beetle owner also reported a similar issue, with the gauge never reading above 3/4 full. Again, the odometer can be used to track mileage and know when it's time to refill.
It is worth noting that the VW Beetle fuel gauges from this era were never as accurate as modern cars, but owners can get them close to correct with some adjustments and workarounds.
The 1962 VW Beetle was the first model year to feature a fuel gauge as standard equipment from the factory. The fuel gauge for the 1962-1967 VW Beetle is a mechanical type with a sender cable and a gas pump image on the face of the gauge.
Refilling Strategies for Large Fuel Tanks in Gold Rush
You may want to see also
Frequently asked questions
None of the VW Bugs had the fuel tank in front. The 1961 Beetle had a redesigned fuel tank that increased boot capacity.
No, VW models like the Karmann-Ghia and Type 3s had the in-trunk fuel filler.
The fuel tank filler was located on the side of the car, next to the driver's door.
The fuel capacity of the VW Bug varied over the years. Bugs up to and including 1970 had a capacity of 10.6 US gallons (40 litres). The 1971 models had a capacity of 11.2 US gallons (42 litres).
