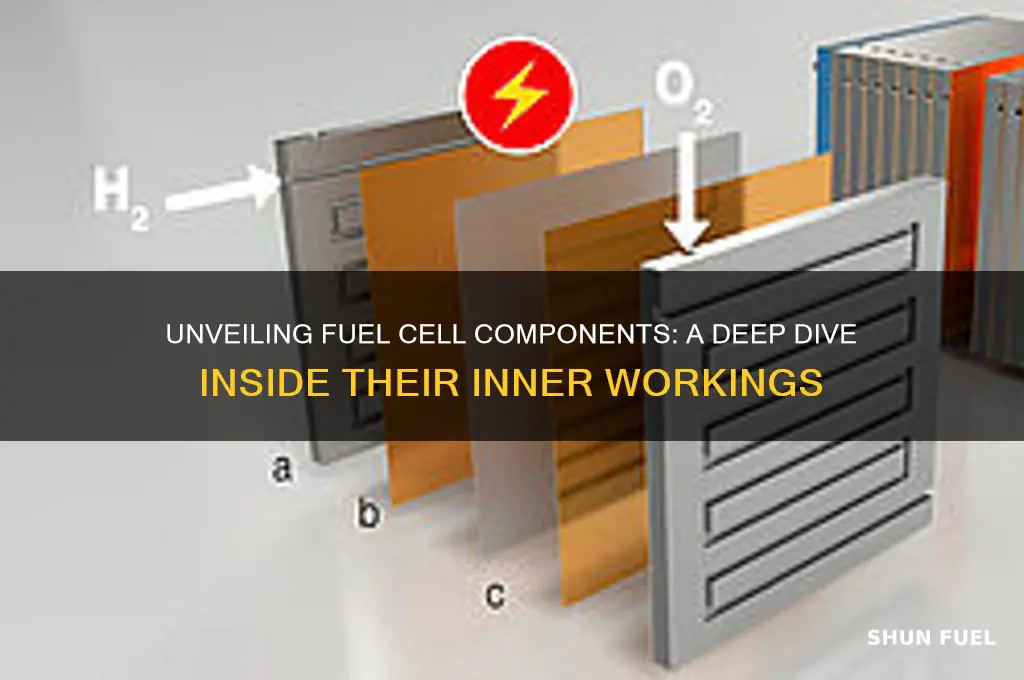

Fuel cells are innovative devices that generate electricity through a chemical reaction, typically combining hydrogen and oxygen to produce water, heat, and electrical energy. At the heart of a fuel cell are several critical components, including the anode, cathode, and electrolyte. The anode serves as the site where hydrogen molecules are split into protons and electrons, while the cathode facilitates the reaction of oxygen with protons and electrons to form water. The electrolyte, a selectively permeable membrane, allows protons to pass through while blocking electrons, forcing them to travel through an external circuit and generate electricity. Additionally, catalysts, often made of platinum, are used to accelerate these reactions, ensuring efficiency. Together, these components work in harmony to produce clean and sustainable energy, making fuel cells a promising technology for various applications, from transportation to stationary power generation.
| Characteristics | Values |
|---|---|
| Electrolyte | Proton Exchange Membrane (PEM): Nafion (most common), Aquivion, Gore-Select Alkaline: Potassium hydroxide (KOH) Solid Oxide: Yttria-stabilized zirconia (YSZ), Scandia-stabilized zirconia (ScSZ) Others: Phosphoric acid, molten carbonate |
| Anode Catalyst | Platinum (Pt), Platinum alloys (Pt-Ru, Pt-Co), Iron-Nitrogen-Carbon (Fe-N-C), Non-precious metal catalysts |
| Cathode Catalyst | Platinum (Pt), Platinum alloys (Pt-Co, Pt-Ni), Silver (Ag), Non-precious metal catalysts |
| Fuel | Hydrogen (H₂), Methanol (CH₃OH), Ethanol (C₂H₅OH), Natural gas (reformated to H₂), Ammonia (NH₃) |
| Oxidizing Agent | Oxygen (O₂) from air |
| Membrane Thickness | Typically 25-50 μm for PEM fuel cells |
| Operating Temperature | PEM: 60-90°C Alkaline: 60-90°C Solid Oxide: 500-1000°C Molten Carbonate: 600-700°C |
| Efficiency | 40-60% electrical efficiency (PEM), Higher combined heat and power (CHP) efficiency |
| Power Density | 0.5-2 W/cm² (PEM), Higher for solid oxide fuel cells |
| Lifespan | 5,000-10,000 hours (PEM), Depends on operating conditions and materials |
| Applications | Transportation (cars, buses), Stationary power generation, Portable electronics, Backup power systems |
| Advantages | Zero tailpipe emissions (H₂ fuel), High efficiency, Quiet operation, Modular design |
| Challenges | Cost of catalysts (especially Pt), Durability, Hydrogen storage and infrastructure |
Explore related products
What You'll Learn
- Electrodes (Anode/Cathode): Conductive materials facilitating reactions, typically carbon-based, with catalysts like platinum
- Electrolyte Membrane: Proton-conducting barrier separating electrodes, often made of polymer materials
- Catalysts: Accelerate electrochemical reactions, commonly platinum or platinum alloys for efficiency
- Gas Diffusion Layers: Porous layers enabling gas flow and electron conduction within the cell
- Bipolar Plates: Distribute reactants, collect electrons, and provide structural support in the stack
Electrodes (Anode/Cathode): Conductive materials facilitating reactions, typically carbon-based, with catalysts like platinum
Electrodes are the unsung heroes of fuel cells, serving as the critical interface where chemical reactions convert fuel into electricity. At the heart of these components are the anode and cathode, each playing a distinct role in the process. The anode facilitates the oxidation of fuel, typically hydrogen, releasing electrons that generate the electric current. Meanwhile, the cathode reduces oxygen, combining it with electrons and protons to form water. This elegant dance of charge transfer hinges on the conductive nature of the electrode materials, which are predominantly carbon-based due to their high surface area, electrical conductivity, and cost-effectiveness.
To enhance reaction efficiency, catalysts are integrated into the electrode structure. Platinum, though expensive, remains the gold standard for this purpose due to its exceptional ability to accelerate both the hydrogen oxidation reaction (HOR) at the anode and the oxygen reduction reaction (ORR) at the cathode. However, researchers are exploring alternatives like iron-nitrogen-carbon (Fe-N-C) catalysts to reduce costs without compromising performance. The catalyst layer is typically applied in low dosages—around 0.1 to 0.3 mg/cm² of platinum—to balance effectiveness and economic viability. This thin layer is carefully deposited onto the carbon support, ensuring maximum exposure to reactants while minimizing material usage.
Designing effective electrodes involves more than just material selection; it requires optimizing their microstructure. Porosity, for instance, is critical to allow reactant gases to diffuse efficiently to the catalyst sites. A pore size range of 10 to 50 nanometers is ideal for balancing gas accessibility and structural integrity. Additionally, the thickness of the electrode layer must be precisely controlled—typically between 5 and 20 micrometers—to prevent excessive resistance while maintaining mechanical stability. Practical tips for manufacturers include using techniques like spray coating or decal transfer to apply the catalyst layer uniformly, ensuring consistent performance across the electrode surface.
Comparing carbon-based electrodes to other conductive materials highlights their advantages and limitations. While metals like gold or nickel offer higher conductivity, their lower surface area and susceptibility to corrosion make them less suitable for fuel cell applications. Graphene, a single layer of carbon atoms, shows promise due to its superior conductivity and strength, but its high production cost and challenges in large-scale integration limit widespread adoption. Carbon fiber, another alternative, provides excellent mechanical stability but falls short in surface area compared to traditional carbon powder. Thus, carbon-based electrodes remain the practical choice, balancing performance, durability, and affordability.
In conclusion, electrodes are not merely passive components but active facilitators of the electrochemical reactions that power fuel cells. Their design—from material selection to microstructural optimization—is a delicate balance of science and engineering. By leveraging carbon-based materials and catalysts like platinum, while exploring cost-effective alternatives, the fuel cell industry continues to push the boundaries of efficiency and sustainability. For practitioners, understanding these nuances is key to developing next-generation fuel cells that are both powerful and economically viable.
Mastering Keep Trucking Fuel Tax: A Step-by-Step Guide for Truckers
You may want to see also
Explore related products
Electrolyte Membrane: Proton-conducting barrier separating electrodes, often made of polymer materials
The electrolyte membrane is the unsung hero of fuel cell technology, a proton-conducting barrier that separates the anode and cathode while enabling the flow of ions necessary for electricity generation. Typically made of polymer materials, such as Nafion or other perfluorinated sulfonic acids, this membrane must balance two critical functions: selectively conducting protons while blocking electrons and reactant gases. Its performance directly impacts the fuel cell’s efficiency, durability, and operational temperature range, making material selection and design paramount.
Consider the proton exchange membrane fuel cell (PEMFC), a popular type used in vehicles and portable electronics. Here, the electrolyte membrane operates under stringent conditions: temperatures up to 80°C, humidified environments, and constant exposure to hydrogen and oxygen. Nafion, a DuPont-developed polymer, dominates this space due to its high proton conductivity (up to 0.1 S/cm at 80°C and 100% relative humidity) and chemical stability. However, its reliance on water for proton transport limits operation to below 100°C, restricting applications in high-temperature fuel cells.
For those designing or optimizing fuel cells, selecting the right membrane material involves trade-offs. While Nafion excels in conductivity, alternatives like polybenzimidazole (PBI) or composite membranes offer higher temperature tolerance (up to 200°C) but require phosphoric acid doping to achieve comparable conductivity. Practical tips include maintaining membrane hydration levels—typically 30–50% relative humidity—to ensure optimal proton mobility. For experimental setups, avoid exposing membranes to methanol or other organic solvents, as these can degrade the polymer structure.
Comparatively, solid oxide fuel cells (SOFCs) use ceramic electrolytes like yttria-stabilized zirconia (YSZ), which conduct oxide ions at 600–1000°C. While these membranes eliminate hydration concerns, their brittleness and high operating temperatures limit scalability for consumer applications. In contrast, polymer-based membranes in PEMFCs offer flexibility and lower operating temperatures, making them ideal for transportation and portable power. The choice between polymer and ceramic membranes ultimately hinges on the application’s thermal requirements and mechanical constraints.
To maximize membrane lifespan, follow these steps: first, precondition new membranes by boiling in deionized water for 1 hour to remove impurities. Second, assemble fuel cells in a controlled humidity environment (40–60% RH) to prevent drying or over-hydration. Finally, monitor operating temperatures and gas purity, as contaminants like carbon monoxide can poison the membrane. By understanding the electrolyte membrane’s role and tailoring material selection to specific demands, engineers can unlock fuel cells’ full potential across diverse industries.
Using Air Pressure Gauges for Fuel: Safe or Risky Practice?
You may want to see also
Explore related products
$19.99 $24.99
Catalysts: Accelerate electrochemical reactions, commonly platinum or platinum alloys for efficiency
Catalysts are the unsung heroes of fuel cells, driving the electrochemical reactions that convert chemical energy into electricity. Among these, platinum and its alloys stand out for their unparalleled efficiency in facilitating the oxygen reduction reaction (ORR), a critical process in proton-exchange membrane fuel cells (PEMFCs). However, platinum’s high cost and limited availability have spurred research into optimizing its use. For instance, reducing platinum loading from the conventional 0.4 mg/cm² to 0.1 mg/cm² or less, while maintaining performance, is a key goal. This reduction not only lowers costs but also enhances the viability of fuel cells for widespread applications, from electric vehicles to portable electronics.
To achieve this efficiency, platinum is often alloyed with transition metals like nickel, cobalt, or iron. These alloys can outperform pure platinum by altering the electronic structure of the catalyst, thereby improving its activity and stability. For example, a platinum-nickel alloy can increase the ORR efficiency by up to 90% compared to pure platinum. The process involves depositing ultra-thin layers of the alloy onto a carbon support, ensuring maximum surface area for reaction sites. Practical tips for researchers include using atomic layer deposition (ALD) techniques to precisely control the catalyst’s composition and structure, ensuring optimal performance.
Despite their advantages, platinum-based catalysts face challenges such as degradation under harsh operating conditions. High temperatures, moisture, and voltage fluctuations can cause platinum particles to agglomerate or dissolve, reducing their effectiveness over time. To mitigate this, manufacturers often incorporate durability-enhancing additives or design advanced membrane electrode assemblies (MEAs) that minimize stress on the catalyst. For fuel cell operators, maintaining a consistent operating temperature (ideally between 60°C and 80°C) and avoiding rapid voltage changes can extend the catalyst’s lifespan.
The quest for platinum alternatives has also led to the exploration of non-precious metal catalysts (NPMCs), such as iron-nitrogen-carbon (Fe-N-C) materials. While NPMCs are more affordable, they currently lag behind platinum in terms of performance and durability. However, ongoing research aims to bridge this gap by optimizing NPMC synthesis methods and integrating them with hybrid systems. For instance, combining NPMCs with small amounts of platinum in a "single-atom catalyst" configuration has shown promise in balancing cost and efficiency. This approach could revolutionize fuel cell technology, making it more accessible for large-scale energy applications.
In conclusion, catalysts, particularly platinum and its alloys, are indispensable for accelerating electrochemical reactions in fuel cells. By optimizing their composition, structure, and operating conditions, researchers and engineers can enhance efficiency, reduce costs, and extend durability. Whether through advanced alloying techniques, durability-focused designs, or the development of NPMCs, the evolution of catalysts continues to drive the potential of fuel cells as a clean and sustainable energy solution. For practitioners, staying informed about these advancements and adopting best practices will be key to maximizing the benefits of this technology.
KTM's Fuel Injection Revolution: A Look at the Transition Year
You may want to see also
Explore related products
Gas Diffusion Layers: Porous layers enabling gas flow and electron conduction within the cell
Within a fuel cell, the Gas Diffusion Layer (GDL) is a critical yet often overlooked component. This porous layer, typically made from carbon fiber or carbon paper, serves as the interface between the catalyst layer and the flow field plates. Its primary functions are twofold: facilitating the diffusion of reactant gases (like hydrogen and oxygen) to the catalyst sites and enabling the efficient conduction of electrons generated during the electrochemical reaction. Without a well-designed GDL, the fuel cell’s performance would plummet due to poor gas distribution and increased electrical resistance.
Consider the structural requirements of a GDL. It must balance porosity and conductivity, ensuring that gases can flow freely while maintaining a robust network for electron transport. The pore size distribution is critical; too large, and gas diffusion becomes inefficient; too small, and the layer risks clogging or restricting flow. Manufacturers often treat GDLs with hydrophobic coatings, such as polytetrafluoroethylene (PTFE), to manage water within the cell. This prevents flooding, which can block gas pathways, while still allowing for sufficient moisture to hydrate the membrane.
From a practical standpoint, selecting the right GDL material is essential for optimizing fuel cell efficiency. Carbon-based materials dominate due to their high electrical conductivity and chemical stability, but researchers are exploring alternatives like graphene or metal foams to enhance performance. For instance, graphene’s superior conductivity and mechanical strength could reduce contact resistance, improving overall cell efficiency. However, cost and scalability remain challenges for such advanced materials.
A key takeaway is that the GDL’s design directly impacts fuel cell durability and performance. Engineers must consider operating conditions, such as temperature and humidity, when specifying GDL properties. For example, in high-humidity environments, a GDL with a higher hydrophobicity may be necessary to prevent water accumulation. Conversely, in dry conditions, a more hydrophilic treatment might be required to maintain membrane hydration. Tailoring the GDL to the specific application ensures the fuel cell operates reliably under varying conditions.
In summary, the Gas Diffusion Layer is a cornerstone of fuel cell functionality, bridging the gap between gas supply and electrochemical reaction. Its design demands a careful balance of porosity, conductivity, and water management, making it a prime target for innovation in fuel cell technology. By optimizing GDL materials and treatments, engineers can unlock higher efficiency, durability, and versatility in fuel cell applications, from electric vehicles to stationary power systems.
Superyacht Fuel Types: Diesel, Gas, or Alternative Options?
You may want to see also
Explore related products
Bipolar Plates: Distribute reactants, collect electrons, and provide structural support in the stack
Bipolar plates are the unsung heroes of fuel cell architecture, serving as the backbone of the stack while orchestrating the delicate dance of reactants and electrons. Positioned between individual cells, these plates are engineered to perform three critical functions simultaneously: distributing hydrogen and oxygen (or air) to the anode and cathode, collecting the electrons generated during the electrochemical reaction, and providing mechanical support to maintain the integrity of the stack under varying operational conditions. Typically fabricated from graphite, metal, or composite materials, bipolar plates must balance conductivity, corrosion resistance, and cost-effectiveness to ensure optimal fuel cell performance.
Consider the material selection for bipolar plates, a decision that hinges on the specific fuel cell type and application. For proton-exchange membrane fuel cells (PEMs), graphite plates are often preferred due to their high electrical conductivity and chemical stability in acidic environments. However, their brittleness and manufacturing complexity can drive up costs, prompting researchers to explore metal alternatives like stainless steel or titanium coated with protective layers. In contrast, alkaline fuel cells may utilize nickel-based plates, leveraging their robustness and lower cost, though they require careful management to prevent degradation. Each material choice carries trade-offs, influencing not only efficiency but also the overall lifespan and scalability of the fuel cell system.
The design of bipolar plates is equally critical, as it directly impacts reactant distribution and electron flow. Channels or flow fields etched into the plate surface guide hydrogen and oxygen to the electrodes, ensuring uniform coverage and minimizing pressure drop. These channels must be precisely engineered to avoid dead zones or hotspots, which can reduce efficiency or accelerate component wear. Simultaneously, the plates act as current collectors, funneling electrons from the anode to the cathode via an external circuit. This dual functionality demands meticulous attention to detail, as even minor design flaws can compromise both electrical and fluid dynamics within the stack.
Practical considerations extend beyond materials and design to manufacturing and integration. For instance, metal plates can be stamped or molded, offering cost advantages for mass production, but require additional treatments to enhance conductivity and corrosion resistance. Graphite plates, while superior in performance, often necessitate complex machining processes that limit scalability. Assembling the stack also requires precise alignment and sealing of bipolar plates to prevent reactant crossover or gas leakage, which can degrade performance or pose safety risks. Engineers must weigh these factors against the intended application, whether it’s a compact portable device or a high-power vehicle propulsion system.
In conclusion, bipolar plates are a linchpin of fuel cell technology, bridging the gap between chemical reactions and electrical output while maintaining structural integrity. Their design, material, and manufacturing must be tailored to the specific demands of the fuel cell type and application, balancing performance, durability, and cost. As fuel cells continue to evolve, advancements in bipolar plate technology will play a pivotal role in unlocking their full potential, from powering electric vehicles to enabling grid-scale energy storage. Understanding these nuances is essential for anyone looking to innovate or implement fuel cell solutions effectively.
B-17 Flying Fortress Fuel: Understanding the Power Source
You may want to see also
Frequently asked questions
The main components inside fuel cells include electrodes (anode and cathode), an electrolyte, and a catalyst, typically made of platinum or other precious metals.
The type of electrolyte depends on the fuel cell type; for example, Proton Exchange Membrane (PEM) fuel cells use a polymer membrane, while Solid Oxide Fuel Cells (SOFCs) use a ceramic electrolyte.
The catalyst, often platinum, accelerates the chemical reactions at the electrodes, enabling the conversion of fuel (e.g., hydrogen) and oxidant (e.g., oxygen) into electricity, heat, and water.
Electrodes are typically made of porous carbon materials, such as carbon paper or cloth, coated with a catalyst layer to facilitate the electrochemical reactions.
