Diesel engines have been used for transportation and industrial power for generations due to their durability and efficiency. The diesel fuel injection pump is a vital component of these machines that determines their efficiency, performance, and reliability. There are several types of diesel fuel pumps, including common rail fuel injection pumps, distributor (rotary) fuel injection pumps, in-line fuel injection pumps, and individual inline injection pumps. These pumps are responsible for pumping fuel at high pressure into the cylinders of a diesel engine. The performance of diesel engines is heavily influenced by their injection pump design and how the fuel is delivered.
| Characteristics | Values |
|---|---|
| Purpose | To deliver fuel into the engine cylinders |
| Type of injection systems | Pump-line-nozzle, unit injector, and common rail |
| Function | To maintain rhythm or timing and keep the engine running smoothly |
| Components | Fuel tank, fuel supply pump, fuel filter, high-pressure pump, fuel injector, and fuel injection nozzle |
| Fuel lines | Heavyweight, medium weight, and lightweight |
| Fuel atomization | Ensures fuel atomizes into very small fuel particles |
| Fuel injection methods | Individual pump and injector for each cylinder, combined pump and injector for each cylinder, one pump serving injectors for several cylinders, and pumps in a common housing with injectors for each cylinder |
| Fuel pressure | 400 to 600 psi in diesel engines |
| Fuel delivery | The quantity and timing of fuel injected are determined by solenoid-operated valves |
| Fuel injection pumps | Inline injection pumps, distributor injection pumps, and common rail injection systems |
Explore related products
What You'll Learn
Inline fuel injection pump
The injection pump is a critical component of diesel engines, and its efficiency, performance, and reliability depend on it. Inline fuel injection pumps are one of the two most popular injection pumps, the other being the distributor injection pump.
Inline injection pumps operate in a linear method, in contrast to rotary pumps, which employ a circular method of delivering fuel to the engine. Inline pumps are made up of separate pump and plunger units connected inline per cylinder. These pumps are activated by a cam that is fixed to the engine. They are known for delivering the right amount of fuel at the right time. Injection pumps use a plunger and barrel to create the high pressure needed to fuel the engine. The plunger creates a pressure wave that pushes the fuel through a small chamber and into the engine.
The diesel engine market is growing, with a projected value of $78.8 billion by 2028. Diesel engines offer superior performance and drive compared to gasoline engines, which explains their increasing popularity. Diesel engines do not require spark plugs for fuel ignition, as the fuel is ignited using highly compressed air provided by the injection pump. This ignition phase, also known as the power stroke, involves maintaining constant pressure as the volume expands. The volume and pressure decrease once the engine is ignited, powering the vehicle.
Aeromotive offers a range of inline fuel pumps that are designed to deliver fuel efficiency and power across various applications. These pumps are ideal for fuel injection systems and carbureted applications, ensuring a steady and consistent fuel flow. For applications requiring higher fuel pressures, Aeromotive also offers high-pressure inline fuel pumps that provide the optimal pressure for fuel atomization and combustion.
Flushing Out Diesel Fuel Tanks: The Complete Guide
You may want to see also
Explore related products
Distributor-type pump

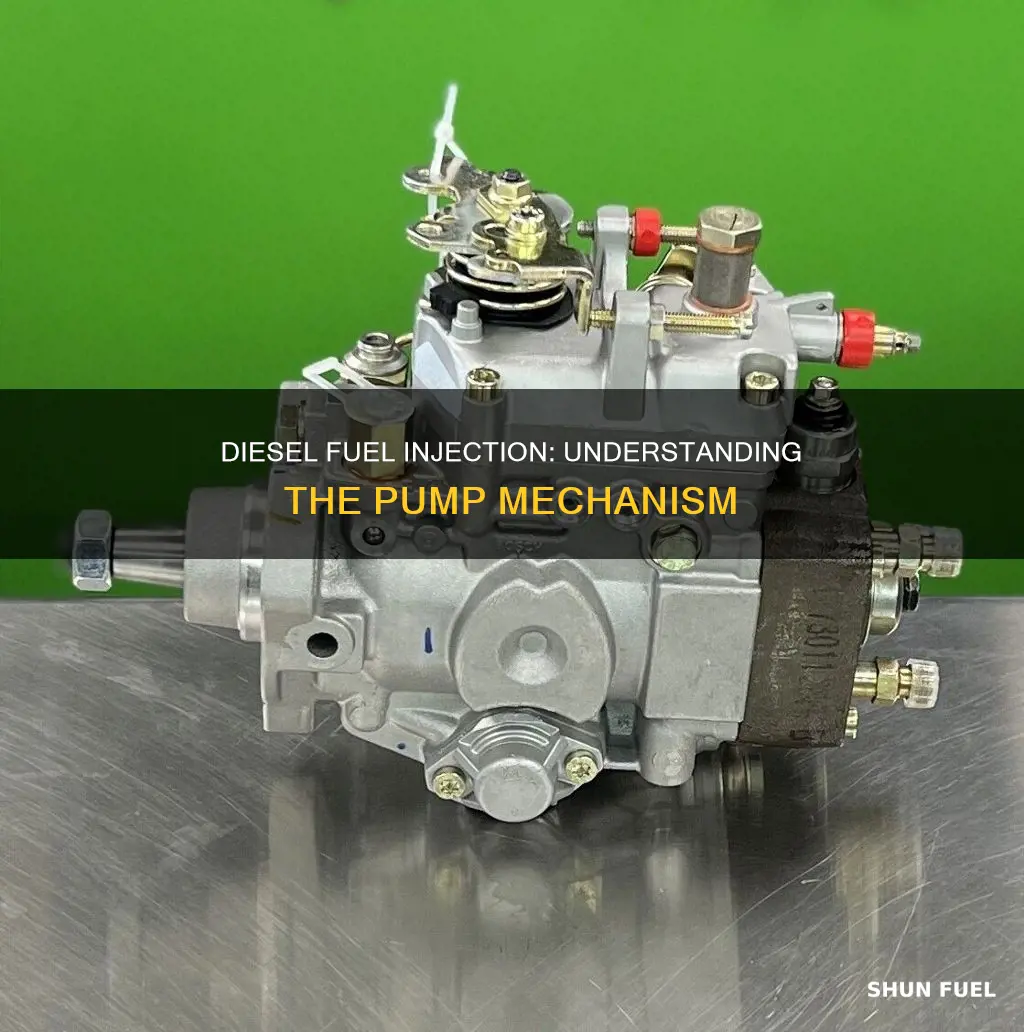

The distributor-type pump, also known as the rotary distributor pump, is a fuel injection pump used in some diesel engines. It is responsible for delivering precise amounts of fuel to each engine cylinder at the correct timing for combustion. This type of pump is characterised by its rotary design, which distinguishes it from other types of diesel injection pumps such as inline pumps.
The rotary mechanism in a distributor-type pump refers to the circular or rotary motion involved in the pump's operation. These pumps typically use a rotor or distributor, which rotates to distribute fuel to individual injection lines leading to each engine cylinder. As the rotor turns, it aligns with different outlets, allowing fuel to be delivered to the corresponding fuel injector for each cylinder. This design allows for variable injection timing, which can provide adjustments in fuel delivery timing based on engine speed and load conditions. This, in turn, contributes to better combustion efficiency and engine performance.
In terms of functionality, distributor-type pumps consist of a single high-pressure pump connected to a common rail manifold, which is then connected to multiple electronic fuel injectors. The engine's electronic control unit (ECU) controls the electronic fuel injectors, ensuring the precise delivery of fuel to the engine cylinders. The ECU can be thought of as a microcomputer that guides the performance of the fuel injectors.
Overall, the distributor-type pump is an important component of diesel engines, providing precise fuel delivery and timing, while also offering advantages in terms of size, weight, and simplicity of design.
How Diesel Fuel Turns Black: Understanding the Process
You may want to see also
Explore related products
$65.99
Common rail fuel injection pump
The common rail system is a type of diesel fuel injection pump that has gained popularity for on-road applications. It is a modern electric system that improves fuel efficiency, controls emissions, and enhances engine performance.
The common rail fuel injection pump is a part of the fuel injection system, which delivers fuel into the engine cylinders while controlling injection timing, fuel atomization, and other parameters. The injection pump is responsible for precisely delivering fuel to maintain a rhythm or timing, keeping the engine running smoothly.
In the common rail system, fuel pressure can be controlled as a function of engine speed and load, optimising emissions and performance while maintaining engine durability. This system has lower fuel pump peak torque requirements compared to conventional distributor pumps. The peak flow rate and peak torque required to drive the pump can be spread out over a longer portion of the engine cycle, reducing the strain on the drive shaft.
The common rail system also offers improved noise quality and low NOx emissions through the introduction of pilot injection. The injectors are designed to minimise leakage and improve overall fuel economy. The oil-lubricated, modular design of the common rail system allows for a highly fuel-efficient, compact pump adaptable to a wide range of engines.
Overall, the common rail fuel injection pump is a vital component in diesel engines, ensuring efficient and reliable performance while optimising fuel economy and emissions.
Colorado Diesel Fuel Prices Explained
You may want to see also
Explore related products
Individual pump and injector for each cylinder
The injection pump is a critical component of diesel engines, playing a vital role in their efficiency, performance, and reliability. Modern high-speed diesel engines typically use a fuel transfer pump, which automatically supplies fuel to the injection system. This pump often includes a hand primer lever for bleeding air from the system.
One of the primary systems for injecting fuel is the individual pump and injector for each cylinder method. This system ensures that each cylinder has its own dedicated pump and injector, allowing for precise fuel delivery and control over injection timing, fuel atomization, and other parameters.
The individual inline injection pumps, also known as in-line pump units, feature plungers that pressurize the fuel for injection into the chambers via fuel injectors. The number of plungers and injectors matches the number of cylinders, ensuring a dedicated plunger for each injector and cylinder. The plungers are operated by a camshaft, which derives its power from the engine crankshaft, and the force generated determines the fuel pressure.
The timing of the injection process is critical. It is designed so that fuel is injected slightly before the top dead center of the cylinder's compression stroke. This timing ensures that the injection occurs at the optimal moment for the engine's performance.
The individual pump and injector system offers several advantages. Firstly, it provides precise control over fuel delivery to each cylinder, optimizing engine performance. Secondly, it helps maintain the required pressure settings, preventing issues like engine spluttering during acceleration. Finally, by injecting fuel directly into the cylinders, this system achieves superior fuel atomization, enhancing combustion and contributing to the overall efficiency of the diesel engine.
The Diesel Fuel Crisis: Will We Run Out?
You may want to see also
Explore related products
Unit injector
The injection pump is a vital component of diesel engines, determining their efficiency, performance, and reliability. Diesel fuel injection systems are designed to deliver fuel into the engine cylinders, precisely controlling the injection timing, fuel atomization, and other parameters. One of the main types of injection systems is the unit injector system.
The basic operation of a unit injector system can be described as consisting of four separate phases: the filling phase, the spill phase, the injection phase, and the pressure reduction phase. During the filling phase, a low-pressure fuel delivery pump supplies filtered diesel fuel into the cylinder head fuel ducts and into each injector fuel port of the constant stroke pump plunger injector, which is overhead camshaft-operated. The constant stroke pump element draws fuel from the supply duct into the chamber when the electric solenoid valve is de-energized and the fuel line is open.
The unit injector system has been commercially used since the early 1930s, first appearing in Winton engines for locomotives, boats, and even US Navy submarines. It has since been adopted by major manufacturers such as Robert Bosch GmbH, CAT, Cummins, Delphi, Detroit Diesel, and Electro-Motive Diesel. Today, unit injector fuel systems are found in a wide variety of vehicles and engines, including commercial vehicles, passenger vehicles, and locomotives.
