Mercedes Mullins

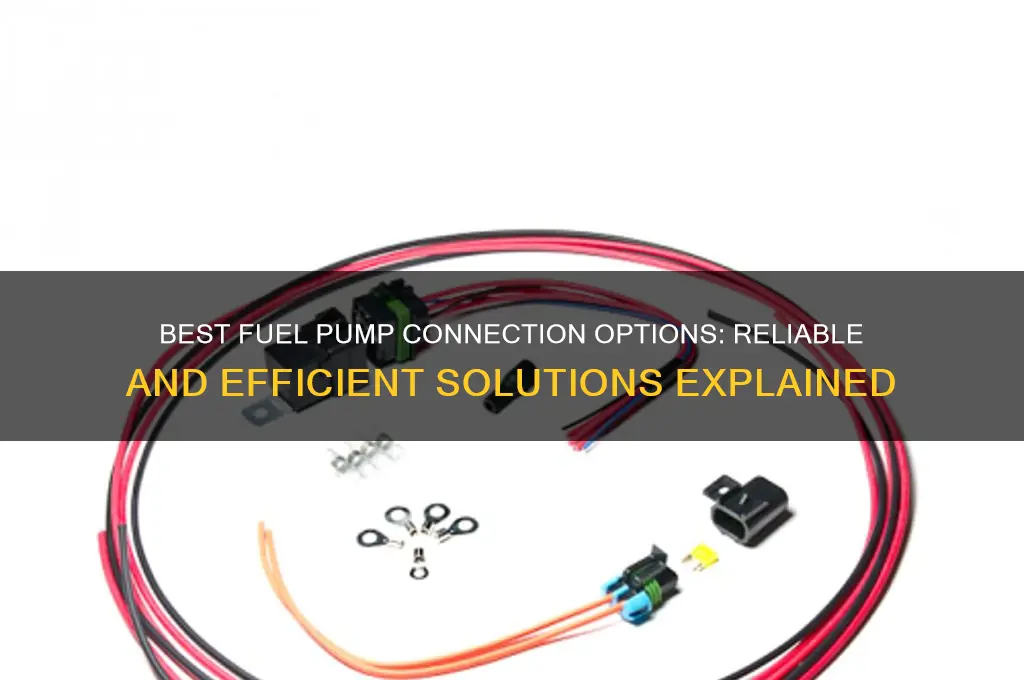

When selecting the appropriate components for a fuel pump connection, it is crucial to prioritize compatibility, durability, and safety. The fuel pump connector should match the specific make and model of the vehicle to ensure a secure and leak-free fit, often requiring OEM (Original Equipment Manufacturer) or high-quality aftermarket parts. Additionally, using heat-resistant and corrosion-resistant materials, such as nylon or metal connectors with proper sealing gaskets, is essential to withstand the harsh environment under the hood. Electrical connections must also be reliable, with terminals that maintain consistent contact and are protected from moisture or debris. Always consult the vehicle’s manual or a professional mechanic to confirm the correct specifications and installation procedures for optimal performance and longevity.
| Characteristics | Values |
|---|---|
| Connector Type | Typically uses a weatherproof, automotive-grade electrical connector (e.g., Deutsch, Metri-Pack, or equivalent) |
| Wire Gauge | 14-16 AWG (American Wire Gauge) for most applications, depending on current draw |
| Voltage | 12V DC (standard for most vehicles) |
| Current Rating | Varies by pump; typically 5-20 amps (check pump specifications) |
| Insulation | High-temperature, chemical-resistant insulation (e.g., silicone or Teflon) |
| Connector Material | Durable, heat-resistant plastic or metal (e.g., nylon or aluminum) |
| Waterproofing | IP67 or IP68 rated for protection against dust and water immersion |
| Terminal Type | Male/female blade or pin terminals, depending on the pump and wiring harness |
| Compatibility | Must match the fuel pump’s connector type and pin configuration |
| Grounding | Securely grounded to the vehicle chassis or frame |
| Wiring Length | Sufficient length to reach from the pump to the power source without tension |
| Reliability | Designed for vibration resistance and long-term durability in automotive environments |
| Safety Features | May include fuse or relay protection in the wiring circuit |
Explore related products
What You'll Learn
- Electrical Connectors: Ensure compatibility with pump's voltage and current requirements for safe, reliable operation
- Wiring Harness: Use OEM or high-quality aftermarket harnesses to prevent shorts and ensure longevity
- Grounding Techniques: Securely ground the pump to avoid electrical interference and ensure stable performance
- Waterproof Seals: Protect connections from moisture with marine-grade or silicone-based seals for durability
- Fuse and Relay: Install inline fuses and relays to safeguard the pump from electrical surges
Electrical Connectors: Ensure compatibility with pump's voltage and current requirements for safe, reliable operation
Electrical connectors are the unsung heroes of fuel pump systems, yet their compatibility with voltage and current requirements is often overlooked. A mismatch here can lead to overheating, electrical fires, or pump failure. For instance, a fuel pump designed for 12V operation connected to a 24V system will draw excessive current, causing the connector to melt or the pump to burn out. Conversely, underpowering the pump can result in insufficient fuel delivery, leading to engine stalling or poor performance. Always verify the pump’s voltage and current specifications before selecting a connector to avoid these risks.
When choosing an electrical connector, consider the pump’s amperage draw under load. A fuel pump drawing 15A at peak operation requires a connector rated for at least 20A to accommodate fluctuations and ensure longevity. High-current connectors like Deutsch DT series or AMP Superseal are popular choices due to their robust design and resistance to vibration and moisture. For low-current applications, smaller connectors such as bullet terminals or spade connectors may suffice, but ensure they meet the pump’s requirements and are securely crimped to prevent loose connections.
Material compatibility is another critical factor. Connectors exposed to fuel vapors or high temperatures must be made from materials resistant to corrosion and degradation. For example, nylon-based connectors with gold-plated terminals offer excellent durability in harsh environments. Avoid using connectors with copper terminals without proper plating, as they can corrode over time, increasing resistance and heat buildup. Always check the connector’s temperature and chemical resistance ratings to ensure it can withstand the operating conditions of your fuel system.
Proper installation techniques are equally important. Use the correct crimping tool to ensure a secure connection between the wire and terminal. Poorly crimped connectors can lead to voltage drops, arcing, or disconnection under vibration. Insulate connections with heat-shrink tubing or electrical tape to protect against moisture and abrasion. Regularly inspect connectors for signs of wear, corrosion, or overheating, especially in high-vibration environments like off-road vehicles or racing applications.
In summary, ensuring compatibility between electrical connectors and fuel pump voltage and current requirements is non-negotiable for safety and reliability. Match the connector’s ratings to the pump’s specifications, choose materials suited to the environment, and install them correctly to prevent failures. By taking these steps, you’ll safeguard your fuel system and maintain optimal engine performance.
Exploring the Primary Hydrocarbon Fuel: Methane's Dominance in Energy Sources
You may want to see also
Explore related products
Wiring Harness: Use OEM or high-quality aftermarket harnesses to prevent shorts and ensure longevity
The wiring harness is the unsung hero of your fuel pump connection, quietly ensuring power delivery without drama. Skimp on quality here, and you're courting electrical gremlins: shorts, erratic fuel delivery, even fires. OEM harnesses, designed by the manufacturer, are the safe bet, a factory-fit solution engineered for your specific vehicle. They're built to withstand the vibrations, heat, and moisture unique to your engine bay, ensuring longevity and reliability. Think of them as the tailored suit of the automotive world – a perfect fit, every time.
But OEM isn't the only game in town. High-quality aftermarket harnesses, from reputable brands like Painless Performance or Ron Francis Wiring, offer compelling alternatives. These often feature upgraded materials like thicker gauge wire for higher amperage handling, heat-resistant insulation for extreme conditions, and pre-terminated connectors for easier installation. Imagine swapping your standard work boots for a pair of steel-toed, waterproof, slip-resistant ones – that's the aftermarket upgrade.
Choosing between OEM and aftermarket boils down to your priorities. OEM prioritizes seamless integration and proven reliability, while aftermarket caters to performance upgrades, customization, and sometimes, cost-effectiveness. If you're simply replacing a worn harness, OEM is the no-brainer. But if you're turbocharging your engine or adding a high-flow fuel pump, an aftermarket harness designed for increased power demands is the smarter choice.
Think of it like choosing a hiking trail: OEM is the well-marked, maintained path, while aftermarket offers more challenging terrain with potentially greater rewards.
Regardless of your choice, remember: quality is paramount. Cheap, generic harnesses are a recipe for disaster. Look for brands with a proven track record, positive reviews, and warranties. Inspect the harness for sturdy construction, tight crimps, and proper labeling. Remember, this isn't the place to cut corners – a failed fuel pump connection can have serious consequences.
Finally, installation is key. Follow the manufacturer's instructions meticulously, ensuring proper routing, secure connections, and adequate grounding. Double-check every step, test the system thoroughly before driving, and don't hesitate to consult a professional if you're unsure. Remember, a well-installed, high-quality wiring harness is the invisible guardian of your fuel system, ensuring smooth operation and peace of mind for miles to come.
Rec Fuel in Cub Cadet Snowblower: Pros, Cons, and Best Practices
You may want to see also
Explore related products
Grounding Techniques: Securely ground the pump to avoid electrical interference and ensure stable performance
Electrical interference can wreak havoc on fuel pump performance, leading to erratic operation or even failure. Proper grounding is the unsung hero in this scenario, acting as a conduit for stray electrical currents and ensuring a stable, interference-free environment. Without it, voltage spikes and electromagnetic noise can disrupt the pump’s delicate electronic components, causing inefficiency or damage. Grounding isn’t just a recommendation—it’s a critical safeguard for longevity and reliability.
To securely ground a fuel pump, start by identifying a clean, unpainted metal surface on the vehicle’s chassis. Use a wire brush or sandpaper to remove any rust, paint, or debris, ensuring a solid electrical connection. Connect the pump’s ground wire to this spot using a ring terminal and a bolt or self-tapping screw. For added reliability, apply a small amount of dielectric grease to the connection point to prevent corrosion. If the pump includes a dedicated grounding lug, use it—this is the manufacturer’s intended grounding point and ensures optimal performance.
Comparing grounding methods reveals the superiority of direct chassis connections over makeshift solutions. While some may attempt to ground the pump to the fuel tank or nearby components, these approaches are less effective due to potential insulation or inadequate conductivity. A direct chassis ground provides the lowest resistance path for electrical currents, minimizing interference. For in-tank fuel pumps, ensure the tank itself is securely grounded to the chassis, often via the mounting straps or brackets.
One common mistake is underestimating the importance of ground wire gauge. The wire should match or exceed the pump’s power wire gauge to handle the electrical load effectively. For example, a pump drawing 10 amps requires a 12-gauge wire for both power and ground. Thinner wires increase resistance, leading to voltage drop and potential overheating. Always consult the pump’s specifications for recommended wire sizes and grounding practices.
Finally, test the grounding integrity with a multimeter to ensure continuity between the pump’s ground and the chassis. A reading of 0.1 ohms or less confirms a solid connection. If resistance is higher, recheck the connection point and wiring. Regularly inspect the ground connection for signs of corrosion or loosening, especially in harsh environments. Proper grounding isn’t just a one-time task—it’s an ongoing maintenance practice that ensures the fuel pump operates flawlessly, even in electrically noisy environments.
Southwest Airlines' Fueling Partner at Love Field: Who Powers the Flights?
You may want to see also
Explore related products
Waterproof Seals: Protect connections from moisture with marine-grade or silicone-based seals for durability
Moisture intrusion can wreak havoc on fuel pump connections, leading to corrosion, electrical shorts, and system failures. To combat this, waterproof seals are essential. Marine-grade and silicone-based seals stand out as top choices due to their resilience in harsh environments. Marine-grade seals, designed for saltwater exposure, offer superior resistance to chemicals and temperature extremes, making them ideal for vehicles operating in wet or coastal conditions. Silicone-based seals, on the other hand, provide excellent flexibility and adhesion, ensuring a tight seal even in areas with irregular surfaces or movement.
When selecting a waterproof seal, consider the specific demands of your fuel pump connection. For instance, marine-grade seals are often thicker and more rigid, providing robust protection but requiring precise fitting. Silicone-based seals, while more forgiving in application, may degrade faster under prolonged exposure to petroleum products. To maximize durability, clean the connection area thoroughly before application, removing any grease or debris that could compromise adhesion. Apply the seal evenly, ensuring full coverage without gaps, and allow sufficient curing time as per the manufacturer’s instructions.
A practical tip for enhancing seal longevity is to use a combination of both materials. Apply a thin layer of silicone-based sealant first for its adhesive properties, followed by a marine-grade seal for added durability. This dual-layer approach provides both flexibility and strength, reducing the risk of leaks over time. Regularly inspect the seal for signs of wear, such as cracking or shrinkage, and replace it immediately if damage is detected. Proper maintenance ensures the connection remains watertight, safeguarding your fuel system from moisture-related issues.
Comparing the cost-effectiveness of these options, silicone-based seals are generally more affordable and easier to work with, making them a popular choice for DIY enthusiasts. Marine-grade seals, while pricier, offer unmatched longevity and are a better investment for long-term protection, especially in demanding environments. Ultimately, the choice depends on your vehicle’s operating conditions and your budget. Regardless of the type selected, the key takeaway is that investing in high-quality waterproof seals is a small price to pay to prevent costly fuel pump failures caused by moisture infiltration.
Fuel Efficiency at Speed: Does Faster or Slower Save Gas?
You may want to see also
Explore related products
Fuse and Relay: Install inline fuses and relays to safeguard the pump from electrical surges
Electrical surges can wreak havoc on a fuel pump, leading to costly repairs or even complete failure. To mitigate this risk, installing inline fuses and relays is a critical step in any fuel pump connection setup. These components act as the first line of defense, interrupting excessive current flow before it reaches the pump. A typical inline fuse for a fuel pump application ranges between 10 to 20 amps, depending on the pump’s power requirements. Always consult the manufacturer’s specifications to ensure compatibility and safety.
The relay, on the other hand, serves as a switch that controls the high-current flow to the pump. By using a relay, you reduce the load on the ignition switch and wiring, preventing overheating and potential damage. A standard 30-amp relay is commonly used for fuel pump applications, though this can vary based on the pump’s draw. When installing, position the relay as close to the battery as possible to minimize voltage drop, ensuring consistent power delivery to the pump.
Installation begins with routing the power wire from the battery through the fuse, then to the relay’s power terminal. The relay’s switched terminal connects directly to the fuel pump. Ground both the relay and pump securely to the vehicle’s chassis to complete the circuit. Use heat-shrink tubing to insulate all connections, protecting them from moisture and corrosion. This setup not only safeguards the pump but also simplifies troubleshooting, as a blown fuse or faulty relay is easier to diagnose than a damaged pump.
While inline fuses and relays are essential, they are not foolproof. Overloading the circuit or using incorrect fuse ratings can still lead to failure. Regularly inspect the fuse for signs of corrosion or damage, and replace it immediately if it blows. Additionally, ensure the relay is mounted in a location with adequate ventilation to prevent overheating. By combining proper installation with routine maintenance, you can significantly extend the lifespan of your fuel pump and maintain reliable performance.
In summary, inline fuses and relays are indispensable for protecting a fuel pump from electrical surges. Their installation requires careful consideration of amperage ratings, wiring placement, and grounding. When executed correctly, this setup not only safeguards the pump but also enhances the overall reliability of the vehicle’s fuel system. Treat this step as a non-negotiable in any fuel pump connection project, and you’ll reap the benefits of a safer, more efficient system.
Surviving Stranded Deep: Efficiently Using Fuel Stills for Longevity
You may want to see also
Frequently asked questions
The most common connector used for fuel pump connections is the Deutsch DT series connector, known for its durability and resistance to environmental factors like moisture and vibration.
While universal fuel pump connectors are available, it’s best to use the connector specified by your vehicle’s manufacturer to ensure compatibility, proper sealing, and reliable performance.
If your fuel pump connector is damaged or corroded, replace it with a high-quality OEM or aftermarket connector designed for your specific vehicle. Ensure proper sealing and secure connections to prevent fuel leaks or electrical issues.
