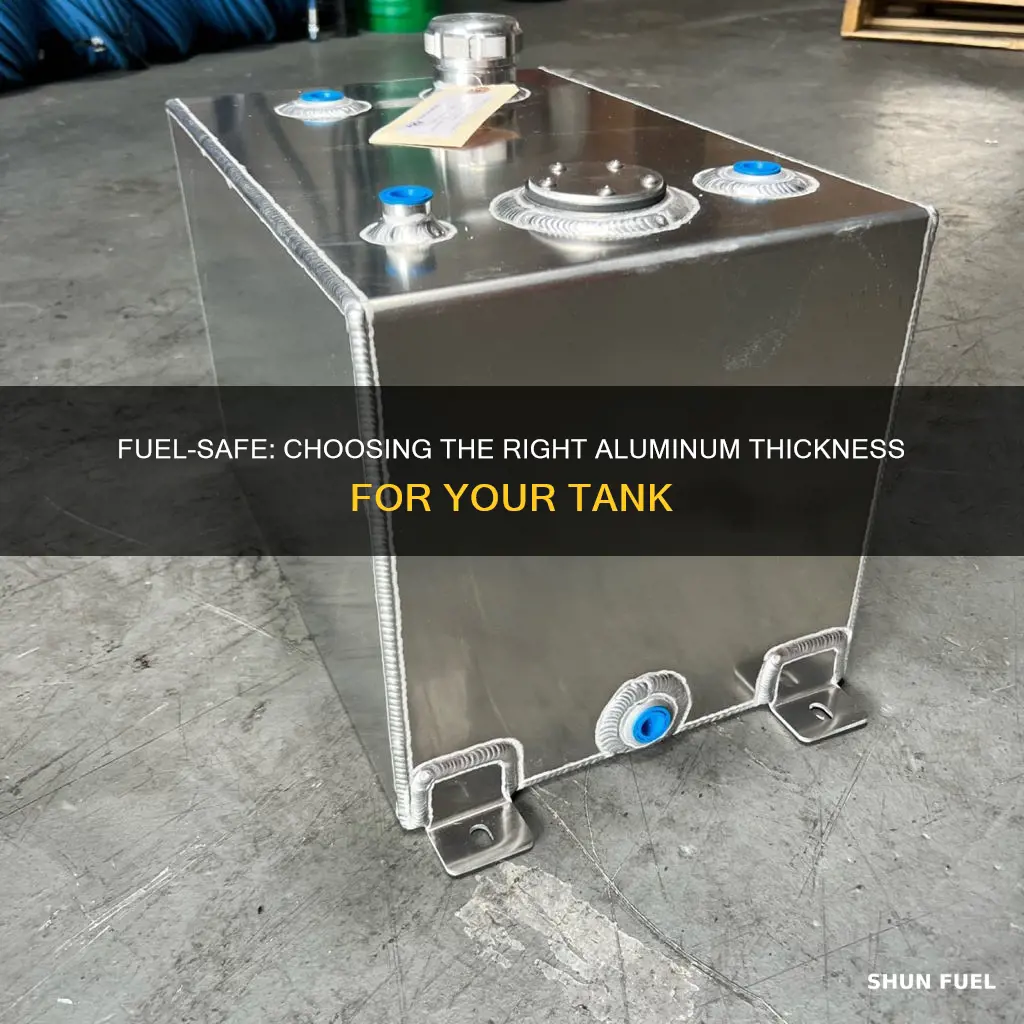

Aluminum is a popular choice for fuel tanks due to its clean, stable, and easy-to-work-with nature. However, the thickness of aluminum required for a fuel tank varies depending on the application and other factors such as mounting methods, internal baffling systems, and the number of engines drawing fuel from the tank. For example, a fuel tank for an aircraft may require a different thickness than one for a car or boat. Additionally, the welding or riveting process used to construct the tank can impact the required thickness of the aluminum.
Explore related products
$94.33 $99.3
What You'll Learn
- Aluminium fuel tank thickness varies from .
- Thickness depends on the tank's size, fuel type, and use case
- Welding is preferred over riveting for structural integrity
- Aluminium is a stable, clean, and easy-to-work-with material
- Aluminium thickness depends on the mounting method and tank design
Aluminium fuel tank thickness varies from .032 to .125
Aluminium is a popular material for fuel tanks due to its stability, ease of use, and ability to yield predictable results. However, welding aluminium can be challenging, and most builders have never attempted it. Aluminium fuel tanks can vary in thickness, with common thicknesses ranging from .
For smaller tanks, such as those used in cars, thicknesses of .090 or 0.100 are often used. These thicknesses provide sufficient structural integrity while keeping the weight of the tank low. In some cases, even thinner materials may be used, such as 0.050 or 0.040, especially for aviation fuel tanks where weight is a critical factor.
For larger tanks, such as those used in boats or trucks, thicker aluminium may be preferred. Thicknesses of .125 or even .1875 are commonly used for these applications to ensure the tank can withstand the weight and pressure of the fuel. Additionally, a good internal baffling system is crucial for larger tanks to prevent fuel from moving side to side and affecting the stability of the vehicle.
It's important to note that the thickness of an aluminium fuel tank depends on various factors, including the type of vehicle, the amount of fuel it needs to hold, and the mounting and support structure. The method of construction, such as welding or riveting, also plays a role in determining the appropriate thickness.
When designing an aluminium fuel tank, it is essential to consider the trade-off between weight and structural integrity. While thinner materials can reduce weight, they may require additional support structures or trays to maintain their shape and withstand the fuel's pressure. On the other hand, thicker materials provide greater strength and durability but add weight to the overall system.
Removing the Fuel Tank from a 2008 Saab 9-3
You may want to see also
Explore related products
$127.99 $135.99
Thickness depends on the tank's size, fuel type, and use case
The thickness of an aluminium fuel tank depends on several factors, including the tank's size, the type of fuel it will hold, and its intended use.
For smaller tanks, a thickness of around 0.040 to 0.050 inches is commonly used. For example, belly fuel tanks in a beaver aircraft are made of 0.040-inch thick aluminium, while some Stinson auxiliary tanks are made of 0.050-inch thick material. These thinner-walled tanks are often strapped into a tray or structure that provides structural integrity and helps maintain the tank's shape.
For larger tanks, thicker aluminium may be required. For instance, a custom 80-gallon fuel tank for a commercial boat was recommended to be made with 3/16-inch thick (0.1875 inches) aluminium for durability. Similarly, in the marine industry, fuel tanks are typically constructed using 1/8-inch thick (0.125 inches) aluminium.
The type of fuel can also influence the thickness of the aluminium. For example, one builder planned to use 0.125-inch thick aluminium for a gasoline tank in a 56 Chevy Nomad Street Rod, while another builder suggested a minimum thickness of 0.100 inches for a similar application.
The intended use case of the tank is another critical factor. For aircraft fuel tanks, weight is a significant consideration, so thinner aluminium sheets may be preferred to reduce weight. For instance, a builder of a weight-sensitive bushplane considered using 0.050-inch thick aluminium, which is a common thickness for aviation fuel tanks.
Overall, the thickness of an aluminium fuel tank depends on the specific requirements and applications. It is essential to consider the balance between durability, weight, and the fuel type to determine the appropriate thickness for a given project.
Massive Fuel Tanks: The 747's Secret to Long Flights
You may want to see also
Explore related products
Welding is preferred over riveting for structural integrity
Aluminium fuel tanks can vary in thickness, but some common thicknesses are .040, .050, .090, and .125.
When it comes to constructing these tanks, welding is often preferred over riveting due to its superior structural integrity. Welding creates seamless joins that are as strong or even stronger than the original base material. This high level of strength is ideal for load-bearing or high-stress parts, making it a perfect choice for fuel tanks. Additionally, welding creates airtight and watertight seals, which is essential for tanks or fluid-containing structures.
Welding also offers aesthetic benefits, as methods like TIG or seam welding produce clean, continuous, and visually appealing seams. This can be advantageous when the finished look of the tank is important. Furthermore, welding is versatile and can be applied to a variety of materials and complex geometries. It can even be performed underwater or in tight spaces, making it a flexible choice for various projects.
While riveting has its advantages, such as being quicker, more cost-effective, and suitable for simple structures, it does not provide the same level of structural integrity as welding. Riveting leaves visible seams and can add weight to the structure due to the weight of the rivets. In the case of aluminium fuel tanks, riveting may introduce weak elements, especially if it involves a 90-degree fold, as mentioned by one builder.
Therefore, for aluminium fuel tanks, welding is preferred over riveting to ensure maximum structural integrity, create seamless and strong joints, and provide airtight seals.
Leasing a Fuel Oil Tank: What Does It Mean?
You may want to see also
Explore related products
Aluminium is a stable, clean, and easy-to-work-with material
Aluminium is also customizable and can be cut and welded easily, making it a versatile option for fuel tanks in automotive and marine applications. However, welding aluminium can be challenging and may require expert instruction and practice to achieve predictable results. Some fuel tanks utilize rivets instead of welding, which can be just as effective when properly sealed.
The thickness of aluminium for a fuel tank depends on various factors, including the size of the tank, the type of fuel, and the mounting method. Common thicknesses for aluminium fuel tanks range from 0.040 inches to 0.125 inches, with some tanks utilizing thicker aluminium for added strength. It is important to consider the minimum thickness required for the fuel tank to function safely and effectively.
When choosing the appropriate thickness of aluminium for a fuel tank, it is crucial to consider the intended use and any relevant regulations or standards. For example, fuel tanks for aircraft or racing cars may have specific thickness requirements to ensure safety and performance. Working with an expert or following established guidelines can help ensure that the aluminium fuel tank is constructed properly.
Overall, aluminium is a stable and clean material that is relatively easy to work with, making it a popular choice for fuel tanks across various industries. By selecting the appropriate thickness and construction method, aluminium fuel tanks can provide durable and reliable performance for many years.
Removing the Fuel Tank from a 95 GTX: A Step-by-Step Guide
You may want to see also
Explore related products
Aluminium thickness depends on the mounting method and tank design
The thickness of aluminium for a fuel tank depends on several factors, including the mounting method and the design of the tank. For instance, if the tank is to be mounted using hard points on its sides, it must be self-supporting under G-loads when full of fuel. In this case, the thickness of the aluminium needs to be able to withstand this weight and maintain its structural integrity.
One user on a forum stated that they were planning to use .125-inch aluminium for their fuel tank, but were concerned about the capability of their shear, which was maxed at .100-inch thickness. Another user replied that ".100-inch material is about the minimum thickness for that size of the fuel tank, depending on how it is supported."
The mounting method can also influence the thickness of the aluminium. For example, if the tank is to be welded, certain types of aluminium may be more suitable than others. The 3000 and 5000 series of aluminium are good for welding, with the 3000 series being softer and the 5000 series being more structural. The 5052 series is also commonly used for weldable aluminium alloys and is known for its formability. However, if using the 6061 series, it is important to note that it may crack if bent at a 90-degree angle.
The design of the tank also plays a role in determining the thickness of the aluminium. For example, the number of baffles and their placement can affect the thickness required. Baffles are necessary to prevent the fuel from moving from side to side and creating an unstable vehicle. They also serve to strengthen the tank by increasing rigidity. Additionally, the overall shape and size of the tank can impact the thickness of the aluminium used.
In some cases, the thickness of the aluminium may be influenced by weight considerations. For example, in aircraft fuel tanks, thinner-walled tanks may be preferred to reduce weight. These thinner tanks are often strapped into a tray or other structure that provides structural integrity and helps maintain the tank's shape.
Titan Fuel Tanks: DOT-Approved?
You may want to see also
Frequently asked questions
The thickness of aluminum for a fuel tank depends on the type of car and the size of the tank. For example, a user on a forum mentioned that they used 0.125 aluminum for their Dakota pickup truck, while another user recommended 0.090 5052 Aluminum for their car.
The thickness of aluminum for an aircraft fuel tank can vary. Some common thicknesses include 0.040, 0.050, and 0.125. One engineer mentioned that 0.032" aluminum would be sufficient for a tank that is mounted via hard points on the side.
In addition to the type of vehicle and the size of the tank, the method of construction should be considered when choosing the thickness of aluminum. For example, if the tank will be welded, the thickness of the aluminum should be such that it can be welded without cracking. If the tank will be riveted, the thickness should allow for rivets to be installed without causing weakness in the structure.
Aluminum is a clean, stable, and easy-to-work-with material that yields predictable results. It is also lighter than fiberglass tanks of similar capacity. However, aluminum is difficult to weld, especially for those without expert instruction and practice.
