The nozzle is the last part of the injector through which fuel is sprayed into the cylinder to be combusted. The nozzle size dictates the rate at which fuel is delivered, and the spray characteristics depend on the physical properties of the fuel. For instance, the spray volume is influenced by the injection time, and the spray cone angle is influenced by the viscosity of the fuel. The nozzle size also affects the atomization of the fuel, with smaller nozzles providing better atomization. However, larger nozzles can flow more fuel in the same amount of time, resulting in more power at higher RPMs.
| Characteristics | Values |
|---|---|
| Nozzle Size | Smaller nozzles have smaller spray orifices, while larger nozzles have larger spray orifices. |
| Fuel Atomization | Smaller nozzles atomize fuel better due to smaller spray holes, while larger nozzles flow more fuel in the same amount of time. |
| Power | Larger nozzles can deliver more power at higher RPMs, but the trade-off is increased heat and smoke. |
| Injection Time | Spray volume is directly proportional to injection time; longer injection times result in larger spray volumes. |
| Fuel Viscosity | Fuel viscosity does not significantly affect spray volume but influences the spray cone angle. |
| Fuel Type | Residual Fuel Oil (RFO) has higher spray parameter values than diesel fuel, leading to a higher spray volume. |
| Engine Performance | Optimal spray parameters for a diesel engine: 256mm spray length, 6.41cm2 spray area, 16.18cm3 spray volume, 0.96 mm/s spray velocity, and 13.59° spray angle. |
| Emissions | Nozzles must meet performance and emissions goals of the market; common rail nozzles must be designed to prevent leakage. |
Explore related products
![A-Premium Fuel Injection Pressure Sensor [3 Pins] Compatible with Nissan Armada 2017-2021, Juke 2011-2015, NV1500 NV2500 2017-2021, NV3500 2012-2021, TITAN & Infiniti QX80, M37, M56, QX56, Q70](https://m.media-amazon.com/images/I/71HWhxtJykL._AC_UY218_.jpg)
What You'll Learn
Injector nozzle size
The size of an injector nozzle plays a critical role in the performance and emissions of diesel engines. The nozzle is the final part of the injector that sprays fuel into the cylinder in an atomized state (a fine mist) before combustion. The atomization of fuel improves its burning efficiency and cleanliness, resulting in improved fuel mileage, reduced smoke, and lower exhaust gas temperatures.
The size of the nozzle directly impacts the atomization of the fuel. Smaller nozzles have smaller spray orifices, which, when subjected to the same injection pressure as larger nozzles, produce better atomization due to their reduced spray hole size. This means that smaller nozzles can deliver fuel more efficiently, resulting in improved fuel economy and reduced emissions.
On the other hand, larger nozzles have larger spray orifices, which allow for a greater volume of fuel to be delivered in a given amount of time. While larger nozzles may not atomize the fuel as effectively as smaller nozzles, they are advantageous when higher power outputs are required. For example, a 30% nozzle, which is larger than the stock size, can easily provide enough fuel to generate 600 horsepower at the rear wheels. This size is popular as it strikes a balance between atomization and power delivery.
The design of the injector nozzle must also take into account the specific requirements of the fuel system type. For instance, common rail fuel systems demand more from the nozzle in terms of tribological conditions, necessitating a design that effectively prevents leakage. Similarly, unit injector or unit pump systems subject the nozzle to pressure pulsing conditions that require higher fatigue strength. In a pump-line-nozzle system, the focus is on minimizing hydraulic dead volume.
In summary, the size and design of injector nozzles are crucial factors in the performance and emissions of diesel engines. Smaller nozzles generally provide better atomization and fuel efficiency, while larger nozzles are capable of delivering higher volumes of fuel for increased power output. The specific requirements of the fuel system and its intended use also play a role in determining the optimal size and design of the injector nozzle.
Cleaning Fuel Injectors in Your 91 Civic Si
You may want to see also
Explore related products
Fuel viscosity
The viscosity of a fluid refers to its resistance to flow or change in shape. It is influenced by factors such as temperature, pressure, and chemical composition. In the context of fuel, viscosity plays a crucial role in the performance and efficiency of engines.
Diesel fuel, for instance, has a higher viscosity compared to gasoline due to its denser composition and larger hydrocarbon molecules. This elevated viscosity is essential for lubricating the fuel pump and injector components in diesel engines. Conversely, gasoline, with its lower viscosity, vaporizes and combusts more easily, making it suitable for engines designed for rapid combustion.
The American Petroleum Institute (API) has established standardized viscosity grade classifications for diesel fuel, known as the "C" series, ranging from "CA" to "CZ". These grades indicate the fuel's viscosity at 40°C (104°F), with the viscosity increasing from "CA" to "CZ". By adhering to the API's recommended viscosity grade, engine manufacturers can ensure optimal engine performance and reduce the risk of wear and tear on engine components.
Maintaining the proper viscosity in diesel fuel is critical. Fuel that is too viscous can lead to increased pressure and subsequent damage to the fuel pump and other engine parts. On the other hand, fuel with insufficient viscosity may result in inadequate lubrication, causing excessive wear and reducing the lifespan of engine components.
In summary, fuel viscosity is a critical factor in engine performance and maintenance. It ensures the smooth flow of fuel through engine parts and provides essential lubrication. By adhering to standardized viscosity grades and considering the unique requirements of different engine types, manufacturers can optimize engine functionality and prevent potential issues arising from incorrect fuel viscosity.
Fuel Injector Cost for VW Jetta: How Much?
You may want to see also
Explore related products
![A-Premium Fuel Injection Pressure Sensor [4 Pins] Compatible with Chevy Silverado 1500, Tahoe, Suburban, Camaro, Corvette & GMC Sierra 1500, Yukon/Yukon XL & Cadillac Escalade/Escalade ESV](https://m.media-amazon.com/images/I/71YlrhbgMjL._AC_UY218_.jpg)
![A-Premium Fuel Injection Pressure Sensor [3 Pins] Compatible with Ford F-150, Explorer, Escape, Fusion, Focus, Edge, Transit, Mustang, Taurus, Expedition & Lincoln MKZ, MKX, MKC, Navigator, MKS, MKT](https://m.media-amazon.com/images/I/715-bVTP7IL._AC_UY218_.jpg)
Injection time
The injection signal can be depicted using an oscilloscope by connecting the measurement line to the signal line and the other line to a suitable ground pin. With the engine running, the voltage and pulse duration (opening time) can be read from the signal pattern. When the throttle valve is opened, the pulse duration must increase during the acceleration phase. With a constant engine speed (around 3000 RPM), it must fall back or remain constant.
The injection time is influenced by factors such as engine speed, fuel pressure, and the specific requirements of the fuel system type. For example, in a common rail fuel system, the nozzle must be well-designed to prevent leakage under demanding tribological conditions. In a unit injector or unit pump system, pressure pulsing conditions create more demanding fatigue strength requirements.
The design of the injection nozzle also affects injection time. The nozzle hole size and shape, injector seat, and injector sac are important parameters that impact the combustion characteristics, emissions stability, performance, and mechanical durability of the injector. Additionally, the manufacturing process of the injection nozzles, including micro-drilling of small and precise holes, is critical to ensuring the accuracy and quality of the holes, which directly impacts the flow rate and injection time.
Using Lucas Oil Fuel Injector Cleaner: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel type
The fuel type can have a significant impact on the performance of the injector nozzle. For instance, the volatility of the fuel components can play a major role in PM emissions, with low volatility leading to increased soot production. This is because low-volatility fuel is slower to evaporate and more likely to stick to the nozzle or other metal surfaces in the combustion chamber, resulting in poor air-fuel mixing and increased soot emissions.
Additionally, the viscosity of the fuel will determine how much pressure is required to inject the fuel through the nozzle. Higher viscosity fuels will require higher pressure or more time to inject the same volume of fuel. This can also increase the spray angle, which may cause increased wetting of the cylinder and other surfaces.
The boiling point of the fuel is also important, as it can determine whether flash boiling occurs. Flash boiling is when the fuel boils and disintegrates into a mist of fine droplets, improving fuel-air mixing. This can occur at idle, light-load, and part-load conditions.
The design of the nozzle itself is also crucial, with the design of the nozzle hole, as well as the injector seat and sac, affecting the combustion characteristics, emissions, and performance of the engine. The nozzle hole size will determine the spray orifice size, which in turn affects how much fuel is sprayed and how well the fuel is atomized. A smaller nozzle will have better atomization due to its smaller spray holes, while a larger nozzle will allow more fuel to flow in the same amount of time.
Overall, the choice of fuel type and nozzle design must meet the performance and emissions goals of the market for which the engine is produced.
Remanufactured Fuel Injectors: Reliable or Risky?
You may want to see also
Explore related products
Engine type

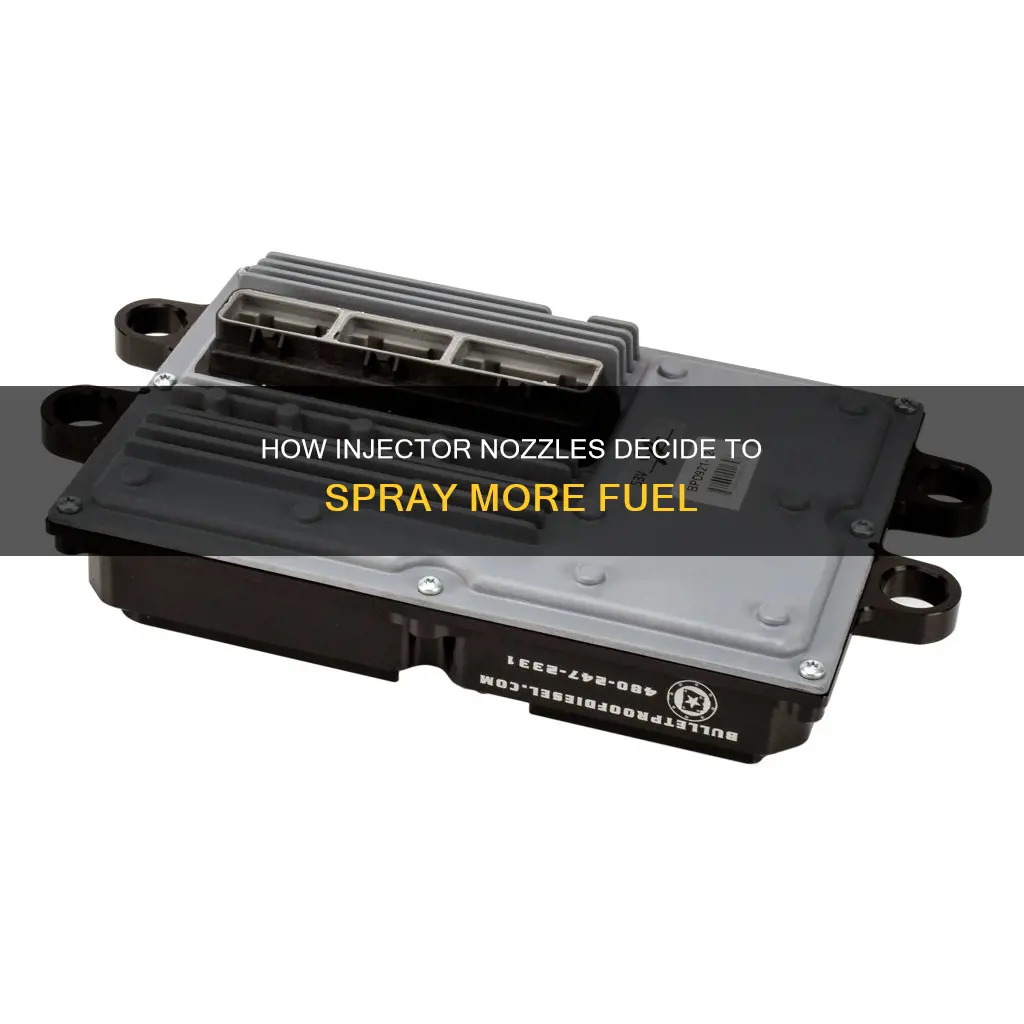

The engine type is a crucial factor in determining the mechanism that instructs the injector nozzle to spray fuel. Different engine types employ distinct technologies and control strategies to regulate fuel injection, ensuring optimal combustion and engine performance. Here, we explore four common engine types and their unique approaches to managing fuel delivery through injector nozzles.
Gasoline Port Fuel Injection (PFI) Engines:
PFI engines are commonly found in conventional gasoline vehicles. In this engine type, the injector nozzles are typically located in the intake manifold or the ports just before the cylinders. The amount of fuel sprayed by the injectors is primarily determined by the engine control unit (ECU). The ECU receives data from various sensors, including the throttle position sensor, oxygen sensor, and engine temperature sensor. Based on this data, the ECU calculates the required fuel quantity and instructs the injectors to spray accordingly, ensuring the correct air-fuel mixture is delivered to the cylinders for efficient combustion.
Gasoline Direct Injection (GDI) Engines:
GDI engines, also known as direct-injected engines, feature injectors that spray fuel directly into the combustion chamber of each cylinder. This engine type offers improved fuel efficiency and performance compared to PFI engines. In GDI engines, the ECU plays a pivotal role in controlling the injector nozzles. By monitoring factors such as engine speed, load, and temperature, the ECU calculates the precise fuel quantity required for optimal combustion. It then instructs the injectors to spray the necessary amount of fuel directly into the cylinders, resulting in a more precise and efficient combustion process.
Diesel Engines:
Diesel engines operate differently from gasoline engines, utilizing compressed air to ignite the fuel instead of a spark plug. In diesel engines, the injector nozzles are responsible for injecting fuel directly into the combustion chamber. The amount of fuel sprayed is influenced by the engine's mechanical governor, which adjusts fuel delivery based on engine speed. Additionally, the ECU fine-tunes fuel injection by receiving data from sensors like the crankshaft position sensor and accelerator pedal position sensor. It calculates the required fuel quantity and controls the duration and timing of the injector nozzle's spray, ensuring accurate fuel delivery for efficient combustion and reduced emissions.
Gas Turbine Engines:
Gas turbine engines, commonly found in aircraft and industrial applications, operate on different principles from reciprocating engines. In these engines, the injector nozzles supply fuel to the combustion chamber, where it mixes with compressed air. The engine's fuel control unit determines the amount of fuel sprayed by monitoring factors such as engine speed, load, and temperature. It calculates the required fuel-to-air ratio and instructs the injector nozzles to spray the appropriate amount of fuel, ensuring a stable and efficient combustion process, providing the necessary thrust or power output.
In summary, the engine type significantly influences the mechanism that controls fuel delivery through injector nozzles. Whether it's the ECU in gasoline and diesel engines or the fuel control unit in gas turbine engines, these systems ensure optimal fuel injection for efficient combustion, performance, and efficiency.
Fuel Injector Issues: Ford F150 Misfire Causes
You may want to see also
Frequently asked questions
The nozzle size and injection time determine how much fuel is sprayed. The nozzle size changes the ability to empty the injector in a different amount of time. The longer the open condition duration, the more volume is discharged.
A smaller nozzle will have smaller spray orifices, while a larger nozzle will have larger spray orifices. The smaller nozzle will atomize the fuel better due to the smaller spray holes, while the larger nozzle will not atomize as well but will flow more fuel in the same amount of time.
Optimal spray parameters for a diesel engine injector nozzle fueled with residual fuel oil (RFO) are 256mm, 6.41cm2, 16.18cm3, 0.96 mm/s and 13.59° for spray length, spray area, spray volume, spray velocity, and spray angle, respectively.
The microstructure and physical properties of the fuel are intrinsic factors that affect its spray characteristics. For example, the use of cheaper, unconventional fuels can lead to deposit formation in the nozzle tip and subsequent degradation or failure of the injector nozzle.
The spray volume of a diesel engine injector nozzle is influenced by the injection time rather than the viscosity of the fuel. The spray volume increases with longer injection times, and this relationship is proportional.
