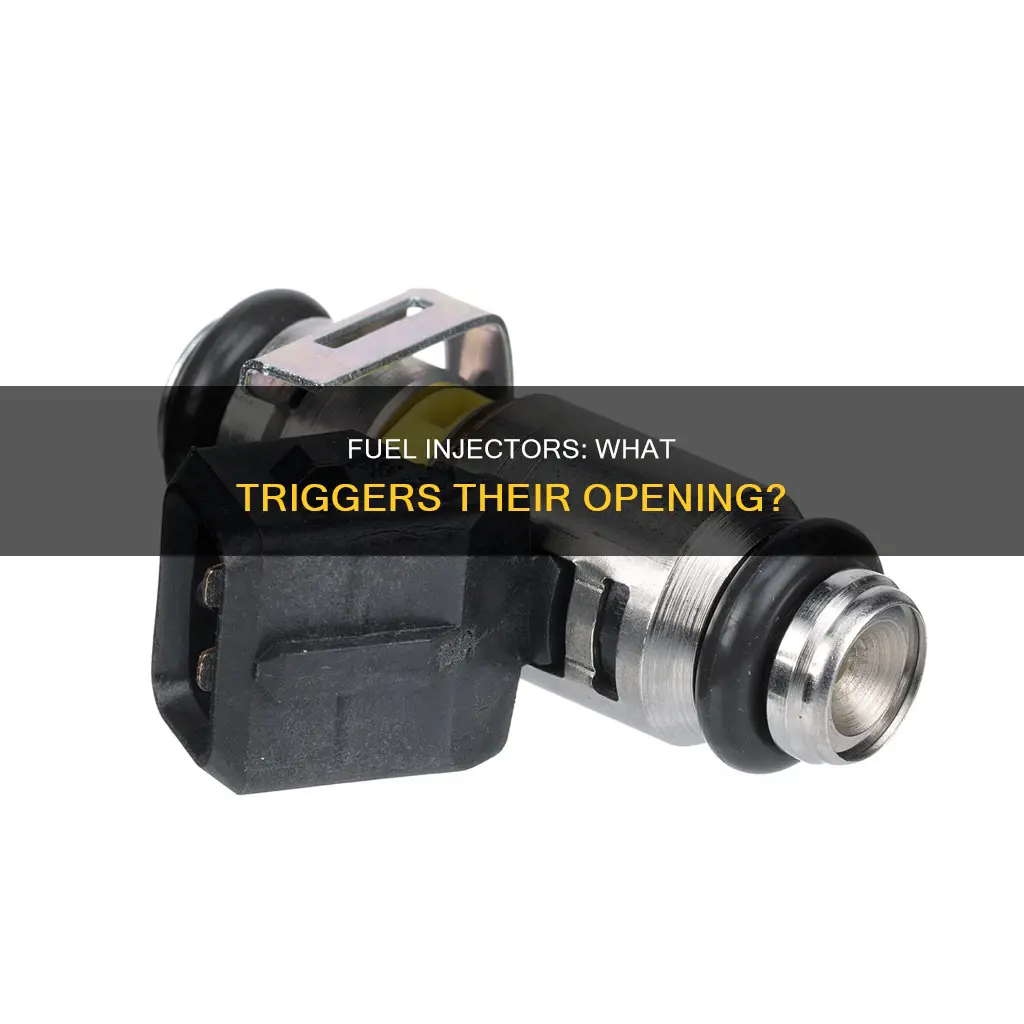

Fuel injectors are a critical component of modern automobiles, delivering fuel to the engine by spraying atomized fuel directly into the engine's combustion chamber. The amount of fuel supplied to the engine is determined by the length of time the injector stays open, known as the pulse width, which is controlled by the Engine Control Unit (ECU). The ECU, or the brain of the engine, monitors a multitude of input sensors to ensure the correct amount of fuel is provided for every operating condition. This process helps maximize power, minimize fuel consumption, and reduce emissions. When a fuel injector malfunctions, it can cause the engine to stall or fail to start, resulting in a decrease in fuel economy and potential breakdown. Thus, it is essential to keep track of the performance of a car's fuel injectors and seek professional diagnosis and maintenance when necessary.
Explore related products
What You'll Learn
The Engine Control Unit (ECU)
The ECU collects data from various sensors, such as temperature and pressure sensors, on/off signals, and data from other modules within the vehicle, to make decisions about the engine's performance. For example, it uses a Crankshaft Position Sensor to determine the position of the engine's internals, ensuring that the fuel injectors and ignition system are activated at the correct time. The ECU also controls the ignition and ancillary systems of the engine, such as the throttle body, multi-port fuel injection, and emission systems.
One of the key functions of the ECU is to control the fuel injection system, including the fuel injector pulse width. The pulse width determines the amount of time the fuel injector stays open and, consequently, the amount of fuel supplied to the engine. The ECU uses digitally stored equations and numeric tables, along with input from sensors such as the mass airflow sensor and oxygen sensor, to calculate the correct pulse width based on factors such as engine speed, load, coolant temperature, and oxygen level.
The ECU plays a crucial role in meeting strict vehicle emission and fuel efficiency standards. By precisely controlling the fuel injection and ignition systems, the ECU helps optimize fuel combustion and reduce emissions. This has become increasingly important as concerns about vehicle emissions have grown, and carmakers have had to adapt to new environmental laws.
While the ECU provides significant benefits, it is important to note that modifying or tampering with the unit is generally prohibited due to digital rights management (DRM) protections. These protections are in place to prevent unauthorized changes to the ECU's circuitry or software, which could potentially impact the engine's performance, fuel efficiency, and emissions compliance.
Fuel Injector Cleaner: DIY Guide for Your Car
You may want to see also
Explore related products
Sensors, such as the mass airflow sensor
The MAF sensor is strategically located between the air filter and the intake manifold, where it measures the mass of air entering the engine. This information is crucial for the ECU to balance and deliver the correct amount of fuel to the engine. The MAF sensor works in conjunction with other sensors, such as the oxygen sensor, to ensure that the engine's air-fuel ratio is accurately controlled.
There are two common types of MAF sensors used in automotive engines: the vane meter and the hot wire. The vane meter operates by measuring the momentum of the airflow into the engine using a spring-loaded air vane attached to a variable resistor. As the air flows, the vane moves due to the drag force, and the voltage applied to the potentiometer varies accordingly. This voltage output is then used to determine the mass airflow rate.
On the other hand, the hot wire MAF sensor operates by heating a wire suspended in the engine's air stream and monitoring the electrical resistance as the wire's temperature increases. The varying electrical current flowing through the circuit provides information about the mass of air flowing into the engine. This type of sensor responds directly to air density, making it well-suited for the gasoline combustion process, which is inherently dependent on air mass rather than volume.
Additionally, emerging technologies in mass airflow sensors utilize a thin electronic membrane placed in the airstream. This membrane features temperature sensors on both the upstream and downstream sides, allowing it to detect differences in cooling rates and indicate the mass airflow accordingly. This design enables bidirectional flow measurement, making it adaptable to various driving conditions.
Fuel Injectors: Cleaning Frequency for Optimal Performance
You may want to see also
Explore related products
Pulse width
The amount of fuel supplied to the engine is determined by the length of time the fuel injector stays open, known as the pulse width. This is controlled by the engine control unit (ECU), which is equipped with a range of sensors to ensure the correct amount of fuel is provided for every operating condition. The ECU monitors factors such as engine speed (RPM) and load, as well as coolant temperature and oxygen levels, to calculate the required pulse width. This information is used to look up the base pulse width in a table.
The ECU plays a crucial role in adjusting the pulse width based on sensor data. For instance, if there is a change in air density, the ECU will respond by decreasing the pulse width slightly. However, this small reduction can lead to a significant decrease in fuel flow, potentially causing the engine to stall. Therefore, the ECU must carefully regulate the pulse width to maintain the desired fuel flow and engine performance.
The pulse width of fuel injectors is also relevant in discussions about injector size. Enthusiasts and engineers often face a trade-off between drivability and injector size, with smaller injectors being preferred for street-friendly characteristics. Additionally, larger injector sizes can introduce larger errors in the low pulse width range, impacting the accuracy of fuel metering.
In conclusion, pulse width is a critical aspect of fuel injector systems, influencing the amount of fuel supplied to the engine and the overall performance of the vehicle. The ECU, with its various sensors and lookup tables, plays a central role in managing the pulse width to ensure optimal fuel delivery and engine operation.
Testing Voltage to Fuel Injectors in a '95 YJ
You may want to see also
Explore related products
Fuel injector location
Fuel injectors are designed to deliver fuel into an engine's cylinders at the right moment and in the correct quantity, ensuring optimal combustion. They are small electric valves that are usually fitted between the fuel rail and the intake manifold, combustion chamber, or throttle body on older cars. The fuel injectors are mounted in the intake manifold so that they spray fuel directly at the intake valves.
The location of the fuel injectors is important as they need to be positioned to spray fuel accurately. In multi-port fuel injection systems, there is a fuel injector for each cylinder, and they are located so that they spray directly at the intake valve. This type of fuel injection system has replaced throttle body fuel injection in newer engines as it provides more accurate fuel metering and a quicker response.
The fuel injectors are connected to a pipe called the fuel rail, which supplies pressurized fuel to all of the injectors. The fuel rail is usually located on top of the engine, and it is connected to the fuel pump and the fuel tank. The fuel injectors are mounted in the fuel rail, and they can be removed by disconnecting or unfastening the fuel rail and then wiggling and pulling the injector out of its mounting location.
When replacing a fuel injector, it is important to check the injector ports for any debris and clean them if necessary. This helps the new injector seal properly and prevents dirt and debris from entering the engine. It is also recommended to lubricate the new fuel injector o-rings with clean engine oil before installing them.
Powertrain Warranty Fuel Injector Coverage: What GM Owners Need to Know
You may want to see also
Explore related products
Fault diagnosis
Fuel injectors are an essential component of modern vehicles, but they can sometimes malfunction or become clogged or dirty, leading to various issues. Fault diagnosis of fuel injectors can be tricky as the symptoms often resemble low compression or ignition problems. However, there are some telltale signs and diagnostic methods to identify issues with fuel injectors.
One of the most common symptoms of fuel injector problems is rough idling, characterised by varying RPMs even when the driver's foot is off the gas pedal. This can cause the engine to sputter and shake, sending vibrations through the car. In addition, dirty or malfunctioning fuel injectors can cause poor engine performance, including hesitation when accelerating and reduced fuel efficiency.
A more severe consequence of fuel injector issues is engine misfires due to an imbalance in the fuel-air mixture entering the engine. This can be caused by either too much or too little fuel being injected, leading to unburnt oxygen entering the exhaust and triggering an error code from the O2 sensor. The engine control unit (ECU) plays a crucial role in monitoring the fuel-air mixture and making adjustments to ensure the correct amount of fuel is supplied.
When diagnosing fuel injector issues, one of the most obvious signs is the illumination of the "Check Engine" light on the dashboard. This can indicate that the injectors are not delivering the right amount of fuel to the engine, causing the O2 sensor to detect an incorrect fuel-air mixture. Fault codes associated with clogged fuel injectors typically fall in the P0300 to P0308 series, indicating an engine misfire.
In addition to the "Check Engine" light, other dashboard warnings such as the engine light flashing or staying illuminated can also indicate fuel injector problems. This may be accompanied by a decrease in overall engine performance and fuel economy. In some cases, fuel injector issues can lead to engine failure and prevent the car from starting altogether.
To summarise, fault diagnosis of fuel injectors involves identifying symptoms such as rough idling, engine misfires, and dashboard warning lights. These issues can be caused by clogged or dirty injectors, leading to an imbalance in the fuel-air mixture and triggering error codes from the O2 sensor. Regular maintenance and timely repairs are crucial to ensure the optimal performance and longevity of fuel injectors in modern vehicles.
Removing Fuel Injector Clips: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The Electronic or Engine Control Unit (ECU) controls the opening and closing of the solenoid valve to inject the fuel in the high-pressure fuel rail into the combustion chamber.
Fuel injectors are a critical component of modern automobiles, responsible for atomizing and injecting fuel into the combustion chamber.
The fuel injector, connected to the ECU, injects atomized fuel directly into the engine's combustion chamber. The injector body converts the electrical signal from the solenoid into pressure to push the fuel through the nozzle.
A faulty fuel injector may cause the engine to stall or fail to start. It can also result in a loud knocking or rattling sound from the engine, and you may notice a strong smell of fuel from the exhaust.
The fuel injector is usually located near the intake manifold, which is at the top of the engine. It is typically made of aluminium or plastic with several ports.
