Understanding the base fuel pressure of your vehicle is essential for optimal performance and fuel efficiency. The base fuel pressure, typically set with the engine off but the pump running, can vary depending on factors such as the type of vehicle, engine specifications, and fuel system setup. Different vehicles have different standard base fuel pressures, and modifications such as aftermarket injectors or fuel pressure regulators can also impact the ideal pressure. It is important to consult vehicle-specific information and seek advice from knowledgeable sources to determine the appropriate base fuel pressure for your car.
| Characteristics | Values |
|---|---|
| Base fuel pressure with vacuum hose disconnected | 33-44 psi |
| Base fuel pressure with vacuum hose connected | 24-34 psi |
| Fuel pressure at idle with vacuum hose disconnected | 39-40 psi |
| Fuel pressure at idle with vacuum hose connected | Typically in the low 30s |
| Fuel pressure at 15 psi boost | 55-58.5 psi |
Explore related products
What You'll Learn
- Fuel pressure is dependent on the pressure in the manifold
- Fuel pressure should be higher with the vacuum line disconnected
- Fuel pressure should rise 1:1 with boost
- A returnless system does not return fuel to the tank
- A return-style system holds an advantage by maintaining a constant effective fuel pressure
Fuel pressure is dependent on the pressure in the manifold
Fuel pressure is a term that is often used without a clear understanding of what it means, which can lead to confusion. There are two types of fuel pressure: rail pressure and effective pressure. Rail pressure is the pressure inside the rail, which can be measured with a fuel pressure sensor. Effective pressure, on the other hand, is the actual applied pressure for the injector and is the pressure differential across the injector.
The relationship between fuel pressure and manifold pressure is important to understand. When an engine is idling, there is a vacuum in the intake manifold. This vacuum pulls fuel out of the injectors, increasing the effective pressure across the injector to a level higher than the rail pressure. In contrast, when a turbocharged or supercharged vehicle is in boost, the pressure inside the manifold pushes fuel back into the injector, reducing the effective fuel pressure below that of the rail pressure.
The type of fuel system used also impacts the relationship between fuel and manifold pressure. There are two generic types of fuel systems: returnless and return style. A returnless system does not return fuel to the tank, while a return-style system bleeds excess fuel back to the tank through a regulator. In a return-style system, the base pressure is set with the engine off but the pump running. The vacuum/boost-referenced regulator will adjust the pressure in the rail based on the pressure in the manifold.
For example, when an engine is idling and pulling 20 inches of mercury (inHg) of vacuum, the regulator will lower the pressure in the rail to maintain a constant effective fuel pressure. On the other hand, when the engine is making 10 pounds per square inch (psi) of boost, the regulator will increase rail pressure to compensate for the higher manifold pressure.
In summary, fuel pressure is dependent on the pressure in the manifold, and understanding this relationship is crucial for properly setting up the fuel system and ensuring predictable fueling. The type of fuel system used also plays a role in how fuel and manifold pressure interact. By considering these factors, users can optimise their vehicles' performance and fuel efficiency.
Fuel Pressure Maintenance for 1995 Dodge Dakota
You may want to see also
Explore related products
Fuel pressure should be higher with the vacuum line disconnected
Fuel pressure is the pressure inside the rail, which is important to understand when setting up an injector characterisation and getting predictable fuelling. There are two types of fuel system setups: returnless and return style. Returnless systems do not return fuel to the tank, while return style systems bleed excess fuel back to the tank through a regulator.
In a vacuum-operated fuel pressure regulator, the vacuum helps to keep the pressure at a controlled level. When the vacuum hose is disconnected, the pressure rises. This is because the vacuum is no longer in effect to lower the pressure, resulting in an increase in fuel pressure.
For example, in a Toyota GTE Service Specs vehicle, the fuel pressure at idle with the vacuum hose disconnected is 33-40psi (2.3 - 2.8 kgf/cm), while with the vacuum hose connected, it is 24-31psi (1.7 - 2.2 kgf/cm). Similarly, in a Toyota GE Service Specs vehicle, the fuel pressure at idle with the vacuum hose disconnected is 38-44psi (2.7 - 3.1 kgf/cm), and with the vacuum hose connected, it is 28-34psi (2.0 - 2.4 kgf/cm).
Therefore, it is important to ensure that the vacuum hose is connected to maintain the desired fuel pressure and prevent issues such as engine flooding.
Understanding Diesel Fuel's Combustion: Pressure Factors Explored
You may want to see also
Explore related products
Fuel pressure should rise 1:1 with boost
Fuel pressure is an important aspect of a vehicle's performance, and understanding how it works is crucial for proper injector flow rate characterisation and vehicle functionality. There are two types of fuel pressure: rail pressure and effective pressure. Rail pressure refers to the pressure inside the rail, which can be measured using a fuel pressure sensor. Effective pressure, on the other hand, is the actual applied pressure across the injector and is the pressure differential across it.
When it comes to fuel pressure and boost, it is essential to maintain a constant effective fuel pressure. This can be achieved through two generic types of fuel system setups: returnless and return style. A returnless system does not return fuel to the tank, while a return-style system bleeds excess fuel back to the tank through a regulator.
In a return-style system, the base pressure is typically set with the engine off but the pump running. For example, in a GM system, the base pressure is usually set to 58 psi. When the engine is idling and pulling a vacuum, the reference to the regulator will adjust and lower the rail pressure, resulting in the same effective pressure as the base pressure. During boost, the regulator will increase rail pressure to maintain a constant effective pressure.
Now, to address the specific query, "Fuel pressure should rise 1:1 with boost". This statement refers to the ideal relationship between fuel pressure and boost pressure in a vehicle's fuel system. It means that for every pound per square inch (PSI) of boost, the fuel pressure should increase by one PSI as well. This 1:1 ratio ensures that the fuel system can provide the necessary fuel enrichment during boost conditions.
For example, if your vehicle typically operates at a base fuel pressure of 58 PSI and you are running 8.5 PSI of boost, your fuel pressure during boost should ideally be 66.5 PSI (58 PSI + 8.5 PSI = 66.5 PSI). This 1:1 ratio helps maintain the required pressure differential across the injector, ensuring that fuel can flow effectively into the engine.
It is important to note that not all fuel systems are designed to maintain this 1:1 ratio. Some vehicles may have a non-adjustable regulator, which keeps the fuel pressure constant regardless of boost levels. Additionally, the effectiveness of this ratio can depend on various factors, such as injector size and fuel pump capacity. It is always recommended to consult with a professional or refer to vehicle-specific guidelines to determine the appropriate fuel pressure settings for your particular setup.
MaxxForce DT 9 Engine: Optimal Fuel Pressure Range
You may want to see also
Explore related products
$80.48
A returnless system does not return fuel to the tank
Returnless fuel systems, while similar to conventional systems, require careful handling to ensure proper function and full component life. Conventional fuel systems always pump more fuel to the injectors than is needed, meaning the same molecule of fuel might make as many as 30 trips to the engine before it is converted to energy. Each trip adds heat to the fuel, which is then returned to the fuel tank. This can cause in-tank fuel temperatures to exceed 160°F on a hot summer day—a prime breeding ground for fuel evaporation.
Returnless systems, as the name suggests, do not return fuel to the tank. Instead, they reduce the number of tank-to-engine trips to just one. Fuel is picked up via the fuel screen sock at the bottom of the tank, then routed to the fuel pump. The pump supplies the required fuel pressure and volume to the engine, and the excess is directed back into the tank after passing through a pressure regulator.
The regulator lacks the vacuum connection to the engine that is typical of conventional pressure regulators, so it maintains a steady pressure independent of any changes in engine operating conditions. To ensure the engine always receives the right amount of fuel, the PCM makes rapid changes in injector pulse width instead. On newer fuel systems, a pressure sensor keeps the PCM informed of system fuel pressure, and it responds by modifying the pulse width to the fuel pump power supply, adjusting system pressure and volume in real-time.
One advantage of older return-type fuel systems was the constant filtering of the fuel. Each time the fuel made a trip to the engine, it had to pass through the fuel filter. This cut down on component wear and the filter was usually in an easily accessible location outside the fuel tank. Returnless systems also have fuel filters, but their placement can have a big effect on the longevity of the system, as well as its ease of service and repair.
The first option is the conventional location outside the tank, which is the easiest to service. However, this means that any unused fuel returned to the tank is never filtered until it makes its first and only trip to the engine. So if it contains any contamination, the same contaminants will make repeated trips through the pump and back into the tank.
The second option is to place the filter in front of the pump, which protects the pump from contamination. However, the filter is now inside the tank, so replacing it is a major task. A clogged filter means the pump now has to work extra hard to get the fuel it needs, causing low fuel pressure, fuel boiling, and pump cavitation.
The final option is to place the filter after the pressure regulator, before the unused fuel is returned to the tank. This allows the unused fuel to be filtered repeatedly, until it is finally used. A restricted fuel filter is less likely to have an adverse effect on the fuel pump, and the filter can be placed in a location on top of the tank that is easily accessible for replacement.
Understanding Fuel Pressure Regulator Control Limits Exceeded
You may want to see also
Explore related products
A return-style system holds an advantage by maintaining a constant effective fuel pressure
A return-style fuel system is an endless cycle where the fuel pump constantly pumps gas from the tank, through a regulator, to either the injectors or carburetor. The fuel pressure regulator is responsible for sending the excess fuel back to the tank. It is a simple mechanical device consisting of a diaphragm and a spring that is typically controlled by engine vacuum.
The return-style regulator offers several benefits. Firstly, it reacts faster to changes in engine load. Secondly, it provides more consistent and accurate fuel pressure, reducing Lean Condition spikes. This also makes the regulator easier on electric fuel pumps. By bleeding off excess pressure, the pump only needs to maintain the set pressure, resulting in reduced heat, noise, and prolonged pump life. The regulator also keeps the entire system cooler by constantly circulating fuel, reducing the risk of vapor lock and potentially increasing power output.
However, there are some drawbacks to the return-style system. It requires additional plumbing, including a return line with extra hoses and fittings. Moreover, it cannot be used in certain fuel systems, such as a nitrous system with multiple regulators set at different pressures.
Setting Fass Fuel Pump Pressure: Optimal Performance Tips
You may want to see also
Frequently asked questions
The industry-standard base fuel pressure is 43.5 psi, which is sufficient for most V8 engines. However, the specific pressure depends on factors such as the injectors, the size of the fuel system, and the desired power output.

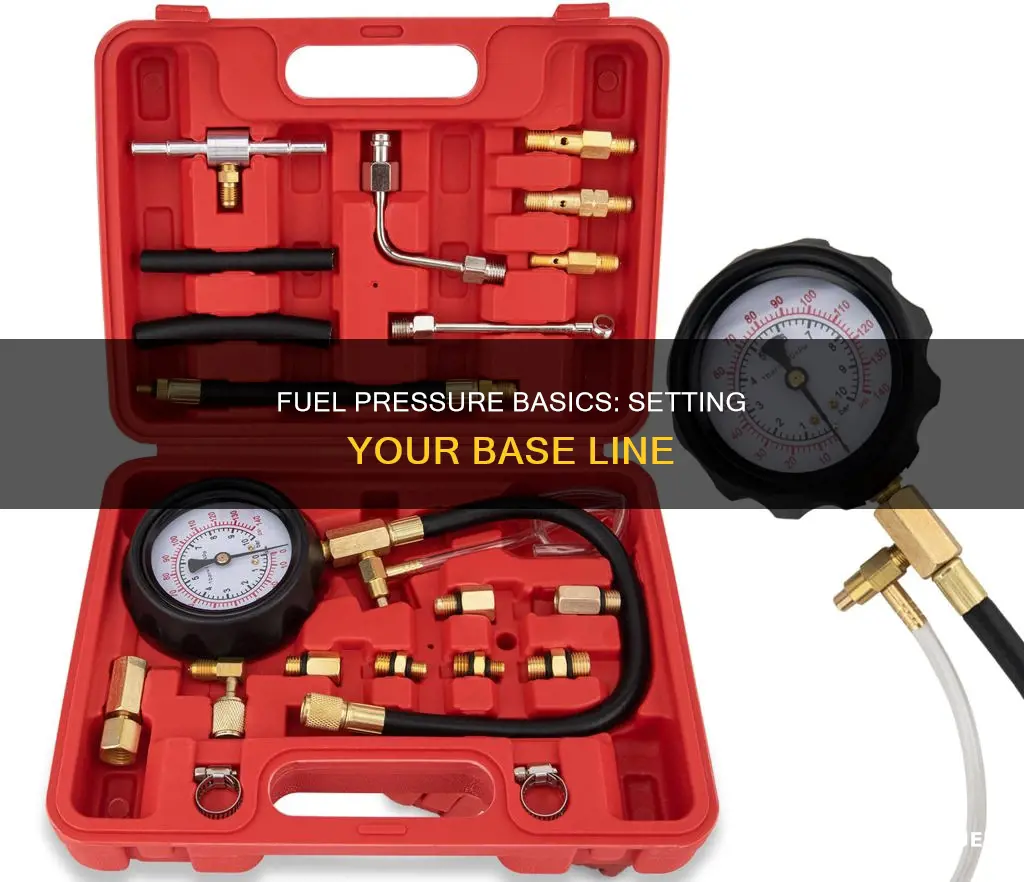

You can measure your base fuel pressure by using a fuel pressure gauge connected to the pressure port on your fuel pressure regulator. Make sure to remove the vacuum hose before taking the measurement.
To adjust your base fuel pressure, locate the locking nut and adjustable screw on your fuel pressure regulator. Wind the screw in or out to increase or decrease fuel pressure, respectively. Remember to adjust with the engine running and lock the adjuster in place once you've reached your desired pressure.
