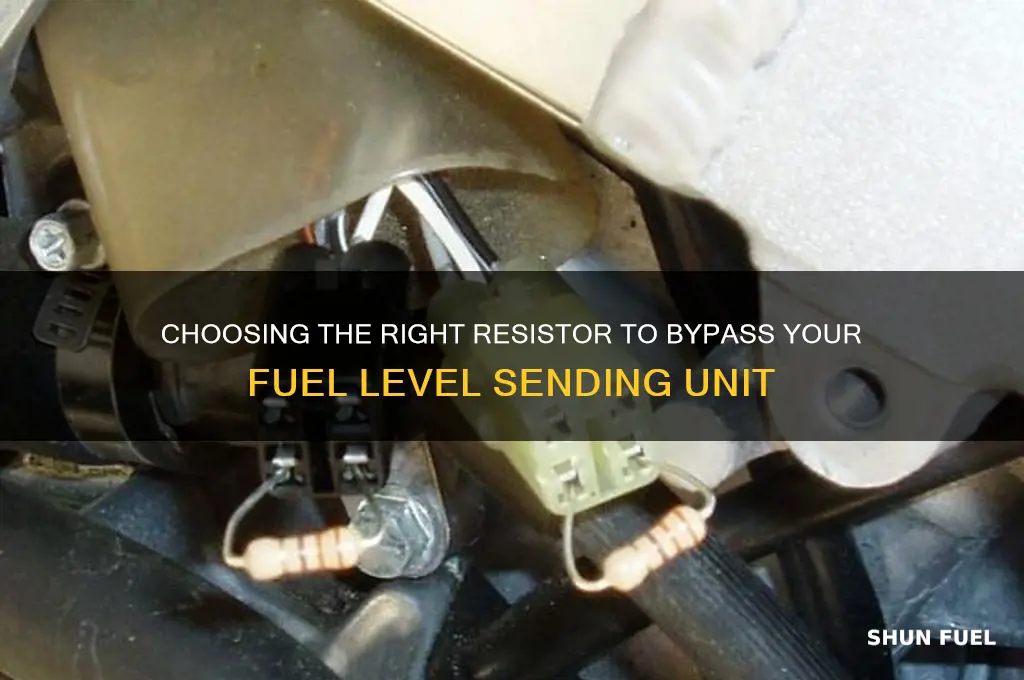

When troubleshooting or modifying a vehicle's fuel level sending unit, one common issue is the need to bypass the unit temporarily to diagnose electrical problems or test the gauge independently. To achieve this, a resistor is often used to simulate the sending unit's signal, allowing the fuel gauge to display a specific reading. The correct resistor value depends on the vehicle's fuel gauge design and the range of resistance the sending unit typically provides. For example, a 10-ohm resistor might be used to show a full tank, while a 90-ohm resistor could indicate an empty tank. It’s crucial to consult the vehicle’s manual or wiring diagram to determine the appropriate resistor value, ensuring accurate testing and avoiding damage to the gauge or electrical system.
| Characteristics | Values |
|---|---|
| Purpose of Bypass Resistor | To simulate a full or empty fuel tank reading in the gauge/ECU |
| Common Resistor Values | 0-10 ohms (empty), 90-100 ohms (full) depending on vehicle |
| Resistor Type | Standard carbon film or metal film resistor |
| Power Rating | 1/4 watt or higher (low power application) |
| Tolerance | ±5% or better |
| Connection Method | Wire in series with the fuel sender signal line |
| Compatibility | Vehicle-specific (check wiring diagram or manual) |
| Safety Warning | May trigger check engine light or affect other systems; use cautiously |
| Alternative Methods | Using a variable resistor for adjustable readings |
| Legal Disclaimer | Bypassing sensors may violate emissions laws or void warranties |
Explore related products
What You'll Learn
- Resistor Value Calculation: Determine correct resistance to mimic full or empty tank readings accurately
- Compatibility with Gauge: Ensure resistor matches fuel gauge's resistance range for accurate readings
- Safety Considerations: Use resistors rated for vehicle voltage and temperature to prevent overheating
- Installation Location: Place resistor inline with sending unit wiring for proper signal bypass
- Testing and Verification: Confirm gauge reads correctly after resistor installation to ensure functionality
Resistor Value Calculation: Determine correct resistance to mimic full or empty tank readings accurately
Bypassing a fuel level sending unit with a resistor requires precise calculation to mimic the sensor's full or empty tank resistance values. This ensures the fuel gauge reads accurately, preventing confusion or potential fuel-related issues. The key lies in understanding the sending unit's resistance range and the gauge's interpretation of those values.
Typically, fuel level sending units exhibit a variable resistance that changes with the fuel level. When the tank is full, the resistance is at its lowest, and when empty, it's at its highest. Consult your vehicle's manual or manufacturer specifications to determine these specific resistance values for your particular sending unit.
Knowing the sending unit's resistance range, you can calculate the required resistor value to simulate a full or empty tank. For a full tank simulation, choose a resistor with a value close to the sending unit's minimum resistance. Conversely, for an empty tank simulation, select a resistor value near the sending unit's maximum resistance.
Calculation Example:
Let's assume your sending unit has a resistance range of 10 ohms (empty) to 90 ohms (full). To simulate a full tank, you'd need a resistor with a value slightly below 90 ohms, perhaps 82 ohms. For an empty tank simulation, a resistor around 12 ohms would be suitable.
Important Considerations:
- Tolerance: Choose resistors with a tolerance of 5% or less to ensure accuracy.
- Power Rating: Select resistors with a power rating sufficient to handle the current flowing through the circuit.
- Safety: Always disconnect the battery before working on any electrical components in your vehicle.
Remember, bypassing the fuel level sending unit should be a temporary solution. It's crucial to address the underlying issue causing the sending unit malfunction for long-term reliability and safety.
Hydrogen Fuel Cells: Barriers to Widespread Adoption Explained
You may want to see also
Explore related products
Compatibility with Gauge: Ensure resistor matches fuel gauge's resistance range for accurate readings
Selecting a resistor to bypass a fuel level sending unit isn’t just about picking a value—it’s about ensuring compatibility with your fuel gauge. The gauge operates within a specific resistance range, typically 0 to 90 ohms for most vehicles, though this can vary. If the resistor’s resistance falls outside this range, the gauge will display inaccurate readings, such as a perpetually full or empty tank. For instance, a 240-ohm resistor, commonly suggested for bypassing, may work in some setups but will fail if the gauge expects a lower resistance. Always verify your gauge’s resistance specifications in the vehicle’s manual or consult a multimeter to measure it directly.
Analyzing the relationship between the resistor and gauge reveals why precision matters. The fuel gauge interprets resistance as a fuel level, with lower resistance indicating a fuller tank. If the resistor’s value is too high, the gauge may read empty even when the tank is full. Conversely, a resistor with too low a value could cause the gauge to read full when the tank is empty. For example, a 10-ohm resistor might trick the gauge into showing a full tank, while a 1000-ohm resistor could render it unresponsive. The goal is to mimic the sending unit’s resistance curve, ensuring the gauge reflects the actual fuel level or a consistent, safe reading.
To achieve compatibility, follow these steps: First, identify your gauge’s resistance range. Most analog gauges operate between 0 and 90 ohms, but digital or aftermarket gauges may differ. Second, calculate the resistor value needed to fall within this range. For a simple bypass, a resistor around 20 to 30 ohms often works, but this isn’t universal. Third, test the resistor with a multimeter to confirm its value. Finally, connect the resistor in place of the sending unit and monitor the gauge. If the reading is inaccurate, adjust the resistor value incrementally until the gauge displays a consistent, safe level, such as half full.
Practical tips can streamline this process. If your gauge has a variable resistance range, opt for a resistor slightly above the midpoint to avoid extreme readings. For older vehicles with worn gauges, a resistor closer to the lower end of the range may compensate for internal resistance. Always use a high-wattage resistor (e.g., 1/2 watt or higher) to handle potential voltage fluctuations. Additionally, consider installing a switch to toggle between the bypass resistor and the actual sending unit, allowing for troubleshooting or reverting to normal operation if needed.
In conclusion, compatibility between the resistor and fuel gauge is critical for accurate readings. Ignoring this aspect can lead to confusion, misdiagnosis of fuel system issues, or unsafe driving conditions. By understanding your gauge’s resistance range, selecting an appropriate resistor value, and testing the setup, you can ensure the gauge functions reliably. Whether bypassing a faulty sending unit temporarily or as a long-term solution, precision in resistor selection is non-negotiable. Always prioritize safety and accuracy, and when in doubt, consult a professional to avoid costly mistakes.
Exploring Common Gases Used as Fuel in Modern Applications
You may want to see also
Explore related products
Safety Considerations: Use resistors rated for vehicle voltage and temperature to prevent overheating
Resistors used to bypass a fuel level sending unit must be carefully selected to match the electrical demands of the vehicle. Automotive systems typically operate at 12V or 24V, and the resistor must be rated to handle this voltage without degradation. For instance, a 12V system requires a resistor with a voltage rating of at least 25V to provide a safety margin. Exceeding the voltage rating can lead to resistor failure, causing the component to overheat or burn out. Always verify the vehicle’s operating voltage and select a resistor with a higher rating to ensure reliability.
Temperature tolerance is another critical factor, as engine compartments can reach temperatures exceeding 100°C (212°F). Resistors not rated for such conditions will degrade prematurely, compromising the bypass circuit. Look for resistors with a temperature rating of at least 155°C (311°F) to withstand extreme heat. High-temperature resistors, such as those with ceramic or metal oxide compositions, are ideal for this application. Ignoring temperature ratings increases the risk of overheating, which can damage surrounding components or create a fire hazard.
Power dissipation is a key consideration tied to both voltage and temperature. Calculate the required power rating using the formula \( P = V^2 / R \), where \( P \) is power in watts, \( V \) is voltage, and \( R \) is resistance. For example, a 12V system with a 100-ohm resistor requires a power rating of \( (12^2) / 100 = 1.44 \) watts. Always choose a resistor with a power rating 20–50% higher than the calculated value to account for voltage spikes or prolonged operation. Underestimating power dissipation leads to overheating, reducing the resistor’s lifespan and potentially causing system failure.
Practical installation tips further enhance safety. Secure the resistor in a well-ventilated area away from direct heat sources like the exhaust manifold. Use heat-resistant insulation to protect nearby wires and components. Periodically inspect the resistor for signs of discoloration or damage, replacing it immediately if issues arise. While bypassing a fuel level sending unit may seem straightforward, prioritizing safety through proper resistor selection and installation prevents costly repairs and ensures the vehicle operates reliably.
Fuel Injectors: Their Essential Role in Modern Engine Performance
You may want to see also
Explore related products
Installation Location: Place resistor inline with sending unit wiring for proper signal bypass
Placing the resistor inline with the sending unit wiring is a precise and effective method to bypass the fuel level sending unit. This installation location ensures that the resistor directly influences the signal path, mimicking the behavior of a functional sending unit. By connecting the resistor between the sending unit’s signal wire and the ground or reference wire, you create a fixed resistance value that the fuel gauge interprets as a specific fuel level. For instance, a 240-ohm resistor typically corresponds to a full tank reading, while a 0-ohm resistor (a direct wire) indicates an empty tank. This approach is particularly useful in diagnostic scenarios or when the sending unit is temporarily inoperable.
The key to success lies in the resistor’s placement. It must be installed directly in the circuit, interrupting the signal flow from the sending unit to the gauge. This can be achieved by cutting the signal wire and splicing the resistor in series. Use heat shrink tubing or electrical tape to insulate the connections, preventing short circuits. Ensure the resistor is rated for the vehicle’s operating voltage (typically 12V) and has sufficient power handling capability, usually a ¼ watt resistor suffices. Incorrect placement, such as connecting the resistor in parallel or outside the signal path, will render the bypass ineffective.
Comparing this method to alternatives highlights its simplicity and reliability. Unlike software-based bypasses or gauge recalibration, the inline resistor approach requires no specialized tools or programming knowledge. It’s a hardware solution that works universally across most vehicles with analog fuel gauges. However, it’s a temporary fix, not a permanent repair. For long-term solutions, replacing the faulty sending unit is recommended. This method is ideal for troubleshooting, testing gauge functionality, or temporarily resolving issues during a road trip.
A practical tip is to label the resistor with its value and intended fuel level reading for future reference. For example, mark a 240-ohm resistor as "Full Tank" and a 10-ohm resistor as "Empty." This simplifies reinstallation or removal. Additionally, test the bypass with the ignition on and the engine off to verify the gauge reads correctly. If the gauge doesn’t respond, double-check the resistor’s placement and connections. This method, when executed correctly, provides a quick and accurate way to bypass a faulty fuel level sending unit, ensuring your gauge displays a consistent and predictable reading.
Should You Use Fuel Stabilizer in Your Duramax Diesel Engine?
You may want to see also
Explore related products
Testing and Verification: Confirm gauge reads correctly after resistor installation to ensure functionality
After installing a resistor to bypass a fuel level sending unit, the critical next step is verifying that the fuel gauge reads accurately. This process ensures the workaround functions as intended and prevents reliance on a faulty system. Begin by turning the ignition to the "on" position without starting the engine. Observe the gauge’s initial reading—it should reflect either a full or empty state, depending on the resistor’s value and the gauge’s calibration. For instance, a 240-ohm resistor typically simulates a full tank, while a 10-ohm resistor mimics an empty one. If the gauge doesn’t respond, double-check the resistor’s placement and wiring connections for continuity.
To test the gauge’s full range, temporarily connect a variable resistor (potentiometer) in place of the fixed resistor. Gradually adjust the potentiometer from its lowest to highest resistance value while monitoring the gauge. The needle should smoothly transition from empty to full, corresponding to the resistance changes. This method confirms the gauge’s mechanical and electrical integrity and identifies any dead spots or irregularities. If the gauge fails to respond uniformly, inspect the gauge itself for internal damage or worn components.
For a more precise verification, use a multimeter to measure the voltage at the gauge while simulating different fuel levels with fixed resistors. A typical fuel gauge operates on a 0–90-ohm range, translating to 0–10 volts. For example, a 240-ohm resistor should yield a voltage close to the gauge’s full-tank reading, usually around 0.5–1 volt. Compare these readings to the manufacturer’s specifications to ensure accuracy. Discrepancies may indicate a miscalibrated gauge or incorrect resistor selection.
Practical tips include labeling resistors with their corresponding fuel levels to avoid confusion during testing. Additionally, log voltage readings and gauge positions for future reference or troubleshooting. While bypassing the sending unit is a temporary solution, consistent verification ensures reliability until a permanent fix is implemented. Always prioritize safety by disconnecting the battery before handling electrical components and avoiding testing while the engine is running.
Why Unleaded Fuel Only? Understanding the Importance for Your Vehicle
You may want to see also
Frequently asked questions
The resistor value depends on your vehicle's gauge system. Typically, a 20-100 ohm resistor is used to simulate a full tank, but consult your vehicle's manual or a wiring diagram for the exact value.
No, using the wrong resistor value can cause inaccurate gauge readings or damage the gauge. Always use the correct resistance value specific to your vehicle's system.
Refer to your vehicle's service manual or wiring diagram to find the resistance range of the sending unit. Alternatively, measure the resistance of the sending unit at full and empty positions to calculate the bypass resistor value.
Bypassing the sending unit is usually a temporary fix. It’s best to repair or replace the sending unit for accurate and reliable fuel level readings.
Bypassing the sending unit may only affect the fuel gauge. However, if the sending unit is integrated with other systems (e.g., fuel pump or emissions), it could cause issues. Always verify compatibility before bypassing.
