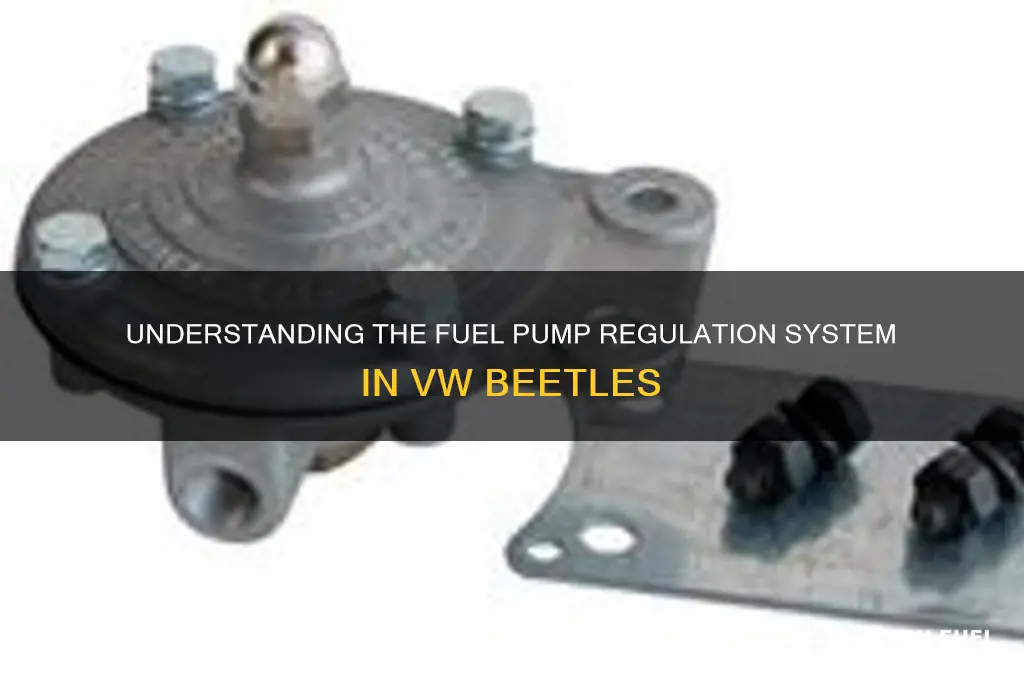

The fuel pump in a Volkswagen Beetle is regulated by a combination of mechanical and electronic systems, depending on the model year. In older, carbureted Beetles, the fuel pump is typically mechanical, driven by the camshaft and regulated by a diaphragm that responds to engine vacuum, ensuring consistent fuel delivery. In later models, particularly those with fuel injection, the fuel pump is electric and controlled by the engine control unit (ECU), which monitors factors like engine load, speed, and temperature to adjust fuel pressure and flow. Additionally, a fuel pressure regulator is often used to maintain optimal pressure in the fuel system, preventing over-pressurization and ensuring efficient combustion. Understanding these regulatory mechanisms is crucial for diagnosing and maintaining the fuel system in a VW Beetle.
| Characteristics | Values |
|---|---|
| Fuel Pump Regulation | Controlled by the Engine Control Unit (ECU) or Fuel Injection Control Unit |
| Type of Fuel Pump | Electric fuel pump (in most modern VW Beetles) |
| Location | Typically located inside the fuel tank (in-tank fuel pump) |
| Activation | Activated when the ignition is turned on |
| Pressure Regulation | Regulated by a fuel pressure regulator to maintain optimal fuel pressure |
| Sensor Input | Relies on inputs from the fuel pressure sensor and other engine sensors |
| Fuel Cutoff | ECU cuts off fuel pump operation during engine shutdown or in case of faults |
| Compatibility | Specific to VW Beetle models (varies by year and engine type) |
| Diagnostic Codes | Faults in the fuel pump or its regulation may trigger OBD-II codes |
| Maintenance | Requires periodic inspection and replacement as part of fuel system maintenance |
Explore related products
What You'll Learn
Fuel Pump Relay Functionality
The fuel pump relay in a VW Beetle is a critical component that acts as the gatekeeper for the fuel pump's operation. It is an electrical switch that controls the power supply to the fuel pump, ensuring it only activates when the engine is running or being started. This relay is a safety feature and an efficiency measure, preventing the fuel pump from running continuously, which could lead to unnecessary fuel consumption and potential hazards.
Understanding the Relay's Role:
Imagine the fuel pump relay as a bouncer at an exclusive club, allowing entry only to those with the right credentials. In this case, the 'credentials' are the specific conditions required for the fuel pump to operate. When you turn the ignition key, the relay receives a signal from the engine control unit (ECU), which acts as the VIP pass, granting access to power for the fuel pump. This ensures that fuel is delivered to the engine only when needed, optimizing performance and safety.
Technical Insights:
Technically, the fuel pump relay is an electromagnetic switch. It consists of a coil and a set of contacts. When the ECU sends a signal, it energizes the coil, creating a magnetic field that closes the contacts, thus completing the circuit and allowing electricity to flow to the fuel pump. This process is instantaneous and ensures the pump receives power promptly during startup. The relay's specifications, such as coil resistance and contact ratings, are crucial for its proper functioning, and these values can vary across different VW Beetle models.
Practical Considerations:
For VW Beetle owners, understanding the fuel pump relay's functionality is essential for troubleshooting. If your Beetle struggles to start or experiences fuel delivery issues, the relay could be a potential culprit. Checking the relay involves a simple process: locate it in the fuse box, often under the hood or near the battery, and swap it with a similar relay from another circuit. If the issue resolves, you've identified a faulty relay. However, always consult a repair manual or a professional for specific instructions, as relay locations and testing procedures may vary across Beetle generations.
Maintenance and Replacement:
Regular maintenance of the fuel pump relay is not typically required, as it is designed to last the vehicle's lifetime. However, environmental factors, such as extreme temperatures or moisture, can accelerate wear. If replacement is necessary, ensure you source the correct relay for your Beetle's model and year. Installing an incorrect relay may lead to improper fuel pump operation or even damage. Always refer to the vehicle's service manual for precise part numbers and installation guidelines.
Understanding Solenoid Fuel Pump Operation: A Comprehensive Guide
You may want to see also
Explore related products
Camshaft-Driven Fuel Pump Mechanism
The camshaft-driven fuel pump mechanism in a VW Beetle is a marvel of mechanical simplicity, directly linking the engine’s timing to fuel delivery. Unlike electric fuel pumps, this system relies on the camshaft’s rotation to operate the pump, ensuring fuel is supplied in sync with the engine’s demands. This design was common in air-cooled Beetles, particularly pre-1974 models, and remains a testament to Volkswagen’s engineering ingenuity. By eliminating the need for external power sources, it reduces complexity and potential points of failure, making it a reliable choice for its era.
To understand its operation, visualize the camshaft lobe pressing against a plunger within the fuel pump. As the camshaft rotates, the lobe’s profile causes the plunger to reciprocate, creating suction and pressure cycles. During the suction phase, fuel is drawn from the tank into the pump, and during the pressure phase, it’s forced into the carburetor. This process is regulated by the camshaft’s speed, ensuring fuel delivery scales with engine RPM. For optimal performance, maintain proper camshaft timing and inspect the pump diaphragm for leaks, as wear can lead to reduced fuel pressure.
One of the key advantages of this mechanism is its self-regulating nature. Since the pump’s operation is tied to the camshaft, it inherently adjusts fuel delivery based on engine speed. However, this also means that idling or low RPM conditions may result in reduced fuel flow, requiring careful carburetor tuning. For enthusiasts restoring a Beetle, consider upgrading to a rebuilt fuel pump with a modern diaphragm to enhance durability. Additionally, ensure the fuel line is free of debris to prevent pump damage.
Comparing this system to modern electric fuel pumps highlights its trade-offs. While it lacks the precision and high-pressure capabilities of electric systems, its mechanical reliability and ease of maintenance make it ideal for classic vehicles. For instance, troubleshooting a camshaft-driven pump often involves checking mechanical components like the diaphragm or cam lobe, whereas electric systems require diagnosing electrical circuits. This hands-on approach aligns with the DIY spirit of Beetle ownership.
In practice, maintaining a camshaft-driven fuel pump involves regular inspection and proactive replacement of worn parts. If your Beetle struggles to start or stalls under load, check the pump’s diaphragm for tears and ensure the camshaft lobe is not excessively worn. For those converting to an electric pump, retain the original mechanism as a backup—its simplicity can be a lifesaver in remote locations. Ultimately, this mechanism is a reminder of how elegant engineering can solve complex problems with minimal components, making it a cornerstone of the VW Beetle’s enduring legacy.
Step-by-Step Guide: Installing a Walbro Fuel Pump Correctly
You may want to see also
Explore related products
ECU Control Over Fuel Pump
The fuel pump in a VW Beetle is a critical component, ensuring the engine receives the right amount of fuel for optimal performance. In modern VW Beetles, particularly those manufactured from the late 1990s onward, the Engine Control Unit (ECU) plays a pivotal role in regulating the fuel pump. This electronic brain monitors various sensors and adjusts the fuel pump’s operation to maintain efficiency, power, and emissions compliance. Understanding how the ECU controls the fuel pump is essential for diagnosing issues and ensuring the vehicle runs smoothly.
Analytically, the ECU’s control over the fuel pump is a sophisticated process. It relies on inputs from sensors such as the mass airflow (MAF) sensor, throttle position sensor (TPS), and oxygen (O2) sensors to determine the engine’s fuel needs. For instance, during acceleration, the TPS signals increased throttle opening, prompting the ECU to command the fuel pump to deliver more fuel. Conversely, during idle or deceleration, the ECU reduces fuel pump output to conserve fuel and minimize emissions. This dynamic regulation ensures the engine operates at its most efficient state under varying driving conditions.
From an instructive perspective, diagnosing ECU-related fuel pump issues requires a systematic approach. If the fuel pump fails to operate correctly, start by checking the fuel pump relay and fuse, as these are common failure points. Next, use an OBD-II scanner to read error codes, which can indicate ECU malfunctions or sensor issues. For example, a P0087 code suggests low fuel pressure, often linked to a faulty fuel pump or ECU miscommunication. Clearing the code and monitoring the vehicle’s performance can help isolate whether the issue lies with the pump, sensors, or ECU itself.
Persuasively, investing in a quality fuel pump and ensuring proper ECU calibration can significantly enhance your VW Beetle’s longevity and performance. Aftermarket fuel pumps may offer higher flow rates, but they must be compatible with the ECU’s programming to avoid overfueling or lean conditions. Regularly updating the ECU’s software and using genuine VW parts ensures seamless communication between the fuel pump and other engine components. This proactive approach not only prevents breakdowns but also optimizes fuel efficiency and power output.
Comparatively, older VW Beetles (pre-1990s) relied on mechanical or relay-based systems to regulate the fuel pump, which were less precise and adaptable. The introduction of ECU control marked a significant advancement, allowing for real-time adjustments based on engine load, temperature, and driving conditions. While mechanical systems were simpler, they lacked the efficiency and diagnostic capabilities of modern ECU-controlled setups. This evolution highlights the importance of understanding your Beetle’s specific model year and its fuel pump regulation system.
In conclusion, the ECU’s control over the fuel pump in a VW Beetle is a complex yet essential function that ensures optimal engine performance. By monitoring sensor inputs and adjusting fuel delivery in real time, the ECU maximizes efficiency, power, and emissions compliance. Whether diagnosing issues, upgrading components, or simply maintaining your vehicle, understanding this relationship is key to keeping your Beetle running at its best.
Yaris vs. Prius C: Shared Fuel Pump Compatibility Explained
You may want to see also
Explore related products
Fuel Pressure Regulator Role
The fuel pressure regulator in a VW Beetle is a critical component that ensures the engine receives the correct amount of fuel under varying operating conditions. Located near the fuel rail, it acts as a gatekeeper, maintaining optimal fuel pressure by redirecting excess fuel back to the tank. This prevents over-pressurization, which could lead to engine damage or inefficient combustion. For instance, in a 1974 VW Beetle with a Type 1 engine, the regulator typically maintains pressure between 28 and 32 psi, ensuring the carburetor receives a consistent fuel supply.
Understanding the regulator’s function is key to diagnosing fuel system issues. If the regulator fails, symptoms like rough idling, poor acceleration, or fuel leaks may arise. For example, a clogged regulator can cause excessive pressure, leading to fuel vapor lock, while a faulty diaphragm may result in insufficient pressure, causing the engine to stall. Regular inspection, especially in older Beetles, is crucial. Look for signs of wear, such as cracks in the diaphragm or fuel residue around the regulator, and replace it if necessary. Genuine VW parts or high-quality aftermarket replacements are recommended for longevity.
When replacing or adjusting the fuel pressure regulator, precision is paramount. In fuel-injected Beetles, the regulator’s vacuum hose connection must be intact to ensure proper pressure modulation based on engine load. Disconnecting the vacuum hose during testing will reveal the regulator’s base pressure, which should align with manufacturer specifications. For carbureted models, ensure the return line is free of obstructions to allow excess fuel to flow back to the tank. Always consult the vehicle’s manual for specific torque values and procedures to avoid damaging the fuel rail or regulator.
Comparing the fuel pressure regulator’s role in a VW Beetle to other vehicles highlights its simplicity yet effectiveness. Unlike modern electronic regulators, the Beetle’s mechanical regulator relies on a spring and diaphragm, making it durable but less adaptable to dynamic driving conditions. However, this design aligns with the Beetle’s straightforward engineering philosophy. For enthusiasts restoring or maintaining these classic cars, understanding this component’s mechanics can save time and money, as many issues can be resolved without specialized tools. Regular maintenance, such as cleaning the fuel system and checking for leaks, ensures the regulator operates efficiently, preserving the Beetle’s iconic performance.
Locating the Fuel Pump in a 2007 Saturn Aura: A Guide
You may want to see also
Explore related products
Fuse Protection for Fuel Pump
The fuel pump in a VW Beetle, like any critical electrical component, relies on fuse protection to prevent damage from electrical surges or short circuits. Fuses act as sacrificial devices, interrupting the circuit when excessive current flows, safeguarding the pump and associated wiring. In the Beetle, the fuel pump fuse is typically located in the fuse box, often under the dashboard or in the engine compartment, depending on the model year. Identifying the correct fuse is crucial; consult the owner’s manual or a repair guide to locate the specific fuse for your vehicle’s fuel pump system.
Analyzing the role of fuse protection reveals its dual purpose: safety and longevity. Without a fuse, an electrical fault could lead to overheating, melting wires, or even a fire. For instance, a short circuit in the fuel pump wiring could draw current far exceeding the system’s design limits. The fuse, rated for a specific amperage (commonly 15–20 amps for fuel pumps), will blow when this limit is exceeded, cutting power and preventing catastrophic failure. This protective mechanism is particularly vital in fuel systems, where electrical malfunctions pose a heightened risk due to the presence of flammable fuel.
When replacing a blown fuel pump fuse, it’s essential to address the root cause rather than simply installing a new one. A blown fuse is a symptom, not the problem itself. Common culprits include a faulty fuel pump, damaged wiring, or a malfunctioning relay. Using a multimeter to test the circuit for continuity and resistance can help diagnose the issue. Never replace a blown fuse with one of a higher amperage rating, as this undermines the protective function and increases the risk of damage or fire. Always use the correct fuse type and rating specified by the manufacturer.
Comparing fuse protection in older vs. newer VW Beetle models highlights advancements in safety and diagnostics. Earlier models often relied on simpler fuse systems, while modern vehicles may incorporate fuse boxes with integrated relays and more sophisticated circuitry. For example, some newer Beetles use a fuel pump control module that monitors current draw and can shut down the pump in case of anomalies, reducing reliance on traditional fuses. However, even in these systems, fuses remain a critical fail-safe, ensuring redundancy in protection.
In practice, maintaining fuse protection for the fuel pump involves regular inspection and proactive maintenance. Check the fuse box periodically for signs of corrosion, loose connections, or blown fuses. Keep spare fuses in your vehicle, ensuring they match the correct specifications. If the fuel pump fuse blows repeatedly, consult a professional mechanic to diagnose and resolve the underlying issue. By understanding and respecting the role of fuse protection, VW Beetle owners can ensure the reliability and safety of their vehicle’s fuel system.
How to Identify Federal vs. State Fuel Pumps: A Quick Guide
You may want to see also
Frequently asked questions
The fuel pump on a VW Beetle is typically regulated by the fuel pump relay, which is controlled by the engine control unit (ECU) or the fuel injection computer.
Most modern VW Beetles, especially those with fuel injection systems, use an electric fuel pump, which is regulated electronically by the ECU.
The fuel pressure regulator ensures the fuel pump delivers the correct pressure to the fuel injectors. It maintains consistent pressure by returning excess fuel to the tank.
Yes, a faulty fuel pump relay can prevent the fuel pump from receiving power, causing the engine to stall or fail to start. It’s a common issue to check when diagnosing fuel pump problems.
