The 2003 Ford F150's fuel pump is a critical component for engine operation, and understanding which fuse controls it is essential for troubleshooting and maintenance. The fuel pump relay, which is responsible for powering the fuel pump, is typically controlled by a specific fuse located in the fuse box. For the 2003 F150, the fuse that controls the fuel pump is usually found in the engine compartment fuse box, often labeled as Fuel Pump or FPD (Fuel Pump Driver). Identifying and inspecting this fuse is crucial when diagnosing issues related to fuel delivery, as a blown fuse can prevent the fuel pump from functioning properly, leading to engine performance problems or a no-start condition. Always refer to the vehicle's manual or a reliable repair guide to locate the exact fuse and ensure proper handling during inspection or replacement.
| Characteristics | Values |
|---|---|
| Fuse Number | 17 |
| Fuse Box Location | Central Junction Box (CJB) |
| Fuse Box Position | Under the dashboard, driver side |
| Fuse Rating | 20 Amps |
| Fuse Type | Mini Blade Fuse (ATS Blade) |
| Circuit Protected | Fuel Pump Relay |
| Related Component | In-Tank Fuel Pump |
| Year Applicability | 2003 Ford F-150 |
| Additional Notes | Check owner's manual for confirmation |
Explore related products
What You'll Learn

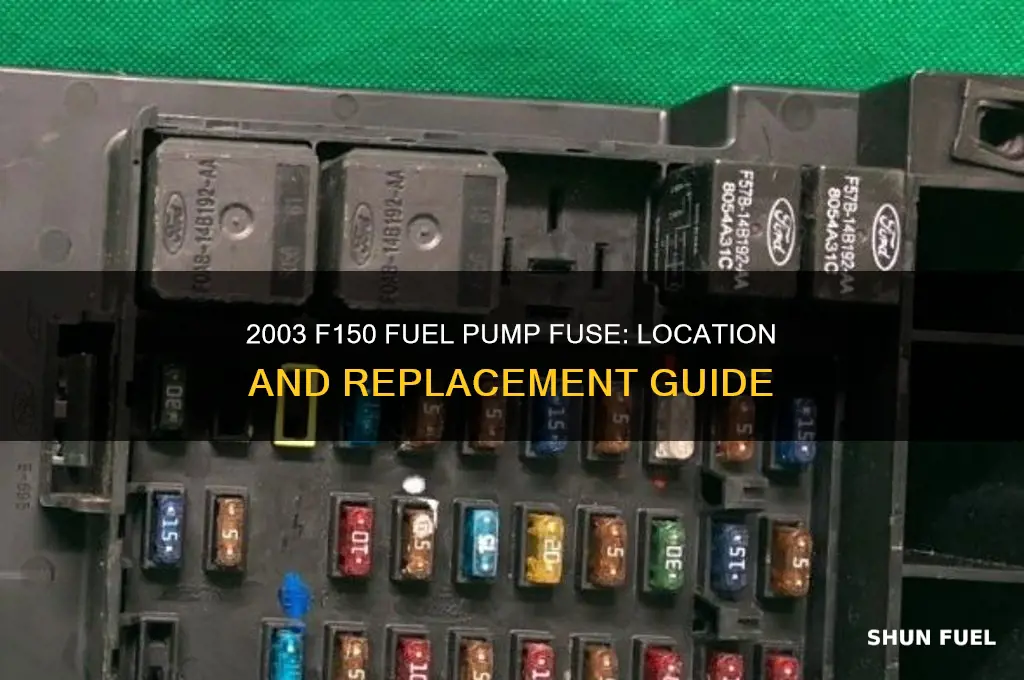

Fuse box location in 2003 F150 for fuel pump
The 2003 Ford F150’s fuel pump relies on a specific fuse for operation, and locating this fuse is crucial for troubleshooting or maintenance. The fuse in question is typically found in the central junction box, which is the primary fuse box for this model. This box is located under the dashboard on the driver’s side, near the brake pedal. Accessing it requires removing a panel cover, which can be done with basic hand tools or even by hand, depending on the vehicle’s configuration. Once opened, the fuse panel diagram on the lid or in the owner’s manual will identify the exact fuse number controlling the fuel pump.
Analyzing the fuse box layout reveals that the fuel pump fuse is often labeled as Fuse 12 or Fuse 27, depending on the F150’s trim level or engine type. For instance, models with a 4.6L or 5.4L V8 engine commonly use Fuse 27, while other configurations may vary. It’s essential to cross-reference the fuse panel diagram to confirm the correct fuse, as misidentifying it could lead to unnecessary troubleshooting or damage. The fuse is typically rated at 20 amps, ensuring it can handle the electrical load of the fuel pump while protecting the circuit from overcurrent.
From a practical standpoint, locating the fuse box and identifying the correct fuse is a straightforward process. Start by turning off the ignition and ensuring the vehicle is in park or neutral. Use a flashlight to illuminate the area under the dashboard, as the central junction box can be tucked away. Once the panel cover is removed, visually inspect the fuses or use a fuse puller to extract the suspected fuel pump fuse for inspection. A blown fuse will have a broken or melted wire inside, indicating it needs replacement. Always replace fuses with the correct amperage to avoid electrical issues.
Comparing the 2003 F150’s fuse box to other Ford models highlights its unique layout. Unlike newer models, which often house the fuel pump fuse in the engine bay fuse box, the 2003 F150 centralizes most fuses under the dashboard. This design choice simplifies access for interior-related components but requires careful navigation of the tight space. Additionally, the fuel pump relay, which works in tandem with the fuse, is often located in a separate power distribution box under the hood, emphasizing the importance of understanding both systems for comprehensive troubleshooting.
In conclusion, the fuse controlling the 2003 F150’s fuel pump is typically Fuse 27 in the central junction box under the dashboard. Accessing this fuse involves removing a panel cover and consulting the fuse diagram for accuracy. Proper identification and maintenance of this fuse ensure the fuel pump operates reliably, preventing potential drivability issues. Always verify the fuse number and amperage for your specific model, as variations exist based on engine and trim configurations. This knowledge empowers owners to address fuel pump-related concerns efficiently and confidently.
Electric Fuel Pumps: Understanding the Role of Check Valves
You may want to see also
Explore related products
Identifying correct fuse number for 2003 F150 fuel pump
The 2003 Ford F150 relies on a specific fuse to power its fuel pump, and identifying the correct one is crucial for troubleshooting or maintenance. Located in the central junction box, the fuse in question is typically labeled as Fuse 12, which corresponds to the fuel pump relay. This fuse is rated at 20 amps, ensuring sufficient power delivery to the fuel pump while protecting the circuit from overloads.
To locate this fuse, start by consulting the owner’s manual, which provides a detailed diagram of the fuse box layout. If the manual is unavailable, the central junction box is usually found under the dashboard on the driver’s side. Open the box cover and look for the fuse labeled “Fuel Pump” or “Fuse 12”. It’s essential to verify the fuse’s condition by visually inspecting it for signs of damage, such as a broken filament or discoloration, which could indicate a blown fuse.
Replacing a blown fuse requires selecting a compatible 20-amp fuse. Avoid using a higher-amp fuse, as this can lead to circuit damage or fire hazards. When testing the fuel pump system, ensure the ignition is off to prevent accidental activation. If the fuse blows repeatedly, this may signal an underlying issue, such as a faulty fuel pump or wiring problem, necessitating further diagnosis by a professional.
For those unfamiliar with automotive electrical systems, it’s helpful to use a multimeter to test the fuse for continuity. A lack of continuity confirms a blown fuse. Additionally, checking the fuel pump relay, which is often located near the fuse box, can provide further insight into the system’s functionality. Proper identification and maintenance of the fuel pump fuse ensure reliable vehicle performance and prevent unexpected breakdowns.
In summary, Fuse 12 in the central junction box controls the 2003 F150’s fuel pump. Accurate identification, coupled with proper inspection and replacement techniques, is key to maintaining the fuel system’s integrity. Always prioritize safety and consult a professional if issues persist.
Locating the Fuel Pump in a 2003 Golf TDI: A Guide
You may want to see also
Explore related products
Symptoms of a blown fuel pump fuse in 2003 F150
The 2003 Ford F150 relies on a specific fuse to power its fuel pump, and identifying this fuse is crucial for troubleshooting. According to various sources, the fuel pump fuse in a 2003 F150 is typically located in the central junction box, often labeled as Fuse 12 or Fuse 27, depending on the model and engine configuration. This fuse is usually rated at 20 amps, ensuring sufficient power delivery to the fuel pump while protecting the circuit from overloads. Understanding its location and function is the first step in diagnosing potential issues.
A blown fuel pump fuse in a 2003 F150 manifests through distinct symptoms that disrupt normal vehicle operation. The most immediate and noticeable sign is the engine’s inability to start. When the fuel pump fuse is blown, the pump cannot deliver fuel to the engine, resulting in a complete lack of combustion. Turning the ignition key will yield no response from the starter, or the engine may crank but fail to fire. This symptom often leads owners to mistakenly suspect a dead battery or faulty starter, making it essential to check the fuse first.
Another symptom of a blown fuel pump fuse is the absence of fuel pressure in the system. If the engine cranks but doesn’t start, use a fuel pressure gauge to test the pressure at the fuel rail. A reading of zero indicates that fuel is not being delivered, pointing directly to a potential issue with the fuse or fuel pump circuit. This diagnostic step is particularly useful for narrowing down the problem before replacing components unnecessarily.
In some cases, a blown fuel pump fuse may cause the "Check Engine" light to illuminate on the dashboard. While this light can signal various issues, it often appears when the engine control module (ECM) detects a lack of fuel delivery. Pairing this warning with other symptoms, such as stalling or difficulty starting, strengthens the case for a blown fuse. However, it’s crucial to use an OBD-II scanner to retrieve specific error codes, as this provides more precise information about the underlying problem.
Preventive maintenance can reduce the likelihood of a blown fuel pump fuse. Regularly inspect the fuse box for signs of corrosion, loose connections, or overheating, as these conditions can weaken the fuse over time. Additionally, avoid using fuses with incorrect amperage ratings, as this can lead to premature failure. If a blown fuse is identified, replace it with one of the same rating and investigate the root cause to prevent recurrence. By staying proactive, 2003 F150 owners can minimize downtime and maintain reliable vehicle performance.
Miata Fuel Pump Diagnostic Mode: Functions, Benefits, and Troubleshooting Tips
You may want to see also
Explore related products
How to replace fuel pump fuse in 2003 F150
The 2003 Ford F150's fuel pump is a critical component, and its fuse is located in the central junction box under the dash on the driver's side. Identifying the correct fuse is essential, as replacing the wrong one can lead to unnecessary troubleshooting. The fuel pump fuse is typically labeled as "FUSE 12" in the owner’s manual, but it’s always wise to double-check the diagram on the fuse box cover for accuracy. This fuse is usually rated at 20 amps, ensuring it can handle the electrical demands of the fuel pump while protecting the circuit from overloads.
Before replacing the fuel pump fuse, ensure the vehicle is turned off and the ignition is in the "Off" position. This prevents any electrical surges that could damage the new fuse or other components. Locate the central junction box by removing the panel cover, which is often secured with clips or screws. Once exposed, find FUSE 12 using the diagram as a guide. Use a fuse puller or a pair of needle-nose pliers to carefully remove the old fuse, inspecting it for signs of damage such as a broken filament or discoloration. If the fuse appears intact, test it with a multimeter to confirm it’s faulty before proceeding.
When installing the new 20-amp fuse, ensure it is seated firmly in the slot. A loose connection can cause intermittent issues or prevent the fuel pump from functioning altogether. After replacing the fuse, reassemble the junction box cover and start the vehicle to verify the fuel pump operates correctly. If the problem persists, consider checking the fuel pump relay or inspecting the wiring harness for damage, as a blown fuse may indicate a deeper electrical issue.
Replacing a fuel pump fuse is a straightforward task, but it’s crucial to approach it methodically. Always use the correct amperage fuse to avoid electrical hazards or further damage. If you’re unsure about any step, consult the owner’s manual or seek assistance from a professional mechanic. Proper maintenance of the fuel system ensures your 2003 F150 runs reliably, avoiding potential breakdowns caused by a faulty fuse.
Fixing GDI Fuel Pump Issues: A Step-by-Step Repair Guide
You may want to see also
Explore related products
Common issues with 2003 F150 fuel pump fuse and relay
The 2003 Ford F150’s fuel pump is controlled by fuse number 12 in the central junction box, rated at 20 amps. This fuse is critical for powering the fuel pump relay, which in turn activates the pump. However, owners often encounter issues with this fuse and its associated relay, leading to fuel delivery problems. Understanding these common issues can save time and frustration when diagnosing a no-start or stalling condition.
One frequent issue is fuse blowouts, typically caused by a short circuit in the fuel pump wiring or a failing fuel pump motor. If the fuse blows repeatedly, it’s not just a fuse problem—it’s a symptom of a deeper electrical issue. To diagnose, inspect the wiring harness for chafing or damage, particularly near the fuel tank. A multimeter can help identify shorts by checking continuity between the fuse terminals and ground. Replacing the fuse without addressing the root cause will only lead to further failures.
Another common problem is a malfunctioning fuel pump relay, which can mimic fuse-related issues. The relay, located in the same central junction box, may stick in the "off" position or fail to engage, cutting power to the fuel pump. Symptoms include a non-starting engine or intermittent stalling. Testing the relay involves swapping it with another identical relay in the box (e.g., the horn relay) to see if the issue persists. If the problem moves, the relay is faulty and needs replacement.
Corrosion in the fuse box is a less obvious but equally problematic issue. Moisture and dirt can accumulate in the central junction box, causing poor contact between the fuse and its terminals. This results in intermittent power loss to the fuel pump, leading to erratic engine behavior. To address this, remove the fuse box cover, clean the terminals with electrical contact cleaner, and apply dielectric grease to prevent future corrosion. Inspect the fuse itself for signs of overheating or discoloration, which indicate a weak connection.
Finally, incorrect fuse replacement can exacerbate problems. Using a fuse with the wrong amperage rating (e.g., a 30-amp fuse instead of the specified 20-amp) can lead to electrical damage or fire hazards. Always replace the fuse with the exact type recommended in the owner’s manual. If the correct fuse isn’t available, it’s safer to leave the vehicle unpowered until the proper part can be obtained. This small detail can prevent costly repairs down the line.
By addressing these specific issues—fuse blowouts, relay failures, corrosion, and incorrect replacements—owners can effectively troubleshoot and resolve fuel pump fuse and relay problems in their 2003 F150. Regular inspection and maintenance of these components can prevent unexpected breakdowns and ensure reliable performance.
Who Manufactures Precision Brand Fuel Pumps? A Comprehensive Guide
You may want to see also
Frequently asked questions
The fuel pump fuse in a 2003 Ford F150 is typically Fuse #12, located in the engine compartment fuse box.
The fuse box for the fuel pump is located in the engine compartment, usually on the driver’s side near the fender.
If the fuel pump fuse keeps blowing, it may indicate an electrical short or a faulty fuel pump. Check the wiring harness for damage and consult a mechanic for further diagnosis.
