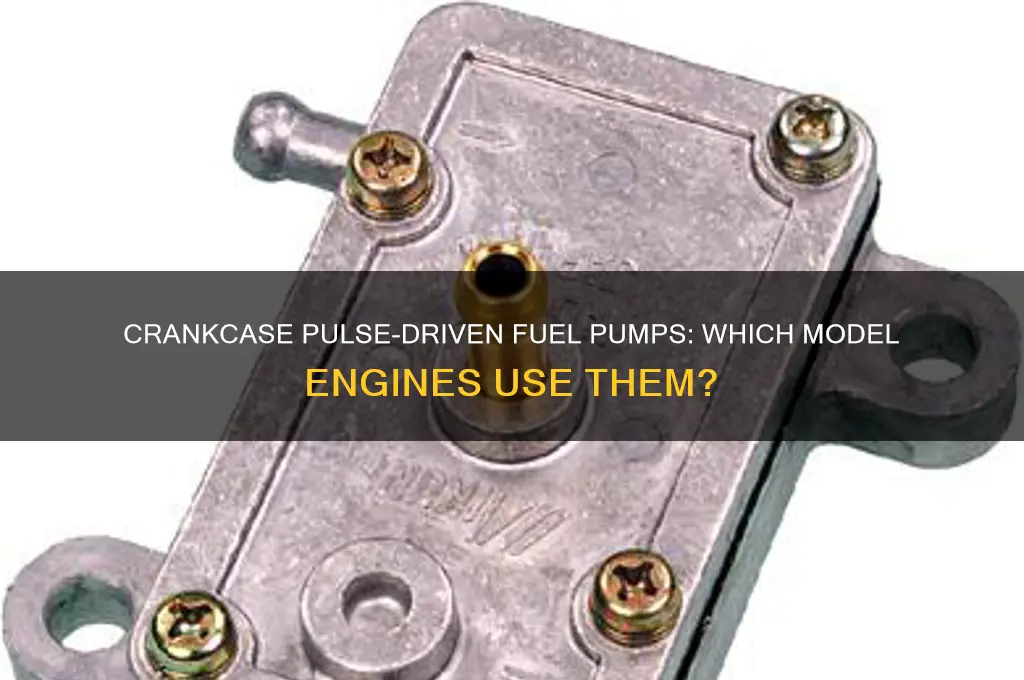

Model engines that typically use a crankcase pulse-driven fuel pump are often found in small, two-stroke internal combustion engines, such as those used in radio-controlled (RC) airplanes, boats, and cars. These engines rely on the pressure fluctuations within the crankcase during the engine's operation to drive a diaphragm-type fuel pump, which delivers a precise mixture of fuel and air to the carburetor. This design is favored for its simplicity, reliability, and ability to function without external power sources, making it ideal for compact and lightweight applications where efficiency and ease of maintenance are critical. Common examples include glow plug engines and smaller gasoline-powered model engines, where the crankcase pulse-driven fuel pump ensures consistent fuel delivery under varying throttle conditions.
Explore related products
What You'll Learn
- Two-Stroke Engines: Crankcase compression uses pulses to drive fuel-oil mixture into the cylinder efficiently
- Small Aircraft Engines: Pulse-driven pumps ensure reliable fuel delivery in lightweight, compact aviation designs
- Outboard Marine Engines: Crankcase pulses power fuel pumps for consistent performance in watercraft applications
- Chainsaw and Trimmer Engines: Portable tools rely on pulse-driven pumps for simplicity and durability
- Model Airplane Engines: Miniature designs use crankcase pulses for fuel delivery in RC aircraft
Two-Stroke Engines: Crankcase compression uses pulses to drive fuel-oil mixture into the cylinder efficiently
Crankcase compression in two-stroke engines is a marvel of simplicity and efficiency, leveraging the natural pulses of the engine’s operation to drive the fuel-oil mixture into the cylinder. Unlike four-stroke engines, which rely on separate systems for intake and compression, two-strokes integrate these processes into a single revolution of the crankshaft. The crankcase acts as a pump, using the downward movement of the piston to create a vacuum that draws the fuel-oil mixture into the crankcase. As the piston rises, this mixture is compressed and forced into the cylinder, ready for combustion. This design eliminates the need for a separate fuel pump, reducing complexity and weight—a key reason two-strokes are favored in applications like motorcycles, outboard motors, and chainsaws.
To understand the mechanics, consider the timing and precision required. During the upward stroke, the piston uncovers transfer ports, allowing the compressed fuel-oil mixture to enter the cylinder. Simultaneously, the exhaust port opens, expelling spent gases. This overlap ensures a fresh charge is ready for ignition as the piston reaches the top of its stroke. The efficiency of this system hinges on the crankcase’s ability to act as both a reservoir and a pump, driven entirely by the engine’s own pulses. For optimal performance, the fuel-oil ratio is critical—typically 25:1 to 50:1, depending on the engine and load. Too lean a mixture risks overheating, while too rich a mixture wastes fuel and fouls spark plugs.
One of the most practical applications of this technology is in small, portable engines where reliability and lightweight design are paramount. Chainsaws, for instance, rely on two-stroke engines because their crankcase pulse-driven fuel pumps ensure consistent power delivery even in demanding conditions. Similarly, outboard motors benefit from the engine’s ability to operate in any orientation, a feature enabled by the self-contained nature of the fuel delivery system. However, this efficiency comes with trade-offs: two-strokes emit more pollutants and consume more oil than four-strokes, making them less suitable for environmentally regulated environments.
For enthusiasts and mechanics, maintaining a two-stroke engine requires attention to detail. Regularly check the fuel-oil mixture and ensure the crankcase seals remain intact to prevent air leaks, which can disrupt compression. Cleaning or replacing the spark plug every 20–30 hours of operation is also essential, as two-strokes tend to foul plugs more quickly due to their oil-rich fuel. Despite these maintenance demands, the crankcase pulse-driven fuel pump remains a testament to engineering ingenuity, offering a compact, powerful solution for specific applications where efficiency and simplicity outweigh environmental concerns.
Efficiently Clearing a John Deere Mower Fuel Pump: Step-by-Step Guide
You may want to see also
Explore related products
Small Aircraft Engines: Pulse-driven pumps ensure reliable fuel delivery in lightweight, compact aviation designs
Small aircraft engines face unique challenges, particularly in fuel delivery systems, where reliability and weight are critical. Pulse-driven fuel pumps, powered by crankcase pressure pulses, have emerged as a solution tailored to these demands. Unlike electric or mechanical pumps, pulse-driven systems eliminate the need for external power sources, reducing complexity and weight—a vital consideration in aviation where every ounce matters. This design leverages the engine’s natural operation, ensuring fuel delivery remains consistent even in high-vibration environments or during sudden maneuvers.
Consider the Continental O-200, a four-cylinder engine commonly found in light aircraft like the Cessna 150. Its crankcase pulse-driven fuel pump operates by harnessing pressure fluctuations generated during the piston’s downstroke. This pressure drives a diaphragm within the pump, creating a vacuum that draws fuel from the tank and delivers it to the carburetor. The system’s simplicity minimizes failure points, while its integration with the engine’s operation ensures it functions without additional maintenance or power requirements. This reliability is particularly crucial in single-engine aircraft, where fuel delivery interruptions can have catastrophic consequences.
For builders or maintainers of small aircraft, understanding the pulse-driven pump’s operation is key to troubleshooting. If fuel delivery issues arise, inspect the pump’s diaphragm for cracks or the inlet/outlet lines for blockages. Ensure the crankcase breather system is unobstructed, as restrictions can reduce pulse pressure and impair pump performance. Regularly check fuel filters and tank vents, as contaminants or clogs can exacerbate delivery problems. While pulse-driven pumps are inherently robust, their performance relies on the engine’s health—a reminder that routine engine maintenance is inseparable from fuel system reliability.
Comparatively, pulse-driven pumps offer advantages over electric systems, which can fail due to electrical faults, or mechanical pumps, which add weight and complexity. However, they are not without limitations. Their flow rate is directly tied to engine RPM, which can be problematic during startup or idle. To mitigate this, some designs incorporate a primer system or auxiliary pump for initial fuel delivery. Despite this, the pulse-driven pump’s lightweight, self-sustaining nature makes it an ideal choice for compact aviation engines, where efficiency and reliability are non-negotiable.
In practice, pilots and mechanics should familiarize themselves with the specific pulse-driven pump model in their aircraft. For instance, the Lycoming O-235, used in aircraft like the Piper PA-18, employs a similar pulse-driven system but with variations in diaphragm material and mounting. Knowing these details enables quicker diagnosis and repair, ensuring the aircraft remains mission-ready. Ultimately, pulse-driven pumps exemplify how innovative, engine-integrated solutions can address the unique demands of small aircraft, combining simplicity with reliability in a package optimized for flight.
Identifying the OEM Fuel Pump Brand for 2000 Dodge Dakota
You may want to see also
Explore related products
Outboard Marine Engines: Crankcase pulses power fuel pumps for consistent performance in watercraft applications
Crankcase pulse-driven fuel pumps are a hallmark of outboard marine engines, particularly those designed for watercraft applications where reliability and consistent performance are non-negotiable. These engines, commonly found in boats ranging from small dinghies to high-performance speedboats, leverage the natural pressure fluctuations within the crankcase to drive fuel delivery. This design eliminates the need for external power sources, ensuring the fuel pump operates seamlessly even in the harsh marine environment. Manufacturers like Mercury Marine and Yamaha have perfected this technology, integrating it into models such as the Mercury 4-stroke and Yamaha F115, which are widely used by recreational and professional boaters alike.
The mechanics behind crankcase pulse-driven fuel pumps are both ingenious and practical. As the engine’s pistons move, they create pressure pulses in the crankcase. These pulses are harnessed to drive a diaphragm within the fuel pump, which in turn draws fuel from the tank and delivers it to the carburetor or fuel injectors. This system is self-regulating, meaning fuel delivery adjusts automatically with engine speed, ensuring optimal performance across varying loads. For instance, when idling, the pump delivers just enough fuel to maintain a steady RPM, while under full throttle, it increases fuel flow to meet the engine’s higher demands.
One of the standout advantages of this system is its simplicity and durability. Unlike electric fuel pumps, which rely on batteries or alternators, crankcase pulse-driven pumps have fewer moving parts and are less prone to failure. This is critical in marine environments where exposure to water, salt, and vibrations can accelerate wear and tear. Additionally, the absence of electrical components reduces the risk of corrosion, a common issue in saltwater applications. Boaters often report longer service intervals and lower maintenance costs with these engines, making them a preferred choice for extended voyages or commercial use.
However, it’s essential to note that this system is not without its limitations. Crankcase pulse-driven pumps are highly dependent on engine operation, meaning they won’t function if the engine is off. This can pose challenges during priming or when restarting after a stall, particularly in rough waters. To mitigate this, some models incorporate a manual primer bulb or a small electric pump for initial fuel delivery. Boaters should also be mindful of fuel filter maintenance, as clogs can disrupt the pump’s efficiency. Regularly inspecting and replacing filters every 50–100 hours of operation is a practical tip to ensure uninterrupted performance.
In conclusion, outboard marine engines that utilize crankcase pulse-driven fuel pumps offer a robust solution for watercraft applications, blending reliability, efficiency, and simplicity. Models like the Suzuki DF90 and Honda BF150 exemplify this technology, delivering consistent performance across diverse boating scenarios. While the system’s dependency on engine operation requires some adaptation, its durability and low maintenance make it an ideal choice for both casual and seasoned boaters. Understanding its mechanics and limitations empowers users to maximize their engine’s potential, ensuring smooth sailing for years to come.
Street Bike Fuel Pump Location: A Comprehensive Guide for Riders
You may want to see also
Explore related products
Chainsaw and Trimmer Engines: Portable tools rely on pulse-driven pumps for simplicity and durability
Portable outdoor power tools like chainsaws and trimmers demand fuel systems that are both rugged and reliable, especially in the harsh conditions they often operate under. These tools typically feature two-stroke engines, which are lightweight and deliver high power-to-weight ratios—essential for handheld use. A key component in these engines is the crankcase pulse-driven fuel pump, a design that leverages the engine’s own operation to move fuel without the need for external power sources. This system is driven by the pressure fluctuations in the crankcase during the engine’s intake and exhaust cycles, creating a vacuum that draws fuel from the tank to the carburetor.
The simplicity of this design is its greatest strength. Unlike electric or mechanical fuel pumps, which add complexity and potential failure points, pulse-driven pumps have minimal moving parts. This reduces the risk of malfunction, a critical factor when tools are used in remote or hard-to-reach areas. For example, Stihl and Husqvarna, leading manufacturers of chainsaws and trimmers, rely heavily on this technology in their two-stroke engines. The pump’s integration into the crankcase also ensures it is shielded from debris and impacts, enhancing durability in demanding environments like forestry or landscaping.
From a maintenance perspective, pulse-driven pumps are user-friendly. They require no separate lubrication or electrical connections, and their operation is self-regulating based on engine speed. However, proper fuel mixture is crucial for optimal performance. Most two-stroke engines in chainsaws and trimmers require a 50:1 ratio of gasoline to oil, ensuring adequate lubrication for the engine’s moving parts. Failure to maintain this ratio can lead to pump inefficiency or engine damage. Regular inspection of fuel lines and filters is also recommended to prevent clogs, which can disrupt the pump’s ability to draw fuel effectively.
Comparatively, pulse-driven pumps offer advantages over diaphragm-type pumps found in some small engines. Diaphragm pumps, while effective, rely on a separate mechanical linkage to the engine, introducing additional wear points. Pulse-driven systems, on the other hand, are directly synchronized with the engine’s operation, ensuring consistent fuel delivery across varying speeds and loads. This makes them particularly well-suited for the intermittent, high-power demands of chainsaw and trimmer use, where sudden bursts of acceleration are common.
In conclusion, the crankcase pulse-driven fuel pump is a cornerstone of modern portable tool design, embodying the principles of simplicity and durability. Its seamless integration into two-stroke engines ensures reliable performance in the most challenging conditions, making it the go-to choice for manufacturers and users alike. By understanding its operation and maintenance requirements, operators can maximize the lifespan and efficiency of their chainsaws and trimmers, ensuring they remain dependable tools for years to come.
Step-by-Step Guide: Safely Removing a Fuel Pump in Your Vehicle
You may want to see also
Explore related products
Model Airplane Engines: Miniature designs use crankcase pulses for fuel delivery in RC aircraft
Crankcase pulse-driven fuel pumps are a hallmark of simplicity and efficiency in model airplane engines, particularly those powering RC aircraft. These miniature powerhouses, often glow plug or gasoline-fueled, rely on the rhythmic pulses of their crankcases to draw fuel from the tank and deliver it to the carburetor. This design eliminates the need for external power sources or complex mechanical systems, making it ideal for lightweight, compact applications where every gram counts. For instance, engines like the OS MAX series and the Saito FA series utilize this mechanism, ensuring reliable fuel delivery even during high-G maneuvers or inverted flight.
Understanding how these systems work is key to appreciating their brilliance. As the crankshaft rotates, it creates pressure differentials within the crankcase. During the intake stroke, the crankcase volume increases, creating a partial vacuum that draws fuel from the tank through a one-way valve. On the compression stroke, the volume decreases, forcing the fuel into the carburetor. This process repeats with each revolution, synchronizing fuel delivery with engine speed. For hobbyists, this means fewer moving parts to maintain and a more consistent fuel supply, even in challenging flight conditions.
One practical tip for optimizing performance is to ensure the fuel line is properly sized and free of kinks or obstructions. A 3mm to 4mm ID silicone tube is typically recommended for most setups, as it balances flexibility and fuel flow efficiency. Additionally, using a fuel filter can prevent debris from clogging the pump mechanism, especially when using ethanol-blended fuels. Regularly inspecting the one-way valve for wear or damage is also crucial, as a faulty valve can lead to air leaks and inconsistent fuel delivery.
Comparing crankcase pulse-driven systems to other fuel delivery methods highlights their advantages. Electric fuel pumps, while precise, add weight and complexity, requiring a separate power source. Diaphragm pumps, though lightweight, can be less reliable under varying engine loads. In contrast, crankcase pulse systems are inherently self-regulating, scaling fuel delivery with engine RPM. This makes them particularly well-suited for aerobatic models, where sudden changes in orientation and throttle demand a responsive and robust fuel system.
Finally, the longevity of these engines often depends on proper tuning and fuel selection. For glow plug engines, a fuel mixture of 10-20% nitromethane, 20% castor or synthetic oil, and the remainder methanol is standard. Gasoline engines typically use a 2-stroke oil mix at a 40:1 ratio. Always break in new engines according to the manufacturer’s guidelines, gradually increasing throttle to ensure proper seating of piston rings and bearings. With care, a crankcase pulse-driven engine can power hundreds of flights, making it a reliable choice for both novice and experienced RC pilots alike.
E85 Fuel Pump Upgrade: Is It Necessary for Your Vehicle?
You may want to see also
Frequently asked questions
Small, two-stroke engines commonly use crankcase pulse-driven fuel pumps. These include chainsaws, string trimmers, leaf blowers, and outboard boat motors.
The pump operates by utilizing the pressure changes in the crankcase of a two-stroke engine. As the piston moves, it creates a vacuum and pressure pulse, which drives a diaphragm in the fuel pump, forcing fuel from the tank to the carburetor.
No, crankcase pulse-driven fuel pumps are specific to two-stroke engines. Four-stroke engines typically use mechanical, electric, or vacuum-driven fuel pumps due to their different combustion cycles and crankcase designs.
