Ameer Randolph

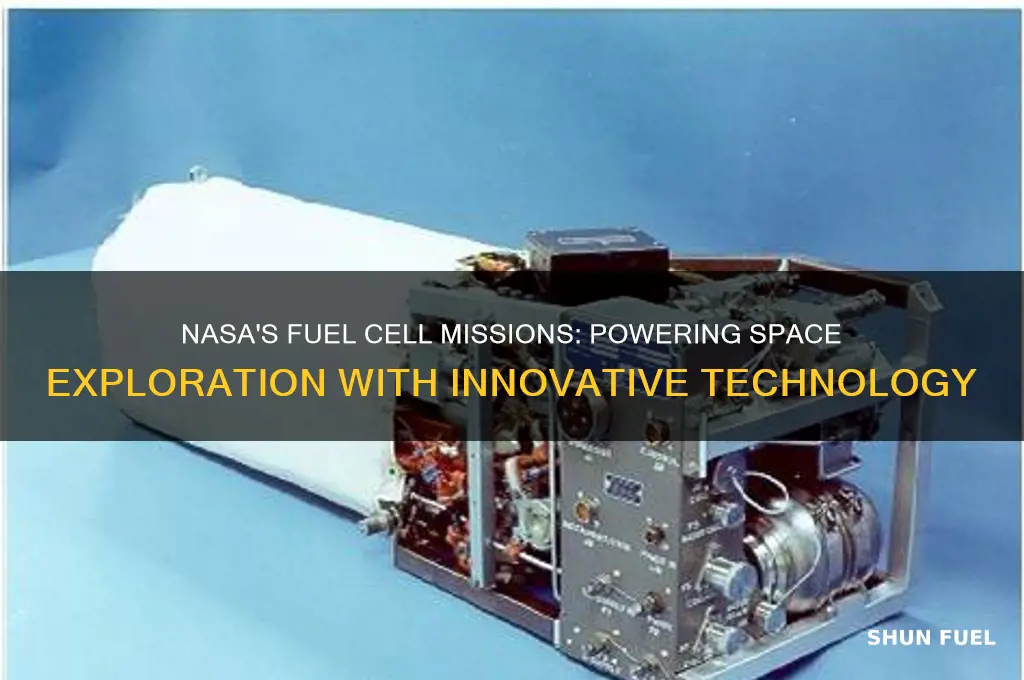

NASA has utilized fuel cell technology in several missions, most notably in the Apollo program and the Space Shuttle. Fuel cells played a critical role in providing electrical power and potable water for astronauts during lunar missions, with the Apollo spacecraft relying on alkaline fuel cells to support life and systems. Similarly, the Space Shuttle employed fuel cells as a primary power source, generating electricity through the electrochemical reaction of hydrogen and oxygen, while also producing water as a byproduct. These applications highlight NASA's innovative use of fuel cells to enhance mission capabilities and sustainability in space exploration.
| Characteristics | Values |
|---|---|
| Mission Name | Apollo Program (Apollo 11, 12, 13, 14, 15, 16, 17) |
| Fuel Cell Type | Hydrogen-Oxygen Alkaline Fuel Cells |
| Purpose | Primary power source for Command and Service Modules |
| Power Output | Approximately 1.4 kW (continuous) |
| Voltage | 28-32 volts DC |
| Electrolyte | Potassium Hydroxide (KOH) solution |
| Reactants | Hydrogen (H₂) and Oxygen (O₂) |
| Products | Water (H₂O), Heat, and Electricity |
| Efficiency | ~50-60% |
| Duration | Designed for up to 14 days of operation |
| Weight | ~300 kg (including reactants) |
| Manufacturer | Pratt & Whitney (now part of UTC Aerospace Systems) |
| Significance | Provided reliable, efficient power for life support, communications, and avionics during lunar missions |
| Legacy | Pioneered the use of fuel cells in space exploration, influencing later missions like the Space Shuttle |
Explore related products
What You'll Learn
Apollo Missions Fuel Cells
The Apollo missions, NASA's iconic lunar exploration program, relied heavily on fuel cells to power the Command and Service Modules (CSM) and the Lunar Module (LM). These fuel cells, which combined hydrogen and oxygen to produce electricity and drinking water, were a cornerstone of the spacecraft's life support and electrical systems. Unlike batteries, fuel cells provided a continuous and reliable power source, essential for the long durations of the Apollo missions. The Apollo 11 mission, which landed humans on the Moon for the first time, used three 1.4 kW fuel cells in the CSM and two 0.7 kW fuel cells in the LM, ensuring sustained power throughout the journey.
One of the most innovative aspects of the Apollo fuel cells was their dual functionality. As hydrogen and oxygen reacted to generate electricity, the byproduct was water, which was purified and used by the astronauts for drinking. This closed-loop system was a marvel of engineering efficiency, reducing the need to carry additional water and minimizing waste. For example, during the Apollo 13 mission, the fuel cells in the LM became a lifeline when the CSM's systems failed, providing both power and water for the crew's survival during their harrowing return to Earth.
However, the Apollo fuel cells were not without challenges. They required precise management of reactants and were susceptible to issues like gas impurities or freezing temperatures. The Apollo 13 crisis was partly due to an oxygen tank explosion, which crippled the CSM's fuel cells and forced the crew to rely on the LM's systems. This incident highlighted the critical importance of redundancy and the need for robust engineering in space missions. Despite these challenges, the fuel cells' performance was a testament to their design, enabling the success of six Moon landings.
Comparing the Apollo fuel cells to modern space mission power systems reveals both progress and continuity. Today, NASA and other space agencies use advanced solar panels and next-generation fuel cells, such as those on the International Space Station (ISS). Yet, the principles pioneered in the Apollo era—efficiency, reliability, and resource utilization—remain foundational. The Apollo fuel cells were a pioneering solution for their time, and their legacy continues to influence how we power exploration beyond Earth.
For enthusiasts or educators looking to explore this technology further, a practical tip is to examine the specifications of the Apollo fuel cells: each cell operated at approximately 24 volts and 50 amperes, with a total power output of 1.4 kW per cell. Building a simple fuel cell model using household materials, such as baking soda and vinegar, can illustrate the basic principles of electrochemical reactions. This hands-on approach not only honors the ingenuity of the Apollo engineers but also inspires the next generation of space innovators.
Efficient Heating: Mastering Your Dual Fuel Towel Rail Usage Guide
You may want to see also
Explore related products
$24.98
Space Shuttle Power Systems
The Space Shuttle, a marvel of engineering, relied on a sophisticated power system to sustain its operations during missions. At the heart of this system were fuel cells, which provided a reliable and efficient source of electricity and drinking water for the crew. These fuel cells, developed by NASA, were a critical component, ensuring the shuttle’s functionality in the harsh environment of space. Each shuttle carried three fuel cell power plants, producing a combined 21 kilowatts of power, sufficient to meet the demands of life support systems, avionics, and payload operations.
Fuel cells operate through an electrochemical reaction between hydrogen and oxygen, generating electricity, water, and heat without combustion. In the Space Shuttle, this process was meticulously managed to maximize efficiency. The hydrogen and oxygen were stored as cryogenic liquids in tanks, carefully regulated to maintain optimal pressure and temperature. The byproduct water was collected and purified, providing the crew with drinking water—a dual-purpose solution that exemplified NASA’s ingenuity in resource utilization.
One of the standout missions that highlighted the reliability of fuel cell power systems was STS-7, the second mission of the Space Shuttle Challenger. Launched in June 1983, this mission marked the first flight of a female American astronaut, Sally Ride, and demonstrated the shuttle’s capability to deploy communications satellites. The fuel cells performed flawlessly, powering the shuttle’s systems throughout the six-day mission. This success underscored the importance of fuel cells in enabling complex operations in space, from satellite deployments to scientific experiments.
However, the fuel cell system was not without challenges. During the STS-9 mission in 1983, a fuel cell malfunction threatened the shuttle’s power supply. The crew and ground control worked together to isolate the issue, relying on the redundancy of the three fuel cell power plants to maintain operations. This incident highlighted the critical need for robust backup systems in space missions. NASA’s response to this challenge further refined the design and maintenance protocols for fuel cells, ensuring their reliability in subsequent missions.
In retrospect, the Space Shuttle’s fuel cell power systems were a testament to NASA’s commitment to innovation and safety. They provided a stable power source, supported life aboard the shuttle, and enabled groundbreaking missions. While the shuttle program has concluded, the lessons learned from its fuel cell technology continue to influence modern spacecraft design. For engineers and enthusiasts alike, studying these systems offers valuable insights into the practical challenges and solutions of space exploration.
Mastering the 711 Fuel App: A Step-by-Step Guide to Save on Gas
You may want to see also
Explore related products
International Space Station Energy
The International Space Station (ISS) relies on a sophisticated energy system to sustain its operations, with solar arrays serving as the primary power source. These arrays, spanning an acre in total area, capture sunlight and convert it into electricity through photovoltaic cells. However, the ISS orbits Earth every 90 minutes, spending roughly half that time in darkness. To bridge this gap, excess energy generated during daylight periods is stored in nickel-hydrogen batteries, ensuring a continuous power supply. This system, while effective, has evolved over the years to meet the growing demands of the station’s scientific experiments and life support systems.
Historically, NASA has utilized fuel cells in missions like the Apollo program and the Space Shuttle, where they provided reliable electrical power and drinking water as a byproduct. On the ISS, fuel cells were initially considered but ultimately not adopted due to their complexity and the need for a steady supply of hydrogen and oxygen. Instead, the station’s designers opted for a solar-based system, which aligns better with the long-duration nature of ISS operations. However, the lessons learned from fuel cell technology continue to influence NASA’s approach to energy management in space.
One critical aspect of the ISS energy system is its modularity and redundancy. The station is divided into eight power channels, each capable of operating independently. This design ensures that if one channel fails, the others can compensate, maintaining critical functions. Additionally, periodic upgrades, such as the replacement of older batteries with more efficient lithium-ion units, have enhanced the system’s reliability and capacity. These improvements are essential for supporting the increased workload of the ISS, including commercial activities and international collaborations.
For those interested in replicating or understanding the ISS energy model, key takeaways include the importance of renewable energy sources, energy storage solutions, and system redundancy. Solar power, combined with advanced battery technology, offers a sustainable and scalable approach to energy management in space. However, implementing such a system requires careful planning and continuous monitoring to address challenges like orbital shadows and equipment degradation. The ISS serves as a testament to the feasibility of long-term energy sustainability in space, providing valuable insights for future missions to the Moon, Mars, and beyond.
In practical terms, the ISS energy system demonstrates how integrating multiple technologies can create a robust and adaptable power infrastructure. For instance, the transition from nickel-hydrogen to lithium-ion batteries increased energy storage capacity by 40%, allowing for more efficient use of solar power. This example highlights the importance of innovation and adaptability in space exploration. As NASA and its partners look to establish lunar bases and conduct deep-space missions, the lessons from the ISS will play a pivotal role in shaping the energy systems of tomorrow.
Exploring Rocket Fuel: Types and Powering Space Travel
You may want to see also
Explore related products
$170.99 $179.99
$219.99
Orion Spacecraft Fuel Cell Tech
NASA's Orion spacecraft, designed for deep space exploration, incorporates advanced fuel cell technology to ensure reliable and efficient power generation during its missions. Unlike traditional chemical batteries, the fuel cells aboard Orion produce electricity through a continuous electrochemical reaction between hydrogen and oxygen, generating water as a byproduct. This system provides a steady power supply, critical for sustaining life support, avionics, and other essential systems during long-duration missions beyond Earth's orbit.
The fuel cells used in Orion are not new to NASA; they have a proven track record in space exploration, most notably in the Apollo missions. However, Orion's fuel cell system has been modernized to meet the demands of deeper space travel. Each Orion spacecraft is equipped with three fuel cell systems, ensuring redundancy and reliability. These systems are designed to operate for up to 21 days, the expected duration of a lunar mission, and can be extended further if needed. The fuel cells are lightweight, compact, and highly efficient, making them ideal for the constraints of spaceflight.
One of the key advantages of Orion's fuel cell technology is its ability to provide both electrical power and potable water. The water produced during the electrochemical reaction is purified and used for drinking and other life support needs, reducing the amount of water that needs to be carried from Earth. This dual functionality is a game-changer for long-duration missions, where every kilogram of payload must be carefully considered. Additionally, the fuel cells operate silently and without moving parts, minimizing wear and tear and reducing the risk of mechanical failure.
Implementing fuel cell technology in Orion required rigorous testing and validation. Engineers subjected the systems to extreme conditions, including vacuum, radiation, and temperature fluctuations, to ensure they could withstand the harsh environment of space. The fuel cells were also tested for compatibility with Orion's other systems, such as the thermal control and life support subsystems. This meticulous approach ensures that the fuel cells will perform flawlessly during critical mission phases, such as lunar orbit insertion and re-entry.
For those interested in replicating or understanding this technology, it’s essential to note that Orion’s fuel cells are not off-the-shelf components. They are custom-designed to meet NASA’s stringent requirements for safety, efficiency, and durability. However, the principles behind their operation—combining hydrogen and oxygen to generate electricity and water—are well-established and can be studied in smaller-scale applications. Enthusiasts and researchers can explore similar fuel cell systems in terrestrial applications, such as backup power generators or electric vehicles, to gain insights into the technology’s potential and limitations.
In conclusion, Orion’s fuel cell technology represents a critical innovation in NASA’s quest for sustainable deep space exploration. By providing reliable power and potable water, these systems enable longer and more ambitious missions, paving the way for humanity’s return to the Moon and eventual journey to Mars. As this technology continues to evolve, it will undoubtedly inspire advancements in both space and terrestrial energy systems, demonstrating the far-reaching impact of space exploration on everyday life.
Mastering Multi-Fuel Stove Vents: Efficient Heating Tips and Techniques
You may want to see also
Explore related products
Fuel Cells in NASA Satellites
NASA has long relied on fuel cells to power its satellites, leveraging their efficiency and reliability in the harsh conditions of space. One of the most notable missions to utilize fuel cells is the Apollo program, where fuel cells provided both electricity and drinking water for astronauts. These cells combined hydrogen and oxygen to produce water and electricity, a dual-purpose solution critical for long-duration missions. This innovation set a precedent for future satellite designs, showcasing fuel cells as a versatile power source.
In modern satellite missions, fuel cells continue to play a pivotal role, particularly in low Earth orbit (LEO) and beyond. For instance, the International Space Station (ISS) employs fuel cells to supplement solar power during periods of eclipse when sunlight is unavailable. These cells are designed to operate in zero gravity and withstand extreme temperature fluctuations, ensuring uninterrupted power supply. The Proton Exchange Membrane (PEM) fuel cells, commonly used in these applications, offer high efficiency and a compact form factor, making them ideal for space-constrained satellites.
When integrating fuel cells into satellite systems, engineers must consider several critical factors. Hydrogen storage is a primary concern, as it requires lightweight, high-capacity solutions like metal hydrides or cryogenic tanks. Additionally, thermal management is essential to prevent overheating or freezing of the fuel cell components. NASA’s GRIP (Generator for Rapid Integration and Power) project exemplifies this, developing fuel cells that can operate seamlessly in the vacuum of space while minimizing system weight and complexity.
Comparatively, fuel cells offer distinct advantages over traditional battery systems in satellite applications. Unlike batteries, which degrade over time and require periodic replacement, fuel cells can operate continuously as long as fuel is available. This longevity is particularly valuable for deep-space missions, where resupply is impractical. For example, the Mars Atmosphere and Volatile Evolution (MAVEN) satellite uses fuel cells to ensure sustained power during its extended mission, highlighting their durability and reliability.
To implement fuel cells in satellite missions, designers should follow a structured approach. First, assess power requirements to determine the necessary fuel cell capacity. Second, select appropriate materials that can withstand the space environment, such as corrosion-resistant alloys and radiation-hardened membranes. Finally, test rigorously under simulated space conditions to validate performance and safety. By adhering to these steps, engineers can harness the full potential of fuel cells, ensuring satellites remain operational in the most demanding environments.
What Fuel Powers Commercial Airlines? Exploring Jet Fuel Types
You may want to see also
Frequently asked questions
NASA has used fuel cells in the Apollo missions, including Apollo 11, to provide electrical power and drinking water for the astronauts.
Fuel cells in NASA missions, like those used in the Space Shuttle, combine hydrogen and oxygen to generate electricity, producing water as a byproduct, which is then used by the crew.
The Apollo Command and Service Modules and the Space Shuttle Orbiters relied on fuel cells as their primary source of electrical power during missions.
While fuel cells were extensively used in the Apollo and Space Shuttle programs, current NASA missions, such as the International Space Station (ISS), primarily use solar arrays for power generation. However, fuel cell technology remains under consideration for future deep-space exploration missions.
