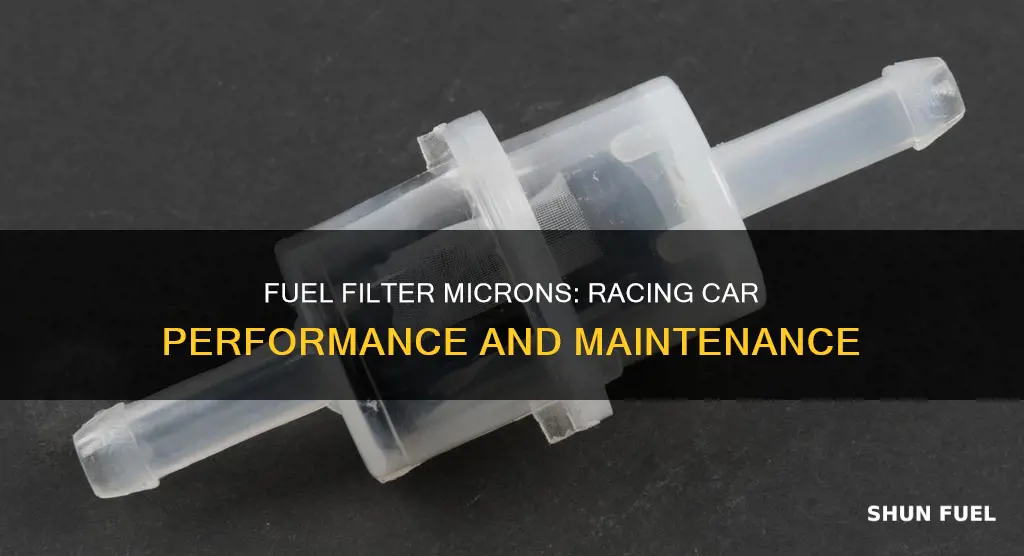

Choosing the right micron rating for a fuel filter is critical to the performance and protection of a race car engine. The fuel filter acts as a protector, ensuring that any debris in the fuel or fuel tank does not pass through the system and damage critical components such as the fuel pump, fuel injectors, or the jets in a carburetor. The micron rating of a fuel filter refers to the size of the pores in the filter media, with lower micron ratings indicating a finer filter. For race cars, the recommended micron rating for fuel filters can vary depending on the specific application and fuel type.
Characteristics and Values of Race Car Fuel Filters in Microns
| Characteristics | Values |
|---|---|
| Engine oil main filter | 8 to 40 |
| Crankshaft journals | 23 |
| Fuel system pre-filter (before the pump) | 25 to 400 |
| Fuel system final filter (after the pump) | 1 to 40 |
| High-performance fuel injectors | 10 or finer |
| Carbureted engines after the fuel pump | 40 |
| Pre-filter with a mechanical fuel pump | 100 |
| After the fuel filter with fuel injected engines | 10 |
| Pre-filter with fuel injected engines | 100 |
| Post-pump filtration with Micro Glass filters | N/A |
| Post-pump filter for EFI applications | 10 |
| Pre-pump filter for EFI applications | 100 |
| Post-pump filter | 40 |
| Pre-pump filter | 40 |
Explore related products
What You'll Learn
Fuel filter micron rating depends on the type of fuel
Micron ratings are a generalised way of indicating a fuel filter's ability to trap particulate matter by the size of the particulates it is exposed to. A lower micron rating will trap smaller particles. For example, a 10-micron fuel filter can theoretically capture particulates that are 10 microns or larger in size, which is about the consistency of talcum powder.
The fuel filter micron rating you should choose depends on the type of fuel and the engine. For instance, carbureted engines typically use 40-micron filters after the fuel pump, while fuel-injected engines use 10-micron filters after the fuel filter. Fuel compatibility, reusability, and position in the fuel system should also be considered when choosing a filter.
Paper filters, also known as cellulose filters, are disposable and suitable for most fuels except methanol or fuels containing more than 20% ethanol. Stainless steel filters are compatible with all fuels and can be reused, while Micro Glass filters are for post-pump use only and are also disposable.
It is worth noting that a chronically high vacuum on the intake side of the lift pump will cause diaphragm-style pumps to wear out more quickly, regardless of the micron rating of the filter. However, a lower micron rating filter will accumulate debris and clog more quickly, leading to higher vacuum pressure and potential pump damage. Therefore, it is essential to follow the manufacturer's guidelines and consider the specific requirements of your engine when selecting the appropriate micron rating for your fuel filter.
Using 88 Octane Fuel in Your Car: Is It Safe?
You may want to see also
Explore related products
Fuel filter micron rating depends on the type of engine
The micron rating of a fuel filter is a generalised way of indicating the ability of the filter media to trap particles by size. The lower the micron rating, the smaller the particle the filter will reliably filter out. For example, a 2-micron filter will filter out smaller particles than a 10-micron filter.
Fuel filter micron ratings typically range between 2 and 100 microns. 100-micron filters are usually used as pre-filters to protect fuel pumps and keep larger debris from clogging the post-pump filter. They can be mounted in-line before the pump or inside the tank. Pre-filters inside the tank are often called "sock filters" or "fuel strainers".
For carbureted engines, a 40-micron filter is generally used after the fuel pump. It is recommended to use a 100-micron pre-filter with a mechanical fuel pump. For fuel-injected engines, a 10-micron filter is used after the fuel filter, along with a 100-micron pre-filter.
High-performance fuel injector manufacturers recommend a 10-micron or finer filter. Coarse filters are usually recommended for thicker fluids and as pre-filters. A coarse pre-filter before the pump with a fine filter after the pump can protect the pump from damage and prevent the fine filter from clogging too quickly.
It is important to note that a severely clogged filter, regardless of micron rating, can cause a high vacuum scenario and possible pump damage. Sequential filtration, which uses a combination of filter sizes, is proven to be more effective than single-stage, fine micron filtration. This approach is used by engine manufacturers such as Yanmar, as well as filter manufacturers like Racor.
Troubleshooting a Car That Won't Start: Faulty Fuel Injector
You may want to see also
Explore related products
$31.01 $49.99
Fuel filter micron rating depends on the type of fuel injector
The right micron rating for a fuel filter depends on several factors, including the type of fuel injector in your engine.
Multi-Port Fuel Injection (MPFI) fuel injectors require a 10-micron filter positioned after the pump. This is because the OEM MPFI applications generally do not have a filter finer than 100 microns and do not have fuel pumps with extremely high flow. However, high-performance OEM vehicles will have a fuel system with a 5-10 micron filter post-pump and pre-fuel rail.
On the other hand, Gasoline Direct Injection (GDI) fuel injectors require a finer 5-micron filter. This is because GDI fuel injectors spray directly into the combustion chamber and have finer internal tolerances, necessitating finer filtration.
It is worth noting that some sources suggest that a 2-micron filter can be used without causing damage to the engine, contrary to popular belief. However, using a 2-micron filter effectively reduces the area of the filter media by at least half, which means there is less filter media to capture contaminants. Therefore, it is generally recommended to use a 10-micron or finer filter for high-performance fuel injectors.
When choosing a fuel filter, it is important to consider fuel compatibility, reusability, and position in your fuel system. For example, paper or cellulose filters are disposable and should not be used with methanol or fuels containing more than 20% ethanol, while stainless steel filters are compatible with all fuels and can be reused.
Fuel Cell Cars: Green Revolution or Greenwashing?
You may want to see also
Explore related products
$26.88 $29.88
Fuel filter micron rating depends on the type of fuel pump
The micron rating of a fuel filter is a generalised way of indicating the filter's ability to trap harmful particulates to prevent damage to the vehicle's engine and other operating systems. The size of the micron rating indicates the size of the particulates the filter can trap. For example, a 10-micron fuel filter can theoretically capture particulates that are 10 microns or larger.
When it comes to choosing the right fuel filter micron rating for a race car, it depends on the type of fuel pump in the car. If the car has a fuel injection engine, a 10-micron filter is typically used after the fuel filter, along with a 100-micron pre-filter. High-performance fuel injector manufacturers recommend a 10-micron or finer filter. For carbureted engines, a 40-micron filter is generally used after the fuel pump, also with a 100-micron pre-filter.
The type of fuel being used is also a factor to consider when choosing a fuel filter. Paper filters, for example, are not suitable for use with methanol or fuels containing more than 20% ethanol. Stainless steel filters, on the other hand, are compatible with all types of fuel and can be reused.
It is important to note that a severely clogged filter, regardless of micron rating, can cause high vacuum scenarios and possible pump damage. This is where sequential filtration can be beneficial. Sequential filtration involves using a primary filter with a higher micron rating, such as 10 or 30 microns, followed by a secondary filter with a lower micron rating. This approach helps to ensure that the fuel is very clean and reduces the risk of pump damage.
Dirty Oil: Impact on Fuel Efficiency and Engine Performance
You may want to see also
Explore related products
Fuel filter micron rating depends on the brand
The micron rating of a fuel filter is important as it indicates the filter's ability to trap harmful particulate matter. A lower micron rating indicates a finer filter that can trap smaller particles. For example, a 10-micron fuel filter can theoretically capture particles that are 10 microns or larger.
When it comes to choosing the right micron rating for a race car fuel filter, it depends on the brand and model of the car, as well as the specific requirements of the engine. Different brands may have different recommendations for the micron rating of the fuel filter to be used with their engines. It is important to refer to the manufacturer's guidelines or consult a mechanic to determine the appropriate micron rating for a specific race car.
For example, let's consider the Yanmar brand. According to some sources, Yanmar recommends using a 10 or 30-micron primary filter element for their engines. This recommendation is based on the belief that a lower micron rating, such as a 2-micron element, will accumulate debris more quickly, leading to higher vacuum pressure and potential pump damage. However, other sources suggest that the micron rating may not be the sole factor contributing to pump damage, and that a clean 2-micron element does not necessarily present more resistance than a 10-micron element.
In general, fuel-injected engines typically use a 10-micron filter after the fuel filter, along with a 100-micron pre-filter. On the other hand, carbureted engines usually employ a 40-micron filter after the fuel pump, also combined with a 100-micron pre-filter. It is worth noting that the filter material is another important consideration, with options including paper (cellulose), stainless steel, and micro glass, each having its own compatibility and reusability characteristics.
Additionally, it is recommended to use a coarse pre-filter before the pump to protect it from damage, followed by a fine filter after the pump to protect the machinery. Coarse filters are generally preferred for thicker fluids and as pre-filters due to their better flow characteristics compared to fine filters. Increasing the filter size can also compensate for the lower flow associated with finer filters.
Fuel Leaks: Can Heat Cause Spillage in Cars?
You may want to see also
Frequently asked questions
Fuel filters play a protective role in a high-performance engine by ensuring that any debris in the fuel or fuel tank doesn't make it through the system.
The micron rating for pre-pump filters can vary. Some sources recommend a 100-micron filter, while others suggest a 40-micron filter. A few factors to consider are the type of fuel, the compatibility of the filter material, and the specific requirements of your fuel pump.
For post-pump filtration, a 10-micron filter is commonly used for carbureted and EFI applications. However, some sources recommend a 6-micron filter for the ultimate filtration, especially when using alcohol-based fuels.
Stainless steel filters are compatible with most fuels and can be reused. Paper filters, also known as cellulose filters, are suitable for pump gas and race gas but should not be used with alcohol-based fuels. Micro Glass filters are for post-pump use only and are disposable.
It is recommended to use a coarse pre-filter before the pump and a fine filter after the pump. The coarse filter protects the pump, while the fine filter provides additional protection for sensitive components. Additionally, consider the specific recommendations of your fuel pump and injector manufacturers to ensure optimal performance and protection.
