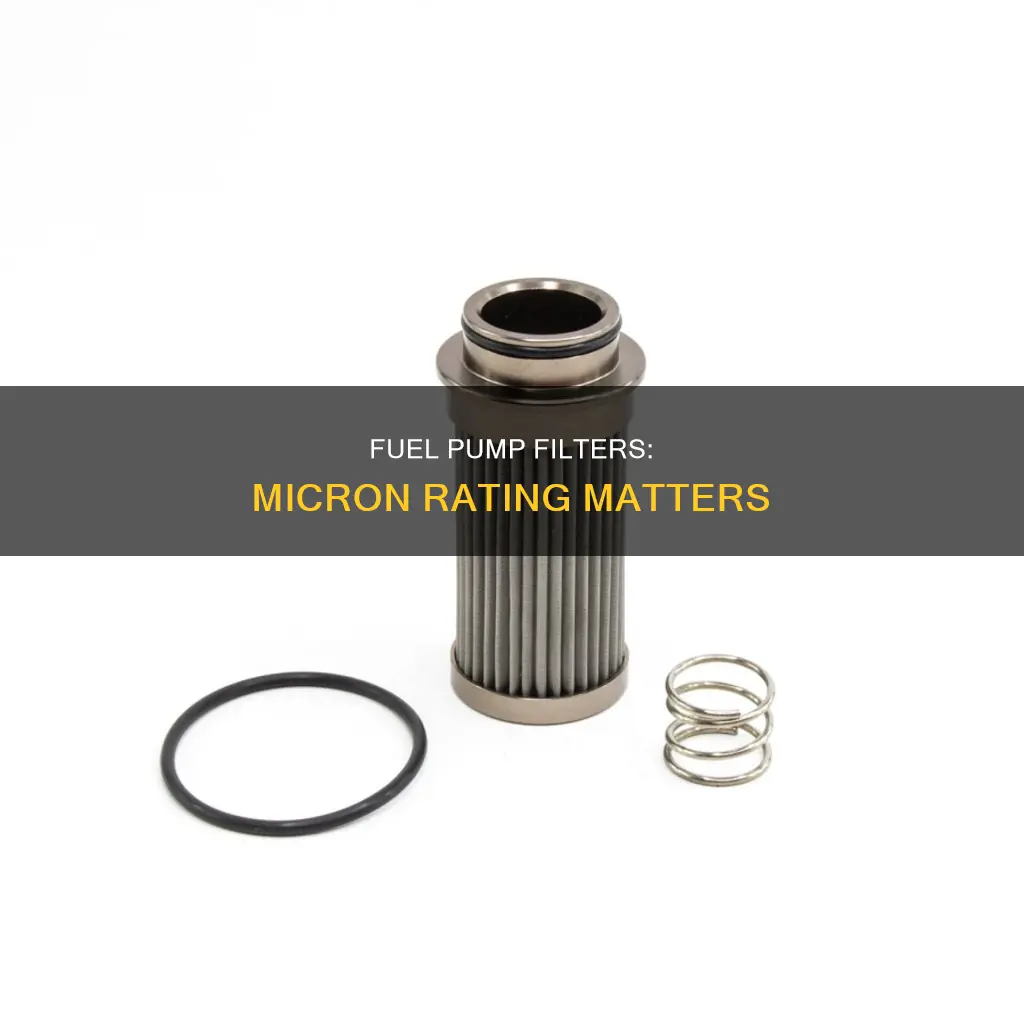

The use of a micron filter before a fuel pump is an important consideration for protecting the pump from damage and debris. A fuel pump operates due to very tight clearances, and electronic fuel injectors can be quickly blocked by material that would have easily passed through a carburetor. A pre-pump micron filter acts as a protective barrier, trapping large particles and preventing pump failure. The choice of micron rating for the filter is crucial, as a finer (lower micron rating) filter can lead to increased pressure drop and potential pump cavitation. The recommended micron rating for a fuel system pre-filter is typically between 25 and 400 microns, with a 100-micron filter being a popular choice for trapping larger particles.
Explore related products
What You'll Learn
A 100-micron filter is recommended before the pump
The 100-micron pre-filter is a larger filter that minimizes restriction into the pump, while still allowing finer grit material to be filtered by the 10-micron filter located downstream of the pump before reaching the injectors. This setup is common and recommended by sources such as Holley Motor Life and Aeromotive.
The 100-micron filter is easy to service and can be cleaned regularly to maintain optimal performance. It can be cleaned using compressed air and does not need to be removed from the truck, making it a convenient and reliable option.
It is important to note that the placement of the 100-micron and 10-micron filters should not be switched, as this will reduce pump output and possibly cause the pump to run hot. The 100-micron filter before the pump and the 10-micron filter after the pump work together to ensure efficient fuel delivery and protect the fuel injectors from becoming clogged or damaged.
Resetting Fuel Filter Light on Chevy Silverado: A Guide
You may want to see also
Explore related products
A 40-micron filter is suitable before the pump
A 40-micron filter is commonly used as a pre-filter for in-tank pumps, such as Holley's HydraMat system, which has a 15-micron rating. This larger filter minimizes restriction into the pump while still effectively filtering out larger particles.
For carbureted engines, a 40-micron filter is recommended between the pump and carb. This is because carbureted engines have larger orifices that do not require a fine filter capacity. In contrast, high-pressure fuel pumps and electronic fuel injectors require tighter clearances and finer filtration.
It is important to note that a 40-micron filter before the pump may not be suitable for all applications. Some sources recommend a 100-micron filter before the pump to trap larger particles, followed by a finer 10-micron filter after the pump. This two-step filtration process helps extend the life of the downstream filters and ensures that the fuel injectors are adequately protected from fine particles.
Overall, while a 40-micron filter is suitable before the pump in certain contexts, it is essential to consider the specific requirements of your fuel system and follow the recommendations of the manufacturer to ensure optimal performance and protection.
The Lifespan of Diesel Fuel Filters
You may want to see also
Explore related products
A 10-micron filter is too restrictive for the inlet side
A 10-micron filter is considered too restrictive for the inlet side of a fuel pump. While it may be tempting to use a finer (lower micron rating) filter upstream from the fuel pump, it can lead to pump failure. Not only are finer filters more restrictive, but they can also increase pressure drop over time. If the pressure drop across this filter becomes significant, the fuel pump can cavitate (boiling or vaporizing of the fuel).
A 100-micron pre-filter is recommended for inline pumps located outside the tank. This larger filter minimizes the restriction into the pump, and finer grit material will still be filtered by the 10-micron filter located downstream of the pump before reaching the injectors. This setup ensures the pump is protected from debris that could reduce efficiency or even render it inoperative.
It is important to note that the placement of these filters is crucial. The 100-micron filter should be placed before the pump, and the 10-micron filter should be placed after the pump and before the fuel injectors. Incorrectly switching the positions of these filters will reduce pump output and possibly cause the pump to run hot.
The Aeromotive 100-micron pre-pump filter is a popular choice and can be easily cleaned using compressed air. This larger-capacity filter ensures that it takes a while for it to become clogged. It is recommended to clean the pre-filter regularly and change the 10-micron filter annually.
In summary, while a 10-micron filter is essential for filtering fine grit material, it should not be placed before the fuel pump due to its restrictiveness. A 100-micron pre-filter is the preferred choice for the inlet side, ensuring optimal pump performance and protecting against debris.
Fuel Filter Failure: Sounds and Symptoms
You may want to see also
Explore related products
A 10-micron filter is needed after the pump for EFI applications
Fuel pumps need to be protected from debris that could reduce efficiency or render them inoperative. Using a 10-micron filter before the pump is not recommended as it is too restrictive on the inlet side. A less restrictive filter is preferred. For inline pumps located outside the tank, a 100-micron pre-filter is recommended. This larger filter minimises the restriction into the pump, and finer grit material will still be filtered by the 10-micron filter located downstream of the pump before it reaches the injectors.
The main tasks for any EFI system filter are to both remove the dirt before it reaches the fuel injectors while also offering sufficient flow capacity so that the engine is not starved for fuel. A 10-micron filter is sufficient to prevent debris from clogging fuel injectors.
A 100-micron pre-filter and a 10-micron post-filter is a common setup for fuel pumps. This setup can be seen in the Holley illustration. This setup is also recommended by Aeromotive.
Fuel Filter Longevity: Breakdown Risk Over Time
You may want to see also
Explore related products
A 2-stage filtration system is beneficial
The second stage of filtration, typically a 10-micron filter, is placed after the pump to capture finer grit material and protect the fuel injectors from clogging. This finer filter is crucial for modern engines with electronic fuel injection and high-pressure fuel delivery systems, as the tight clearances and small orifices demand a higher level of filtration to prevent permanent damage.
The combination of a coarse pre-filter and a fine post-filter provides a comprehensive defence against impurities, ensuring that the fuel system remains clean and efficient. This setup allows for the trapping of larger debris, such as cell foam, rocks, and small animals, while also filtering out finer particles that could cause issues with fuel injectors.
Additionally, a 2-stage filtration system offers flexibility and ease of maintenance. The pre-filter can be cleaned regularly, while the post-filter can be replaced as part of normal vehicle maintenance. This helps to extend the lifespan of the fuel pump and maintain the overall performance and efficiency of the engine.
By utilising a 2-stage filtration system, vehicle owners can benefit from improved fuel purity, enhanced engine protection, and sustained engine performance, making it a valuable investment for any fuel-powered vehicle.
Honda CRV Fuel Filter: What You Need to Know
You may want to see also
Frequently asked questions
A 100-micron pre-pump fuel filter is recommended by many sources. However, some sources suggest that a 40-micron filter before the pump is also adequate.
A 10-micron filter is recommended for post-pump fuel filters.
A pre-pump fuel filter helps protect the pump from damage caused by debris, foam, or other contaminants.
A micron is equal to one millionth of a meter. In fuel filters, the micron rating indicates the size of particles that the filter can capture. A lower micron rating corresponds to a finer filter that can capture smaller particles.
