Fuel gauges in cars are notoriously inaccurate, often showing empty when there is still fuel left in the tank. The mechanism that measures the fuel in the tank has changed very little over the years and is comprised of a few main parts: the sender, which measures the level of fuel in the tank, and the gauge, which displays that level to the driver. The sender is also known as the sending unit, fuel sending unit, or fuel level sensor, and is located inside the fuel tank. It consists of a float, usually made of foam or cork, connected to a thin metal rod. As the fuel level rises, so does the float, changing the signal going to the car's computer so it can tell you how much gas you have. However, the shape of the fuel tank can impact the accuracy of the gauge, as today's tanks are often oddly shaped to fit around various parts of the car.
| Characteristics | Values |
|---|---|
| Name of the device that measures fuel in a gas tank | Fuel sending unit, fuel sender unit, fuel tank sending unit, fuel level sender unit, fuel level sending unit, fuel pump sender unit, fuel gauge sender unit, fuel gauge sending unit, fuel level sensor, sending unit |
| Parts of the fuel sending unit | Float, metal rod/arm, variable resistor |
| Function of the float | To move up or down according to the fuel level |
| Function of the metal rod | To pivot in relation to the float |
| Function of the variable resistor | To determine the strength of the electric current from the resistor based on the position of the wiper to the ground |
| Factors that impact the accuracy of the fuel gauge | Shape of the fuel tank, motion range of the float, calibration of the gauge |
Explore related products
What You'll Learn
- Fuel sending unit measures fuel level and communicates it to the gauge
- The float in the fuel tank rises with the fuel level
- The float is usually made of foam or cork
- Fuel gauges are often inaccurate, showing empty when there's fuel left
- Oddly-shaped tanks can make it harder to determine how much fuel is left
Fuel sending unit measures fuel level and communicates it to the gauge
The fuel sending unit, also known as the fuel sender unit, fuel level sending unit, or fuel gauge sending unit, is responsible for measuring the fuel level in a vehicle's fuel tank and communicating this information to the fuel gauge on the dashboard. This critical component ensures that the driver is aware of the fuel level and can make informed decisions about refuelling.

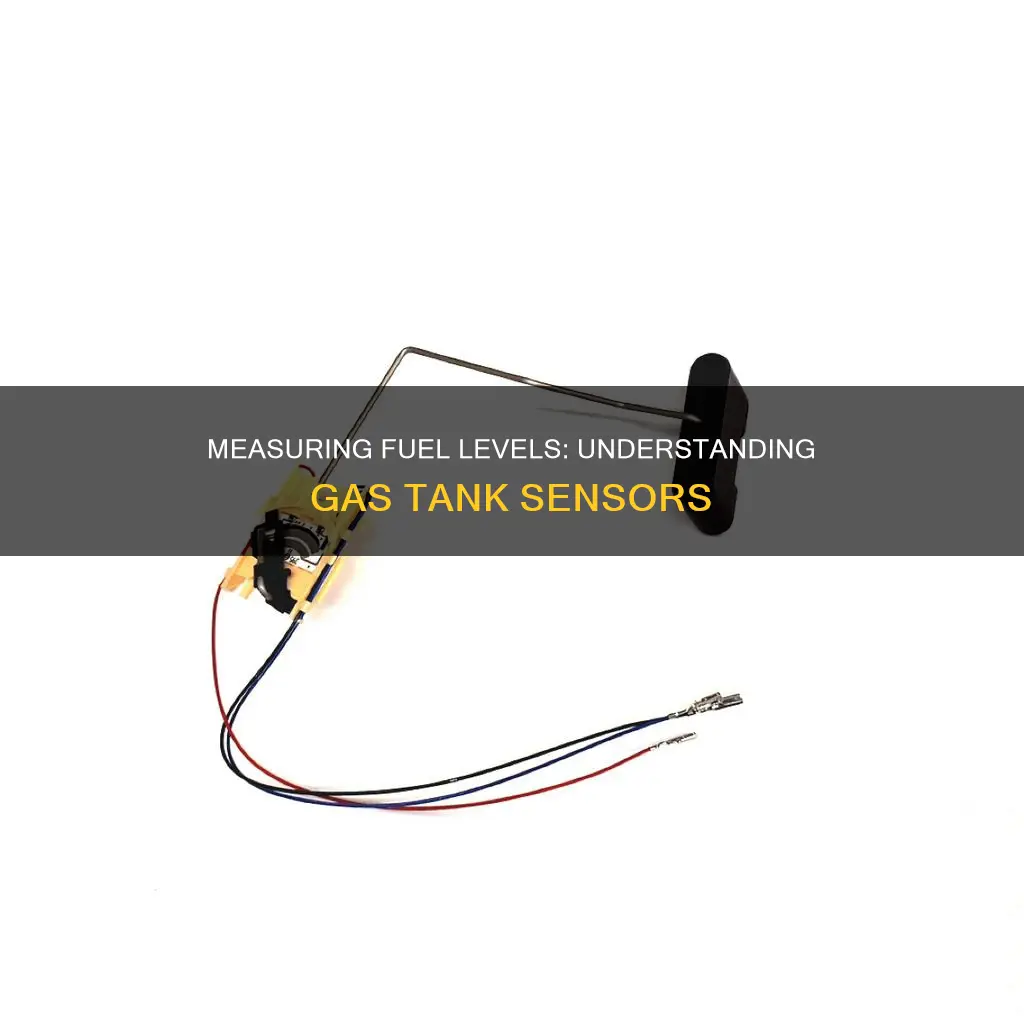

The sending unit is located inside the fuel tank and consists of three main components: a float, a metal rod or arm, and a variable resistor. The float is usually made of lightweight materials such as foam or cork and sits on top of the fuel. As the fuel level changes, the float moves up or down accordingly.
The metal rod or arm is attached to the float and pivots along with the float's movement. This pivoting motion is crucial for the next component, the variable resistor. The variable resistor contains a wiper that moves along a strip of resistive material connected to a ground. The position of the wiper in relation to the ground affects the strength of the electric current from the resistor.
As the float moves up or down with the changing fuel level, the metal rod pivots, causing the wiper inside the variable resistor to move as well. This change in the position of the wiper alters the electric current, which is then translated into a signal that is sent to the vehicle's computer. The computer interprets this signal and displays the corresponding fuel level on the fuel gauge.
While fuel sending units play a vital role in fuel level monitoring, they are not without their limitations. Inaccuracies can occur when the float reaches the top or bottom of the tank, as the range of motion may not extend to the very top or bottom. Additionally, the odd shapes of modern fuel tanks to fit around various components can also affect the accuracy of the fuel level reading. Despite these limitations, the fuel sending unit remains a crucial component in ensuring drivers have the information they need to safely operate their vehicles.
Draining Fuel Tank of '94 Corolla: Step-by-Step Guide
You may want to see also
Explore related products
The float in the fuel tank rises with the fuel level
The wiper, in turn, moves along a strip of resistive material connected to a ground on one end. The position of the wiper relative to the ground determines the strength of the electric current from the resistor. This change in the electric signal is communicated to the car's computer, which then displays the fuel level on the gauge in the vehicle's dashboard. This system ensures that the driver is aware of the fuel level at all times and can take appropriate action, such as refuelling when necessary.
The float in the fuel tank plays a vital role in measuring the fuel level, but it is not without its limitations. One issue is that the float may not always reach the very top or bottom of the tank, leading to inaccuracies in the fuel gauge reading. For example, the gauge might indicate that the tank is full when it is not or show empty when there is still fuel remaining. Additionally, the shape of modern fuel tanks can also contribute to inaccuracies. Today's fuel tanks are often moulded to fit tight spaces and are designed to meet various requirements, such as crash, temperature, and emissions standards. As a result, the fuel tank may have an irregular shape, affecting the accuracy of the fuel level reading, especially at the halfway point.
Furthermore, the traditional float system may be affected by the fuel tank being near full or empty. In such cases, the float may be temporarily submerged or reach its lowest point, respectively, even though there is still fuel remaining in various nooks and crannies of the tank. However, with modern microprocessor-controlled gas gauges, these discrepancies can be minimised through proper calibration and programming during the engineering process.
Draining Gas Fuel Tank in Lincoln LS: Step-by-Step Guide
You may want to see also
Explore related products
The float is usually made of foam or cork
The float is a crucial component of the fuel-measuring system in a vehicle's gas tank. It is typically made of lightweight materials such as foam or cork, giving it buoyancy on the fuel surface. This simple yet ingenious design allows the float to accurately gauge the fuel level and relay this information to the driver.
The float is usually found within the fuel tank, attached to a thin metal rod that pivots with the float's movement. As the fuel level rises or falls, the float bobs along the surface, moving up or down accordingly. This motion is then transferred to the metal rod, which plays a pivotal role in translating the fuel level into a readable signal for the vehicle's computer.
The metal rod is connected to a variable resistor or rheostat. As the rod pivots with the changing fuel level, it causes a wiper inside the resistor to move along a strip of resistive material. This movement alters the electrical current passing through the resistor, creating a varying electrical signal.
The electrical signal generated by the variable resistor is interpreted by the vehicle's computer, which then displays the corresponding fuel level on the dashboard gauge. This real-time information is vital for drivers, helping them make informed decisions about refueling and ensuring they don't run out of fuel unexpectedly.
The choice of lightweight materials like foam or cork for the float is intentional. By being less dense than the fuel, the float can effortlessly rest on the surface, providing an accurate measurement. Additionally, the buoyancy of the float ensures that it consistently aligns with the fuel level, even when the vehicle is in motion or parked on an incline.
While the basic principle of the float system remains unchanged, modern advancements in technology have improved its accuracy and reliability. Microprocessor-controlled gas gauges, for example, can now account for variables such as tank shape, calibration, and unusual parking positions, providing drivers with even more precise fuel level readings.
Removing the Fuel Tank in a 2008 Vue: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel gauges are often inaccurate, showing empty when there's fuel left
Firstly, the shape of the fuel tank can affect the accuracy of the gauge. Car fuel tanks are made of plastic and moulded to fit into tight spaces, often with irregular shapes to fit around other parts of the car. This means that when the float in the tank reaches the halfway point, there may be more or less than half of the fuel remaining, depending on the tank's shape.
Secondly, the float itself may not have a full range of motion, so it can reach the bottom of its travel while there is still fuel left in the tank. This is why the needle often goes below the empty mark before stopping, even though there is still gas left.
Additionally, the sending unit, which consists of the float and a thin metal rod connected to a resistor, can wear out over time. This component rubs against a variable resistor as the car is driven, and this friction can lead to misinterpreted signals, causing the gauge to show empty even when the tank is not.
Another factor is human psychology. Drivers like to see the needle sit on "F" for longer, as it gives the illusion of better gas mileage and makes them feel they are not immediately burning through their expensive tank of gas.
Finally, other issues such as loose connections, corrosion, or internal circuit failure in the gauge can also lead to inaccurate readings.
To address these issues, regular maintenance and expert technical checks are crucial to ensure peace of mind while driving.
Fuel Pumps in 1987 F250 Tanks: How Many?
You may want to see also
Explore related products
Oddly-shaped tanks can make it harder to determine how much fuel is left
Fuel gauges in cars are notoriously inaccurate, often showing a full tank for the first 50 miles and indicating empty when there are still gallons of fuel left. This is due to the way the fuel level is measured. Typically, a sensor, or "sending unit", measures the fuel level. This unit is made up of a float (usually a foam cork or tube filled with air) on a long, thin metal rod connected to a resistor. The float bobs along the top of the fuel, and as the fuel level changes, so does the float's position. This changes the signal going to the car's computer, which then calculates the fuel level.
However, this system becomes inaccurate when the float reaches the top or bottom of the tank, as the float can only move within a certain range. Additionally, oddly-shaped tanks can make it harder to determine how much fuel is left. Modern fuel tanks are often made from plastic and moulded to fit into tight spaces in cars, sometimes shaped around pieces of the car body or frame. This means that when the float is at the halfway point, there may be more or less than half of the fuel remaining, depending on the tank's shape.
The task of calibrating these oddly-shaped tanks is challenging for engineers. The gauge must be calibrated to account for the car's attitude, or it may show full or empty when it is not. For example, when parked on an incline or a twisty road, the gauge may give an inaccurate reading if not properly calibrated. Furthermore, the shape of the tank can make it difficult to determine what constitutes a "full" tank. When filling up, some fuel may remain in the filler neck, and it is challenging to measure this extra fuel accurately.
While modern technology exists to provide more accurate fuel readings, the mechanism that measures fuel in the tank has changed little over the years. This is partly due to human psychology, as drivers prefer to see the needle sit on "F" for longer, giving the illusion of better gas mileage.
Fuel Tank Capacity of a 1999 Jimmy
You may want to see also
Frequently asked questions
You can use a measuring stick, also known as a dipstick, to determine the fuel level in your tank. Lower the stick into the tank until it touches the bottom, then remove it and note the point where the fuel reaches.
Yes, calibrated measuring sticks are available for purchase, which are specific to certain tractor models and their gas tanks. You can also use a simple yardstick or a wooden dowel rod.
Measure the diameter of your tank and divide it by 4. Make marks on your measuring stick at these intervals. Each mark will represent a quarter of the tank's volume. Alternatively, you can use the tank calculator available online.
Yes, you can use a float to gauge the height of the liquid in the tank and estimate the volume. You can also use a trip odometer to keep track of your fuel usage and determine when your tank is nearly empty.
