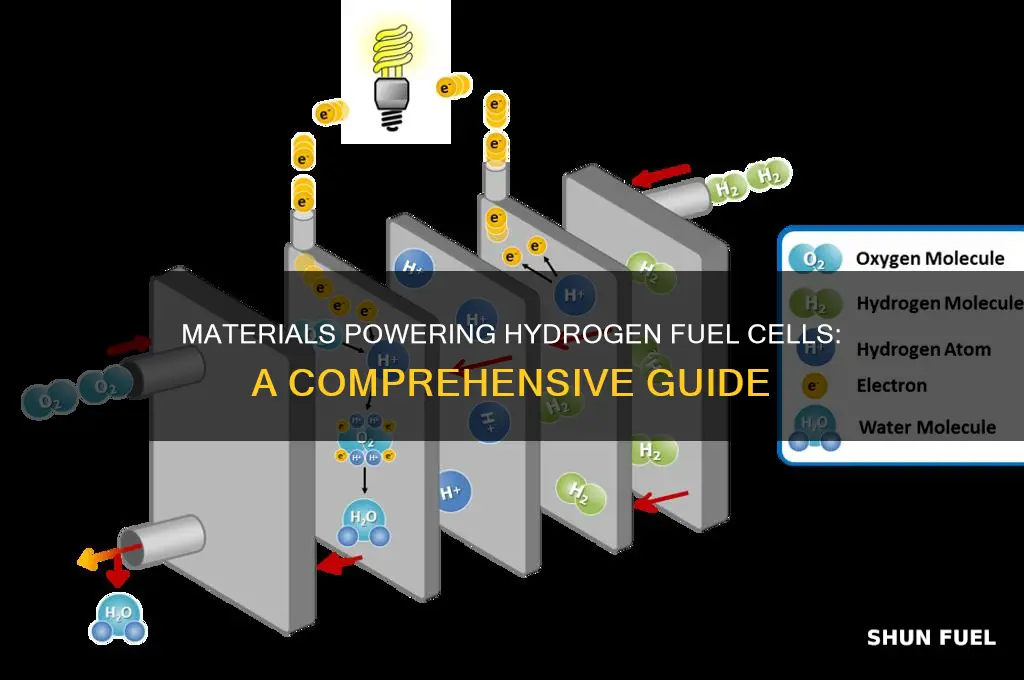

Hydrogen fuel cells are innovative devices that generate electricity through an electrochemical reaction between hydrogen and oxygen, producing only water and heat as byproducts. The core materials used in these cells include a proton exchange membrane (PEM), typically made of perfluorinated sulfonic acid polymers like Nafion, which facilitates the movement of protons while separating the reactants. The electrodes, consisting of an anode and cathode, are often constructed with carbon paper or cloth coated with platinum or other catalysts to enhance reaction efficiency. Additionally, bipolar plates, usually made of graphite or metal composites, distribute gases and collect electrical current, while the overall structure relies on sealing materials like silicone or elastomers to prevent leaks. These materials collectively ensure the fuel cell operates efficiently, sustainably, and safely.
Explore related products
What You'll Learn
- Catalyst Materials: Platinum, carbon, and alloys enhance reaction efficiency in hydrogen fuel cells
- Electrolyte Membranes: Proton Exchange Membranes (PEM) like Nafion enable proton conduction
- Gas Diffusion Layers: Carbon paper or cloth facilitate gas flow and electron transfer
- Bipolar Plates: Graphite or metal plates distribute reactants and collect electricity
- Sealing Materials: Silicone or rubber seals prevent gas leaks and ensure durability
Catalyst Materials: Platinum, carbon, and alloys enhance reaction efficiency in hydrogen fuel cells
Platinum, a precious metal renowned for its catalytic properties, stands as a cornerstone in hydrogen fuel cell technology. Its ability to facilitate the oxygen reduction reaction (ORR) at the cathode is unparalleled, significantly boosting the cell's efficiency. However, platinum's high cost and limited availability have spurred research into optimizing its use. Engineers and scientists have found that reducing the platinum loading—typically from 0.4 to 0.2 mg/cm²—can lower expenses without compromising performance. This optimization is achieved by dispersing platinum nanoparticles on carbon supports, maximizing the metal's surface area for catalytic activity. The result? A more cost-effective fuel cell that retains its high efficiency, making it a viable option for commercial applications like electric vehicles and stationary power systems.
Carbon, in its various forms, plays a dual role in hydrogen fuel cells: as a support material for catalysts and as a component in gas diffusion layers (GDLs). Graphite and carbon nanotubes are favored for their high electrical conductivity and corrosion resistance, ensuring efficient electron transfer during the electrochemical reactions. When used as a support for platinum, carbon’s porous structure allows for even distribution of the catalyst, enhancing its accessibility to reactants. However, not all carbon materials are created equal. For instance, carbon corrosion can occur in acidic environments, degrading the cell’s performance over time. To mitigate this, researchers treat carbon surfaces with fluorination or apply protective coatings, extending the fuel cell’s lifespan. Practical tip: When selecting carbon materials, prioritize those with high purity and tailored porosity to optimize catalyst performance.
Alloys, particularly those combining platinum with transition metals like nickel, cobalt, or iron, have emerged as a game-changer in catalyst design. These alloys offer several advantages over pure platinum, including improved durability and enhanced activity for the ORR. For example, platinum-nickel (Pt-Ni) alloys exhibit a synergistic effect where the nickel stabilizes the platinum, reducing its susceptibility to oxidation and dissolution. This not only extends the catalyst’s life but also lowers the overall platinum content required, slashing costs. A notable case is the use of Pt-Ni octahedral nanoparticles, which have demonstrated a fourfold increase in catalytic activity compared to pure platinum. Implementing such alloys requires precise control over synthesis conditions, such as temperature and pH, to achieve the desired composition and morphology. Caution: Incompatible alloying elements or improper synthesis can lead to reduced performance, so adherence to established protocols is critical.
The interplay between platinum, carbon, and alloys underscores the complexity of catalyst design in hydrogen fuel cells. While platinum remains irreplaceable, its integration with carbon supports and alloying strategies addresses key challenges like cost and durability. For instance, a fuel cell stack in a passenger vehicle might use a platinum-carbon catalyst with a loading of 0.15 mg/cm², paired with a Pt-Co alloy for improved stability. This combination ensures the vehicle achieves a range of over 300 miles on a single hydrogen fill, rivaling conventional internal combustion engines. As research progresses, the focus will likely shift toward earth-abundant materials and novel structures, further reducing reliance on platinum. For now, however, the triumvirate of platinum, carbon, and alloys remains the gold standard for maximizing reaction efficiency in hydrogen fuel cells. Practical takeaway: When designing or selecting catalyst materials, balance cost, performance, and durability by leveraging the strengths of each component in synergy.
Diesel Fuel Pump for Gas: Compatibility, Risks, and Practical Considerations
You may want to see also
Explore related products
Electrolyte Membranes: Proton Exchange Membranes (PEM) like Nafion enable proton conduction
Proton Exchange Membranes (PEMs), such as Nafion, are critical components in hydrogen fuel cells, serving as the electrolyte that facilitates proton conduction while separating the fuel (hydrogen) and oxidant (oxygen). These membranes are typically composed of a perfluorinated polymer backbone with sulfonic acid groups, which provide the necessary ionic conductivity. Nafion, developed by DuPont, is the most widely used PEM due to its high proton conductivity, chemical stability, and mechanical durability. Its microstructure consists of hydrophobic and hydrophilic regions, where the hydrophilic channels allow for the transport of hydrated protons (H₊) while blocking the passage of electrons, ensuring efficient operation of the fuel cell.
The performance of PEMs like Nafion is highly dependent on hydration levels, as water molecules play a dual role in proton conduction. They both solvate the protons and form a continuous network within the membrane, enabling their movement. However, maintaining optimal hydration is challenging, especially at elevated temperatures or under low humidity conditions, where the membrane can dry out, reducing conductivity. To mitigate this, fuel cell systems often incorporate humidifiers or operate at specific temperature ranges (typically 60–80°C) to ensure the membrane remains adequately hydrated. Additionally, membrane thickness is a critical parameter, with thinner membranes (e.g., 25–50 μm) offering lower resistance but requiring careful handling to avoid mechanical failure.
From a practical standpoint, integrating PEMs into fuel cell designs requires careful consideration of material compatibility and assembly techniques. For instance, Nafion membranes must be sandwiched between gas diffusion layers (GDLs) and catalyst layers, typically made of platinum on carbon, to form the membrane electrode assembly (MEA). During assembly, the membrane is often pre-treated with heat and hydration to optimize its ionic conductivity. Engineers must also account for potential degradation mechanisms, such as chemical attack from radical species or mechanical stress from fuel cell operation, which can shorten the membrane’s lifespan. Regular monitoring of fuel cell performance and periodic replacement of the MEA are recommended to ensure sustained efficiency.
Comparatively, while Nafion dominates the PEM market, alternative materials like sulfonated poly(arylene ether ketone)s (SPEKs) and composite membranes are being explored to address limitations such as high cost and performance at higher temperatures. These alternatives aim to reduce reliance on fluorinated polymers and improve stability under varying operating conditions. However, Nafion remains the benchmark due to its proven reliability and commercial availability. For researchers and developers, understanding the trade-offs between membrane properties—such as conductivity, stability, and cost—is essential when selecting or designing PEMs for specific fuel cell applications.
In conclusion, PEMs like Nafion are indispensable in hydrogen fuel cells, enabling proton conduction while maintaining the separation of reactants. Their performance hinges on hydration, thickness, and compatibility with other fuel cell components, making them a focal point for optimization efforts. While Nafion sets the standard, ongoing research into alternative materials promises to expand the possibilities for more efficient and cost-effective fuel cell systems. For practitioners, mastering the nuances of PEM integration and maintenance is key to unlocking the full potential of hydrogen fuel cell technology.
Electromagnetism as Fuel: Unlocking a Sustainable Energy Future?
You may want to see also
Explore related products
$149.99 $179.99
Gas Diffusion Layers: Carbon paper or cloth facilitate gas flow and electron transfer
Within a hydrogen fuel cell, the Gas Diffusion Layer (GDL) is a critical yet often overlooked component. Typically composed of carbon paper or cloth, the GDL serves as the interface between the catalyst layer and the flow channels, balancing the need for gas permeability, electrical conductivity, and structural stability. Carbon paper, a non-woven material, and carbon cloth, a woven fabric, are preferred for their high porosity and low electrical resistance, ensuring efficient oxygen and hydrogen flow while facilitating electron transfer from the catalyst to the current collector.
Consider the manufacturing process: carbon paper is produced by binding carbon fibers with a polymer resin, then graphitizing the material to enhance conductivity. Carbon cloth, on the other hand, is woven from continuous carbon fibers, offering greater mechanical strength but slightly lower porosity. Both materials are treated with hydrophobic agents like polytetrafluoroethylene (PTFE) to manage water within the cell, preventing flooding while allowing for adequate hydration of the membrane. The PTFE content is critical—typically 5–15% by weight—to strike the right balance between water repellency and gas permeability.
From a performance standpoint, the GDL’s thickness and compression play a pivotal role. A standard GDL ranges from 150 to 350 micrometers in thickness, with compression ratios of 10–30% during assembly. Over-compression reduces porosity, hindering gas diffusion, while under-compression can lead to poor contact resistance. For optimal results, engineers often pair carbon paper with lower power density applications due to its cost-effectiveness, while carbon cloth is reserved for high-performance systems requiring greater durability, such as those in automotive fuel cells.
Practical implementation requires careful material selection based on application demands. For instance, in stationary power systems, where cost is a primary concern, carbon paper with a PTFE loading of 10% and a thickness of 250 micrometers is commonly used. In contrast, fuel cells for electric vehicles might employ carbon cloth with a 15% PTFE content and a thickness of 200 micrometers to withstand vibration and thermal cycling. Always verify compatibility with adjacent layers, as mismatches in thermal expansion coefficients can lead to delamination over time.
In summary, the choice of carbon paper or cloth for the GDL hinges on a trade-off between cost, performance, and durability. While carbon paper offers affordability and sufficient conductivity for most applications, carbon cloth excels in demanding environments requiring enhanced mechanical resilience. Regardless of the material, precise control of PTFE content, thickness, and compression is essential to maximize fuel cell efficiency. By tailoring the GDL to the specific requirements of the system, engineers can ensure optimal gas flow and electron transfer, ultimately driving the performance of the hydrogen fuel cell.
When Does Your Body Burn Muscle for Energy?
You may want to see also
Explore related products
$129.99 $138.99
$127.99 $135.99
Bipolar Plates: Graphite or metal plates distribute reactants and collect electricity
Bipolar plates are the unsung heroes of hydrogen fuel cells, serving as the backbone for both reactant distribution and electrical conduction. Typically made from graphite or metal, these plates must balance durability, conductivity, and cost-effectiveness. Graphite plates, known for their high corrosion resistance and lightweight nature, are ideal for applications where weight is a critical factor, such as in automotive fuel cells. However, their lower electrical conductivity compared to metals can limit efficiency, making them less suitable for high-performance systems. Metal plates, often composed of stainless steel or titanium, offer superior conductivity and mechanical strength but come with higher costs and potential corrosion issues, especially in acidic environments.
Selecting the right material for bipolar plates involves a trade-off between performance and practicality. For instance, in proton-exchange membrane (PEM) fuel cells, which operate at temperatures below 100°C, graphite plates are often preferred due to their stability in acidic conditions. In contrast, metal plates are more commonly used in high-temperature PEM (HT-PEM) or alkaline fuel cells, where their thermal stability and conductivity provide a significant advantage. Engineers must also consider manufacturing processes: graphite plates are typically machined or molded, while metal plates can be stamped or laser-welded, affecting production costs and scalability.
From a design perspective, the geometry of bipolar plates is as critical as the material choice. Channels etched or molded into the plates must efficiently distribute hydrogen and oxygen gases while minimizing pressure drop and ensuring uniform flow. This requires precise engineering, often aided by computational fluid dynamics (CFD) simulations. For example, serpentine or parallel flow patterns are commonly used, with channel depths ranging from 0.5 to 1.5 mm to optimize gas distribution. The plates must also incorporate integrated cooling channels in high-power applications to manage heat generated during operation.
Despite their importance, bipolar plates are not without challenges. Graphite’s brittleness can lead to cracking under mechanical stress, while metal plates may require coatings (e.g., gold or carbon) to enhance corrosion resistance. Additionally, the interface between the plates and other fuel cell components, such as membrane electrode assemblies (MEAs), must be carefully managed to prevent electrical contact losses. Innovations like metal-graphite composites or graphene-coated metals are emerging to address these limitations, offering a middle ground between conductivity and durability.
In practical terms, the choice of bipolar plate material can significantly impact the overall efficiency and lifespan of a fuel cell system. For hobbyists or researchers building small-scale fuel cells, graphite plates are a cost-effective and readily available option, though they may require careful handling to avoid damage. Industrial applications, however, often favor metal plates for their robustness and higher power density, even if it means increased initial investment. Regardless of the material, regular maintenance, such as cleaning and inspecting for corrosion or blockages, is essential to ensure optimal performance. As fuel cell technology advances, the evolution of bipolar plate materials will play a pivotal role in making hydrogen energy more accessible and efficient.
Maximize Savings: A Comprehensive Guide to Using Fuel Cards Efficiently
You may want to see also
Explore related products
Sealing Materials: Silicone or rubber seals prevent gas leaks and ensure durability
Effective sealing is critical in hydrogen fuel cells to prevent gas leaks, maintain system integrity, and ensure long-term durability. Silicone and rubber seals are commonly employed for this purpose due to their unique properties. Silicone, a synthetic polymer, offers excellent resistance to high temperatures, chemicals, and aging, making it ideal for the harsh operating conditions within fuel cells. Rubber, particularly EPDM (ethylene propylene diene monomer) and FKM (fluorocarbon), provides superior flexibility and resilience, allowing it to conform to mating surfaces and withstand pressure fluctuations. Both materials are chosen for their ability to create a reliable barrier against hydrogen, a small molecule prone to permeation.
Selecting the right sealing material depends on the specific fuel cell design and operating conditions. For instance, silicone seals are preferred in proton-exchange membrane fuel cells (PEMFCs) due to their compatibility with acidic environments and temperature stability up to 200°C. In contrast, FKM rubber is often used in high-pressure applications, such as in hydrogen storage systems, where its resistance to compression set and chemical degradation is essential. EPDM rubber, with its cost-effectiveness and moderate temperature resistance, is suitable for less demanding applications. Engineers must consider factors like temperature range, chemical exposure, and mechanical stress when choosing between these materials.
Proper installation and maintenance of silicone or rubber seals are equally important to ensure their effectiveness. Seals should be compressed to the manufacturer’s recommended specifications, typically achieving a 20–30% compression ratio for rubber and 10–20% for silicone, to balance sealing performance and material longevity. Over-compression can lead to premature wear, while under-compression may result in leaks. Regular inspections for cracks, hardening, or deformation are crucial, especially in systems exposed to cyclic loading or extreme temperatures. Replacing seals every 5–10 years, depending on usage, is a practical guideline to maintain optimal performance.
Despite their advantages, silicone and rubber seals are not without limitations. Silicone can exhibit lower mechanical strength compared to rubber, making it less suitable for high-stress applications. Rubber, while flexible, may degrade faster in the presence of certain oils or solvents, necessitating careful material selection. Additionally, both materials can experience hydrogen embrittlement over time, particularly in high-pressure environments. To mitigate this, manufacturers often incorporate additives or use composite materials to enhance seal performance. For example, silicone seals reinforced with fiberglass or rubber seals with carbon black fillers can improve durability and reduce permeability.
In conclusion, silicone and rubber seals play a vital role in hydrogen fuel cells by preventing gas leaks and ensuring system durability. Their selection, installation, and maintenance require careful consideration of operating conditions and material properties. While each has its strengths and limitations, advancements in material science continue to enhance their performance, making them indispensable components in the transition to hydrogen-based energy systems. By understanding their characteristics and proper usage, engineers can optimize fuel cell efficiency and reliability for a sustainable future.
Boeing 747 Fuel Consumption: Takeoff Usage Explained in Detail
You may want to see also
Frequently asked questions
The primary materials include a proton exchange membrane (PEM), typically made of perfluorinated sulfonic acid (PFSA), catalysts like platinum or platinum alloys, carbon paper or cloth for gas diffusion layers, and bipolar plates often made of graphite or metal-coated composites.
Platinum is used as a catalyst in the electrodes (anode and cathode) to facilitate the electrochemical reactions. At the anode, it helps split hydrogen molecules into protons and electrons, while at the cathode, it assists in combining oxygen, protons, and electrons to form water.
The membrane is typically made of a polymer material called Nafion, a type of PFSA (perfluorinated sulfonic acid). This material allows protons to pass through while blocking electrons, ensuring efficient operation of the fuel cell.
Bipolar plates are usually made of graphite, metal-coated graphite, or metal alloys like stainless steel or titanium. These materials are chosen for their conductivity, corrosion resistance, and ability to distribute reactant gases and manage heat within the fuel cell stack.
