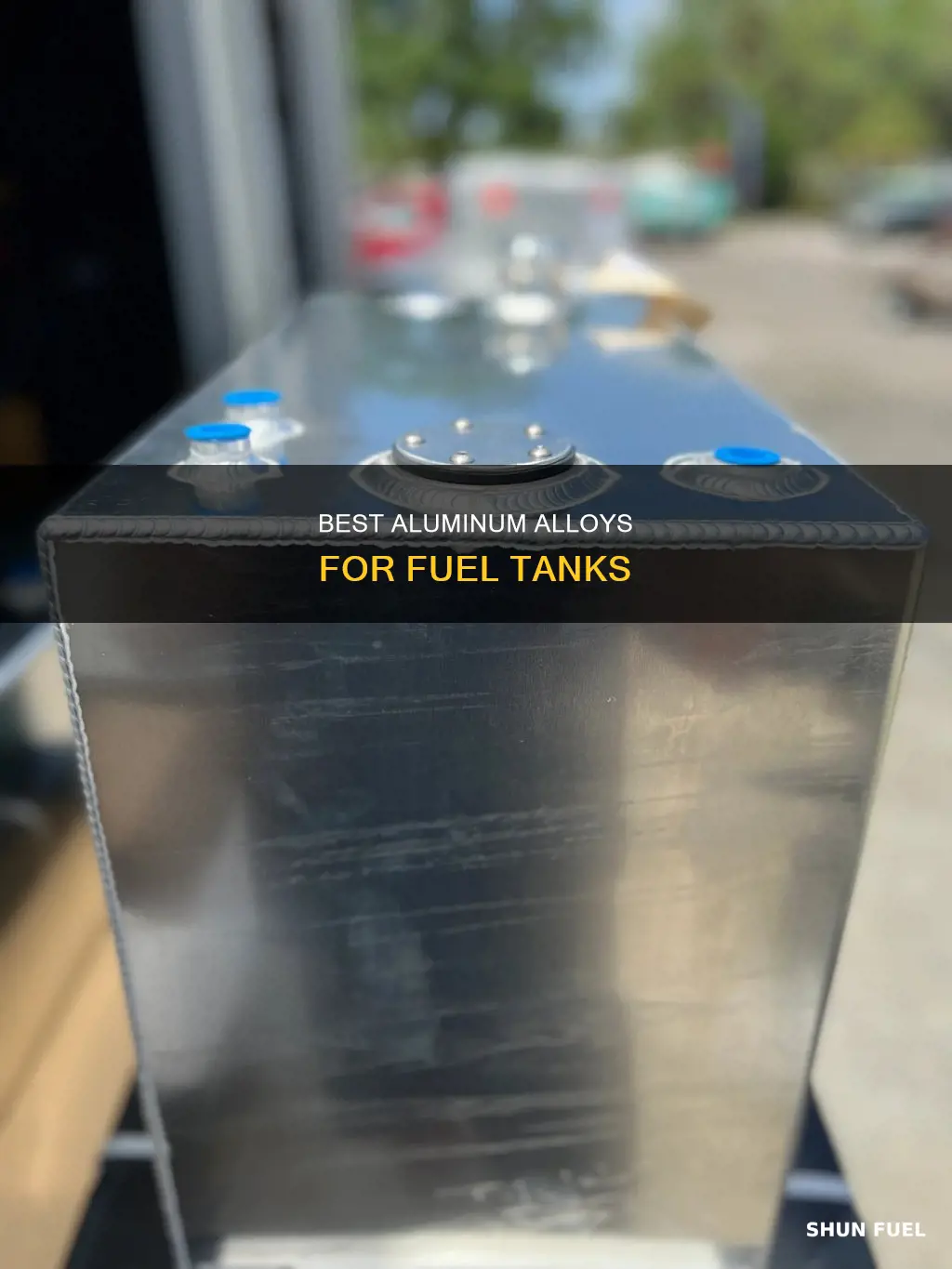

Aluminum is a popular choice for fuel tanks due to its lightweight, stable, and easy-to-work-with nature. However, it is important to select the right grade of aluminum for your specific application, as some alloys are better suited for welding or riveting than others. For example, 5052 aluminum is a popular choice for fuel tanks due to its formability and weldability, while 6061 aluminum is often used in marine applications because of its oxidizing properties. Other factors to consider when selecting the appropriate aluminum grade include the thickness of the material, the presence of baffles or joints, and the fuel type.
| Characteristics | Values |
|---|---|
| Advantages of aluminum fuel tanks | Lighter than a fiberglass tank of like capacity, clean, stable, easy to work with, always yields predictable results |
| Downsides of aluminum fuel tanks | Difficult to weld, sudden collapse possible due to high thermal conductivity, expensive |
| Aluminum alloys for fuel tanks | 1100, 3003, 5052, 6061 |
| Thickness of aluminum for fuel tanks | 0.100-0.125 inches |
Explore related products
$94.33 $99.3
What You'll Learn
Marine fuel tank aluminum
Aluminium is a common material for marine fuel tanks. However, it is worth noting that aluminium corrodes quickly when exposed to saltwater. This is a concern for marine vessels, as the constant expansion and contraction of the fuel tank, along with the sloshing of fuel, can cause the aluminium to deteriorate over time.
Boat manufacturers often use aluminium tanks as they are cheap and can be produced in a fraction of the time it takes to manufacture a polyethylene tank. Custom aluminium tanks are typically less expensive and enable greater design flexibility. Tanks are usually made from 5052 aluminium, which is highly resistant to corrosion from saltwater and can be coated for increased protection.
Some people prefer to use polyethylene tanks as they are not susceptible to corrosion, although these tanks are more expensive. Polyethylene tanks are also preferred as they are less likely to need replacing, whereas it is common for boats to be torn apart to replace aluminium tanks.
When constructing an aluminium marine fuel tank, it is important to consider the thickness of the material. For example, a tank with a dimension of 25 x 16 x 13 would require a thickness of at least 0.1 inches. Baffles are also necessary to stop the fuel from moving from side to side and creating an unstable vehicle.
Overall, while aluminium marine fuel tanks are commonly used due to their low cost and quick production time, they may require more maintenance and replacement than polyethylene tanks due to their susceptibility to corrosion in saltwater environments.
Cleaning Diesel Fuel Tanks: Removing Gunk and Grime
You may want to see also
Explore related products
Welding aluminum fuel tanks
Welding an aluminium fuel tank is a complex process that requires careful preparation and execution. Here is a step-by-step guide to help you weld an aluminium fuel tank:
Step 1: Planning and Materials
Before beginning the welding process, it is essential to have a clear understanding of the tank's dimensions and the type of aluminium to be used. Common types of aluminium for fuel tanks include 5052, 6061, and 3003. It is also important to ensure that you have the necessary equipment, such as a welding machine, safety gear, and aluminium welding rods or wires.
Step 2: Cutting and Bending
Start by cutting the aluminium sheets to the required size, allowing for appropriate clearances. You can use a circular saw with a blade designed for cutting non-ferrous metals or a specialised aluminium cutting blade. Next, bend the bottom and sides of the tank. Bending is generally preferred over welding to reduce the number of potential leak points. However, if the tank is too large for a single sheet, welding will be necessary.
Step 3: Baffle Installation
Install one or more baffles inside the tank to prevent the fuel from sloshing back and forth, which can cause structural damage. Baffles can be welded in place using skip welds or left free-floating. Ensure that the baffles are securely attached to the tank walls and bottom.
Step 4: Welding
Before welding, it is crucial to remove any fuel or vapours from the tank to prevent accidents. Use an inert gas such as argon (Ar) or carbon dioxide (CO2) to purge the tank and displace any oxygen and flammable vapours. Once the tank is safe, use a welding technique suitable for aluminium, such as TIG welding or MIG welding, to join the pieces together. Ensure that all seams and joints are welded securely and inspected for pinholes or leaks.
Step 5: Testing and Inspection
After welding, the fuel tank must be thoroughly tested and inspected. Pressure test the tank using air or an inert gas at 10-15 psi and listen for leaks. You can also spray the seams with diluted dish soap and look for bubbles indicating leaks. Additionally, consider x-raying the welds to ensure their integrity.
Welding an aluminium fuel tank requires careful planning, attention to safety, and skill in welding aluminium. Always follow best practices and take the necessary precautions to ensure a safe and successful outcome.
Shipping Used Fuel Tanks: A Comprehensive Guide
You may want to see also
Explore related products
Aluminum fuel tank thickness
Aluminium is a common material for fuel tanks, especially in boats and vessels. Aluminium tanks are often chosen because they are cheap, but they are also strong and resistant to corrosion.
The American Boat and Yacht Council (ABYC) recommends that aluminium fuel tanks consist of alloys grade 5086, 5083, or 5052. The minimum thickness for smaller tanks should be no less than 0.90 inches, while for larger tanks, it should be no less than 0.125 inches and no thicker than 0.250 inches.
One user on a forum mentions that they are building a custom 80-gallon fuel tank out of 5051 Aluminium with a thickness of 0.125 inches (1/8 inch). They suggest that a thickness of 0.1875 inches (3/16 inch) would be even better for longevity. Another forum user is building a tank with dimensions of 25 x 16 x 13 and wants to use 0.125-inch-thick aluminium, but they are concerned that this thickness may be too much for their shear, which is maxed at 0.100 inches. A third user suggests that 0.100 inches is about the minimum thickness for that size of the fuel tank.
It is important to consider the thickness of the aluminium sheet when building a fuel tank, as too thin a sheet can be more susceptible to warping from torch heat during the welding process.
Removing Vacuum from Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
Aluminum alloys for fuel tanks
Aluminium alloys are commonly used in the construction of fuel tanks, particularly for boats and aircraft. Aluminium is a clean, stable, and easy-to-work-with material that provides predictable results. It is also lightweight, making it ideal for fuel tanks.
When constructing an aluminium fuel tank, it is important to consider the welding process, as aluminium can be challenging to weld due to its high thermal conductivity. Its low melting point is reached very suddenly, and the metal can quickly puddle and collapse, leaving a gaping hole. Therefore, it is crucial to have expert knowledge and practice in welding aluminium. Alternatively, fuel tanks can be assembled using aircraft rivets, eliminating the need for welding. Standard aluminium weldable flanges and filler necks can be purchased or machined from weldable aluminium stock.
Several aluminium alloys are suitable for fuel tanks, depending on the specific requirements and construction method. The commonly available weldable aluminium alloys include the 1100, 3003, 5052, and 6061 series. The recommended fuel tank material is the 5052 series, which is available in different hardnesses: 5052H32 for 1/4 hard and 5052H34 for 1/2 hard. The 5052 alloy is easy to form and readily available from homebuilt suppliers. However, it should be noted that the soft commercial 1100 aluminium alloy may not provide sufficient strength for a fuel tank.
For riveted fuel tanks, 2024 T3 grade aluminium alloy sheet can be used. However, it is not weldable and is difficult to form unless it is in its annealed (0) condition. When constructing a fuel tank, it is essential to consider the thickness of the aluminium sheet, as this can impact the stability and safety of the tank. Baffles may also be required to stabilise the fuel and prevent it from moving side to side, especially in larger tanks.
Marine Gas Fuel Tanks: Cleaning and Maintenance Guide
You may want to see also
Explore related products
Aluminum fuel tank baffles
Aluminium fuel tanks are often used for boats and cars. They are popular because they are cheap and lightweight. However, they are susceptible to corrosion, especially in saltwater.
Aluminium fuel tanks can be baffled to prevent fuel surge and slosh, which can cause fuel starvation and affect lap times and speed in competitive racing. Baffles are necessary to stop the fuel from moving from side to side and creating an unstable vehicle. The placement of the baffles is critical to their effectiveness. For example, if the fuel pump is mounted in the front corner of the tank, right turns can pull the fuel inside the baffled area away from the pump, causing fuel starvation.
Baffles need to be designed to keep the fuel in a certain area in the tank, namely, the lowest part of the tank. This ensures that the fuel pump is constantly pumping fuel to the engine. If the fuel is pulled away from the pickup during acceleration or hard cornering, the pump begins to pull in air, which can cause a loss of power or a complete shutdown in an EFI system.
There are several companies that manufacture aluminium fuel tanks with built-in baffles, such as Compbrake Motorsport and obp Motorsport. These tanks are made for competition or road use and are designed to help prevent fuel surge and suppress explosions.
Setting Up Engine Fuel Tanks in KSP: A Guide
You may want to see also
Frequently asked questions
Aluminum is a clean, stable, and easy-to-work-with material that always yields predictable results. It is also lightweight and cheaper than a fiberglass tank of the same capacity.
Aluminum alloys such as 5052, 6061, and 3003 are commonly used for marine fuel tanks. 5052 aluminum is recommended due to its ease of formability and availability. However, some people feel that aluminum tanks are unsafe for marine use due to their high anodic nature and susceptibility to corrosion in saltwater environments.
For a fuel tank that will be riveted and not welded, you can use 2024 T3 grade aluminum alloy sheet. However, 2024 T3 is not weldable and is difficult to form unless it is in its annealed (0) condition.
