Light Water Reactors (LWRs), the most common type of nuclear reactor globally, primarily use enriched uranium dioxide (UO₂) as their typical fuel. This fuel is derived from natural uranium, which is mined, processed, and then enriched to increase the concentration of the fissile isotope U-235 from its natural 0.7% to around 3-5%. The enriched uranium is then fabricated into ceramic pellets, stacked into fuel rods, and assembled into fuel assemblies. LWRs use ordinary water (light water) as both a coolant and a neutron moderator, enabling the sustained nuclear chain reaction necessary for power generation. This combination of enriched uranium fuel and light water makes LWRs efficient, reliable, and widely adopted in the nuclear energy industry.
Explore related products
What You'll Learn
- Uranium Enrichment Levels: LWRS use low-enriched uranium (LEU), typically 3-5% U-235, for sustained fission
- Fuel Pellets & Rods: Ceramic UO₂ pellets stacked in zirconium alloy rods form the fuel assembly
- Fuel Assembly Design: Bundles of rods with control rods for reactivity adjustment and safety
- Fuel Cycle Duration: LWR fuel operates for 12-24 months before requiring replacement due to depletion
- Spent Fuel Handling: Used fuel is highly radioactive, stored in pools or dry casks for cooling
Uranium Enrichment Levels: LWRS use low-enriched uranium (LEU), typically 3-5% U-235, for sustained fission
Light water reactors (LWRs), the most common type of nuclear reactor globally, rely on low-enriched uranium (LEU) as their primary fuel. This LEU is not found naturally but is produced through a process called uranium enrichment, which increases the concentration of the fissile isotope U-235. Natural uranium contains only about 0.7% U-235, insufficient to sustain a chain reaction in most reactor designs. Enrichment raises this level to the 3-5% range, striking a balance between criticality and safety.
Example: Imagine a recipe requiring a pinch of a potent spice. Natural uranium is like the raw spice blend, while LEU is the carefully measured pinch that delivers the desired flavor without overwhelming the dish.
The 3-5% enrichment level is a sweet spot for LWRs. Below 3%, the reactor may struggle to achieve and maintain a sustained fission chain reaction, leading to inefficient power generation. Above 5%, the risk of uncontrolled reactions and potential safety hazards increases. This narrow window highlights the precision required in nuclear fuel production. Analysis: This specific enrichment range allows LWRs to operate efficiently while minimizing the risk of proliferation, as LEU is not suitable for nuclear weapons, which require highly enriched uranium (HEU) with U-235 concentrations above 20%.
Takeaway: The 3-5% U-235 enrichment level in LEU is a crucial factor in ensuring both the performance and safety of LWRs, making it the industry standard for commercial nuclear power generation.
Enrichment itself is a complex and energy-intensive process. It involves feeding uranium hexafluoride gas through centrifuges that separate the lighter U-235 atoms from the heavier U-238 atoms. This process is repeated multiple times to achieve the desired enrichment level. Instruction: While the enrichment process is highly technical and conducted in specialized facilities, understanding its basic principles is essential for grasping the nuances of nuclear fuel production.
Caution: The proliferation risks associated with uranium enrichment technology underscore the importance of international safeguards and monitoring to prevent the misuse of this technology for weapons development.
The use of LEU in LWRs has significant implications for nuclear energy's future. It allows for the utilization of a relatively abundant resource (uranium) while minimizing waste generation compared to other fuel types. Comparative: Unlike fast breeder reactors, which can utilize plutonium as fuel, LWRs rely on the more readily available uranium, making them a more practical choice for widespread deployment.
Transitioning to Clean Energy: Strategies to End Fossil Fuel Dependence
You may want to see also
Explore related products
Fuel Pellets & Rods: Ceramic UO₂ pellets stacked in zirconium alloy rods form the fuel assembly
The typical fuel used in Light Water Reactors (LWRs) is uranium dioxide (UO₂), a ceramic material that serves as the primary source of nuclear energy. This fuel is not used in its raw form but is meticulously engineered into small, cylindrical pellets, each about the size of a pencil eraser. These pellets are then stacked into long, slender rods made of zirconium alloy, forming the fuel assembly that powers the reactor. This design maximizes efficiency and safety, ensuring the controlled release of energy through nuclear fission.
Consider the manufacturing process of UO₂ pellets, a critical step in fuel preparation. Uranium ore is first refined into uranium hexafluoride (UF₆) and then converted into uranium dioxide powder. This powder is pressed into pellets under high pressure and sintered at temperatures exceeding 1,700°C to achieve a dense, ceramic structure. The resulting pellets are incredibly robust, capable of withstanding the extreme conditions inside a reactor core, including temperatures up to 2,000°C and intense radiation. Each pellet contains a precise amount of uranium, typically enriched to 3–5% U-235, the fissile isotope that drives the nuclear chain reaction.
The zirconium alloy cladding, often Zircaloy, plays a dual role in the fuel assembly. It provides a structural framework for the pellets while also acting as a barrier to prevent the release of radioactive fission products into the coolant. Zirconium is chosen for its low neutron absorption cross-section, which minimizes interference with the fission process, and its excellent corrosion resistance in high-temperature water environments. However, this cladding must be carefully monitored, as it can degrade under prolonged exposure to high temperatures and neutron flux, potentially leading to fuel rod failure.
A typical fuel assembly consists of hundreds of rods, bundled together in a square or hexagonal array. These assemblies are then loaded into the reactor core, where they remain for several years, gradually depleting their fissile material. During operation, the pellets undergo significant changes, including swelling and cracking due to fission gas release and structural damage. Despite these challenges, the design ensures that the fuel remains stable and efficient, providing a reliable energy source.
For operators and engineers, understanding the behavior of fuel pellets and rods is essential for maintaining reactor safety and performance. Regular inspections, such as ultrasonic testing and visual examinations, are conducted to detect cladding defects or pellet degradation. Additionally, fuel management strategies, including rod shuffling and partial core reloading, optimize fuel utilization and extend the operational life of the reactor. By mastering these details, nuclear power plants can harness the full potential of UO₂ fuel while minimizing risks.
Why Aircraft Still Rely on Leaded Fuel: A Detailed Exploration
You may want to see also
Explore related products
Fuel Assembly Design: Bundles of rods with control rods for reactivity adjustment and safety
Light water reactors (LWRs), the most common type of nuclear reactor globally, rely on uranium dioxide (UO₂) as their primary fuel. This fuel is not used in its raw form but is instead meticulously crafted into a highly engineered structure known as a fuel assembly. At the heart of this assembly lies a bundle of fuel rods, each a slender zirconium alloy tube filled with stacked pellets of UO₂. These rods are not solitary entities; they are arranged in a precise grid, forming a square or hexagonal array that optimizes neutron interaction while ensuring structural integrity.
The fuel rods, however, are only part of the story. Interspersed among them are control rods, typically made of materials like boron or cadmium, which have a high neutron absorption capacity. These control rods are the reactor's throttle, allowing operators to fine-tune the nuclear chain reaction. By adjusting the position of the control rods within the fuel assembly, the reactivity of the core can be increased or decreased, thereby controlling the power output and ensuring safe operation. This mechanism is critical during startup, shutdown, and power adjustments, as well as in emergency situations where rapid suppression of the reaction is necessary.
Designing a fuel assembly is a delicate balance of physics, materials science, and engineering. The spacing between fuel rods must be precise to maximize neutron utilization while preventing overheating. Similarly, the placement of control rods requires careful consideration to ensure uniform control across the entire core. For instance, in a typical pressurized water reactor (PWR), a fuel assembly might contain 17x17 or 19x19 fuel rods, with control rods positioned in the corners or center to provide even reactivity adjustment. This design ensures that the reactor operates within safe thermal and mechanical limits, even under extreme conditions.
One practical example of this design's effectiveness is its role in preventing accidents. During the Three Mile Island incident, the failure of control rods to fully insert contributed to the partial core meltdown. Modern fuel assemblies incorporate redundant safety features, such as additional control rod banks and diverse control systems, to mitigate such risks. For operators, understanding the interplay between fuel rods and control rods is essential for maintaining reactor stability. Regular inspections and maintenance, including the replacement of spent fuel assemblies every 18 to 24 months, are critical to ensuring long-term safety and efficiency.
In summary, the fuel assembly in an LWR is a masterpiece of engineering, where bundles of fuel rods and strategically placed control rods work in harmony to harness nuclear energy safely. This design not only maximizes energy production but also provides robust mechanisms for reactivity control and emergency shutdown. As nuclear power continues to evolve, advancements in fuel assembly design will remain pivotal in enhancing reactor performance, safety, and sustainability.
Honda CR-V Fuel Type: Gasoline, Efficiency, and Performance Explained
You may want to see also
Explore related products
Fuel Cycle Duration: LWR fuel operates for 12-24 months before requiring replacement due to depletion
Light water reactors (LWRs), the most common type of nuclear reactor globally, rely on uranium dioxide (UO₂) as their primary fuel. This fuel is typically enriched to 3-5% U-235, the fissile isotope that sustains the nuclear chain reaction. While this fuel composition is well-established, a critical aspect of LWR operation is the fuel cycle duration—the period before spent fuel must be replaced.
The operational lifespan of LWR fuel assemblies is surprisingly short, averaging 12 to 24 months. This duration is dictated by the gradual depletion of U-235 through fission, a process that generates heat and electricity. As fission products accumulate, they hinder the chain reaction, reducing the fuel's effectiveness. Additionally, the buildup of neutron-absorbing isotopes like xenon-135 further diminishes reactivity. Despite appearing structurally intact, the fuel is considered "spent" when its reactivity drops below the threshold required to sustain criticality.
Extending the fuel cycle beyond 24 months is challenging due to safety and efficiency constraints. Prolonged operation increases the risk of cladding degradation, which could lead to coolant leaks or, in extreme cases, fuel rod failure. Moreover, the accumulation of fission products complicates reactor control, as their neutron absorption characteristics evolve unpredictably. While advanced fuel designs and burnable absorbers can optimize burnup, they cannot eliminate the fundamental limits imposed by physics and material science.
From a practical standpoint, utilities must carefully plan fuel replacement schedules to minimize downtime and maintain power output. A typical 1,000 MWe LWR contains approximately 200 fuel assemblies, with 1/3 to 1/4 replaced during each refueling outage, which lasts 2-4 weeks. This partial replacement strategy balances the need for fresh fuel with the logistical challenges of handling spent assemblies, which remain highly radioactive and require specialized storage.
In summary, the 12- to 24-month fuel cycle of LWRs reflects a delicate equilibrium between maximizing energy extraction and ensuring operational safety. While this duration may seem brief compared to the reactor's 40-60 year lifespan, it is a testament to the efficiency of nuclear fuel—a single assembly can generate as much electricity as 150,000 tons of coal. Understanding this cycle is essential for optimizing reactor performance, managing waste, and advancing the sustainability of nuclear energy.
Mastering Your Bike's Fuel Valve Switch: A Step-by-Step Guide
You may want to see also
Explore related products
Spent Fuel Handling: Used fuel is highly radioactive, stored in pools or dry casks for cooling
Light water reactors (LWRs), the most common type of nuclear reactor globally, primarily use enriched uranium dioxide (UO₂) as fuel. This fuel, once spent, poses significant challenges due to its high radioactivity, necessitating careful handling and storage. Spent fuel assemblies, though no longer efficient for sustaining a chain reaction, continue to emit intense radiation and heat, requiring specialized containment systems.
Step 1: Initial Cooling in Spent Fuel Pools

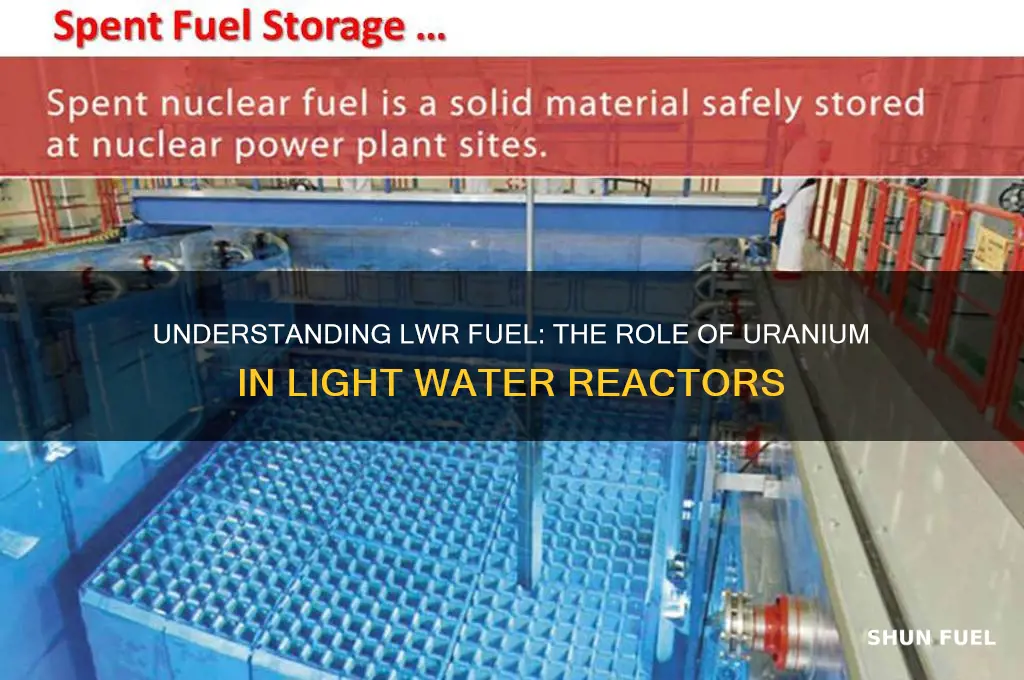

After removal from the reactor core, spent fuel is immediately transferred to a spent fuel pool (SFP) for cooling and shielding. These pools, typically located adjacent to the reactor, are filled with water that serves a dual purpose: it cools the fuel assemblies, which can still generate significant heat through radioactive decay, and it provides radiation shielding, as water effectively absorbs gamma and neutron emissions. Spent fuel remains in these pools for several years, often a decade or more, until its heat output decreases sufficiently.
Caution: Pool Integrity and Safety
Maintaining the integrity of spent fuel pools is critical. Structural failures or loss of water could lead to overheating, potential fuel damage, and increased radiation release. For instance, the Fukushima Daiichi accident highlighted the vulnerability of SFPs to external disasters, emphasizing the need for robust backup cooling systems and seismic-resistant designs. Regular inspections and redundant safety measures are essential to prevent such risks.
Step 2: Transition to Dry Cask Storage
Once spent fuel cools enough, it can be transferred to dry casks for long-term storage. Dry casks are robust, sealed containers made of steel and concrete, designed to provide both radiation shielding and physical protection. The fuel assemblies are first placed in a steel basket, which is then inserted into the cask and sealed. These casks are stored on-site in specially designed pads, offering a passive, low-maintenance solution that requires no external power for cooling.
Comparative Advantage: Dry Casks vs. Pools
Dry casks offer several advantages over spent fuel pools. They eliminate the risk of water leakage or contamination and reduce the need for continuous monitoring. Additionally, dry casks can be transported, providing flexibility for future fuel disposition. However, the initial transfer process is complex and requires precise handling to avoid radiation exposure to workers.
Practical Tip: Site Selection and Community Engagement
When planning dry cask storage, site selection is crucial. Areas with low seismic activity and stable geological conditions are preferred to minimize risks. Equally important is transparent communication with local communities to address concerns and build trust. Providing clear information about safety measures and long-term plans can alleviate public apprehension.
Spent fuel handling in LWRs demands a meticulous approach to ensure safety, security, and environmental protection. While spent fuel pools provide immediate cooling and shielding, dry casks offer a sustainable long-term solution. By combining these methods and adhering to stringent safety protocols, the nuclear industry can manage spent fuel effectively, paving the way for a more sustainable energy future.
Jet Boats vs. Fuel Efficiency: Do They Consume More Gas?
You may want to see also
Frequently asked questions
The typical fuel used in Light Water Reactors (LWRs) is low-enriched uranium dioxide (UO₂), with uranium enriched to about 3-5% U-235.
Uranium dioxide (UO₂) is preferred in LWRs because it has a high density, good thermal conductivity, and excellent stability at high temperatures, making it ideal for nuclear fission reactions.
No, natural uranium is not used directly in LWRs. It must be enriched to increase the concentration of U-235 from about 0.7% to 3-5% to sustain a chain reaction.
While uranium dioxide is the standard fuel, some LWRs can use mixed oxide (MOX) fuel, which combines plutonium dioxide (PuO₂) with uranium dioxide (UO₂), as an alternative. However, this is less common and requires specific modifications.
