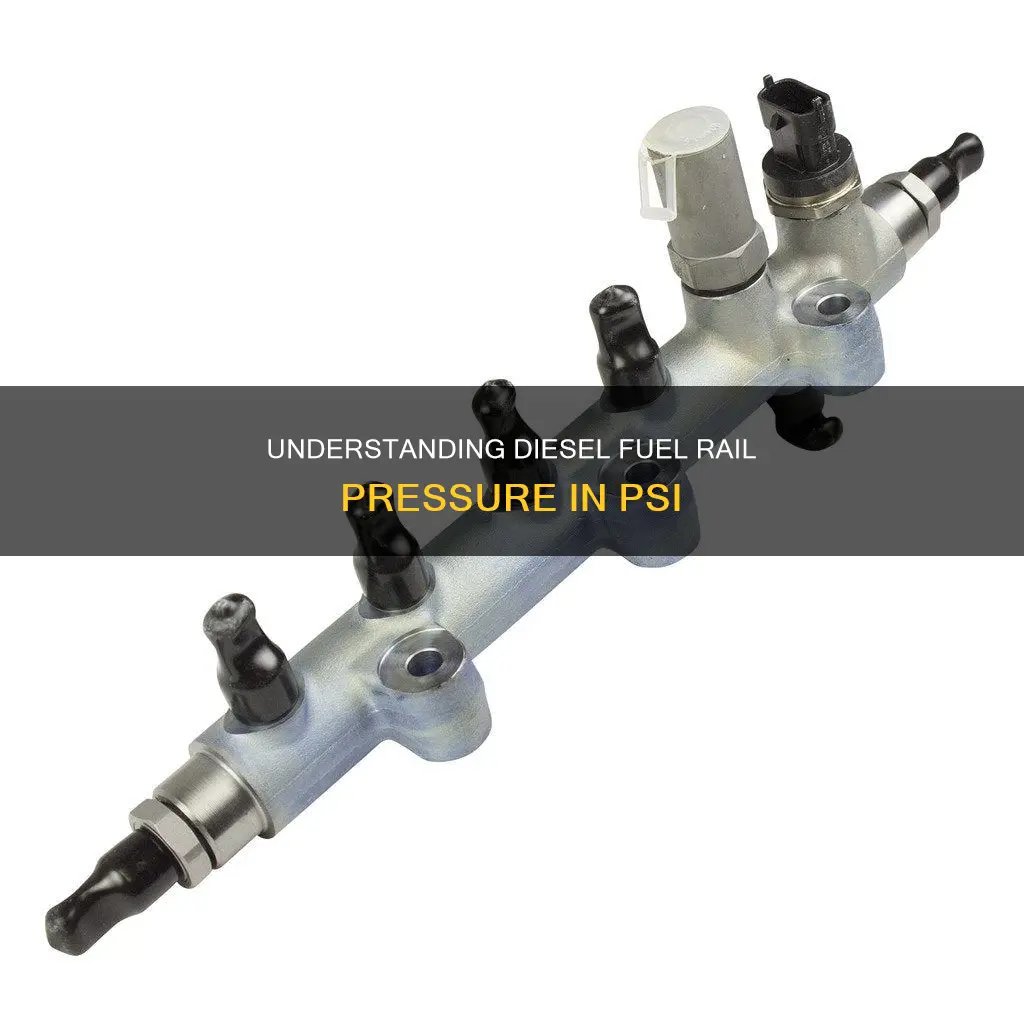

The pressure in a diesel fuel rail, also known as 'common rail', is an important aspect of diesel engine performance and efficiency. Common rail direct fuel injection systems feature a high-pressure fuel rail, typically exceeding 2,000 bar or 29,000 psi, which feeds individual solenoid valves. This high-pressure fuel rail is a key component in modern diesel engines, delivering constant high-pressure fuel to each injector, with the pressure monitored and controlled by various mechanisms to ensure optimal engine performance.
| Characteristics | Values |
|---|---|
| Common rail direct fuel injection system pressure | 2,000 bar (200 MPa or 29,000 psi) |
| Third-generation common rail diesel pressure | 2,500 bar (250 MPa or 36,000 psi) |
| GDI system pressure | 3,000 psi |
| CRD system pressure | 28,000 psi |
| Doxford Engines pressure | 600 bar (60 MPa or 8,700 psi) |
| Common rail injection system pressure | 15,000 psi |
| 3126 HEUI pressure | 60-70 psi |
| ICP | 3,000 psi |
| Fuel injection pressure | 21,000 psi |
Explore related products
What You'll Learn
Injector pressure vs cylinder pressure
The pressure in a diesel fuel rail, or "common rail", can vary depending on the engine and its specifications. Common rail direct fuel injection systems can have pressures exceeding 2,000 bar (29,000 psi) or even up to 2,500 bar (36,000 psi) in third-generation common rail diesels. However, some engines, such as the 3126 HEUI, operate at much lower pressures of around 60-70 psi in the fuel rail.
Now, let's delve into the comparison of injector pressure vs cylinder pressure:
Injector pressure refers to the pressure at which fuel is injected into the engine cylinder through the fuel injector. In simple terms, it is the force with which the fuel is sprayed into the cylinder. This pressure is generated by a high-pressure pump in the common rail system, which stores fuel at high pressure. The injector pressure is critical for effective fuel injection and combustion.
Cylinder pressure, on the other hand, refers to the pressure present inside the engine cylinder, particularly at the time of fuel injection. This pressure can vary depending on the engine's operating conditions, load, and revolutions per minute (RPM).
To ensure successful fuel injection, the injector pressure must be higher than the cylinder pressure. This pressure differential is essential to overcome the resistance offered by the cylinder pressure and ensure that the fuel enters the cylinder. If the cylinder pressure exceeds the injector pressure, the fuel may not be able to enter the cylinder, resulting in incomplete or inefficient combustion.
The injector pressure is influenced by various factors, including the design of the injection system, the presence of a mechanical or electronic control unit (ECU), and the use of high-pressure oil in some cases. The cylinder pressure, however, is primarily determined by the engine's operating conditions and load.
It is worth noting that modern engines often feature multiple smaller injection events to dampen peak cylinder pressure, which helps with emissions control. Additionally, higher injector pressures generally lead to finer atomization of the fuel, resulting in a more even burn within the cylinder. This improved atomization enhances combustion efficiency and overall engine performance.
Understanding Diesel Engine Fuel Consumption Calculations
You may want to see also
Explore related products
Injector tips and fuel pressure
Fuel injectors rely on a consistent supply of fuel at a specified pressure and volume. In common rail systems, a high-pressure pump stores a reservoir of fuel at high pressure—up to and above 2,000 bars (200 MPa or 29,000 psi). This high-pressure fuel is stored in a reservoir called the common rail. The term common rail refers to the fact that all of the fuel injectors are supplied by a common fuel rail, which is a pressure accumulator where the fuel is stored at high pressure.
The common rail system is used for the injection of both diesel and heavy fuel oil. The fuel injectors are typically controlled by the engine control unit (ECU). When the fuel injectors are electrically activated, a hydraulic valve (consisting of a nozzle and plunger) is mechanically or hydraulically opened, and fuel is sprayed into the cylinders at the desired pressure. The manufacturing tolerances and components of the injectors remain the same as the high-pressure pumps and are critical to the operation and lifespan of the injector.
The pressure at the injector tip needs to be higher than the cylinder pressure. This high common rail pressure is used mainly for finer atomization of the fuel upon injection, which results in better combustion, greater economy, lower emissions, and quieter running. To lower engine noise, the engine's electronic control unit can inject a small amount of diesel just before the main injection event ("pilot" injection), thus reducing its explosiveness and vibration.
The pressure inside the rail is called rail pressure. When a fuel pressure sensor is attached to the end of a rail, it reads the pressure inside the rail. Effective pressure is the actual applied pressure for the injector, and is the pressure differential across the injector. When an engine is idling, there is a vacuum in the intake manifold. This vacuum pulls fuel out of the injectors, increasing the effective pressure across the injector to a pressure higher than the rail pressure itself. When a supercharged or turbocharged vehicle is in boost, the pressure inside the manifold tries to push fuel back into the injector, resisting the flow and decreasing the effective fuel pressure below that of the rail.
The World's Diesel Supply: How Long Will It Last?
You may want to see also
Explore related products
Fuel injection systems
Fuel injection is the introduction of fuel into an internal combustion engine, most commonly automotive engines. Fuel injection systems are either diesel (compression-ignition) or petrol (spark-ignition) engines.
The fundamental function of a fuel injection system is to spray pressurised fuel into the engine. This requires a device to pressurise the fuel, such as a fuel pump, and to control the fuel flow to supply the appropriate amount of fuel. Early mechanical injection systems used helix-controlled injection pumps, whereas modern systems are controlled electronically.
The common rail is a direct fuel injection system built around a high-pressure fuel rail feeding solenoid valves. It is used in both petrol and diesel engines. In common rail systems, a high-pressure pump stores a reservoir of fuel at high pressure, which is then supplied to a common header (called the accumulator) and sent through tubing to the injectors. The accumulator has a high-pressure relief valve to maintain pressure and return excess fuel to the fuel tank. The fuel injectors are typically controlled by the engine control unit (ECU). When the fuel injectors are electrically activated, a hydraulic valve is opened, and fuel is sprayed into the cylinders at the desired pressure.
The pressure of common rail systems can vary, with some reaching over 2,000 bar (200 MPa or 29,000 psi), while third-generation common rail diesels can reach up to 36,000 psi. The higher pressure in common rail systems allows for finer atomisation of the fuel upon injection, resulting in improved combustion, greater economy, lower emissions, and quieter running.
Other types of fuel injection systems include single-point and multi-point injection systems. Single-point injection, the earliest injection system, uses only one nozzle in the throttle body, which sprays fuel to an air intake manifold shared by all cylinders. Multi-point injection systems, on the other hand, have multiple injection points and include simultaneous, batched, and sequential injection types.
Bleeding a Diesel Fuel Pump: Step-by-Step Guide
You may want to see also
Explore related products
Fuel metering
One common approach to fuel metering is inlet metering, where the fuel drawn into the high-pressure pump is metered using an inlet metering valve (IMV) or fuel metering valve (FMV). This allows for precise control over the amount of fuel entering the pump, preventing the compression of excess fuel at high pressure. By avoiding excess fuel compression, inlet metering improves hydraulic efficiency and helps avoid the generation of excessively high fuel temperatures.
Another technique is outlet metering, where the pump draws in an uncontrolled amount of fuel, and the discharge flow is metered using an outlet metering valve (OMV). This approach allows for flexibility in the amount of fuel available to the pump but requires careful control of the discharge flow to ensure accurate metering.
A third method is to vary the effective displacement of the high-pressure pump. By adjusting the pump's displacement, the amount of fuel drawn in and compressed can be controlled, allowing for precise metering without the need for additional valves or control mechanisms.
In some cases, a combination of these approaches may be utilised, depending on the specific engine design and operating conditions. For example, a system may employ both inlet metering and outlet metering, with the control strategy varying based on factors such as engine operating conditions.
Accurate fuel metering is crucial for maintaining the desired rail pressure, ensuring complete combustion, and optimising fuel efficiency. By supplying only the required amount of fuel to the common rail, the high-pressure pump can maintain the target pressure more efficiently, reducing the need for excess fuel spillage and improving the overall performance of the diesel fuel injection system.
Termites and Diesel: A Deadly Combination?
You may want to see also
Explore related products
Fuel rail pressure control
The pressure in a diesel fuel rail, or common rail, can vary depending on the engine. The pressure in the common rail is the pressure at the nozzle or injector tip. This pressure can be as high as 29,000 psi in modern common rail systems, with third-generation common rail diesels featuring piezoelectric injectors capable of producing pressures up to 36,000 psi. Older systems, such as the Doxford Engines used from 1921 to 1980, operated at around 8,700 psi.
There are several approaches to controlling the pressure in the common rail. One early method was to supply more fuel than needed to the common rail and use a pressure control valve or regulator to spill excess fuel back to the fuel tank. This method, however, is not preferred due to poor efficiency and excessively high fuel return temperatures.
A more efficient approach is to meter the fuel at the high-pressure pump, ensuring that only the amount of fuel required by the injectors is supplied to the common rail. This can be achieved through inlet metering or outlet metering. Inlet metering involves using a valve such as an inlet metering valve (IMV) or fuel metering valve (FMV) to control the amount of fuel drawn into the pump. Outlet metering, on the other hand, allows the pump to draw an uncontrolled amount of fuel and then meters the discharge flow with a valve such as an outlet metering valve (OMV).
Another method to control fuel rail pressure is to vary the effective displacement of the high-pressure pump by carefully controlling the amount of fuel entering the pump and avoiding the compression of excess fuel to high pressure. This improves hydraulic efficiency and avoids the generation of excessively high fuel temperatures.
In addition to these methods, the timing of the fuel quantity valve pulses must be adjusted in engines with variable cam timing. This can be accomplished by adding the cam advance or retard adjusting cam position to the pulse timing, ensuring that pulses continue to add pressurized fuel to the rail.
Understanding Diesel Generator Fuel Consumption
You may want to see also
Frequently asked questions
The PSI of a diesel fuel rail varies depending on the engine and its specifications. Common rail direct fuel injection systems can have a pressure of over 2,000 bar or 29,000 PSI.
This is a system where a high-pressure pump stores a reservoir of fuel at high pressure, which is then supplied to the injectors.
High-pressure injection delivers greater power and improved fuel consumption. The fuel is injected as smaller droplets, which improves the ratio of surface area to volume, resulting in more efficient combustion.
Third-generation common rail diesel systems can have fuel pressures of up to 2,500 bar or 36,000 PSI.
The pressure in the common rail system needs to be higher than the pressure in the cylinder for fuel to be injected. This pressure differential ensures that the fuel can enter the cylinder.
