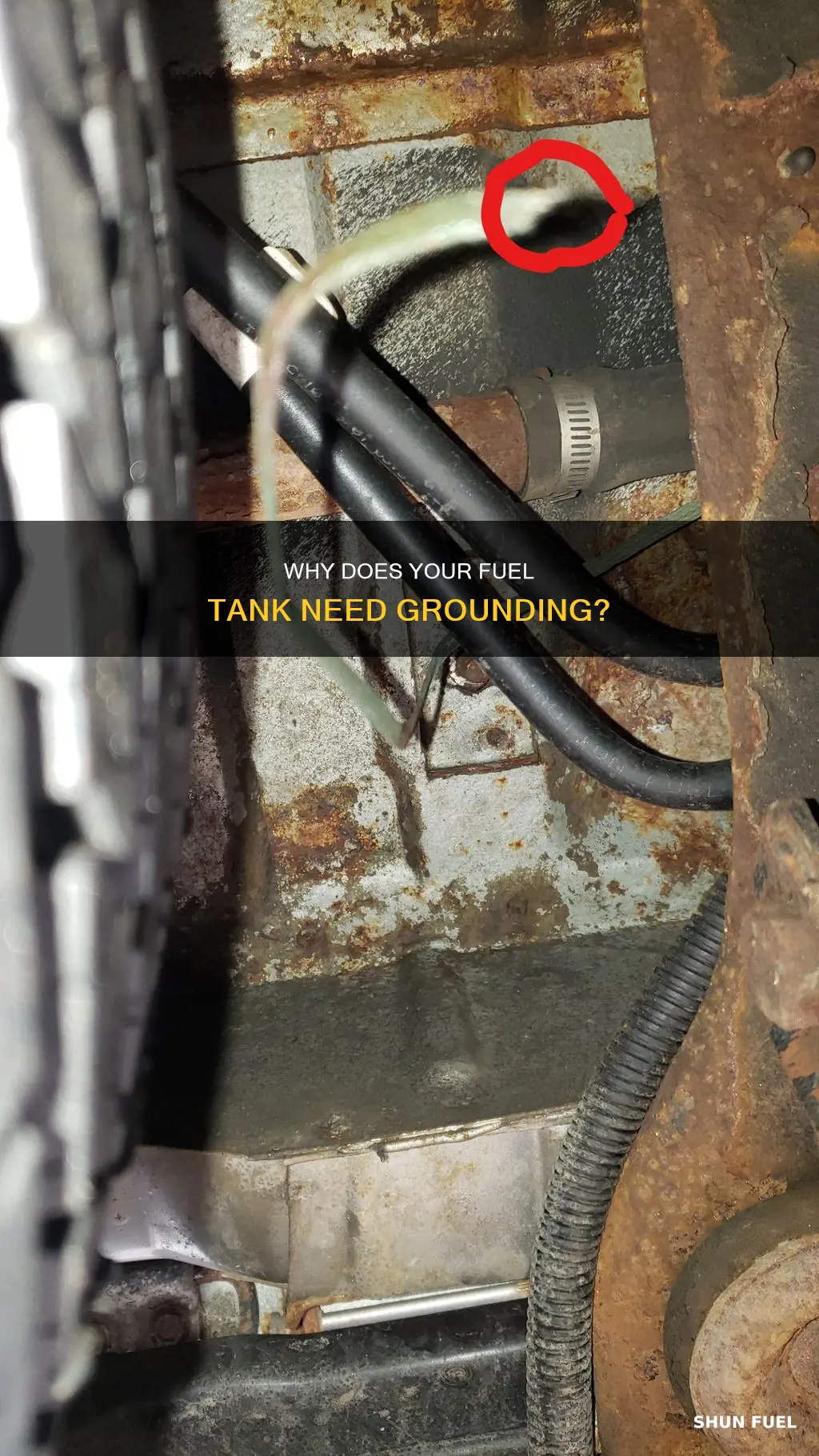

The ground wire on the fuel tank C5 is necessary for the fuel pump to run. The ground wire can be found by checking continuity between the grounded terminal in the left rear wheel well and the connector at the fuel pump. The colour of the wire differs depending on the model of the car. For some models, the wire is black, while for others, it is green.
Explore related products
What You'll Learn
The ground wire is necessary for the pump to run
The C5 Corvette has two fuel tanks, left and right. The left-hand tank contains the electric fuel pump that supplies fuel to the engine. The right-hand tank has a pump that transfers fuel from the right tank to the left tank. The fuel pump wires are grey (hot) and black (ground). The ground wire is necessary for the pump to run. The tank will not provide an adequate ground to the pump by itself.
Grounding is used for the protection of anyone who could come in contact with the motor or piping that is attached. The fluid inside can carry current, and ground wires act as a conductor to ground any stray current that escapes a motor due to a breakdown of the manufacturer’s built-in insulation.
The pump installation should always include a ground wire that feeds all the way back to the point of electric service entrance. This is because, in the event of a breakdown of the manufacturer's built-in insulation, the ground wire acts as a conductor to ground any stray current that escapes a motor.
To identify the ground wire, you can check continuity between the grounded terminal in the left rear wheel well and the connector at the fuel pump. When you turn the key to the "run" position, you should get 12 volts momentarily on one of the other wires.
The Truth About Straight Fuel Treatment in Diesel Tanks
You may want to see also
Explore related products
How to identify the ground wire
The ground wire on the C5 fuel tank is black. However, in general, identifying a ground wire can be tricky, especially when the colours are inconsistent. Here are some ways to identify a ground wire:
First, it is important to note that the National Fire Protection Association (NFPA) has standardised electrical wiring colours, thicknesses, and locations. This standard is known as the National Electrical Code (NEC). According to the NEC, ground wires are typically green, a green-yellow sheath, or bare copper.
Ground wires can also be identified by their location. In a properly wired household outlet, the ground wire will be connected to the U-shaped opening. Additionally, ground wires are connected to external surfaces that are not part of the circuit, such as pipes or appliance housings.
If you are still unsure, you can try tracing the wire back to its source or testing the wires for voltage. To test for voltage, ensure that all measurements are taken and not just one, as ground wires might detect a current if it is currently intercepting it. Alternatively, there may not be a ground wire in your receptacle, in which case it is best to consult a professional.
Another way to identify a ground wire is by using a multimeter to measure resistance to a known ground with the circuit de-energised or measuring voltage to ground with it energised. Since neutral is grounded, there will be a small resistance to ground or a small voltage difference to ground. If it is a hot wire, you will see line voltage to ground.
Finally, in newer residential wiring, the bond wire is bare, while the neutral is white. However, in older wiring, the neutral wire may be white or copper, and the ground wire may be bare, green, or absent.
Ford Ranger Fuel Tank: Parts and Functionality
You may want to see also
Explore related products
How to check if the ground wire is working
Checking if a ground wire is working can be a daunting task, especially for those inexperienced with electrical systems. However, with the right tools and safety precautions, the task can be completed in a safe and efficient manner.
To check if a ground wire is working, you will need a multimeter or ohmmeter. Before starting, ensure that you are equipped with the proper safety gear and measures to protect yourself from potential electrical hazards. Safety gear may include safety goggles to protect your eyes from sparking wires or flying debris.
Next, turn off the power supply to the circuit you want to test. This can be done on your circuit breaker. Then, touch the probes of the multimeter together to ensure that it is working correctly. If the multimeter shows zero resistance, it is functioning properly.
Now, you can begin testing the ground wire. Touch the black probe to a known ground, such as the metal chassis of the equipment or a cold water pipe. Then, touch the red probe to the wire you want to test. Observe the ground reading on the multimeter. If the wire is properly grounded, the multimeter should display a low resistance reading. If the reading is high, the wire is not grounded.
It is important to note that testing for a ground or working with electrical wiring can be dangerous, especially for those who are inexperienced. Always prioritize safety and ensure that you have a basic understanding of how electricity works and the potential hazards associated with it.
Hauling Fuel Oil: Tanker Endorsement Needed?
You may want to see also
Explore related products
How to remove the ground wire
The ground wire is an essential component of any electrical system, including fuel tanks, as it helps prevent electrical shocks and sparks that could be hazardous.
To remove the ground wire from a fuel tank, follow these steps:
Firstly, it is important to identify the ground wire. In most fuel pump systems, the ground wire is black, but it can also be green or another colour, depending on the make and model of the vehicle. It is also important to consult the vehicle's service manual to identify the specific location of the ground wire and any special tools required for removal.
Once the ground wire is located, the next step is to disconnect it from the fuel pump or fuel tank assembly. This may require the use of specialised tools, such as a fuel line disconnect tool, to safely detach the wire without causing damage. It is important to note that some ground wires may be connected to a plug or terminal, so care should be taken when removing them to avoid any damage to the connector.
In some cases, the ground wire may be attached to a grounding rod or bonded to the vehicle's body, especially in aircraft refuelling scenarios. Ensure that the ground wire is properly disconnected from any bonding points or grounding rods to complete the removal process.
Additionally, it is crucial to exercise caution when working with fuel systems. Before attempting any repairs or modifications, relieve the fuel pressure and drain the fuel tank as much as possible to minimise the risk of spills or accidents. Always refer to the vehicle's service manual and follow safety protocols when performing any maintenance or repair work on the fuel system.
By carefully following these steps and consulting the relevant resources, you can safely remove the ground wire from a fuel tank, ensuring a proper disconnection from the electrical system and maintaining the safety of the vehicle.
Repairing Diesel Fuel Tanks: A Comprehensive Guide
You may want to see also
Explore related products
How to reattach the ground wire
The ground wire of the fuel tank in a C5 Corvette can be found by checking continuity between the grounded terminal in the left rear wheel well and the connector at the fuel pump. The ground wire is black.
Firstly, cut out the damaged sections of the wire. You can cut off the whole first couple of inches of the wires, removing the insulation from the wire. Next, you can resolder the new wire strands to the connectors. You can also use a crimp-on eyelet or forked spade connector. Cut off the damaged end, re-strip with the appropriate size tool, and crimp to fresh wire. A locking pliers tool can be used for this.
Some grounding lugs are designed to take a bare wire. Wrap the wire once around the lug, under any washer, and snug it down lightly.
If the wire is underground, you can use an underground splice kit, which uses a rustproof connector to repair and seal the break. Slide the heat-shrink tube over the connector and use a heat gun to shrink and seal the connection.
Filling Up: Does Your Reserve Fuel Tank Benefit?
You may want to see also
Frequently asked questions
The ground wire on the fuel tank C5 is necessary for the pump to run.
The ground wire can be identified by checking continuity between the grounded terminal in the left rear wheel well and the connector at the fuel pump.
The ground wire is either black or green.
If the ground wire comes loose, the fuel pump will not work.
There are several cables, including wires for the fuel level meter and fuel level sensor.
