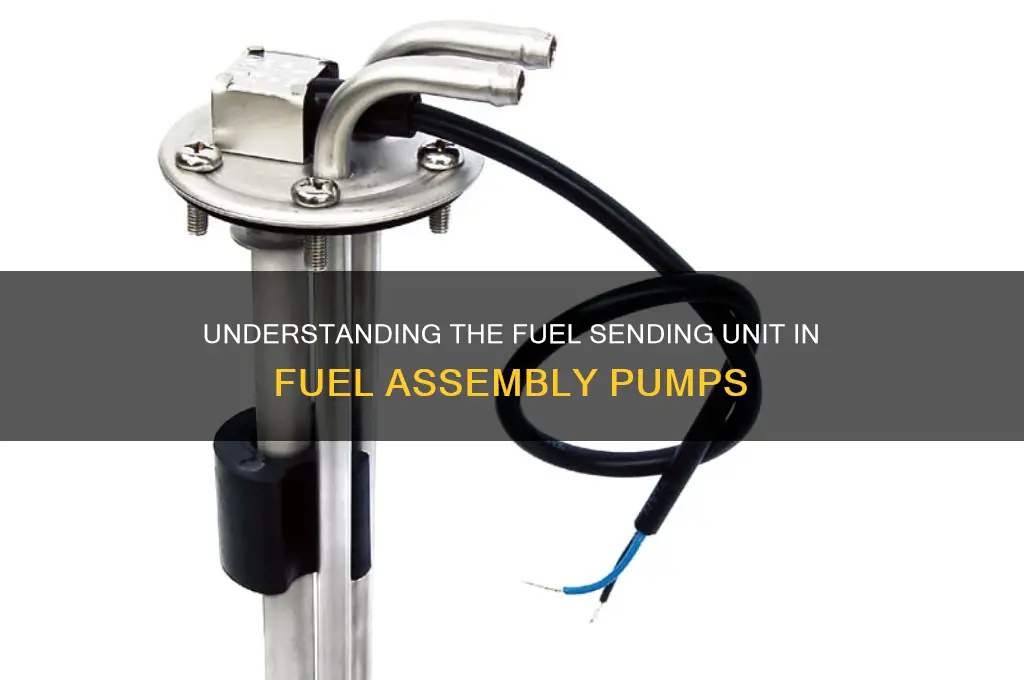

The fuel sending unit is a critical component of a fuel assembly pump, responsible for monitoring and relaying the fuel level in a vehicle's tank to the fuel gauge on the dashboard. Integrated into the fuel pump assembly, it typically consists of a float connected to a variable resistor or potentiometer. As the fuel level changes, the float moves, altering the resistance and sending an electrical signal to the gauge, which then displays the corresponding fuel level. This ensures drivers are accurately informed about their fuel status, preventing unexpected runouts and maintaining efficient vehicle operation.
| Characteristics | Values |
|---|---|
| Definition | A component within the fuel assembly pump that measures and reports the fuel level in the tank to the fuel gauge. |
| Primary Function | To accurately determine the amount of fuel in the vehicle's tank. |
| Location | Typically located inside the fuel tank, often integrated with the fuel pump assembly. |
| Components | Float arm, resistor, electrical contacts, and a housing unit. |
| Working Principle | The float arm moves with the fuel level, altering the resistance in the circuit, which is then translated into a fuel gauge reading. |
| Compatibility | Specific to vehicle make, model, and fuel system type (e.g., gasoline, diesel). |
| Material | Usually made of durable, fuel-resistant materials like plastic or metal. |
| Failure Symptoms | Inaccurate fuel gauge readings, fuel gauge stuck on empty or full, erratic gauge behavior. |
| Maintenance | Generally requires replacement if faulty, as internal components are not serviceable. |
| Cost (Approximate) | $50 to $200, depending on the vehicle and brand. |
| Installation | Requires fuel tank removal or access, typically performed by a professional mechanic. |
| Lifespan | Varies, but typically lasts the lifetime of the vehicle if not damaged. |
| Environmental Impact | Must be disposed of properly due to exposure to fuel and potential contaminants. |
| Diagnostic Tools | Multimeter, fuel pressure gauge, and vehicle diagnostic scanner. |
Explore related products
What You'll Learn
- Fuel Sending Unit Function: Measures and transmits fuel level data to the vehicle's gauge system
- Components of the Unit: Includes float, arm, resistor, and wiring for accurate fuel level detection
- Common Failure Symptoms: Inaccurate fuel gauge readings, erratic needle movement, or a stuck gauge
- Replacement Process: Requires fuel tank draining, unit removal, and installation of a new sending unit
- Maintenance Tips: Regularly inspect for corrosion, ensure proper grounding, and test electrical connections
Fuel Sending Unit Function: Measures and transmits fuel level data to the vehicle's gauge system
The fuel sending unit is a critical component nestled within the fuel assembly pump, serving as the bridge between your vehicle's fuel tank and the dashboard gauge. Its primary function is to measure the fuel level in the tank and transmit this data to the vehicle's gauge system, ensuring you’re always aware of how much fuel remains. This real-time communication is essential for preventing unexpected fuel depletion, which can lead to inconvenient breakdowns or costly repairs. Without this unit, drivers would be left guessing their fuel levels, relying on mileage estimates or risky assumptions.
To understand its operation, imagine the fuel sending unit as a floating sensor within the tank. As the fuel level rises or falls, the float moves accordingly, adjusting the resistance in an electrical circuit. This variable resistance is then converted into a signal that the vehicle’s gauge interprets as a visual readout on the dashboard. For instance, a full tank triggers a low-resistance signal, displaying a full gauge, while an empty tank sends a high-resistance signal, indicating the tank is nearly empty. This process is seamless, occurring in milliseconds, and is calibrated to provide accurate readings across various driving conditions.
While the fuel sending unit is durable, it’s not immune to wear and tear. Common issues include corrosion from contaminated fuel, electrical failures, or mechanical damage to the float. Symptoms of a malfunctioning unit include an erratic or stuck fuel gauge, which can lead to misjudging fuel levels. Regular maintenance, such as using high-quality fuel and inspecting the unit during routine service, can prolong its lifespan. If problems arise, replacing the unit typically involves draining the fuel tank, accessing the assembly pump, and installing a new sending unit—a task best handled by a professional to avoid safety risks.
Comparing the fuel sending unit to other fuel system components highlights its unique role. Unlike the fuel pump, which delivers fuel to the engine, or the fuel filter, which cleans impurities, the sending unit focuses solely on measurement and communication. Its integration with the vehicle’s electronics underscores the increasing sophistication of modern automotive systems. For example, in newer vehicles, the sending unit often works in tandem with onboard computers to optimize fuel efficiency and provide predictive alerts for refueling, showcasing its evolving importance in vehicle technology.
In practical terms, understanding the fuel sending unit’s function empowers drivers to make informed decisions. For instance, knowing that a fluctuating gauge might indicate a failing unit can prompt timely repairs, avoiding the risk of running out of fuel. Additionally, for DIY enthusiasts, recognizing the unit’s role in the fuel assembly pump can guide troubleshooting efforts, though complex repairs should be left to professionals. By appreciating this small yet vital component, drivers can ensure their vehicle’s fuel system operates reliably, enhancing both safety and convenience on the road.
Effective Cleaning Tips for Your CBR250R Fuel Pump Maintenance
You may want to see also
Explore related products
Components of the Unit: Includes float, arm, resistor, and wiring for accurate fuel level detection
The fuel sending unit is a critical component of the fuel assembly pump, responsible for accurately measuring and relaying the fuel level in a vehicle's tank to the fuel gauge. At its core, this unit comprises four essential components: the float, arm, resistor, and wiring, each playing a distinct role in ensuring precise fuel level detection. Understanding these components is key to diagnosing issues and maintaining optimal vehicle performance.
Analytical Breakdown:
The float, typically made of foam or plastic, is designed to sit atop the fuel surface, rising and falling with the fuel level. Attached to the float is the arm, a slender rod that pivots as the float moves. This mechanical motion is translated into an electrical signal via the resistor, which varies its resistance based on the arm's position. The wiring then transmits this signal to the fuel gauge, providing a real-time reading of the fuel level. Together, these components form a simple yet ingenious system that balances mechanical and electrical principles for accuracy.
Instructive Guidance:
To ensure the fuel sending unit functions correctly, regular inspection of these components is essential. Start by checking the float for cracks or fuel saturation, as either can compromise its buoyancy. Next, examine the arm for bending or corrosion, which could hinder its movement. The resistor should be tested for continuity using a multimeter; a faulty resistor will result in inaccurate readings. Finally, inspect the wiring for fraying or disconnections, as these can disrupt signal transmission. Replacing damaged parts promptly will prevent fuel gauge malfunctions and potential misdiagnosis of fuel system issues.
Comparative Insight:
Unlike older mechanical systems, modern fuel sending units often integrate these components into a single module, enhancing durability and reducing failure points. For instance, some designs use a variable resistor card instead of a traditional arm and resistor setup, offering smoother operation and greater longevity. However, the fundamental principles remain the same: a float-driven mechanism converts physical movement into an electrical signal. This evolution highlights the industry's focus on reliability and efficiency, making newer systems less prone to wear and tear compared to their predecessors.
Practical Tips:
When troubleshooting fuel level discrepancies, start by verifying the integrity of the sending unit's components. If the gauge reads empty despite a full tank, the float or arm may be stuck. Gently tapping the fuel tank can sometimes dislodge the float temporarily, but a thorough inspection is necessary. For erratic readings, focus on the resistor and wiring, as these are common culprits. In vehicles with in-tank fuel pumps, accessing the sending unit may require removing the fuel pump assembly, so consult the vehicle's manual for specific steps. Regular maintenance and proactive checks can save time and prevent costly repairs down the line.
Descriptive Takeaway:
Imagine the fuel sending unit as a symphony orchestra, where each component plays a unique instrument to create a harmonious performance. The float is the conductor, guiding the movement; the arm is the violinist, translating motion into melody; the resistor is the pianist, modulating the signal; and the wiring is the sound system, delivering the final output. When all elements work in unison, the result is a clear, accurate fuel level reading—a testament to the elegance of automotive engineering.
Locating the Fuel Pump in Your 2000 Dodge Intrepid: A Guide
You may want to see also
Explore related products
Common Failure Symptoms: Inaccurate fuel gauge readings, erratic needle movement, or a stuck gauge
The fuel sending unit, a critical component of the fuel assembly pump, is responsible for communicating the fuel level in your vehicle's tank to the gauge on your dashboard. When this unit malfunctions, it can lead to a range of issues that are both frustrating and potentially hazardous. One of the most common failure symptoms is inaccurate fuel gauge readings, which can leave you guessing about how much fuel you actually have. This uncertainty can result in unexpected breakdowns, especially during long trips or in remote areas. For instance, a gauge that reads a quarter tank when the tank is nearly empty can lead to running out of fuel without warning.
Erratic needle movement is another telltale sign of a failing fuel sending unit. Instead of smoothly indicating the fuel level, the needle may jump around unpredictably, making it difficult to determine how much fuel remains. This behavior often occurs due to wear and tear on the sending unit’s electrical contacts or a faulty resistor. In some cases, the needle may fluctuate rapidly between full and empty, even when the vehicle is stationary. Such inconsistencies can be particularly alarming, as they undermine your ability to trust the fuel gauge entirely.
A stuck gauge is equally problematic, though it manifests differently. If the fuel gauge remains fixed at one position—whether full, empty, or somewhere in between—it suggests the sending unit is no longer transmitting accurate data. This issue can stem from a broken float arm, a corroded electrical connection, or a failed resistor within the unit. For example, a gauge stuck on "full" might prevent you from realizing the tank is actually empty, while one stuck on "empty" could lead to unnecessary refueling stops.
To diagnose these issues, start by checking the fuel tank’s actual level manually, if possible, to compare it with the gauge reading. If discrepancies are frequent, inspect the sending unit for visible damage or corrosion. In some vehicles, accessing the unit requires removing the fuel tank, so consult your vehicle’s manual for specific instructions. Replacing a faulty sending unit typically involves draining the fuel tank, disconnecting the unit, and installing a new one, which should restore accurate gauge functionality.
Preventive maintenance can help avoid these failures. Regularly inspect the fuel system for leaks or corrosion, and ensure the sending unit’s electrical connections remain clean and secure. If your vehicle is older than 10 years, consider proactively replacing the sending unit as part of routine maintenance, as these components are prone to wear over time. By addressing these symptoms early, you can maintain reliable fuel level readings and avoid the inconvenience of unexpected fuel-related issues.
Resetting Your Ranger's Fuel Pump Inertia Switch: A Step-by-Step Guide
You may want to see also
Explore related products
Replacement Process: Requires fuel tank draining, unit removal, and installation of a new sending unit
The fuel sending unit, a critical component of the fuel assembly pump, plays a pivotal role in monitoring and reporting the fuel level in a vehicle's tank. When this unit fails, it can lead to inaccurate fuel gauge readings, leaving drivers uncertain about their vehicle's range. Replacing the fuel sending unit is a task that demands precision and adherence to safety protocols, ensuring the vehicle's fuel system operates efficiently.
Draining the Fuel Tank: A Crucial First Step
Before any replacement can begin, the fuel tank must be drained completely. This step is non-negotiable, as it eliminates the risk of fuel spillage and potential hazards during the removal process. Use a siphon pump or an electric transfer pump to extract the fuel, ensuring the tank is as empty as possible. For safety, work in a well-ventilated area and avoid open flames or sparks. If the tank holds more than 20 gallons, consider using a professional-grade pump to expedite the process.
Removing the Old Sending Unit: Precision and Care
With the tank drained, the next step involves removing the old sending unit. This typically requires accessing the unit from the top of the fuel tank, often through a dedicated access panel. Disconnect the electrical connector and fuel lines carefully, noting their positions for reassembly. Use appropriate tools, such as a socket wrench or screwdriver, to loosen the locking ring or bolts securing the unit. Be cautious not to damage the tank or surrounding components, as even minor mishandling can lead to costly repairs.
Installing the New Sending Unit: Attention to Detail
Installing the new sending unit demands meticulous attention to detail. Ensure the unit is compatible with your vehicle’s make and model, as discrepancies can lead to malfunctions. Align the unit properly and secure it with the locking ring or bolts, tightening them to the manufacturer’s specifications. Reconnect the electrical connector and fuel lines, double-checking their positioning to avoid leaks or disconnections. A torque wrench can be invaluable here to achieve the correct tightness without over-tightening.
Post-Installation Checks: Ensuring Reliability
After installation, refill the fuel tank partially and check for leaks around the sending unit. Start the vehicle and monitor the fuel gauge for accuracy. If the gauge behaves erratically, inspect the electrical connections again. A test drive can further confirm the unit’s functionality, ensuring the fuel level readings are consistent and reliable. This final step is crucial, as it guarantees the replacement was successful and the vehicle is safe to operate.
By following these steps with care, replacing a fuel sending unit becomes a manageable task, restoring the vehicle’s fuel system to optimal performance.
Inline Fuel Pumps: Compatibility and Performance in Fuel Injected Engines
You may want to see also
Explore related products
$37.95 $39.95
Maintenance Tips: Regularly inspect for corrosion, ensure proper grounding, and test electrical connections
Corrosion is a silent saboteur in fuel systems, particularly around the fuel sending unit on the fuel assembly pump. Moisture, salt, and contaminants accelerate metal degradation, leading to leaks or inaccurate fuel gauge readings. Regular visual inspections—at least biannually or after exposure to harsh conditions—can catch early signs like rust, discoloration, or flaking. Use a flashlight and magnifying glass to scrutinize connections, terminals, and the unit’s housing. Address minor corrosion with a wire brush and dielectric grease; severe cases may require component replacement to prevent system failure.
Proper grounding is often overlooked but critical for the fuel sending unit’s functionality. Without a stable ground, electrical signals become erratic, leading to false fuel level readings or pump malfunctions. Verify grounding by testing continuity between the unit’s ground wire and the vehicle chassis with a multimeter. Ensure the grounding point is clean, free of paint or rust, and securely tightened. Loose connections or corroded terminals? Clean them with a wire brush and apply anti-corrosion spray to maintain reliability.
Electrical connections in the fuel sending unit are prone to wear from vibration, heat, and exposure to fuel vapors. Test these connections using a multimeter to check for continuity and resistance. Focus on the wiring harness, terminals, and the float arm pivot point. If resistance exceeds manufacturer specifications (typically 0.5–2 ohms), clean the contacts with electrical cleaner and reassemble. For preventive care, apply a thin layer of silicone dielectric grease to protect against moisture and corrosion.
Comparing preventive maintenance to reactive repairs highlights its cost-effectiveness. A corroded fuel sending unit can lead to a $300–$500 replacement, while routine inspections and cleaning cost under $50 in materials. Similarly, grounding issues causing pump failure can result in a $600 repair bill, whereas grounding checks take minutes. By integrating these steps into your maintenance routine—inspecting for corrosion, verifying grounding, and testing electrical connections—you extend the lifespan of the fuel assembly pump and ensure accurate fuel monitoring.
Finally, consider environmental factors that accelerate wear. Vehicles in coastal or humid regions face higher corrosion risks, necessitating quarterly inspections. Off-road or industrial vehicles exposed to dirt and debris should include a compressed air blow-out of the unit during checks. Pair these practices with a logbook to track inspection dates, findings, and actions taken. Proactive maintenance not only safeguards performance but also prevents costly downtime or safety hazards from fuel system failures.
Diagnosing Mercruiser 140 Fuel Pump Issues: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel sending unit is a component within the fuel assembly pump that measures the amount of fuel in the tank and sends this information to the fuel gauge on the vehicle's dashboard.
The fuel sending unit typically consists of a float connected to a variable resistor. As the fuel level changes, the float moves, altering the resistance and sending an electrical signal to the fuel gauge, which displays the fuel level.
Common signs include an inaccurate or erratic fuel gauge reading, the gauge staying on empty or full regardless of the fuel level, or the check engine light coming on due to a faulty sensor signal.
