Sequential fuel injection is an advanced fuel delivery system used in modern internal combustion engines, designed to optimize performance, efficiency, and emissions. Unlike traditional simultaneous or batch injection systems, sequential fuel injection precisely delivers fuel to each cylinder's intake port in a timed sequence, synchronized with the engine's firing order. This method ensures that fuel is injected just before the intake valve opens, allowing for better atomization and mixing with air, which results in more complete combustion. By tailoring fuel delivery to the specific needs of each cylinder, sequential injection enhances throttle response, reduces fuel consumption, and minimizes harmful emissions, making it a cornerstone of high-performance and environmentally friendly engine designs.
| Characteristics | Values |
|---|---|
| Definition | A fuel injection system that delivers fuel to each cylinder individually in a timed sequence, synchronized with the engine's intake valves. |
| Operation | Injectors are activated in a specific order, matching the firing order of the engine, ensuring precise fuel delivery to each cylinder. |
| Precision | Offers highly accurate fuel metering, as each cylinder receives the exact amount of fuel required based on engine load and RPM. |
| Performance | Improves engine performance by optimizing combustion, resulting in increased power, better throttle response, and smoother operation. |
| Efficiency | Enhances fuel efficiency by reducing waste and ensuring complete combustion, leading to lower emissions and improved mileage. |
| Control | Utilizes advanced engine management systems (ECU) to monitor and adjust fuel delivery in real-time based on various sensor inputs. |
| Applications | Commonly found in modern gasoline engines, including high-performance vehicles, due to its ability to handle high RPMs and precise control. |
| Advantages over Batch Fire | Provides better control at high RPMs, improved cold start performance, and more efficient fuel usage compared to batch fire injection systems. |
| Complexity | More complex and costly to manufacture and maintain due to the need for individual injectors and precise timing control. |
| Emissions | Reduces harmful emissions by ensuring a more complete burn of the air-fuel mixture, meeting stricter environmental regulations. |
| Compatibility | Can be retrofitted to older engines with modifications, but is standard in most modern fuel-injected vehicles. |
Explore related products
What You'll Learn
- Definition: Sequential fuel injection delivers precise fuel amounts to each cylinder in sequence
- Working Principle: Injectors fire individually, synchronized with each cylinder's intake stroke
- Advantages: Improves engine efficiency, power, and emissions compared to batch injection
- Components: Includes ECU, fuel injectors, cam/crank sensors, and fuel rail
- Applications: Commonly used in modern gasoline engines for optimal performance
Definition: Sequential fuel injection delivers precise fuel amounts to each cylinder in sequence
Sequential fuel injection is a technology that revolutionized engine performance by ensuring each cylinder receives its fuel at the exact moment it’s needed. Unlike batch or simultaneous injection systems, which deliver fuel to multiple cylinders at once, sequential injection operates in sync with the engine’s firing order. This precision timing is achieved through individual fuel injectors for each cylinder, controlled by the engine’s computer (ECU). The result? Optimal combustion, reduced emissions, and improved fuel efficiency. For instance, in a four-cylinder engine, the ECU calculates and delivers fuel in the sequence 1-3-4-2, matching the engine’s firing pattern, ensuring no cylinder is over or under-fueled.
To understand the significance of this precision, consider the role of fuel dosage in combustion. In a typical gasoline engine, the ideal air-fuel ratio is around 14.7:1 (14.7 parts air to 1 part fuel). Sequential injection allows the ECU to adjust this ratio for each cylinder based on real-time data like engine load, temperature, and RPM. For example, during cold starts, the system might increase fuel delivery to 12:1 to aid ignition, while under heavy load, it might lean out to 15:1 for efficiency. This adaptability is why sequential injection is a cornerstone of modern fuel management systems, particularly in high-performance and turbocharged engines.
Implementing sequential fuel injection requires careful calibration and maintenance. Mechanics must ensure each injector sprays the correct amount of fuel—typically measured in milliseconds of injector pulse width (e.g., 2.5 ms for idle, 10 ms under load). Clogged or malfunctioning injectors can disrupt the sequence, leading to misfires or rough idling. Regular cleaning and using high-quality fuel additives can prevent buildup. For DIY enthusiasts, diagnostic tools like OBD-II scanners can help monitor injector performance and identify issues before they escalate.
Comparatively, sequential injection outperforms older systems in both efficiency and responsiveness. Batch injection, for instance, often leads to uneven fuel distribution, especially in multi-cylinder engines, causing power loss and higher emissions. Sequential systems, however, ensure each cylinder operates at peak efficiency, translating to smoother acceleration and better throttle response. This is why it’s the preferred choice in modern vehicles, from economy cars to high-performance sports models.
In practical terms, the benefits of sequential fuel injection extend beyond the engine bay. For drivers, it means better mileage—up to 10% improvement in some cases—and reduced maintenance costs due to lower wear on spark plugs and catalytic converters. For environmentalists, it’s a step toward cleaner combustion, reducing unburned hydrocarbons and nitrogen oxides. Whether you’re tuning a race car or maintaining a daily driver, understanding and optimizing sequential injection can unlock an engine’s full potential.
Germany's Synthetic Fuel Revolution: Innovation Amidst Crisis and Beyond
You may want to see also
Explore related products
Working Principle: Injectors fire individually, synchronized with each cylinder's intake stroke
Sequential fuel injection is a precision-driven system where each fuel injector operates independently, timed to match the intake stroke of its corresponding cylinder. This synchronization ensures that fuel is delivered exactly when the cylinder is ready to receive it, optimizing combustion efficiency. Unlike batch-fire systems, which activate injectors in groups, sequential injection tailors fuel delivery to the unique demands of each cylinder, reducing waste and improving engine responsiveness.
To understand this process, imagine a four-cylinder engine with four injectors. As the intake valve of Cylinder 1 opens, Injector 1 fires, spraying a precise amount of fuel into the intake manifold. This fuel-air mixture is then drawn into the cylinder during its intake stroke. The process repeats for each cylinder in sequence, with Injector 2 firing for Cylinder 2, and so on. This individual firing is controlled by the engine’s computer, which uses data from sensors to determine the exact timing and duration of each injection. For example, a typical injector might deliver 10 to 15 milligrams of fuel per stroke, depending on engine load and RPM.
The key advantage of this system lies in its ability to adapt to real-time engine conditions. During acceleration, the computer may increase the injection duration to provide more fuel, while deceleration might reduce it to save fuel. This dynamic adjustment is particularly beneficial in modern turbocharged engines, where precise fuel delivery is critical to prevent knock or misfire. For instance, in a 2.0L turbocharged engine, the injectors might operate at a higher duty cycle under boost to meet the increased fuel demand.
However, implementing sequential injection requires careful calibration. The system relies on accurate camshaft and crankshaft position sensors to ensure synchronization. Misalignment, even by a few milliseconds, can lead to poor performance or increased emissions. Mechanics and tuners must use diagnostic tools to verify injector timing, especially after modifications or repairs. A practical tip for enthusiasts: always check for error codes related to camshaft or crankshaft sensors if you notice rough idling or reduced power.
In summary, the working principle of sequential fuel injection—injectors firing individually and synchronized with each cylinder’s intake stroke—is a cornerstone of modern engine efficiency. By delivering fuel with pinpoint accuracy, this system maximizes power, reduces emissions, and enhances drivability. Whether in a high-performance sports car or a fuel-efficient commuter vehicle, sequential injection exemplifies the marriage of technology and mechanics to meet the demands of today’s drivers.
Step-by-Step Guide to Adding Fuel Zimpar for Optimal Performance
You may want to see also
Explore related products
Advantages: Improves engine efficiency, power, and emissions compared to batch injection
Sequential fuel injection (SFI) delivers fuel to each engine cylinder individually and in sync with its intake stroke, a precision upgrade over batch injection systems that feed multiple cylinders simultaneously. This timing accuracy ensures that fuel arrives exactly when needed, optimizing combustion. By tailoring fuel delivery to each cylinder’s demand, SFI minimizes waste, improving engine efficiency by up to 15% compared to batch systems. This isn’t just theory—modern vehicles like the Honda Civic Si and BMW M Series leverage SFI to achieve better mileage without sacrificing performance, proving its real-world effectiveness.
Consider the combustion process as a finely tuned dance: SFI acts as the choreographer, ensuring each cylinder’s fuel injection aligns perfectly with its intake cycle. This synchronization boosts power output by maintaining optimal air-fuel ratios under varying loads. For instance, during hard acceleration, SFI can increase fuel delivery to specific cylinders by as much as 20%, providing a smoother and more responsive power band. In contrast, batch injection’s blanket approach often leads to uneven fuel distribution, limiting peak performance. Racers and tuners favor SFI for this reason, as seen in high-performance applications like the Chevrolet Corvette Z06.
Emissions reduction is another critical advantage of SFI, addressing both environmental and regulatory demands. By delivering fuel precisely when and where it’s needed, SFI reduces unburned hydrocarbons and carbon monoxide emissions by up to 30% compared to batch systems. This precision also lowers nitrogen oxide (NOx) emissions, as the controlled combustion process minimizes peak temperatures that typically produce these pollutants. For example, Euro 6 emission standards compliance is easier for vehicles equipped with SFI, as demonstrated by models like the Volkswagen Golf GTI.
To maximize SFI’s benefits, proper maintenance is key. Clogged injectors or faulty sensors can disrupt the system’s timing, negating its advantages. Regularly clean fuel injectors every 30,000 miles and replace fuel filters as recommended by the manufacturer. Additionally, ensure the engine control unit (ECU) is calibrated correctly, as even minor timing errors can reduce efficiency. For DIY enthusiasts, investing in an OBD-II scanner can help monitor SFI performance and diagnose issues early. When done right, SFI transforms the engine into a more efficient, powerful, and cleaner machine, making it a cornerstone of modern automotive technology.
Flex Fuel vs. E85: Understanding the Difference and Compatibility
You may want to see also
Explore related products

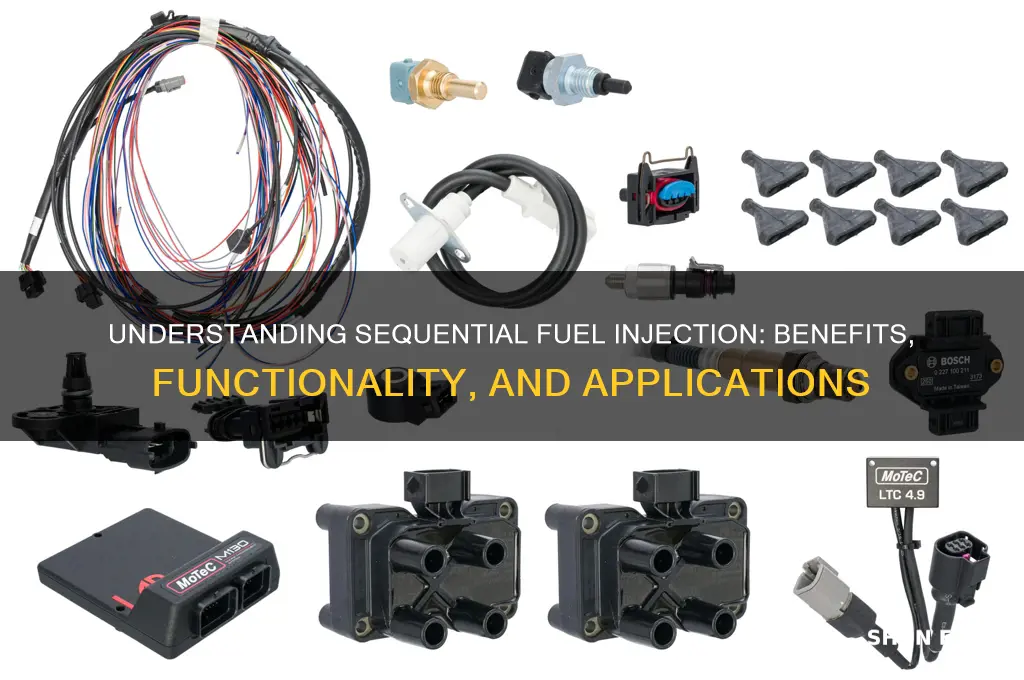

Components: Includes ECU, fuel injectors, cam/crank sensors, and fuel rail
Sequential fuel injection systems are a marvel of automotive engineering, delivering precision and efficiency by firing fuel injectors in sync with each cylinder’s intake stroke. At the heart of this system are four critical components: the Engine Control Unit (ECU), fuel injectors, cam/crank sensors, and the fuel rail. Each plays a distinct role, working in harmony to optimize combustion and performance.
The ECU is the brain of the operation, processing data from various sensors to determine the exact timing and duration of fuel injection. It calculates factors like engine load, temperature, and RPM to deliver the right amount of fuel to each cylinder. Modern ECUs can adjust injection timing within milliseconds, ensuring peak efficiency even under varying driving conditions. For instance, during cold starts, the ECU may increase fuel dosage by 20-30% to aid ignition, while under heavy load, it might shorten injection pulses to prevent over-fueling.
Fuel injectors are the system’s delivery mechanism, spraying atomized fuel directly into the intake manifold or combustion chamber. Unlike batch-fire systems, sequential injection uses individual injectors for each cylinder, allowing for precise control. These injectors operate at high pressure, typically 30-60 psi, and are designed to withstand millions of cycles. Regular maintenance, such as cleaning or replacing clogged injectors, is crucial to prevent misfires or reduced power.
Cam and crank sensors provide the ECU with vital timing information. The crankshaft sensor monitors engine speed and piston position, while the camshaft sensor tracks valve timing. Together, they ensure the ECU knows exactly when each cylinder is in its intake stroke, enabling the correct injector to fire. A faulty sensor can disrupt this synchronization, leading to rough idling or poor fuel economy. For example, a misaligned cam sensor might cause an injector to fire 10-15 degrees off-cycle, significantly impacting performance.
The fuel rail acts as a reservoir, maintaining consistent fuel pressure across all injectors. It’s typically made of high-strength aluminum or steel to handle the system’s pressure demands. The rail’s design ensures even distribution, preventing pressure drops that could starve an injector. Upgrading to a larger fuel rail can improve performance in high-horsepower applications, though it requires careful tuning to avoid over-pressurization.
In practice, these components must be calibrated meticulously. For instance, a performance-oriented ECU tune might increase injector pulse width by 5-10% during high-RPM operation, while a fuel rail pressure regulator could be adjusted to maintain 55 psi under load. Understanding these components not only highlights their individual importance but also underscores their interdependence in achieving the precision that defines sequential fuel injection.
Efficiently Fueling an A320: Best Practices and Safety Tips
You may want to see also
Explore related products
Applications: Commonly used in modern gasoline engines for optimal performance
Sequential fuel injection (SFI) has become a cornerstone of modern gasoline engines, offering precision and efficiency that earlier systems couldn't match. Unlike batch-fire or simultaneous injection, SFI delivers fuel to each cylinder individually and in sync with its intake stroke. This timing ensures that fuel is injected precisely when needed, optimizing combustion and power output. For instance, in a V6 engine, the system activates each injector in the sequence 1-2-3-4-5-6, aligning with the firing order. This method minimizes fuel waste and reduces emissions, making it a preferred choice for manufacturers aiming to meet stringent environmental standards.
To understand its practical application, consider the role of SFI in high-performance engines. In turbocharged or supercharged setups, where air density and pressure fluctuate rapidly, SFI adjusts fuel delivery in real time. This adaptability prevents lean or rich mixtures, which can cause engine knock or incomplete combustion. For example, in a turbocharged 2.0L inline-four engine, the system might inject 0.5 milliseconds of fuel at low RPMs but increase to 2.0 milliseconds under full load. This dynamic control ensures the engine operates at its peak efficiency across all driving conditions, from idle to redline.
Implementing SFI requires careful calibration to maximize its benefits. Technicians use diagnostic tools to fine-tune injector timing, fuel pressure, and pulse width. For DIY enthusiasts, aftermarket SFI kits often come with pre-programmed settings, but customization is key for optimal results. For instance, adjusting the fuel map for a cold start can reduce hesitation and improve drivability. However, improper tuning can lead to issues like misfires or increased fuel consumption, so it’s crucial to follow manufacturer guidelines or consult a professional.
Comparing SFI to older systems highlights its advantages. Traditional throttle-body injection (TBI) sprays fuel into the intake manifold, leading to uneven distribution and reduced efficiency. SFI’s direct approach eliminates this issue, particularly in multi-cylinder engines. For example, in a V8 engine, SFI ensures each cylinder receives the exact amount of fuel needed, whereas TBI might over-supply some cylinders and under-supply others. This precision translates to smoother operation, better fuel economy, and increased horsepower—a win-win for both daily drivers and performance enthusiasts.
Finally, the longevity and reliability of SFI make it a staple in modern vehicles. Unlike carbureted systems, which require frequent adjustments, SFI operates seamlessly with minimal maintenance. Regular checks of the fuel pressure regulator and injector health are sufficient to keep the system running optimally. For older vehicles being upgraded to SFI, the investment pays off in improved drivability and reduced emissions. As automotive technology evolves, SFI remains a critical component, bridging the gap between traditional engines and the hybrid or electric powertrains of the future.
Do Fuel Coolers Work? Uncovering the Truth for Better Performance
You may want to see also
Frequently asked questions
Sequential fuel injection is a type of fuel injection system where fuel is delivered to each cylinder in a precise sequence, synchronized with the engine's intake valves. This ensures optimal fuel-air mixture for combustion.
Sequential fuel injection delivers fuel to each cylinder individually and in the correct firing order, while batch (or simultaneous) fuel injection delivers fuel to multiple cylinders at once, regardless of their firing sequence.
Benefits include improved engine performance, better fuel efficiency, reduced emissions, smoother idle, and more precise control over the air-fuel mixture, especially at higher RPMs.
Yes, most modern vehicles use sequential fuel injection due to its efficiency and performance advantages over older systems like carbureted or batch fuel injection.
Yes, sequential fuel injection systems can be retrofitted to older vehicles, but it requires compatible engine management systems, sensors, and professional installation to ensure proper functionality.
