Ameer Randolph
The pour point of a liquid is the temperature below which it loses its flow characteristics. It is an important property in the petroleum industry, as it determines the usability and performance of the product in colder environments. Diesel fuel, for example, can have its pour point altered by the addition of additives, such as ethanol, which lowers the pour point temperature. This is important for the proper handling and storage of diesel fuel, especially in cold climates, where low temperatures can cause the product to solidify and impede its flow.
| Characteristics | Values |
|---|---|
| Definition | The pour point of a liquid is the temperature below which the liquid loses its flow characteristics. |
| Importance | It is a critical property that directly impacts the performance and usability of diesel fuel in various industries. It is essential for ensuring proper handling and storage. |
| Test procedure | The test is performed using a special apparatus to cool the sample in a controlled manner. The sample is placed in a test jar and gradually cooled in a cooling bath. The temperature is lowered at a specified rate, and the sample is checked for flow at intervals. The pour point is the lowest temperature at which the sample ceases to flow. |
| Temperature range | Pour points for diesel fuel blends can range from 32°C to below -57°C (90°F to below -70°F). |
| Impact of additives | Introducing additives like ethanol can cause a significant reduction in the pour point temperature of diesel fuel. |
| Calculation of blend pour point | The pour point of a blend can be calculated using the pour point blending indices of the individual components and their volume fractions. |
Explore related products
What You'll Learn
Pour point blending
The pour point of a liquid is the temperature below which it loses its flow characteristics and will not pour. It is important to determine the pour point of diesel fuel, as it can impact the transport and recovery of crude oil.
To determine the pour point of a blend, one must first calculate the pour factor for each component of the blend. This is done by multiplying the pour point blending index (PPBI) of each component by its volume fraction in the blend. The pour point blending indices for various distillate fuels can be found in Table 12.7 of the textbook Petroleum Refining by J. H. Gary, G. E. Handwerk, and M. J. Kaiser. Once the pour factors for each component have been calculated, they can be added together to find the blending index for the blend.
Finally, the blend's 50% ASTM temperature can be calculated by multiplying the volume fraction of each component by its ASTM 50% temperature and adding the results together. With the blending index and 50% ASTM temperature, the pour point of the blend can be determined using Figure 9.11 from the textbook.
Where to Buy Off-Road Diesel Fuel in Conyers, GA
You may want to see also
Explore related products
Impact on performance and usability

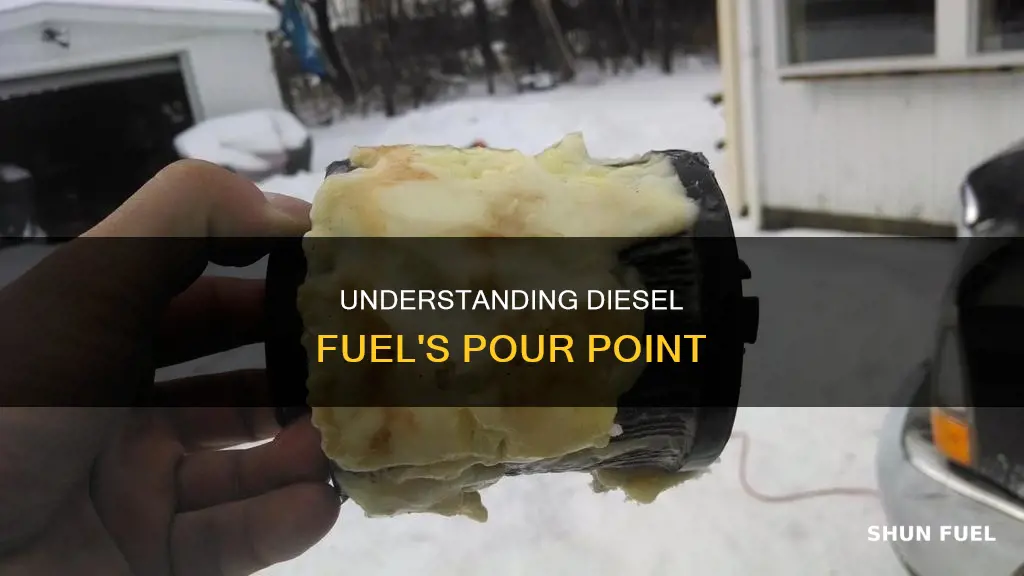

The pour point of diesel fuel is a critical factor that directly impacts its performance and usability. Diesel fuel contains wax, which exists in liquid form in warm weather. However, as temperatures decrease, the wax thickens and crystallizes, blocking the flow of fuel to the engine from the fuel filters, leading to engine malfunction or even failure. This wax crystal formation is known as the cloud point, and it is a crucial parameter in determining the usability and safety of diesel fuel. A high cloud point can cause issues with fuel filters and lines, impacting engine performance.
The pour point is the lowest temperature at which diesel fuel will still pour or flow. If the pour point is too high, the fuel may not flow properly, resulting in clogged pipes and decreased efficiency. This is particularly important in cold environments, where diesel fuel can solidify and impede its flow, affecting its usability and performance. For example, in the automotive industry, a high pour point in lubricating oils can lead to increased engine wear and potential damage, while a low pour point may result in inadequate lubrication at higher temperatures.
By understanding the pour point, industry professionals can make informed decisions regarding storage, transportation, and product formulation. They can select the appropriate lubricants and fuels for specific operating conditions, ensuring optimal performance and reliability in cold weather. This is crucial for businesses operating in diverse climates, as it minimizes downtime and maintenance costs associated with equipment malfunction.
Additionally, the pour point impacts the safety and environmental impact of diesel fuel. A higher pour point may require additional measures to ensure safe handling and storage, especially in cold climates. It can also affect the fuel's performance under various environmental conditions, influencing operational efficiency and sustainability goals.
In summary, the pour point of diesel fuel is essential for determining its performance and usability, especially in cold environments. It affects the flow and effectiveness of the fuel, impacting equipment functionality and fuel efficiency. By accurately determining the pour point, industry professionals can optimize operations and ensure reliable performance in specific environmental conditions.
Understanding Diesel Fuel Boost Compensators
You may want to see also
Explore related products
Test methods
The pour point of a liquid is the temperature below which the liquid loses its flow characteristics. It is an important property in the petroleum industry as it determines the usability and performance of the product in colder environments.
The test methods for determining the pour point of diesel fuel can vary depending on the specific type of petroleum product and the expected pour point range. Here are some commonly used methods:
ASTM D97
This is the standard test method for determining the pour point of crude oils and petroleum products. The specimen is cooled inside a cooling bath to allow the formation of paraffin wax crystals. At about 9 °C above the expected pour point, and for every subsequent 3 °C, the test jar is removed and tilted to check for surface movement. If the specimen does not flow when tilted, the jar is held horizontally for 5 seconds. If it still does not flow, 3 °C is added to the corresponding temperature, resulting in the pour point temperature.
ASTM D5949
ASTM D5949 is an alternative to the manual ASTM D97 test procedure. It uses automatic apparatus and yields pour point results in a similar format to ASTM D97. This method determines the pour point in a shorter period of time with less operator involvement. The test sample is heated and then cooled by a Peltier device at a rate of 1.5±0.1 °C/min. At either 1 °C or 3 °C intervals, a pressurised pulse of compressed gas is imparted onto the surface of the sample. Multiple optical detectors continuously monitor the sample for movement. The lowest temperature at which movement is detected is determined to be the pour point.
Cloud Point Method
The cloud point method is used to determine the temperature at which a haze of wax crystals starts to appear in the fuel under test conditions. This method is particularly relevant for fuels that do not contain operability additives. The manual method for this test is ASTM D2500, where a sample is brought to a temperature at least 14 °C above the expected cloud point and then cooled in a cooling bath. The lowest temperature at which wax crystals are observed is recorded as the cloud point.
Upper and Lower Pour Point
The upper pour point is measured by pouring the test sample directly into a test jar, cooling it, and inspecting for the pour point. The lower pour point is measured by first pouring the sample into a stainless steel pressure vessel, heating it above 102 °C, and then cooling it. The sample is then poured into a test jar and closed with a cork carrying a thermometer.
These test methods provide valuable information for predicting the low-temperature flow properties of diesel fuel, ensuring their usability and performance in cold environments.
Safeway Diesel Fuel Availability in Madras, Oregon
You may want to see also
Explore related products
Effect of additives
The pour point of a liquid is the temperature below which it loses its flow characteristics. In the context of diesel fuel, this is important for recovery and transport. Additives can be introduced to diesel fuel to lower its pour point temperature.
An experimental study investigated the effects of four different additives on the pour point temperature of a diesel fuel: ethanol, toluene, n-heptane, and xylene. The study found that even slight amounts of additives caused a high reduction in the pour point temperature of the fuel. Ethanol was the most effective additive, with a 20% ethanol-fuel mixture causing a 30° reduction in the fuel pour point temperature.
Another study examined the effects of industrial polymer additives and surfactants on the reduction of pour point temperature in light diesel, heavy diesel, and fuel oil. The study found that copolymer ethylene-vinyl acetate at a concentration of 500 ppm reduced the pour point temperature by 12°C for diesel, and at a concentration of 300 ppm, it reduced the pour point temperature by 9°C for fuel oil.
Polymeric additives with methacrylate functional comonomers have also been synthesized and studied for their influence on the low-temperature properties of diesel fuel. These additives were found to have a great effect on the crystallization behavior of paraffins in diesel fuel, improving the low-temperature filterability. The additive containing 2-(diethylamino)ethyl methacrylate (DEAEMA) in its structure showed the most significant improvement, increasing the pour point value by 27.
Overall, the use of additives is an effective way to reduce the pour point temperature of diesel fuel, which can be crucial for its transport and recovery. However, finding materials that can decrease the pour point while being economically acceptable and environmentally well-optimized remains a challenge.
Treating Wood with Diesel: Is It Effective?
You may want to see also
Explore related products
Handling and storage
The pour point of diesel fuel is the lowest temperature at which it remains pourable before solidification. This property is crucial for determining the usability of diesel fuel in cold temperatures. Knowledge of the pour point is essential for ensuring proper handling and storage.
When handling and storing diesel fuel, it is imperative to use approved containers, cabinets, and other handling equipment to minimise the risk of fire and protect personnel and assets. Diesel fuel is considered a Class II combustible liquid by the National Fire Protection Agency (NFPA) due to its flashpoint between 100-140°F (38-60°C). As such, it must be stored and handled with caution to prevent potential ignition.
To ensure safe and compliant storage of diesel fuel, consider using Type II safety cans, which offer controlled pouring with two openings: one for filling and the other for dispensing. These safety cans are ideal for storing diesel fuels and provide better control during pouring. Additionally, for construction or transportation storage, DOT safety cans with roll bars are recommended to ensure safe closure and spout protection.
For larger-scale storage, flammable liquid safety cabinets are available. These cabinets are constructed with 18-gauge thick, welded steel to protect flammable and combustible materials from ignition sources. Self-latching doors provide maximum storage protection by securing the contents in the event of a fire. It is important to note that no more than 60 gallons of a flammable liquid should be stored in a single safety cabinet, and no more than three safety cabinets should be housed in any facility, according to OSHA regulations.
By understanding the pour point of diesel fuel and following the recommended handling and storage guidelines, you can ensure the optimal performance and safety of diesel fuel in various applications, especially in cold climates.
Best Places to Buy Diesel Fuel Exhaust
You may want to see also
Frequently asked questions
The pour point of diesel fuel is the lowest temperature at which the fuel will flow under specific conditions.
The pour point is important because it determines the usability and performance of the diesel fuel in colder environments. If the pour point is too high, the fuel may not flow properly, leading to potential engine damage.
The pour point of diesel fuel is determined through a test that involves gradually cooling a sample of the fuel in a controlled manner and checking for flow at intervals. The lowest temperature at which the fuel flows is recorded as the pour point.
The pour point of diesel fuel can be influenced by factors such as viscosity, thermal history, and the use of additives. For example, ethanol can effectively lower the pour point temperature.
The pour point of diesel fuel can vary depending on its composition, but it typically ranges from −57 to 51 °C (−71 to 124 °F).
