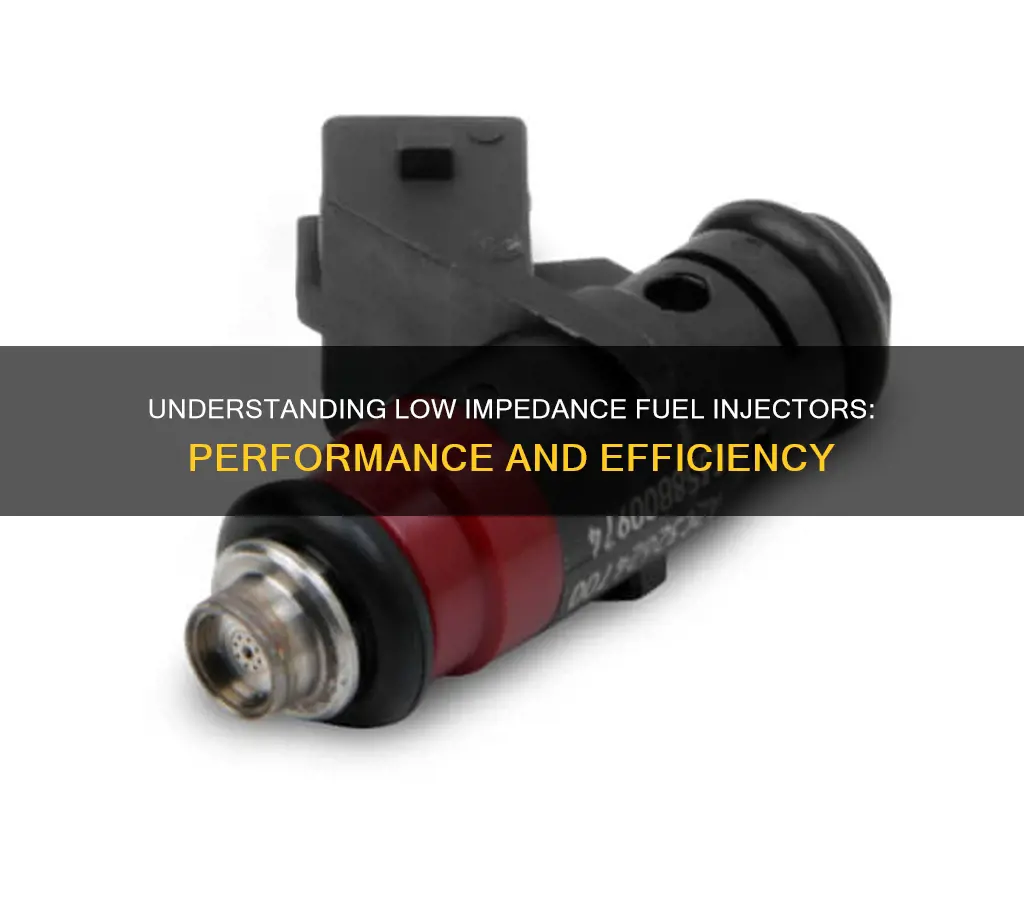

Low-impedance fuel injectors are a type of injector with a resistance of around 2.5 to 3 ohms. They are called peak-and-hold injectors because they receive a powerful electrical signal of around 56 amps to open, which then drops to 23 amps to keep the injector open. This process results in faster opening and closing times, making them ideal for high-performance applications that require a large amount of fuel. However, they run hotter than high-impedance injectors and are more complex and expensive.
| Characteristics | Values |
|---|---|
| Impedance | A measure of opposition to the flow of an electrical current |
| Resistance | 2-4.5 ohms |
| Application | High-performance applications where a large amount of fuel is needed |
| Injector coil | Low impedance |
| Current | Higher current |
| Temperature | Higher temperature |
| Cost | More expensive |
| Complexity | More complex |
| Driver circuitry | Peak-Hold type of circuit |
| Coil resistance | Lower |
| Internal pressure | Higher |
| Opening and closing | Faster |
| Tuning | Easier |
| Reliability | Lower |
Explore related products
What You'll Learn
- Low impedance injectors have a resistance of 2-4.5 ohms
- They are more responsive, opening and closing faster than high-impedance injectors
- They are more expensive and complex than high-impedance injectors
- They are better for high-performance applications where a large amount of fuel is needed
- They are more commonly found in race engines
Low impedance injectors have a resistance of 2-4.5 ohms
Low impedance fuel injectors, also known as peak-and-hold injectors, have a resistance of 2-4.5 ohms. They receive a more powerful electrical signal, which can be as high as 56 amps, to open quickly. Once open, the signal drops to around 23 amps. This design allows for faster opening and closing, which makes for easier tuning of the injector, especially if it is large.
Low impedance injectors are better suited for high-performance applications where a large amount of fuel is needed. They are commonly used in race engines or any application where higher fuel demands are required for performance. They were also more common in the 1980s and 1990s, predominantly in turbocharged cars of those eras.
The driver circuitry used with low impedance injectors is a Peak-Hold type of circuit, which is more complex and expensive than the saturated driver circuits used in high-impedance injectors. This complexity and cost make low impedance injectors less common today, as high-impedance injectors have become more popular and the gap between the two types has narrowed.
It is important to note that using the wrong type of fuel injector can lead to performance issues and problems with a vehicle's ECU and other engine management electronics. Therefore, it is crucial to select injectors that match the impedance category of the OEM injectors to avoid damaging the vehicle's ECU.
Stabil Fuel Injector Cleaning: Does It Work?
You may want to see also
Explore related products
They are more responsive, opening and closing faster than high-impedance injectors
Low-impedance fuel injectors are more responsive than high-impedance injectors, opening and closing faster. This is due to their two-step process, which involves a high initial current to open the injector, followed by a lower current to keep it open. This lower secondary current allows the injector to close more quickly, as it takes less time for the weaker electrical field to collapse.
The responsiveness of low-impedance injectors is also influenced by their coil resistance, which is lower than that of high-impedance injectors. This lower resistance allows for increased internal spring pressure, enabling the injector to be shut off quickly.
The faster opening and closing times of low-impedance injectors make them well-suited for high-performance applications that require larger fuel injectors. They are commonly found in turbocharged cars and some aftermarket and race engines.
However, it is important to note that low-impedance injectors run hotter than their high-impedance counterparts. This is because they receive a more powerful electrical signal, typically around 56 amps, to initiate the injection process. As a result, they may require additional components, such as resistors or drivers, to manage the heat generated, especially when used with an ECU designed for high-impedance injectors.
Fuel Injector Replacement: Costing You a Fortune?
You may want to see also
Explore related products
They are more expensive and complex than high-impedance injectors
Low-impedance fuel injectors are more expensive and complex than high-impedance injectors. This is because low-impedance injectors have different mechanics. They have a coil resistance of 4 ohms or lower, while high-impedance injectors have a coil resistance ranging from 8 to 16 ohms.
Low-impedance injectors, also known as peak-and-hold injectors, receive a more powerful electrical signal, which makes them more responsive, allowing them to open and close faster than high-impedance injectors. This responsiveness is due to the two-step nature of the peak-and-hold signal, which involves a high initial current to open the injector and a low secondary current to keep it open. However, this higher power also means that low-impedance injectors run hotter.
The cost and complexity of low-impedance injectors are further exacerbated by the need for a compatible ECU and ignition system that can handle the increased electrical load and additional heat generated. This requirement adds to the overall expense and complexity of the system.
In contrast, high-impedance injectors, also known as saturated injectors, use a simpler saturated signal to operate. They send a single-intensity signal to the injector, causing the valve to open and remain open until the signal ends. This simpler circuitry is more cost-effective and widely used, contributing to the higher cost and complexity of low-impedance alternatives.
While low-impedance injectors were more common in the 1980s and 1990s, the demand for high-impedance injectors has increased significantly in recent years due to their reliability, longevity, and improved performance. As a result, the benefits of switching to low-impedance injectors are now considered minimal and may not justify the higher cost and complexity for most applications.
Fuel Injector Failure: Can They All Go Bad Simultaneously?
You may want to see also
Explore related products
They are better for high-performance applications where a large amount of fuel is needed
Low-impedance fuel injectors are better suited for high-performance applications where a large amount of fuel is required. This is because they can deliver more fuel more reliably than comparable high-impedance injectors.
Low-impedance injectors, also called peak-and-hold injectors, receive a more powerful electrical signal, typically around 56 amps, to open. They have a resistance of around 2.5 to 3 ohms. Once open, the signal drops to 23 amps. This design allows them to open and close more quickly but also causes them to run hotter. The faster opening and closing times make tuning large-sized injectors easier. The lower coil resistance in a low-impedance injector increases the internal spring pressure, allowing the injector to be shut off quickly.
Low-impedance injectors were more common in the 1980s and 1990s, especially in turbocharged cars of that era. While they are less common today, they are still used in some aftermarket and race engines where higher fuel demands are required for performance.
It is important to note that using the wrong type of fuel injector can lead to performance issues and problems with a vehicle's ECU and other engine management electronics. Therefore, when considering low-impedance injectors, it is crucial to ensure that the ECU and ignition system can handle the electrical load and the additional heat generated.
Fuel Injector Misfires: Causes and Effects Explained
You may want to see also
Explore related products
They are more commonly found in race engines
Low impedance fuel injectors are those with a resistance of 2-4.5 ohms. They are more commonly found in race engines because they can deliver fuel more quickly and are better for high-performance applications where a large amount of fuel is needed. They are also known as peak-and-hold injectors because they use a two-step process: a high initial current is used to open the injector, and then a low secondary current keeps it open. This means that low impedance injectors open and close more quickly than high-impedance injectors.
Low impedance injectors are more responsive and can deliver more fuel than high-impedance injectors. They are also compatible with any ECU currently on the market. However, they are more expensive and complex than high-impedance injectors, and they run hotter. They were more common in the 1980s and 1990s, particularly in turbocharged cars of that era.
While low-impedance injectors are better for high-performance applications, high-impedance injectors are better for more moderate applications where smaller amounts of fuel are needed. They are also more reliable and have improved longevity because they run cooler. Most OEM engines use high-impedance injectors because of these benefits.
It's important to note that using the wrong type of fuel injector can lead to performance issues and cause problems with a vehicle's ECU and other electronics. Therefore, it's crucial to select the correct type of injector for your specific engine and to ensure that your ECU and ignition system can handle the electrical load and additional heat generated by low-impedance injectors.
Fuel Injector O-Rings: What's Included in the Package?
You may want to see also
Frequently asked questions
A low impedance fuel injector has a resistance of around 2.5 to 4.5 ohms. It receives a powerful electrical signal, usually around 56 amps, to open. Once open, the signal drops to 23 amps.
Low impedance injectors, also called peak-and-hold injectors, have a two-step process. A high initial current is used to open the injector, and a low secondary current is used to keep it open. This allows the injector to close more quickly.
Low impedance fuel injectors are more responsive and open and close quicker than high-impedance fuel injectors. They are ideal for high-performance applications where a large amount of fuel is needed.
Low impedance fuel injectors run hotter than high-impedance fuel injectors. They are also more complex and expensive.
