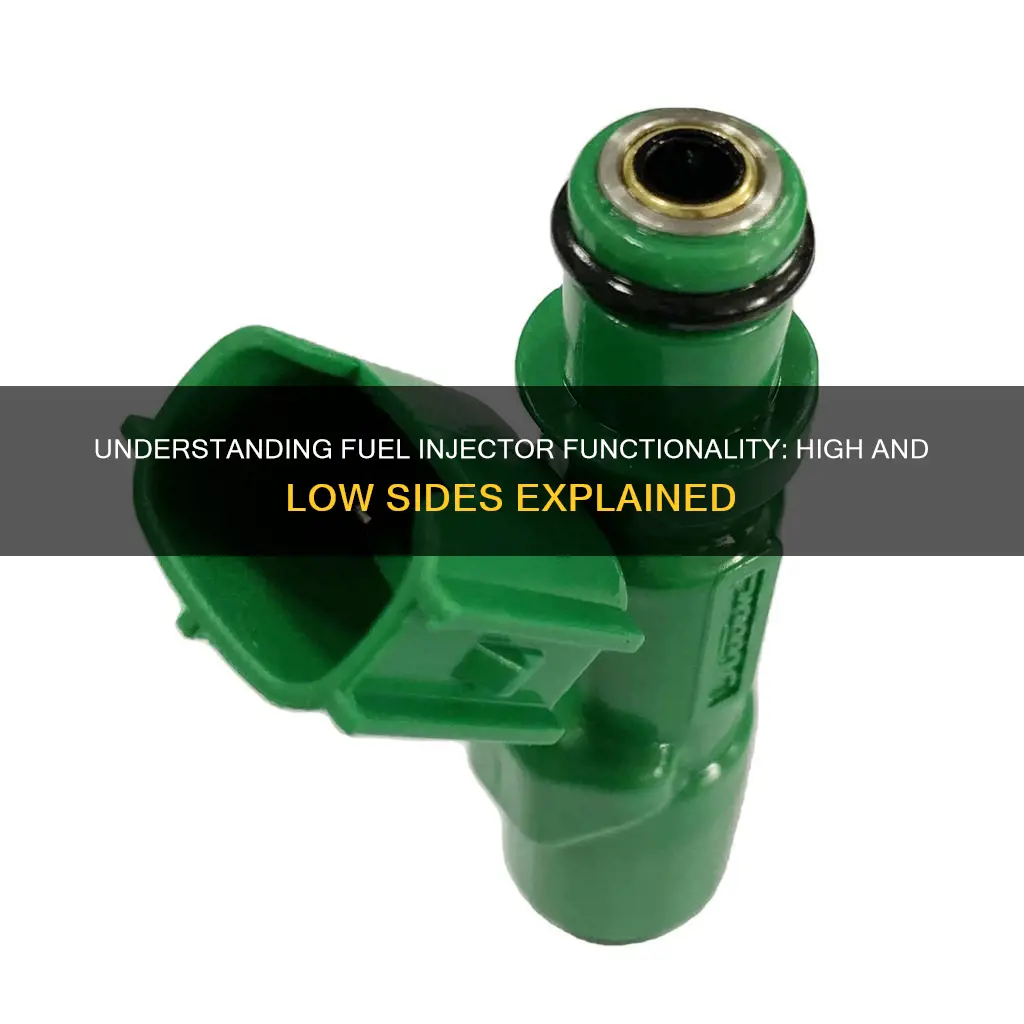

Fuel injectors are devices that deliver fuel to the combustion chambers of an engine. They are controlled by an electric current, which can be supplied in two ways: from the high side or the low side. The high side of a fuel injector is when the current is supplied from the power supply to the injector, and the low side is when the current is supplied from the ground to the injector. The high side and low side of a fuel injector refer to the electric current used to deliver fuel to the combustion chamber. The injector's impedance, or resistance, determines the amount of current needed to open and close the injector. Low-impedance injectors require a more powerful electrical signal to operate, while high-impedance injectors use a lower-amp current.
Explore related products
What You'll Learn
- Low-impedance injectors are used for high-performance applications
- High-impedance injectors are better for moderate applications
- Low-impedance injectors are also called peak-and-hold injectors
- High-impedance injectors are also called saturated fuel injectors
- Low-impedance injectors are more commonly found in race engines
Low-impedance injectors are used for high-performance applications
Low-impedance injectors, also known as peak-and-hold drivers, involve high-pressure fuel pressure and a large injector, allowing more current to flow across the injector with utmost consistency. The circuit driver can regulate the current from 4-10 amps to open the injector. Once the injector is open, the current can decrease to 0.75 amps. This type of design closes and opens quickly, but it gets hotter in a short time.
Low-impedance injectors are more expensive and complex than the widely used saturated driver circuit. They are also more responsive, opening and closing quicker than high-impedance fuel injectors. They have a coil resistance of 4 ohms or lower.
Low-impedance injectors were more common in the 1980s and 1990s, predominantly used on turbocharged cars of those eras. They are still used today in some aftermarket and race engines.
Removing Fuel Injectors from a 2003 Impala: A Step-by-Step Guide
You may want to see also
Explore related products
High-impedance injectors are better for moderate applications
High-impedance injectors, also called saturated fuel injectors, are more suitable for moderate applications. They receive a low-amp current signal, usually 11-12 amps, which keeps the injector temperature lower, making it highly reliable. This is why the high-impedance design is the most common injector style for OEM applications.
In contrast, low-impedance injectors, also known as peak-and-hold injectors, receive a more powerful electrical signal, typically around 56 amps, to open. This design opens and closes more quickly but runs hotter. They are better suited for high-performance applications requiring a large amount of fuel.
High-impedance injectors are widely used in street applications and are highly cost-effective. They are also in higher demand than low-impedance injectors, with their demand increasing tenfold in recent years. The body style of the injector is a direct indicator of the connector type it uses, and these connectors are mostly OEM-specific.
When choosing an injector, it is important to consider the size and flow rate. Extremely small injectors, for example, can trigger a lean engine condition. The injector's impedance measures the degree of ease with which a circuit processes the current when a direct voltage runs across it.
To summarise, high-impedance injectors are better for moderate applications due to their reliability, cost-effectiveness, and wide usage in street applications.
