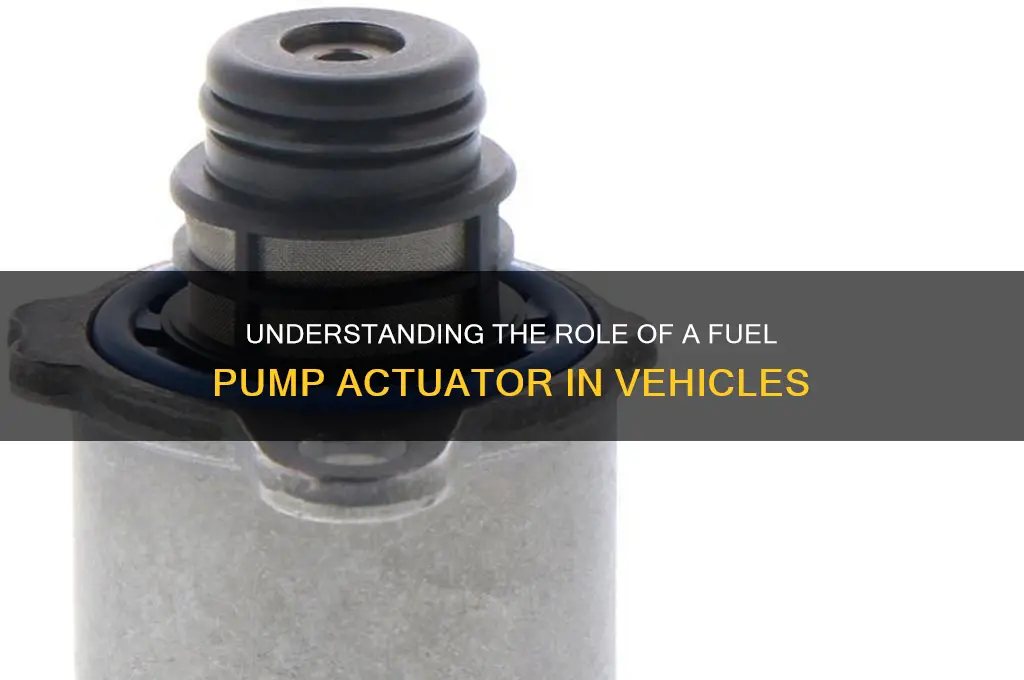

A fuel pump actuator is a critical component in modern fuel injection systems, responsible for regulating the pressure and flow of fuel from the tank to the engine. Typically integrated into the fuel pump assembly, it operates in conjunction with the engine control unit (ECU) to ensure precise fuel delivery based on engine demand. The actuator adjusts the fuel pressure by controlling the movement of a diaphragm or piston within the pump, optimizing combustion efficiency, reducing emissions, and enhancing overall engine performance. Found in both gasoline and diesel vehicles, the fuel pump actuator plays a vital role in maintaining the correct fuel-to-air ratio, making it essential for the smooth operation of internal combustion engines.
| Characteristics | Values |
|---|---|
| Definition | A fuel pump actuator is a component in modern diesel engines that controls the high-pressure fuel pump, regulating fuel injection pressure and timing for optimal engine performance. |
| Function | Adjusts the fuel pressure supplied to the injectors based on engine load, speed, and other parameters. |
| Location | Typically integrated into the high-pressure fuel pump or mounted externally, depending on the engine design. |
| Control Mechanism | Operated by an electronic control unit (ECU) via a solenoid or piezoelectric actuator. |
| Key Components | Solenoid/piezoelectric element, plunger, spring, and sensor feedback system. |
| Power Source | Electrical (12V or 24V DC) supplied by the vehicle's battery and controlled by the ECU. |
| Response Time | Extremely fast (milliseconds) to ensure precise fuel delivery under varying conditions. |
| Compatibility | Primarily used in common rail diesel engines; not common in gasoline engines. |
| Failure Symptoms | Poor engine performance, hard starting, misfires, increased emissions, or illuminated check engine light. |
| Maintenance | Requires periodic inspection; replacement is necessary if faulty, as it cannot be repaired. |
| Cost | Varies by vehicle make/model, typically ranging from $100 to $500 (USD) for the part alone. |
| Environmental Impact | Improves fuel efficiency and reduces emissions by optimizing fuel injection. |
| Advancements | Modern actuators use piezoelectric technology for faster response and higher precision compared to older solenoid types. |
Explore related products
What You'll Learn
- Fuel Pump Actuator Function: Controls fuel delivery pressure to the engine for optimal combustion efficiency
- Types of Actuators: Mechanical, electric, or hydraulic actuators used in modern fuel systems
- Common Issues: Malfunctions like noise, leaks, or failure leading to poor engine performance
- Replacement Process: Steps to diagnose, remove, and install a new fuel pump actuator
- Maintenance Tips: Regular checks and preventive measures to ensure longevity and reliability
Fuel Pump Actuator Function: Controls fuel delivery pressure to the engine for optimal combustion efficiency
The fuel pump actuator is a critical component in modern fuel injection systems, tasked with a precise and vital role: regulating the fuel delivery pressure to the engine. This function is not merely about supplying fuel; it’s about delivering it at the exact pressure required for optimal combustion efficiency. In a typical gasoline direct injection (GDI) system, the actuator adjusts the fuel pressure between 200 to 2,000 psi, depending on engine load and speed. This dynamic control ensures that the fuel is atomized correctly, allowing for a more complete burn in the combustion chamber, which translates to better fuel economy and reduced emissions.
Consider the actuator as the conductor of an orchestra, where the fuel pressure is the tempo. Too high, and the engine knocks or wastes fuel; too low, and performance suffers. For instance, during cold starts, the actuator increases fuel pressure to compensate for the denser fuel, ensuring a smooth ignition. Conversely, under high-load conditions, such as acceleration, it maintains higher pressure to meet the engine’s increased demand. This adaptability is achieved through a combination of electronic signals from the engine control unit (ECU) and a solenoid valve that modulates the pressure in real time.
From a maintenance perspective, understanding the fuel pump actuator’s function is key to diagnosing issues. Symptoms like rough idling, poor acceleration, or increased fuel consumption can often be traced back to a malfunctioning actuator. For DIY enthusiasts, checking for error codes related to fuel pressure (e.g., P0087 or P0088) using an OBD-II scanner is a good starting point. However, replacing the actuator requires precision, as it often involves accessing the high-pressure fuel pump, which is typically located near the engine block. Always consult the vehicle’s manual for specific instructions and safety precautions.
Comparatively, older carbureted engines relied on mechanical fuel pumps with fixed pressure outputs, which lacked the sophistication of modern actuators. The evolution to electronically controlled actuators has enabled engines to meet stricter emissions standards and deliver better performance. For example, in hybrid vehicles, the actuator works in tandem with the battery and electric motor to optimize fuel usage during different driving modes. This integration highlights the actuator’s role not just as a component but as a cornerstone of modern engine efficiency.
In practical terms, drivers can indirectly support the actuator’s function by using high-quality fuel and maintaining clean fuel filters. Contaminants in low-grade fuel can clog the actuator’s solenoid valve, leading to erratic pressure control. Additionally, regular engine tune-ups ensure that the ECU provides accurate signals to the actuator, maintaining its precision. While the actuator operates behind the scenes, its impact on vehicle performance and longevity is undeniable, making it a component worth understanding and caring for.
Step-by-Step Guide to Accessing the Fuel Pump in Your S2000
You may want to see also
Explore related products
Types of Actuators: Mechanical, electric, or hydraulic actuators used in modern fuel systems
Modern fuel systems rely on actuators to control the precise delivery of fuel, ensuring optimal engine performance and efficiency. Among the various types, mechanical, electric, and hydraulic actuators each bring distinct advantages and challenges to the table. Mechanical actuators, often driven by engine components like the camshaft, offer simplicity and reliability. They directly convert rotational motion into linear movement, regulating fuel flow without external power sources. However, their dependency on engine speed limits their adaptability in advanced fuel injection systems. For instance, in carbureted engines, mechanical actuators are commonplace, but their use has declined with the rise of electronic fuel injection (EFI) systems.
Electric actuators, on the other hand, have become the cornerstone of modern EFI systems. Powered by the vehicle’s electrical system, they provide precise control over fuel delivery based on real-time data from sensors. This enables features like variable fuel pressure, crucial for turbocharging or direct injection setups. For example, in a high-performance engine, an electric actuator can adjust fuel pressure from 30 to 80 psi within milliseconds, optimizing combustion under varying load conditions. Despite their sophistication, electric actuators require robust wiring and are susceptible to failure in harsh environments, such as extreme temperatures or moisture.
Hydraulic actuators, though less common in passenger vehicles, find their niche in heavy-duty applications like diesel trucks and industrial machinery. These actuators use pressurized fluid to generate force, offering high power density and smooth operation. In a diesel common rail system, hydraulic actuators can maintain fuel pressures exceeding 25,000 psi, ensuring efficient atomization and combustion. However, they demand a dedicated hydraulic circuit, adding complexity and potential leak points. Maintenance is critical, as contaminated fluid can lead to premature wear or failure.
Choosing the right actuator type depends on the application’s requirements. For simplicity and cost-effectiveness, mechanical actuators remain viable in basic systems. Electric actuators excel in precision-driven environments, making them ideal for modern vehicles with stringent emissions and performance standards. Hydraulic actuators, while specialized, are unmatched in high-pressure, high-demand scenarios. Understanding these distinctions allows engineers and enthusiasts to tailor fuel systems for maximum efficiency and reliability. Practical tip: When upgrading a fuel system, consider the engine’s power output, fuel type, and operating conditions to select the most suitable actuator.
AC Delco MU 1090 Fuel Pump Compatibility with 2008 Silverado
You may want to see also
Explore related products
Common Issues: Malfunctions like noise, leaks, or failure leading to poor engine performance
A fuel pump actuator is a critical component in modern diesel engines, responsible for regulating fuel pressure and ensuring optimal engine performance. However, like any mechanical part, it is susceptible to malfunctions that can compromise its functionality. One of the most noticeable signs of a failing fuel pump actuator is unusual noise, often described as a whining or humming sound emanating from the fuel tank area. This noise typically occurs when the actuator’s internal components wear out or become misaligned, leading to increased friction and inefficiency. If left unaddressed, this noise can escalate, signaling a more severe issue that requires immediate attention.
Leaks are another common problem associated with fuel pump actuators, often stemming from damaged seals or cracks in the actuator housing. Even a minor leak can have significant consequences, as it not only results in fuel loss but also poses a fire hazard. For instance, a leaking actuator can cause fuel to accumulate in the engine bay, increasing the risk of ignition under high temperatures. Regular inspections are crucial to detect leaks early, especially in vehicles with high mileage or those operating in harsh conditions. Addressing leaks promptly by replacing seals or the entire actuator can prevent further damage and ensure safety.
Complete failure of the fuel pump actuator is perhaps the most critical issue, as it directly leads to poor engine performance or even a total breakdown. When the actuator fails, the engine may struggle to start, experience rough idling, or lose power during acceleration. This failure is often caused by electrical malfunctions, such as a faulty solenoid or wiring issues, or by mechanical wear over time. Diagnosing a failed actuator typically involves checking fuel pressure and using diagnostic tools to identify error codes. Replacement is usually the most effective solution, as repairing internal components is often impractical.
To mitigate these issues, vehicle owners should adhere to a proactive maintenance schedule. This includes periodic inspections of the fuel system, especially for signs of leaks or unusual noises. Additionally, using high-quality fuel and ensuring the fuel filter is clean can reduce the strain on the actuator. For diesel vehicles, it’s advisable to replace the fuel pump actuator every 100,000 to 150,000 miles, depending on driving conditions and manufacturer recommendations. By staying vigilant and addressing problems early, drivers can avoid the inconvenience and expense of major repairs while maintaining optimal engine performance.
Why Fuel Accumulates in Your Injector Pump: Causes and Solutions
You may want to see also
Explore related products
Replacement Process: Steps to diagnose, remove, and install a new fuel pump actuator
A fuel pump actuator is a critical component in modern diesel engines, regulating fuel pressure to ensure optimal combustion. When it fails, symptoms like engine misfires, reduced power, or difficulty starting may arise. Diagnosing and replacing a faulty actuator requires precision and adherence to safety protocols. Here’s a step-by-step guide to the replacement process, blending analytical insight with practical instruction.
Diagnosis begins with symptom analysis and testing. Start by connecting an OBD-II scanner to retrieve error codes; common codes like P0087 or P1250 often indicate fuel pressure issues. Next, perform a visual inspection of the fuel pump actuator for leaks, corrosion, or physical damage. Use a multimeter to test the actuator’s electrical connections for continuity and resistance, ensuring values align with manufacturer specifications (typically 3–5 ohms). If the actuator fails these tests, replacement is warranted. Always relieve fuel system pressure before proceeding, as pressurized fuel poses a fire hazard.
Removal involves careful disassembly and attention to detail. Begin by disconnecting the battery to prevent accidental ignition. Locate the fuel pump actuator, often mounted on the high-pressure fuel pump or fuel rail, depending on the engine design. Remove the fuel lines or connectors, using a wrench or specialized tool to avoid damaging fittings. Loosen the mounting bolts and carefully extract the actuator, noting its orientation for reference during installation. Clean the mounting area to ensure debris doesn’t contaminate the new component.
Installation requires precision and adherence to torque specifications. Position the new fuel pump actuator in the same orientation as the old one, securing it with the mounting bolts tightened to the manufacturer’s torque value (commonly 10–15 Nm). Reconnect the fuel lines and electrical connectors, ensuring a snug fit to prevent leaks. Reapply power to the system and use a pressure gauge to verify fuel pressure meets the engine’s requirements (typically 35–50 MPa for diesel systems). Start the engine and monitor for abnormal noises or leaks, confirming the actuator operates smoothly.
Post-installation testing ensures reliability and performance. Drive the vehicle under varying conditions to assess throttle response, fuel efficiency, and power delivery. Re-scan for error codes to confirm the issue is resolved. If symptoms persist, inspect related components like the fuel pressure sensor or high-pressure pump for additional faults. Properly disposing of the old actuator and documenting the replacement in the vehicle’s service record completes the process. With meticulous attention to detail, replacing a fuel pump actuator restores engine functionality and prevents further damage.
Choosing the Right Fuse for 2001 XLT Fuel Pump: A Guide
You may want to see also
Explore related products
Maintenance Tips: Regular checks and preventive measures to ensure longevity and reliability
A fuel pump actuator is a critical component in modern diesel engines, responsible for regulating fuel pressure and ensuring optimal engine performance. To maintain its functionality, regular checks and preventive measures are essential. Start by inspecting the actuator’s electrical connections every 10,000 miles or annually, whichever comes first. Loose or corroded connections can disrupt the actuator’s operation, leading to poor fuel efficiency or engine stalling. Use a multimeter to test voltage and resistance, ensuring they fall within the manufacturer’s specifications. Clean the terminals with a wire brush and apply dielectric grease to prevent future corrosion.
Preventive maintenance also involves monitoring the fuel system for contaminants. Water and debris in the fuel can damage the actuator’s internal components. Install a water separator filter in the fuel line and replace it every 15,000 miles. Additionally, use a fuel additive designed to prevent microbial growth, especially if the vehicle is frequently exposed to moisture. For diesel engines, a biocide additive every 6 months can inhibit bacterial growth that clogs filters and affects the actuator. Regularly draining the water separator and inspecting the fuel for discoloration are simple yet effective practices to extend the actuator’s lifespan.
Temperature fluctuations can stress the fuel pump actuator, particularly in extreme climates. In cold weather, ensure the fuel system is properly insulated to prevent fuel gelling, which can strain the actuator. Use a winter-grade diesel fuel or add an anti-gel additive during colder months. Conversely, in hot climates, check the actuator’s cooling system, including the heat shield and surrounding components, to prevent overheating. A thermal imaging scan every 2 years can identify hotspots before they cause damage. These measures not only protect the actuator but also enhance overall engine reliability.
Finally, software updates and calibration checks are often overlooked but crucial for modern fuel pump actuators. Manufacturers frequently release firmware updates to improve performance and address known issues. Consult the vehicle’s service manual or contact the dealership to determine if an update is available. Calibration should be performed by a certified technician using specialized diagnostic tools, ideally during major service intervals (e.g., every 30,000 miles). Proper calibration ensures the actuator operates within precise parameters, reducing wear and tear while maximizing fuel efficiency. By combining these checks and measures, you can ensure the fuel pump actuator remains a reliable component of your vehicle’s fuel system.
Does My Cub Cadet Have a Fuel Pump? Find Out Here
You may want to see also
Frequently asked questions
A fuel pump actuator is a component in a vehicle's fuel system that controls the operation of the fuel pump, ensuring the correct amount of fuel is delivered to the engine at the right pressure.
The fuel pump actuator works by receiving signals from the engine control unit (ECU) and adjusting the fuel pump's speed or pressure accordingly, maintaining optimal fuel delivery for efficient combustion.
Common symptoms include poor engine performance, difficulty starting the vehicle, stalling, reduced fuel efficiency, and illumination of the check engine light due to irregular fuel pressure.
Yes, a faulty fuel pump actuator can lead to improper fuel delivery, causing engine misfires, overheating, or even catastrophic damage if left unaddressed, as the engine may run too lean or too rich.
