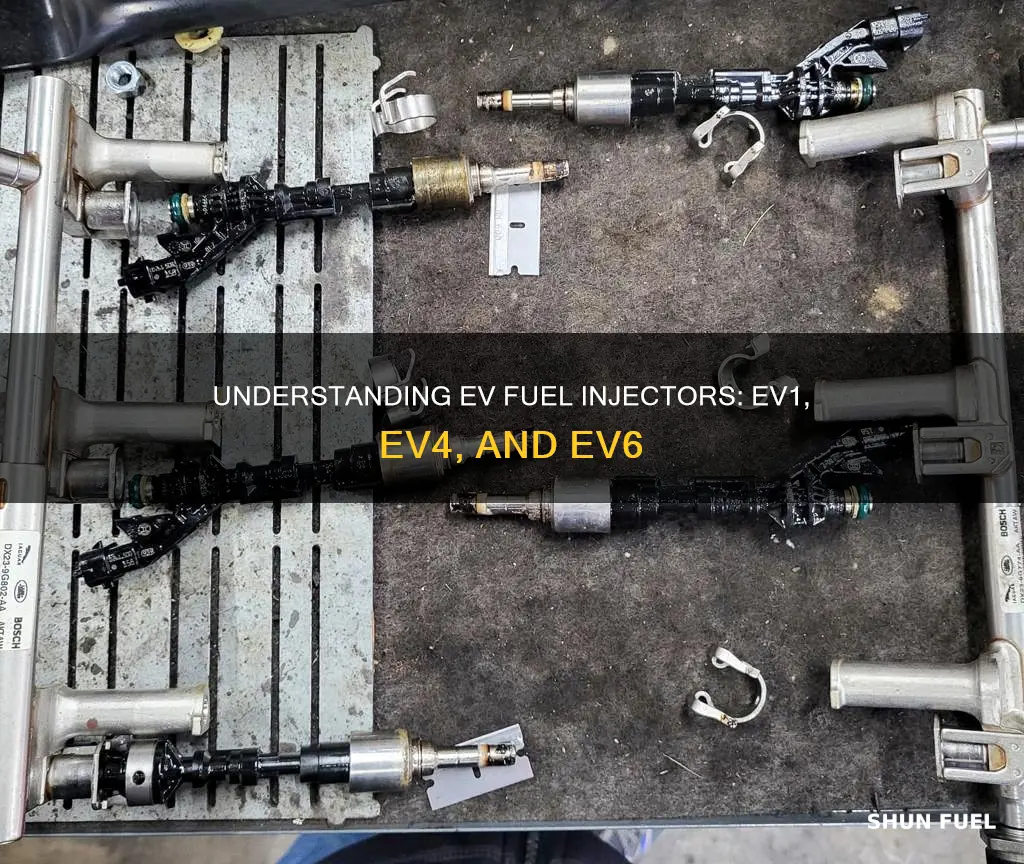

Fuel injectors are an essential component of a vehicle's engine, and there are several types available, including EV1, EV4, and EV6 fuel injectors. These designations refer to Bosch's body styles for fuel injectors, and they can have different connectors and flow rates. The EV1 injector is an older model typically found in classic Mustang models, while the EV6 injector is a newer, narrower design with a water-resistant USCAR plug. The choice of injector depends on the specific vehicle and its performance requirements, and it's important to consider factors such as connector compatibility and flow rate calculations when selecting or upgrading fuel injectors.
| Characteristics | Values |
|---|---|
| EV1 Fuel Injector | "Fat" body-style fuel injectors, usually found on classic Mustang models |
| EV1 Connector Type | Jetronic/Minitimer |
| EV6 Fuel Injector | Replaced EV1 fuel injectors, nearly identical in height but with a narrower body |
| EV6 Connector Type | USCAR |
| EV14 Fuel Injector | Third body style, shorter than EV6 and EV1 fuel injectors with an ultra-slim body |
| EV14 Connector Type | USCAR, Jetronic/Minitimer |
| Flow Rate | Varies from 19 lb/hr to 80 lb/hr and more |
| Pulse Width | EV6 has a better pulse width than EV1 |
Explore related products
What You'll Learn
- EV1, EV6, and EV14 are Bosch designations for fuel injector body styles
- EV1 is the original Bosch injector, now only found in older vehicles
- EV6 fuel injectors replaced EV1 injectors, with a narrower body and better spray pattern
- The two most common connector styles are Jetronic/Minitimer (EV1) and USCAR (EV6)
- When shopping for fuel injectors, check the connector type is compatible with your vehicle?
EV1, EV6, and EV14 are Bosch designations for fuel injector body styles
EV1, EV6, and EV14 are Bosch designations for different fuel injector body styles. These fuel injectors can have different connectors and flow rates. The EV1 injector is the original Bosch fuel injector, typically found in older vehicles or retrofits. They are often referred to as "fat" body-style injectors and are usually equipped with Minitimer or Jetronic connectors. The EV6 injector is the next evolution of fuel injectors, replacing the EV1. While it has a similar height to the EV1, the EV6 injector has a narrower and sleeker body. It is commonly used in modern gasoline and traditional diesel engines and comes with a water-resistant USCAR plug. The USCAR plug-equipped fuel injectors have a length of 34mm.
The EV14 injector is the latest generation of fuel injectors and is the most advanced Bosch injector available on the market. It is shorter and slimmer than both the EV6 and EV1 injectors. Despite being the most widely used and manufactured, the EV14 injector is rarely referred to directly, and people often refer to the EV1 and EV6 injectors based on their plug type. However, it is important to note that these body styles are not exclusively tied to a specific connector type.
The two most common connector styles for fuel injectors are Jetronic/Minitimer (EV1) and USCAR (EV6). The connector type is determined by the housing shape and the prongs used for connection. Jetronic/Minitimer connectors are typically found in older vehicles and some Audi, VW, and BMW models. On the other hand, USCAR connectors are the standard for newer EV6 and EV14 injectors, especially in US-manufactured vehicles.
When upgrading fuel injectors, it is crucial to consider the vehicle's specific requirements and compatibility. While larger injectors may be tempting, they can sometimes lead to issues such as a rich fuel mixture or even catastrophic failure. It is recommended to consult with the manufacturer or a local mechanic to ensure the correct choice of fuel injectors and connectors for your vehicle.
Replacing Fuel Injectors: 2002 Mazda 626 ES Guide
You may want to see also
Explore related products
EV1 is the original Bosch injector, now only found in older vehicles
The evolution of fuel injectors has come a long way, with EV1, EV6, and E14 representing a shared and interconnected history. Fundamentally, EV1 is the original Bosch injector, now only found in older vehicles.
The "EV" in EV1 and EV6 represents the generation of engineering that these fuel injectors stem from. The EV1 injector is often referred to as the "fat" style fuel injector, commonly found in classic Mustang models and older vehicles from brands like Audi, VW, and BMW. The injector typically comes with Minitimer or Jetronic connectors, with the Jetronic trade name originally coined by Bosch for its monopoly in the automotive electronic fuel injection (EFI) market in the 1970s.
The EV1 injector has a distinct body style, featuring a wider and shorter design compared to the EV6 injector. The EV6 injector, which replaced the EV1 in the evolution of fuel injectors, has a narrower or "skinnier" body while maintaining a similar height. This design evolution led to improvements in fuel atomization and pulse width modulation, resulting in better fuel efficiency and performance.
While the EV1 injector is no longer in production, its legacy is still evident in the retrofitting of older vehicles. The length of the original EV1 injectors remains a defining characteristic, and any injector with a similar length can be classified as an EV1 injector. This classification is important when considering upgrades or modifications to enhance vehicle performance, especially when dealing with custom racing machines or increased horsepower requirements.
Testing Fuel Injectors in Jeep Cherokees: A Step-by-Step Guide
You may want to see also
Explore related products
EV6 fuel injectors replaced EV1 injectors, with a narrower body and better spray pattern
The evolution of fuel injectors has come a long way, with EV1, EV6, and EV14 representing a shared and interconnected history. The original Bosch fuel injector, EV1, has been replaced by EV6, which in turn has been replaced by the most advanced injector available on the market, the EV14.
The EV6 fuel injector is nearly identical in height to the EV1 injector, but its body is narrower or "skinnier". The EV6 injector also has a water-resistant USCAR plug, which is 34mm in length. The USCAR plug-equipped injectors are the standard way for these injectors to plug into an aftermarket ECU. The USCAR connector is square-shaped, while the Jetronic/Minitimer connector, which is used with the older EV1 injector, is slim and rectangular.
The EV6 injector has a better spray pattern than the EV1 injector, and its design makes it more accurate at lower pulse widths. The EV6 injector has six pintles, compared to the EV1's one or four, which makes for better fuel atomization. The minimum pulse width of the newer EV6 injector is nearly half that of the older EV1 injector, which can help with drivability when the fuel can be better controlled in low-load, low-rpm situations.
Ford Performance has made it easy to switch between injector types with plug-and-play-style fuel injector adapter kits.
Flushing Ford 460 Fuel Injectors: DIY Guide
You may want to see also
Explore related products
The two most common connector styles are Jetronic/Minitimer (EV1) and USCAR (EV6)
The two most common connector styles for fuel injectors are Jetronic/Minitimer (EV1) and USCAR (EV6). These connectors are named based on their housing shape and the type of prongs they use to connect. Jetronic connectors are typically found on older vehicles, as well as some Audi, VW, and BMW models. USCAR connectors, on the other hand, are the standard for modern fuel injectors, especially on vehicles manufactured in the US by companies like GM, Ford, and Chrysler.
Jetronic connectors are often associated with the original Bosch EV1 fuel injectors, which were known for their "fat" body style. These connectors are usually rectangular in shape. While EV1 fuel injectors are less common nowadays, they can still be found in retrofitted older vehicles, such as classic Mustangs.
USCAR connectors, on the other hand, are commonly found on newer fuel injectors like the EV6 and EV14. These connectors usually have a square shape with rounded edges. The EV6 fuel injector body is narrower than the EV1, and it offers improvements in pulse width and spray pattern, resulting in better fuel atomization.
It is worth noting that the terms "EV1" and "EV6" refer to Bosch's designated fuel injector body styles and are not solely indicative of the connector type. For example, newer EV1 fuel injectors may have USCAR connectors, and some vehicles with EV6 injectors may use the Jetronic connector. Therefore, it is important to visually identify the connector type and consult with the manufacturer or a local mechanic to ensure compatibility when shopping for fuel injectors.
Cleaning Fuel Injectors in a Mini Cooper: A Step-by-Step Guide
You may want to see also
Explore related products
When shopping for fuel injectors, check the connector type is compatible with your vehicle
When shopping for fuel injectors, it is important to ensure that the connector type is compatible with your vehicle. Fuel injectors have different connector styles, and the most common types are Jetronic/Minitimer (EV1) and USCAR (EV6). These connectors are named based on their housing shape and the type of prongs they use to connect. Jetronic connectors are often found on older vehicles, as well as some Audi, VW, and BMW models. USCAR connectors, on the other hand, are commonly used on newer vehicles, especially those manufactured in the US, such as GM, Ford, and Chrysler.
It is worth noting that the availability of connector styles may vary depending on the make, year, and model of your vehicle. Some online parts suppliers may have inaccurate information regarding the compatibility of fuel injectors with specific vehicles. Therefore, it is essential to visually identify your vehicle's fuel injector connector and compare it with the available options to ensure compatibility.
If you are unsure about the compatibility of a fuel injector connector, it is recommended to consult the manufacturer or seek advice from a local mechanic. Additionally, you can consider using adapter kits to use fuel injectors with different connector types. For example, Ford Performance offers adapter kits that allow you to use USCAR-style injectors on a vehicle with a Jetronic wiring harness or vice versa.
When upgrading your vehicle's fuel injectors, it is crucial to consider not only the connector type but also the flow rate and injector size. Upgrading to a larger injector may not always be the best option, as it could lead to issues such as a rich fuel mixture or a loss of power. Calculating the required fuel flow rate and injector size based on your vehicle's specifications will help ensure optimal performance and avoid potential problems.
Fuel Injectors in Mercedes C240: What You Need to Know
You may want to see also
Frequently asked questions
EV1, EV6, and EV14 are Bosch's designated fuel injector body styles. The original injector, EV1, is now only found in retrofitted older vehicles, like classic Mustangs. EV6 replaced EV1 and has a narrower body. The third style, EV14, is shorter than both EV1 and EV6 and has an ultra-slim body.
EV6 fuel injectors are newer and have a narrower body than EV1 injectors. They also have a water-resistant USCAR plug, while EV1 injectors usually have Minitimer or Jetronic connectors.
Yes, you can use an adapter kit to use EV6 injectors on a Mustang with EV1 injectors. Ford Performance sells the M-14464-A8 Fuel Injector Adapter Kit for this purpose.
EV6 injectors have a better spray pattern and are more accurate at lower pulse widths. They also have a better pulse width and tip design for better atomization.
