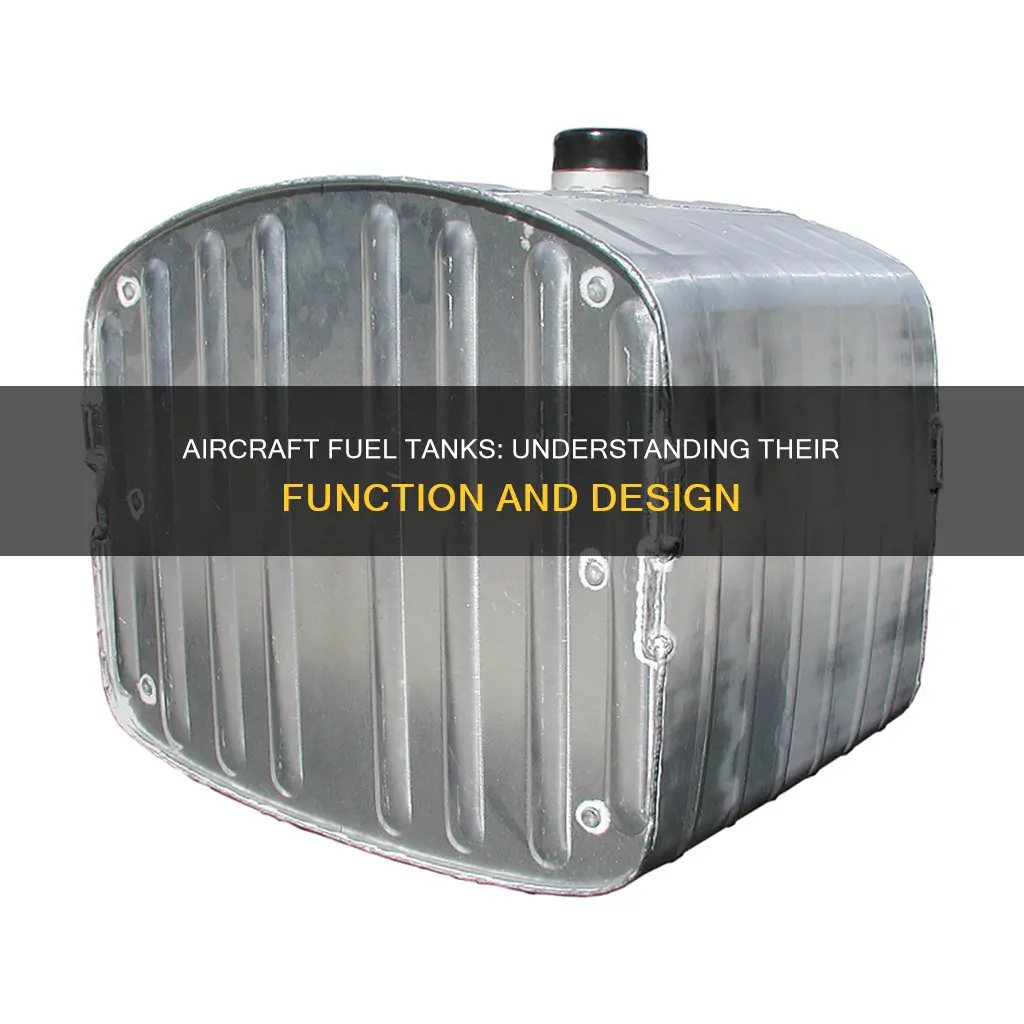

Aircraft fuel tanks are an essential component of an aircraft's fuel system, storing and delivering clean fuel to the engine at the correct pressure and flow rate. They are designed to withstand rigorous conditions during flight, such as vibration, aerodynamic forces, and even potential lightning strikes, without leaking or deforming. These tanks are typically made from materials like aluminum alloy or stainless steel and are constructed to prevent leaks through riveting and welding. There are several types of aircraft fuel tanks, including integral, rigid removable, and bladder tanks, each with its own advantages and suitability for different aircraft models. The placement of these tanks within the aircraft, such as in the wings or fuselage, plays a crucial role in maintaining the aircraft's structural integrity and balancing weight distribution.
| Characteristics | Values |
|---|---|
| Types | Integral, rigid removable, bladder, wet wing, drop, external |
| Construction | Integral tanks are constructed within sealed areas inside the aircraft structure. Rigid tanks are built separately and installed in the wings or fuselage. Bladder tanks are made of reinforced flexible materials like synthetic rubber. |
| Placement | Most large aircraft store fuel in the wings. Some aircraft also have tanks in the center body or fuselage. Fuel tanks are placed in the wings to reduce stress and wing bending loads, and to prevent weight from being off-center from the plane's center of gravity. |
| Maintenance | Fuel vapours must be removed before welding to avoid an explosion. Tanks must be permanently sealed to prevent external contamination. Rigid tanks undergo pressure testing to ensure they don't leak or collapse. |
| Safety | Fuel tank explosions have been implicated in aviation disasters. The risk of explosion can be reduced with a fuel tank inerting system or fire-fighting foam. |
| Refueling | During refueling, up to 800 kg of kerosene (almost 1000 liters) is transferred per minute. The quantity of fuel carried is calculated by an onboard computer as per the flight route. |
Explore related products
What You'll Learn
Aircraft fuel tank systems
The position, capacity, and configuration of fuel tanks are determined by an aircraft's specific requirements. Smaller, single-engine aircraft typically feature fuel tanks positioned above the wing, using a gravity feed system for fuel delivery to the engine. Some aircraft have tanks beneath the wing and employ pumps or fuel injection for fuel transport. These tanks can be standalone components or seamlessly integrated into the wing structure.
Integral fuel tanks are constructed within sealed wing regions and consist of non-corrosive aluminium frames. They are the lightest option and offer the most space per unit of weight. These tanks are typically positioned in the unused area inside the wings and require baffles to prevent fuel from splashing into the wings during aircraft manoeuvres. Bladder tanks are made of reinforced flexible materials, such as synthetic rubber, and do not require large cuts into aircraft structures for installation. The tank can be rolled up, inserted through a small opening, and then unfolded to its full size. Rigid fuel tanks are built separately from the aircraft and installed in the wings or fuselage.
During refuelling, up to 800 kilograms of kerosene, or almost 1,000 litres, are transferred into the tanks per minute. The quantity of fuel pumped into the tanks depends on the planned flight route, with the on-board computer calculating the required amount. Long-haul aircraft usually have an additional trim tank in the tail assembly to help stabilise the horizontal position during flight. As the weight of the wing tanks decreases, fuel can be pumped forward from the trim tank to compensate.
