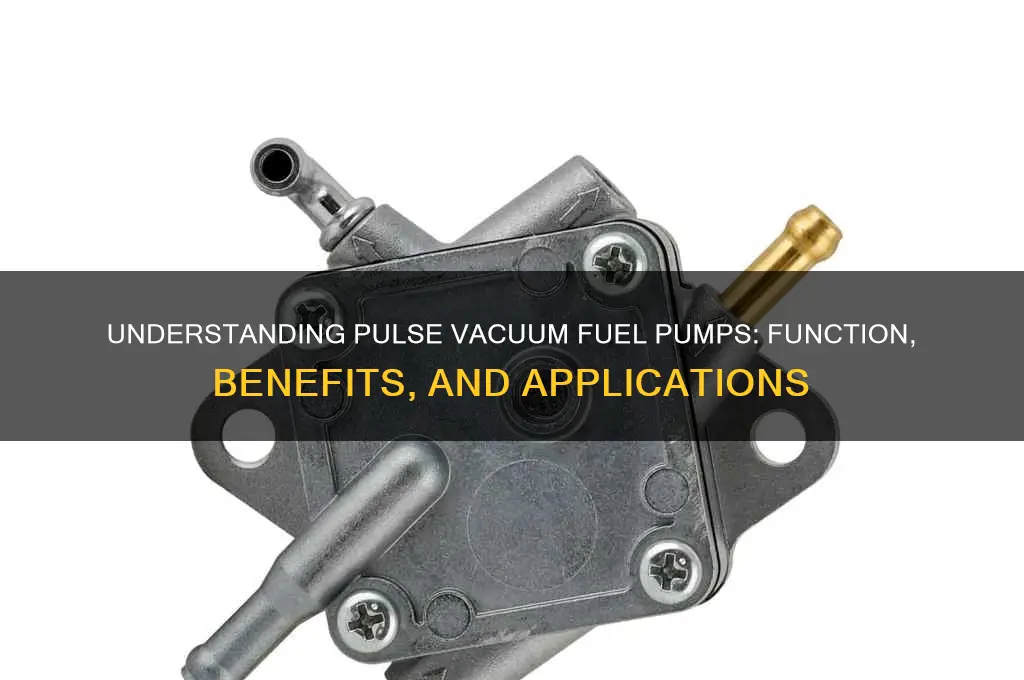

A pulse vacuum fuel pump is a specialized component used in certain internal combustion engines, particularly in older carbureted systems, to maintain consistent fuel delivery by creating a vacuum that draws fuel from the tank to the carburetor. Unlike electric fuel pumps, it operates mechanically, utilizing the engine's pulsating exhaust gases to generate the necessary vacuum, making it a reliable and self-sustaining solution in vehicles without electrical systems. This design ensures efficient fuel flow, especially in applications where simplicity and durability are prioritized, though it has largely been replaced by electric pumps in modern vehicles due to advancements in technology and emissions standards.
| Characteristics | Values |
|---|---|
| Definition | A pulse vacuum fuel pump is a type of mechanical fuel pump that utilizes engine vacuum pulses to create suction and draw fuel from the fuel tank to the carburetor or fuel injection system. |
| Operating Principle | Relies on the vacuum created during the intake stroke of the engine to generate a pressure differential, which pulls fuel through the pump. |
| Components | Typically consists of a diaphragm, valves, vacuum port, fuel inlet/outlet ports, and a housing. |
| Application | Commonly used in older carbureted engines, small engines (e.g., lawnmowers, generators), and some marine applications. |
| Advantages | Simple design, low cost, reliable, and does not require electrical power to operate. |
| Disadvantages | Dependent on engine vacuum, which can vary with engine load and RPM, leading to inconsistent fuel delivery under certain conditions. |
| Maintenance | Requires periodic inspection and replacement of diaphragms or valves to ensure proper operation. |
| Efficiency | Less efficient than electric fuel pumps, especially at high engine speeds or loads. |
| Pressure Output | Typically generates low to moderate fuel pressure, sufficient for carbureted systems but not for high-pressure fuel injection systems. |
| Compatibility | Best suited for low-pressure fuel systems and engines with stable vacuum levels. |
| Modern Usage | Largely replaced by electric fuel pumps in modern vehicles but still used in niche applications. |
Explore related products
What You'll Learn
- Working Principle: Converts pressure pulses from engine into vacuum for fuel system operation
- Components: Includes diaphragm, valves, and chamber for vacuum generation
- Applications: Commonly used in carbureted engines for fuel delivery efficiency
- Advantages: Reliable, low maintenance, and integrates with engine rhythm
- Troubleshooting: Check for leaks, diaphragm wear, or valve malfunctions if vacuum fails
Working Principle: Converts pressure pulses from engine into vacuum for fuel system operation
The pulse vacuum fuel pump is a marvel of automotive engineering, leveraging the engine's own operation to create a critical vacuum for fuel system functionality. At its core, this mechanism harnesses the rhythmic pressure pulses generated during the engine's combustion cycle. These pulses, often wasted in conventional systems, are redirected through a series of valves and chambers within the pump. As the engine fires, pressure spikes are captured, and through a clever arrangement of diaphragms or pistons, this pressure is inverted to create a vacuum. This vacuum is then utilized to draw fuel from the tank to the carburetor or fuel injection system, ensuring a steady and reliable fuel supply.
Consider the process step-by-step: as the intake stroke of the engine creates a low-pressure zone, the pump’s inlet valve opens, allowing atmospheric pressure to push a diaphragm outward. When the engine’s exhaust stroke generates a high-pressure pulse, the inlet valve closes, and the outlet valve opens, pulling the diaphragm inward and creating a vacuum. This vacuum is then transferred to the fuel system, where it draws fuel through the lines. The beauty of this design lies in its simplicity and efficiency—no additional power source is required, as the pump operates entirely off the engine’s natural cycles.
One practical example of this technology is found in older carbureted engines, where the pulse vacuum fuel pump is often mounted directly on the engine block or intake manifold. For instance, in a small-block V8 engine, the pump might be connected to a vacuum port on the intake manifold, receiving pressure pulses at a frequency of 60–90 times per second (depending on engine RPM). This ensures a consistent vacuum, even at idle speeds, where fuel demand is lower but still critical for smooth operation. Maintenance tips for such systems include regularly checking vacuum lines for cracks or leaks, as even small breaches can disrupt fuel flow.
Comparatively, modern fuel injection systems often rely on electric pumps, but pulse vacuum pumps remain relevant in applications where electrical power is limited or unreliable. For instance, in off-road vehicles or marine engines, the pulse vacuum pump’s self-sustaining design offers a robust alternative. Its reliance on mechanical energy also makes it less susceptible to electrical failures, a critical advantage in harsh environments. However, it’s important to note that pulse vacuum pumps are typically less efficient at high fuel demands, making them less suitable for high-performance engines.
In conclusion, the working principle of a pulse vacuum fuel pump exemplifies ingenuity in automotive design. By converting the engine’s pressure pulses into a usable vacuum, it ensures fuel delivery without drawing additional power. Whether in classic carbureted engines or specialized applications, this mechanism remains a testament to the elegance of mechanical solutions. For enthusiasts or mechanics, understanding this principle not only aids in troubleshooting but also highlights the interconnectedness of engine systems. Regular inspection and awareness of its operation can prevent common issues, ensuring the pump continues to perform its vital role efficiently.
