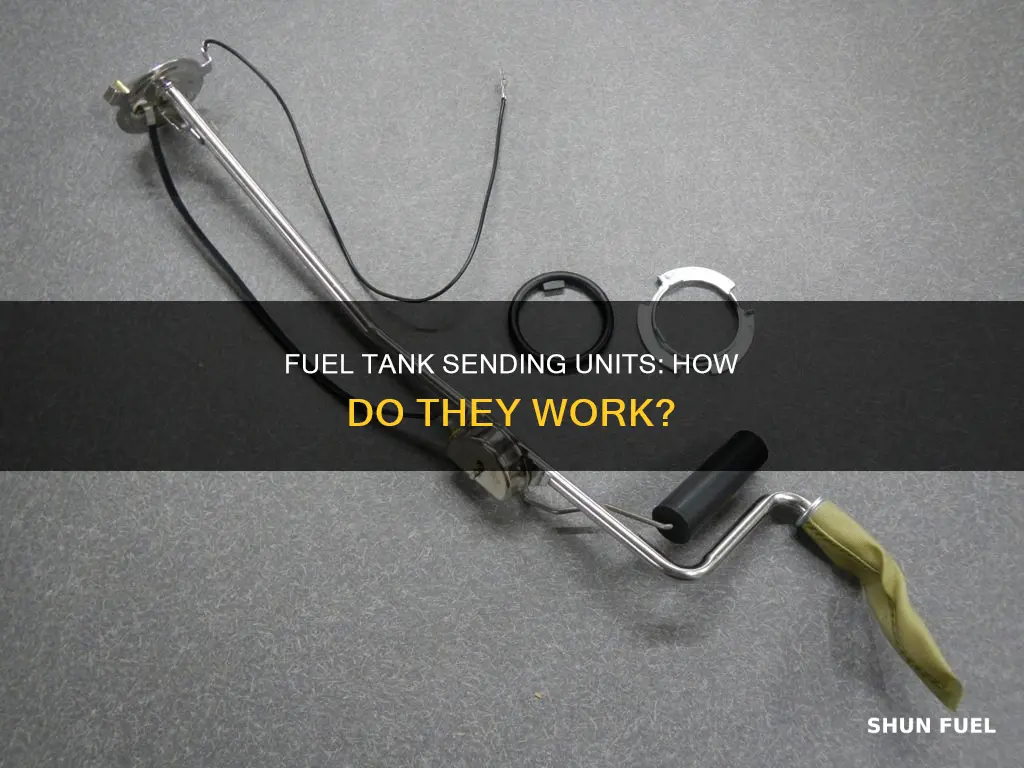

A fuel tank sending unit, also known as a fuel gauge sender or gas gauge sensor, is an essential component of an aircraft or vehicle's fuel system. Its primary function is to measure the level of fuel in the tank and transmit this information to the fuel gauge on the dashboard, allowing the driver or pilot to keep track of the fuel level and avoid running out unexpectedly. The unit typically consists of a float, a metal rod or arm, and a variable resistor. As the fuel level changes, the float moves accordingly, causing the arm to pivot and the variable resistor to transmit different voltage signals to the fuel gauge. While fuel sending units are designed to be robust and resistant to corrosion, pressure, and wear, they can still malfunction, leading to inaccurate fuel gauge readings. Regular maintenance and inspection are crucial to ensure the unit's proper functioning.
| Characteristics | Values |
|---|---|
| Function | Measures fuel level and relays information to the fuel gauge |
| Other Names | Fuel sender probe system, fuel level sensor, fuel gauge sender, gas gauge sensor |
| Composition | Float, arm, variable resistor |
| Function of Components | Float: Buoyant object that floats inside the gas tank. Arm: Metal rod attached to the float that pivots based on the float's position. Variable Resistor: The arm connects to a variable resistor that moves up and down with the fuel level. |
| Function of Variable Resistor | Translates resistance into different voltage signals sent to the fuel gauge. Low resistance when the fuel level is high results in a high voltage signal to the fuel gauge. |
| Technologies Used | Resistive, capacitive, ultrasonic, radar, LiDAR, reed switch, magneto-resistive systems |
| Calibration | Setting the range of values corresponding to various fuel levels to ensure accurate fuel gauge readings |
| Materials Used | Stainless steel, brass, high-quality polymers |
| Common Issues | Inaccurate fuel gauge readings, stuck fuel gauge needle, fluctuating readings, voltage issues |
Explore related products
What You'll Learn
- A fuel-sending unit measures fuel levels and relays this information to the fuel gauge
- The unit consists of a float, arm, and variable resistor
- Common signs of a failing unit include erratic or stuck fuel gauge needles
- Fuel sender systems need to be calibrated to ensure accurate readings
- Fuel-sending units need to be robust and resistant to corrosion, pressure, and wear
A fuel-sending unit measures fuel levels and relays this information to the fuel gauge
A fuel-sending unit is an essential component of a vehicle's fuel system. Its primary function is to measure the level of fuel in the tank and relay this information to the fuel gauge on the dashboard. This allows drivers to monitor their fuel levels and avoid running out of fuel unexpectedly. The fuel-sending unit is also known as a fuel gauge sender or a gas gauge sensor.
The design of a fuel-sending unit is relatively simple. It consists of three main components: a float, an arm, and a variable resistor. The float is a buoyant object that floats inside the fuel tank. The arm is a metal rod attached to the float, which pivots based on the float's position. The arm connects to the variable resistor, which moves up and down with the fuel level. As the fuel level in the tank changes, the float moves accordingly, and the variable resistor's resistance changes as the arm moves along its surface.
This change in resistance translates into different voltage signals sent to the fuel gauge. A low resistance when the fuel level is high results in a high voltage signal to the fuel gauge, and vice versa. In some cases, fuel-sending units may use other technologies, such as capacitance, resistance, ultrasonic, radar, LiDAR, reed switch, or magneto-resistive systems, to measure fuel levels.
It is important to regularly maintain and inspect the fuel-sending unit to ensure accurate readings. Inaccurate fuel gauge readings could be a sign of a failing unit. For example, the fuel gauge needle may get stuck or fluctuate wildly between readings. A malfunctioning fuel-sending unit can cause the engine to stall unexpectedly due to an insufficient fuel supply, so it is crucial to address any issues promptly.
Tractor-Trailer Fuel Tanks: How Large Are They?
You may want to see also
Explore related products
The unit consists of a float, arm, and variable resistor
A fuel-sending unit is a device that measures the fuel level in a vehicle's fuel tank and relays this information to the fuel gauge. The unit consists of a float, arm, and variable resistor, which work together to ensure accurate fuel level readings.
The float is a buoyant object that floats inside the fuel tank, sitting on the surface of the fuel. It is typically made of composite or foam and is connected to the arm. As the fuel level changes, the float moves up and down accordingly, pivoting the arm.
The arm, also known as a metal rod, is attached to the float and moves with it. It connects the float to the variable resistor, providing a crucial link in the system. The arm pivots based on the float's position, ensuring that the variable resistor receives the correct input.
The variable resistor is an electrical device that resists the flow of electricity. It is designed to adjust the amount of resistance voltage encounters. The arm connects to the variable resistor, and as the fuel level changes, the variable resistor moves up and down. This movement changes the resistance, resulting in different voltage signals sent to the fuel gauge. When the fuel level is high, the low resistance results in a high voltage signal to the fuel gauge, and vice versa when the fuel level is low.
The combination of the float, arm, and variable resistor ensures that the fuel-sending unit provides accurate fuel level readings. The movement of the float and arm directly influences the resistance of the variable resistor, allowing the system to convert the variable resistance into a voltage signal that corresponds to the fuel level.
Maintaining the fuel-sending unit is important to ensure accurate fuel level readings. Regularly refuelling before the tank is empty can prevent the float arm from sticking, and using high-quality fuel can avoid impurities that may clog the sending unit.
Cleaning Bulk Fuel Tanks: A Step-by-Step Guide
You may want to see also
Explore related products
Common signs of a failing unit include erratic or stuck fuel gauge needles
A fuel-sending unit is a device that measures the fuel level in a vehicle's fuel tank and communicates this information to the fuel gauge on the dashboard. It is also known as a fuel-level reading unit, fuel sender unit, or fuel level sensor. The unit usually consists of a float, an arm, and a variable resistor. The float sits inside the fuel tank and moves up and down according to the fuel level, with the arm pivoting based on the float's position. The arm is connected to the variable resistor, which moves up and down with the fuel level, translating the resistance into different voltage signals sent to the fuel gauge.
Other issues that may cause erratic or stuck fuel gauge needles include corroded or faulty wires, a defect in the wiring from the sending unit to the gauge, or a mechanical failure inside the instrument cluster. In some cases, the low fuel light may still work independently of the fuel gauge, but the vehicle will be left without an accurate fuel level indicator. While a failing fuel-sending unit will not affect engine performance, it can impact the overall drivability of the vehicle as the driver will not know when to refuel.
Breaking Free: Fuel Assembly and Tank Maintenance
You may want to see also
Explore related products
Fuel sender systems need to be calibrated to ensure accurate readings
Fuel sender systems need to be calibrated to ensure accurate fuel level readings. Calibration involves setting a range of values corresponding to various fuel levels to ensure that the fuel gauge accurately reflects the actual fuel level in the tank. Without calibration, the fuel gauge may show a full tank when it is empty or fluctuate wildly between readings.
Fuel-sending units play a crucial role in measuring and transmitting fuel level information to the fuel gauge. These units consist of a float, an arm, and a variable resistor. The float is a buoyant object that floats inside the fuel tank, and its position varies with the fuel level. The arm is a metal rod attached to the float, pivoting based on the float's position. The variable resistor is connected to the arm and moves up and down as the fuel level changes, translating the fuel level into voltage signals sent to the fuel gauge.
To calibrate a fuel sender system, it is essential to check the readings at both full and empty fuel levels. For example, when the tank is full, the float should be at its highest position, and the corresponding voltage signal should indicate a high fuel level. Similarly, when the tank is empty, the float will be at its lowest position, and the voltage signal should reflect an empty tank. By adjusting the fuel sender arm or the variable resistor, the system can be calibrated to ensure accurate readings.
In some cases, fixed resistors with specific values, such as 20 Ohms and 222 Ohms, can be connected to the system to calibrate the fuel gauge. This process involves attaching one side of the resistor to the gauge tab and grounding the other end to the center bolt. The calibration is then adjusted until the gauge needle aligns with the full or empty mark. Additionally, it is recommended to have a small amount of fuel, such as 3 gallons, remaining in the tank when the gauge reads empty as a margin of safety.
Overall, proper calibration of fuel sender systems is essential to ensure accurate fuel level readings. By setting the correct range of values and adjusting the components, drivers can trust their fuel gauges and make informed decisions about refueling.
Cessna Amphibian's Fuel Tank Capacity: Gallons Revealed
You may want to see also
Explore related products
Fuel-sending units need to be robust and resistant to corrosion, pressure, and wear
Fuel-sending units are devices that measure the fuel level in a vehicle's fuel tank and relay this information to the fuel gauge. Given the environment in which they operate, fuel-sending units need to be robust and resistant to corrosion, pressure, and wear.
The unit consists of three main components: a float, an arm, and a variable resistor. The float is a buoyant object that floats inside the fuel tank, and the arm is a metal rod attached to the float that pivots based on the float's position. The arm connects to the variable resistor, which moves up and down with the fuel level, translating the resistance into different voltage signals sent to the fuel gauge.
Over time, the moving parts within a fuel-sending unit will wear out. Contaminated fuel, accident damage, electrical issues, driving on rough terrain, and using poor-quality fuel can all shorten its lifespan. Inaccurate fuel gauge readings, such as an erratic or stuck fuel gauge needle, are common signs of a failing unit.
To ensure the durability and longevity of fuel-sending units, they are often manufactured using materials that offer resistance to corrosion and wear. Stainless steel, for instance, is commonly used for components exposed to the harsh conditions inside a fuel tank due to its resistance to corrosion and durability. Brass is another suitable material for electrical connectors because of its excellent conductivity and corrosion resistance. Additionally, high-quality polymers are sometimes used in the construction of fuel-sending units, providing lightweight durability and resistance to fuel degradation.
By utilizing robust materials and careful design, fuel-sending units can withstand the challenging conditions they encounter, providing accurate and reliable fuel level measurements for vehicles.
Draining Your Range Rover's Fuel Tank: Step-by-Step Guide
You may want to see also
Frequently asked questions
A fuel tank sending unit, also known as a fuel gauge sender or a gas gauge sensor, is an essential component of a vehicle's fuel system. Its primary function is to measure the level of fuel in the tank and send this information to the fuel gauge on the dashboard.
A fuel tank sending unit consists of three main components: a float, an arm, and a variable resistor. The float is a buoyant object that floats inside the gas tank. The arm is a metal rod attached to the float, which pivots based on the float's position. The arm connects to the variable resistor, which moves up and down with the fuel level. As the float moves according to the fuel level, the resistance changes, translating into different voltage signals sent to the fuel gauge.
One of the most common signs of a malfunctioning fuel tank sending unit is an erratic or stuck fuel gauge needle. The needle may show a full tank when it's empty or fluctuate wildly between readings. Other signs include a dashboard warning light due to a voltage issue, and unexpected engine stalling due to insufficient fuel supply.
The best materials for manufacturing fuel tank sending units include stainless steel, brass, and high-quality polymers. Stainless steel provides resistance to corrosion and durability, while brass is an excellent conductor and is also corrosion-resistant. High-quality polymers are used for their special properties in certain parts of the fuel-sending unit.
