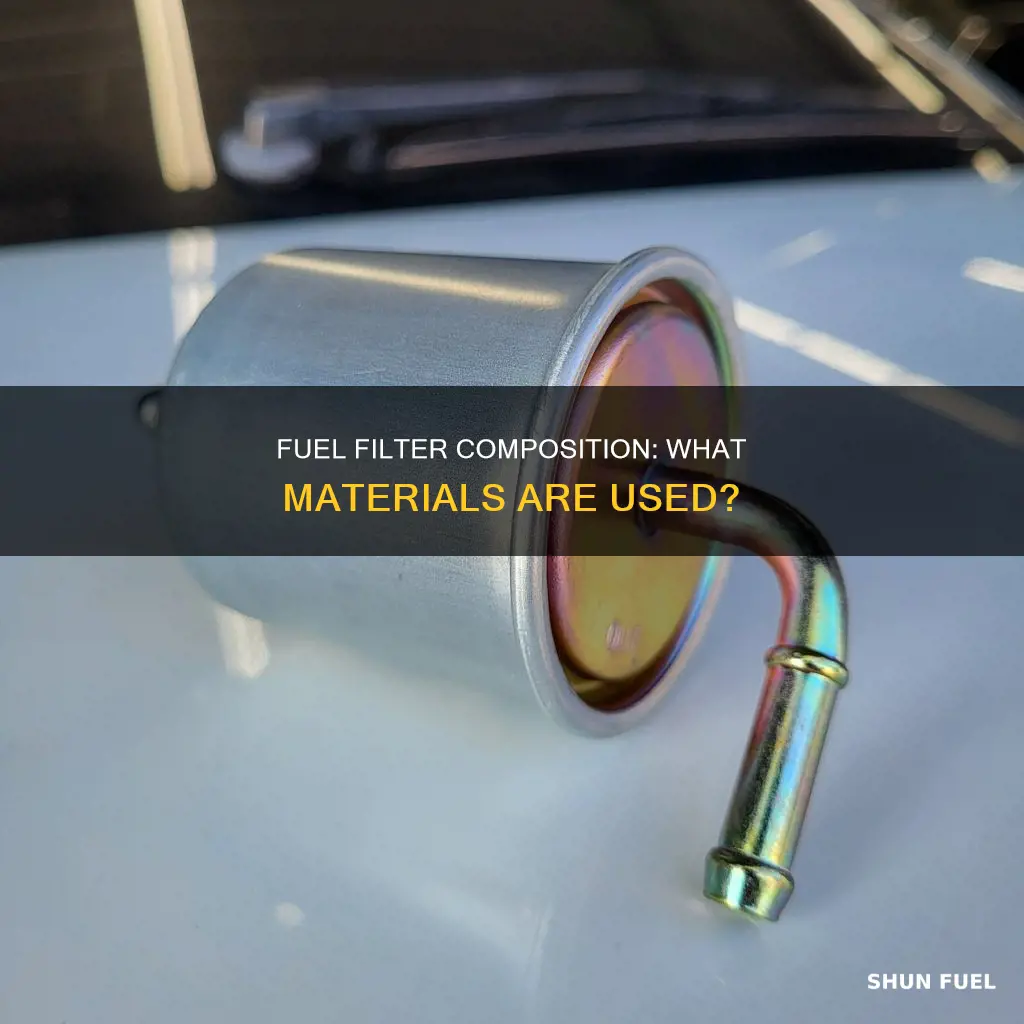

Fuel filters are an essential component of fuel systems, screening out foreign particles and liquids from the fuel to protect the engine from harmful debris. They are typically made into cartridges containing a filter paper, which needs to be maintained or replaced regularly. The primary fuel filter is designed to remove larger particulates and water from the fuel, while the secondary fuel filter deals with smaller particles.
Explore related products
Primary fuel filters
The primary filter helps clean the fuel before it goes into the fuel pump and is sent to the injectors. It operates at a lower pressure than the secondary filter, which is mounted directly onto the engine. The primary filter is responsible for removing larger particles, while the secondary filter takes care of smaller particles.
The primary fuel filter offers low restriction because it is mounted on the suction side of the fuel pump. It also protects the transfer pump from contamination and wear. Primary fuel filters typically have a nominal efficiency of 10–30 microns, although some sources state that they can be as low as 2 microns.
Replacing Napa Fuel Filter Silencers: A Step-by-Step Guide
You may want to see also
Explore related products
Secondary fuel filters
Most diesel engines have both a primary and a secondary fuel filter to ensure the fuel is clean before it enters the engine. The primary filter is responsible for removing larger particles and water from the fuel. It operates at a lower pressure than the secondary filter.
The secondary fuel filter is mounted directly onto the engine and receives fuel after it has passed through the engine's gear pump. It is responsible for finer filtration, using filter mediums with tighter micron ratings, typically 5 microns to 2 microns. These filters are critical as they ensure the fuel entering the injectors is as clean as possible. They also operate at much higher pressures than primary fuel filters.
There are two options for secondary fuel filters on the market: pre-filters and post-filters. Pre-filters are installed before the factory filter, while post-filters are installed after. Pre-filters capture more substantial contamination before it gets to the factory filter, while post-filters pick up smaller contaminants.
Fuel Filter Installation: Right Way Matters!
You may want to see also
Explore related products
Filter paper
The filtration efficiency of filter paper is influenced by factors such as the density level of the orifice and the size of the filter paper. For example, Leiman Filter Paper offers filter paper with 98% filtration efficiency for 4 µm particles and 99% filtration efficiency for 6 µm particles. The stiffness, permeability, and pressure resistance of the filter paper are also important considerations, as they impact the overall performance and durability of the filter.
In addition to its use in fuel filters, filter paper also has applications in air filters for heavy trucks and automobiles. The cured and un-cured varieties of filter paper can effectively remove impurities, reduce wear on engine components, and extend engine life. The flexibility and durability of high-grade wood pulp and resin materials contribute to the performance and longevity of filter paper in these applications.
Testing a Clogged Fuel Filter: DIY Checks
You may want to see also
Explore related products
Water collection
The water collection bowl, also known as the drain bowl, is a crucial component of fuel water separators. These bowls are typically made of clear plastic, aluminum, or a combination of both materials. Clear plastic bowls offer the advantage of being able to visually inspect the water level, as water collected in the bowl makes it easier to determine the amount of water that has been separated from the fuel. However, plastic bowls are not suitable for high-temperature engine compartments due to their sensitivity to heat. On the other hand, aluminum or steel bowls are more heat-resistant and better suited for high-temperature environments. While these bowls cannot provide a visual indication of the water level, regular draining is recommended to prevent water buildup.
The water collection process begins as fuel passes through the fuel water separator. The separator causes the fuel to spin, forcing the water out of the fuel and into the collection bowl. As water is denser than fuel, it sinks to the bottom of the bowl and can be drained later. This process ensures that water is removed from the fuel before it reaches the engine, preventing water contamination, which can cause severe engine damage.
It is important to regularly inspect and maintain the fuel water separator to ensure its proper functioning. This includes checking the water collection bowl at the bottom of the filter to determine if there is any water buildup. If water is present, it can be drained by placing a container under the collection bowl, opening the drain plug, and letting the water flow out. It is recommended to check the bowl weekly and replace the filter element after a certain number of hours of use, depending on the specific filter.
Additionally, the size of the fuel water separator should be considered. As a general guideline, the required flow rate of the separator should be about 10% of the engine's rating. For example, a 200-horsepower engine would typically require a 20-gallons-per-hour filter.
The Cost of Replacing Your Fuel Filter: A Guide
You may want to see also
Explore related products
Contaminants
Fuel filters are designed to protect the engine from harmful contaminants that may be present in the fuel. These contaminants can include dirt and rust particles, paint chips, and moisture, which can enter the fuel tank during the filling process or due to a rusty steel tank. If these substances are not filtered out, they can cause accelerated wear and eventual failure of the fuel pump and injectors.
Dirt and rust are common contaminants that can be found in fuel tanks. Over time, dirt can accumulate in the fuel tank, especially if it is stored in a dirty or dusty environment. Rust, on the other hand, can form inside the tank if it is made of steel and exposed to moisture. These particles can be sucked up by the fuel pump and cause damage to the fuel injectors if not filtered out.
Paint chips are another type of contaminant that can be found in fuel tanks. During the painting process of the fuel tank or other components, paint chips may flake off and mix with the fuel. These paint chips can then be sucked up by the fuel pump and cause blockages or damage to the fuel injectors.
Moisture is a less common but potentially harmful contaminant in fuel tanks. Water can enter the fuel tank through condensation or if the tank is not properly sealed. While diesel engines can separate water using a bowl-like design, water in gasoline engines can cause issues. Water does not burn efficiently and can lead to reduced engine performance or damage to the fuel system.
In addition to these common contaminants, other foreign particles or liquids may also be present in the fuel. These can include debris from the fuel storage or transportation process, such as small rocks or dust, or even corrosion from the fuel lines. Therefore, it is essential to have a functioning fuel filter to protect the engine from these contaminants and ensure optimal performance and longevity.
Fuel Filter Clog: Why Engine Power Suffers
You may want to see also
Frequently asked questions
Fuel filters are usually made into cartridges containing a filter paper. They can also be made of rubber tubes and metal fuel lines.
A fuel filter screens dirt, rust particles, paint chips, and water from the fuel, keeping them from entering the engine and causing damage.
Unfiltered fuel can contain various contaminants that can cause accelerated wear and failure of the fuel pump and injectors. Fuel filters prevent this by removing harmful debris.
