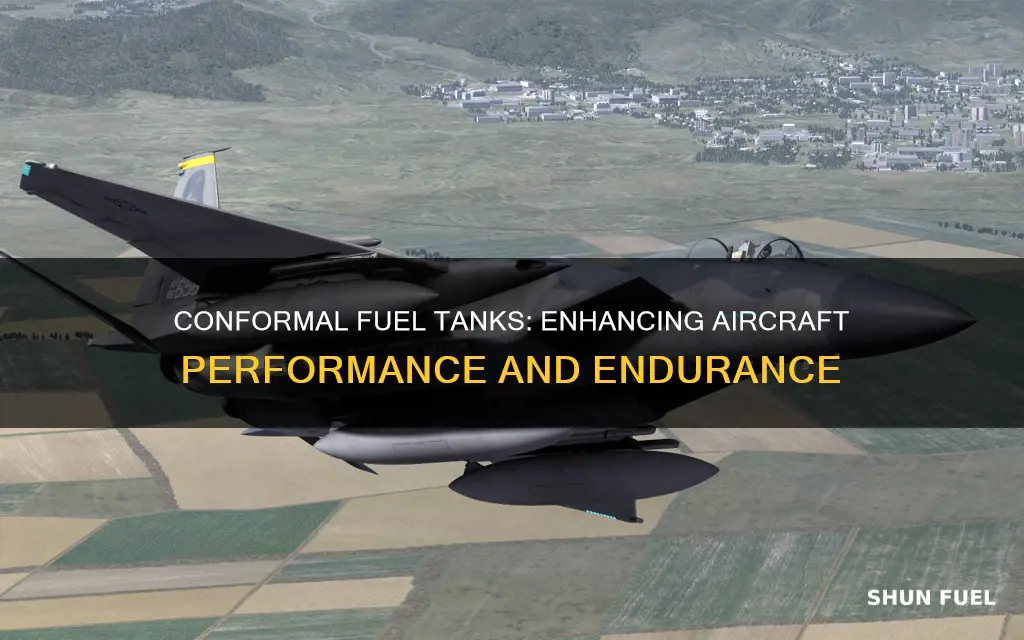

Conformal fuel tanks (CFTs) are additional fuel tanks that are fitted closely to the profile of an aircraft to extend its endurance. They are designed to conform to the aircraft's shape, typically mounted above the wings or along the fuselage, reducing the drag penalty from external fuel tanks. CFTs increase the range and endurance of aircraft, carrying 50% more fuel than centreline external fuel tanks while incurring only 12% of the drag. They also do not occupy ordnance hardpoints, allowing the aircraft to carry its full payload. However, CFTs cannot be discarded in flight, resulting in a slight weight penalty when empty. CFTs have been employed on various aircraft, including the F-16, F-15, Super Hornet, Rafale, and Gripen, with ongoing developments in multiple countries.
| Characteristics | Values |
|---|---|
| Definition | Additional fuel tanks fitted closely to the profile of an aircraft that extend the endurance of the aircraft. |
| Advantages | Reduced aerodynamic penalty compared to external drop tanks, do not occupy ordnance hardpoints, and do not significantly increase an aircraft's radar cross-section. |
| Disadvantages | Cannot be discarded in flight, impose a slight drag-penalty and minor weight gain on the aircraft even when the tanks are empty, impose slight g-load limits. |
| Examples | F-15E, F-16 Block 50/52/60, Super Hornet Block III, Gripen, Rafale, Ching Kuo, Eurofighter, MiG-29, J-10 |
Explore related products
What You'll Learn
- Conformal fuel tanks (CFTs) are additional fuel tanks that conform to the aircraft's shape
- CFTs are plumbed into the aircraft and cannot be discarded in flight
- CFTs increase the aircraft's range, loiter time, and combat persistence
- CFTs have a reduced impact on aircraft agility and speed compared to external tanks
- CFTs free up ordnance hardpoints, allowing the aircraft to carry more weapons
Conformal fuel tanks (CFTs) are additional fuel tanks that conform to the aircraft's shape
CFTs are typically mounted above the wings or along the fuselage, either flush or with a slight bulge. They can significantly increase the aircraft's range and endurance, making them highly desirable for fighters that burn a lot of fuel. CFTs provide a notable advantage by freeing up underwing stations that would otherwise be used for fuel tanks, allowing for the carriage of additional bombs or missiles and improving manoeuvrability.
The F-16, for example, can utilise CFTs to carry 50% more fuel than a centreline external fuel tank while incurring only 12% of the drag. This increased fuel capacity translates to a 20-40% range increase, depending on the configuration and mission profile. Additionally, the F-16's renowned performance remains largely unaffected by the presence of CFTs, as per pilot testimonies.
Despite the advantages, CFTs present challenges in frequent maintenance access, particularly on ships with limited space. The Super Hornet Block III, for instance, encountered issues with CFTs requiring frequent maintenance panel access, making removal and reinstallation cumbersome. Furthermore, CFTs may impose slight g-load limits, although certain aircraft, like the F-15E, can maintain manoeuvrability without g-limitations.
Overall, CFTs offer a popular solution for extending the range of fighter aircraft without significantly compromising speed and agility. Their adoption by multiple countries, such as Israel, Turkey, Poland, Greece, and others, underscores their strategic value in enhancing aircraft performance and mission capabilities.
