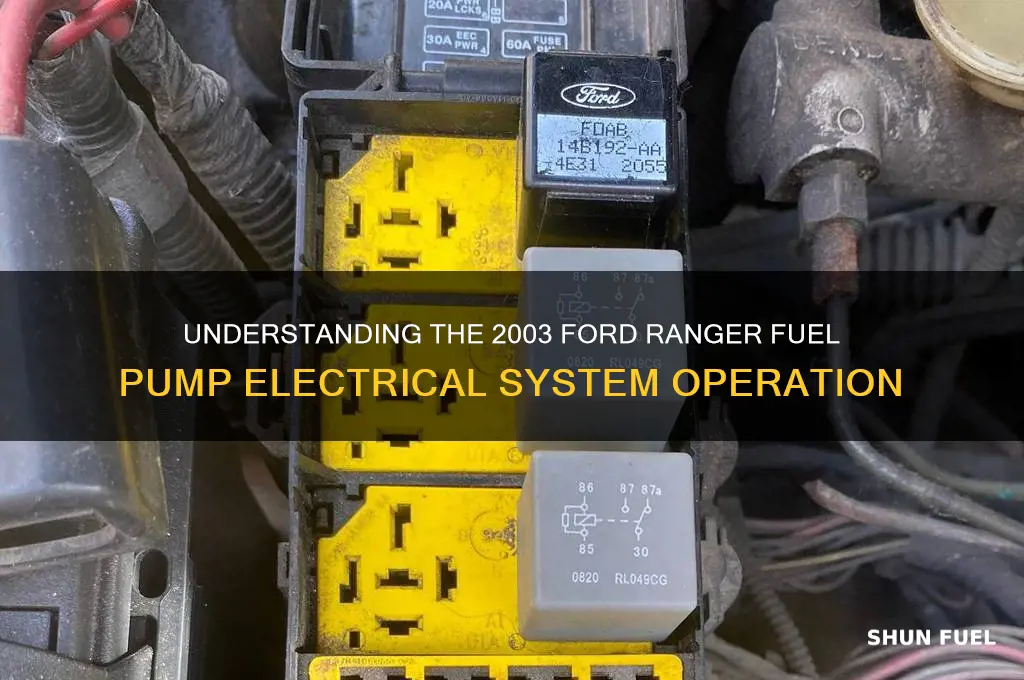

The 2003 Ford Ranger's fuel pump electrical operation is a critical component of its fuel delivery system, ensuring the engine receives the necessary fuel for combustion. This system relies on a precise electrical circuit that powers the fuel pump, which is typically located inside the fuel tank. The operation involves the fuel pump relay, inertia switch, and the powertrain control module (PCM) working in tandem to activate the pump when the ignition is turned on. Understanding this electrical operation is essential for diagnosing and troubleshooting issues such as no-start conditions, fuel pump failures, or erratic engine performance, making it a key area of focus for both mechanics and Ford Ranger owners.
| Characteristics | Values |
|---|---|
| Fuel Pump Type | In-tank electric fuel pump |
| Voltage Operation | 12V DC |
| Current Draw | Approximately 5-7 Amps (varies with load and pump condition) |
| Fuel Pressure | Typically 30-60 PSI (varies based on engine load and system design) |
| Fuel Pump Relay | Located in the under-hood fuse/relay box (often labeled "Fuel Pump") |
| Inertia Switch | Safety feature to shut off fuel pump in case of collision (if equipped) |
| Fuel Pump Driver Module | Integrated into the fuel pump assembly or external module (if present) |
| Wiring Harness | Includes power, ground, and signal wires for pump operation |
| Fuel Pump Fuse | Typically a 15-20 Amp fuse in the fuse box (check owner's manual) |
| Pump Activation | Activated by ignition switch or PCM (Powertrain Control Module) signal |
| Diagnostic Trouble Codes (DTCs) | Related codes: P0087 (Fuel Rail/System Pressure - Too Low) |
| Common Failure Symptoms | No start, engine stall, whining noise from fuel tank |
| Replacement Interval | No specific interval; replace if faulty or performance degrades |
| Compatibility | Specific to 2003 Ford Ranger models (check part numbers for accuracy) |
