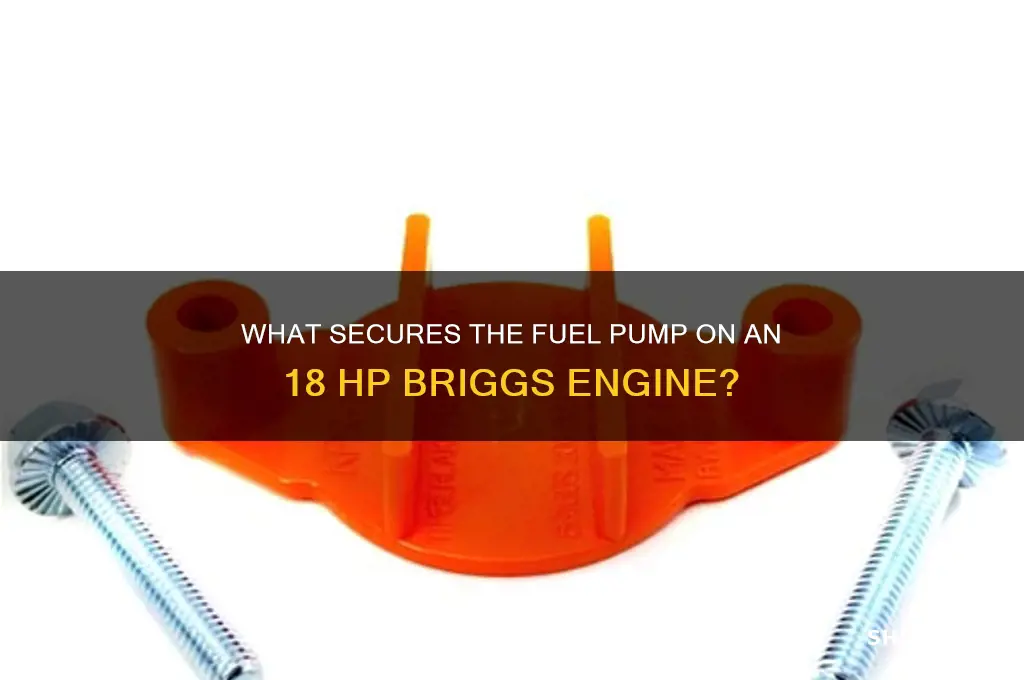

The fuel pump on an 18 HP Briggs & Stratton engine is typically secured by a combination of mounting brackets, bolts, and clamps designed to ensure stability and proper alignment. Understanding what holds the fuel pump in place is crucial for maintenance, repair, or replacement tasks, as it involves identifying the specific components and fasteners used by Briggs & Stratton in their engine designs. Common elements include a mounting plate attached to the engine block, secured by bolts or screws, and additional clamps or straps to prevent vibration-related damage. Properly identifying and handling these components ensures the fuel pump operates efficiently and reliably, maintaining optimal engine performance.
Explore related products
What You'll Learn
- Mounting Bracket Types: Different brackets secure the fuel pump on 18 Briggs engines
- Bolt Patterns: Specific bolt configurations hold the fuel pump in place
- Gasket Placement: Gaskets ensure a tight seal between the pump and engine
- Clamp Mechanisms: Clamps provide additional support for fuel pump stability
- Replacement Steps: Proper steps to remove and reinstall the fuel pump securely
Mounting Bracket Types: Different brackets secure the fuel pump on 18 Briggs engines
The fuel pump on an 18 Briggs engine relies on a mounting bracket for secure attachment, but not all brackets are created equal. Understanding the different types ensures you choose the right one for your specific engine model and application.
Briggs & Stratton offers various mounting brackets, each designed for specific engine configurations and fuel pump types.
Analyzing Common Bracket Types:
- Stamped Steel Brackets: These are the most common, known for their durability and affordability. They are typically welded or bolted to the engine block and feature pre-drilled holes for pump attachment. Stamped steel brackets are suitable for most standard applications.
- Cast Aluminum Brackets: Lighter than steel, cast aluminum brackets offer corrosion resistance, making them ideal for marine or humid environments. They often feature integrated cooling fins for improved heat dissipation around the fuel pump.
- Adjustable Brackets: These brackets allow for fine-tuning the fuel pump's position, crucial for engines with custom fuel system setups or those requiring precise pump alignment. They typically incorporate slots or multiple mounting holes for adjustability.
Choosing the Right Bracket:
Selecting the correct bracket involves considering factors like engine model, fuel pump type, and operating environment. Consult your Briggs & Stratton engine manual or a qualified mechanic for the recommended bracket part number. Using the wrong bracket can lead to pump misalignment, vibration, and potential fuel delivery issues.
Installation Tips:
Ensure a secure and leak-free installation by following these steps:
- Cleanliness is Key: Thoroughly clean the mounting surface on the engine block and the bracket before installation.
- Torque Specifications: Tighten all bolts to the manufacturer's specified torque values using a torque wrench. Over-tightening can damage the bracket or engine block.
- Gasket Inspection: If your bracket uses a gasket, inspect it for damage and replace it if necessary to prevent fuel leaks.
- Pump Alignment: Double-check fuel pump alignment after installation to ensure proper operation and prevent premature wear.
Step-by-Step Guide to Removing a 1997 Chevy Silverado Fuel Pump
You may want to see also
Explore related products
Bolt Patterns: Specific bolt configurations hold the fuel pump in place
The fuel pump on an 18 HP Briggs & Stratton engine is secured by a specific bolt pattern, typically involving 3 or 4 bolts arranged in a circular or triangular configuration. These bolts are usually M6 or M8 in size, with torque specifications ranging from 8 to 12 foot-pounds. Over-tightening can strip the threads or damage the pump housing, while under-tightening may lead to vibration or leaks. Always use a torque wrench to ensure precision.
Analyzing bolt patterns reveals their role in balancing stability and accessibility. A 3-bolt triangular setup, for instance, distributes stress evenly across the pump’s mounting flange, reducing the risk of warping under engine vibration. In contrast, a 4-bolt circular pattern offers additional security but may require more disassembly for maintenance. Briggs & Stratton often pairs these patterns with rubber grommets to dampen vibration, extending the pump’s lifespan. Understanding these configurations helps diagnose issues like loose mounts or misalignment during repairs.
When replacing or installing a fuel pump, follow these steps: 1) Clean the mounting surface and inspect the gasket for cracks. 2) Align the pump with the bolt holes, ensuring the grommets are seated properly. 3) Hand-thread each bolt to avoid cross-threading, then tighten diagonally in a crisscross pattern to maintain even pressure. 4) Torque to specifications, rechecking after the first 10 hours of operation. Caution: Avoid using longer bolts or oversized washers, as these can interfere with internal components or alter the pump’s alignment.
Comparing bolt patterns across Briggs & Stratton models highlights their adaptability. Older engines, like the Intek series, often use a 3-bolt setup for simplicity, while newer Vanguard models may employ a 4-bolt design for increased durability. This evolution reflects advancements in engine design and the growing demand for reliability in commercial applications. For DIY enthusiasts, recognizing these differences ensures compatibility when sourcing replacement parts or upgrading components.
Descriptively, the bolt pattern acts as the unsung hero of fuel pump installation, blending form and function. Each bolt, grommet, and gasket works in harmony to secure the pump while accommodating thermal expansion and vibration. A well-executed bolt pattern not only holds the pump in place but also contributes to the engine’s overall efficiency and longevity. Mastering this detail transforms a routine repair into a precision task, safeguarding performance for seasons to come.
Locate Your Mule SX Fuel Pump: A Quick Guide
You may want to see also
Explore related products
Gasket Placement: Gaskets ensure a tight seal between the pump and engine
Gaskets play a critical role in securing the fuel pump on an 18 Briggs engine by creating a leak-proof seal between the pump and the engine block. Proper gasket placement is essential to prevent fuel leaks, ensure consistent fuel delivery, and maintain engine performance. Without a correctly positioned gasket, even minor gaps can lead to fuel seepage, air infiltration, or pressure loss, compromising the engine’s efficiency and safety.
When installing or replacing a fuel pump on an 18 Briggs engine, start by cleaning both the pump’s mounting surface and the engine block to remove debris, old gasket material, or residue. Use a mild solvent or carburetor cleaner and a lint-free cloth to ensure a smooth, contaminant-free surface. Inspect the new gasket for defects, ensuring it matches the exact dimensions of the pump’s base. Misaligned or damaged gaskets will fail to create a proper seal, so replace them if necessary.
Position the gasket carefully onto the engine block, aligning it with the pump’s mounting holes. Avoid stretching or twisting the gasket, as this can compromise its integrity. Once aligned, lower the fuel pump onto the gasket, ensuring it sits flush against the engine. Secure the pump with the appropriate bolts, tightening them evenly in a diagonal pattern to distribute pressure uniformly. Over-tightening can crush the gasket, while under-tightening may leave gaps, so follow the manufacturer’s torque specifications for optimal results.
Regularly inspect the gasket for signs of wear, cracking, or fuel saturation, especially during routine maintenance. Gasket failure is often indicated by fuel odors, visible leaks, or erratic engine performance. If a gasket shows signs of deterioration, replace it immediately to prevent further issues. Using high-quality gaskets made from materials compatible with fuel and engine temperatures can extend their lifespan and enhance reliability.
In summary, precise gasket placement is a cornerstone of fuel pump installation on an 18 Briggs engine. By ensuring a tight seal, gaskets safeguard against leaks, maintain fuel system integrity, and support consistent engine operation. Attention to detail during installation, combined with regular inspections, ensures the gasket performs its critical function effectively, contributing to the overall longevity and efficiency of the engine.
Locating the Fuel Pump in a 2007 Vehicle: A Quick Guide
You may want to see also
Explore related products
Clamp Mechanisms: Clamps provide additional support for fuel pump stability
Clamps play a pivotal role in securing the fuel pump on an 18 Briggs engine, offering a secondary layer of stability that bolsters the primary mounting system. Unlike bolts or screws, which provide rigid fixation, clamps distribute pressure evenly, reducing the risk of vibration-induced wear. This mechanism is particularly crucial in small engines where constant motion can loosen fasteners over time. By wrapping around the fuel pump and tank, clamps ensure a snug fit that minimizes movement, thereby prolonging the component’s lifespan and maintaining consistent fuel delivery.
When installing a clamp, precision is key. Start by aligning the clamp’s jaws around the fuel pump’s mounting area, ensuring it sits flush against the surface. Tighten the clamp incrementally, using a torque wrench to avoid over-tightening, which can deform the pump housing. For optimal results, apply a torque of 15-20 foot-pounds, depending on the clamp’s material and size. Always refer to the Briggs & Stratton manual for model-specific guidelines, as variations exist across engine series.
Comparatively, clamps offer advantages over adhesive or welded solutions, which are permanent and lack adjustability. Clamps allow for easy removal during maintenance or replacement, making them a practical choice for DIY enthusiasts and professionals alike. Additionally, their modular design accommodates slight misalignments, a common issue in older engines where wear and tear may have altered the mounting surface. This adaptability ensures a secure fit without requiring extensive modifications.
A descriptive examination of clamp mechanisms reveals their simplicity and effectiveness. Typically made of corrosion-resistant materials like stainless steel or coated aluminum, these clamps withstand harsh environmental conditions, including exposure to fuel and moisture. Their banded design, often featuring a screw or lever for tension adjustment, allows for fine-tuning the grip strength. This ensures the fuel pump remains stable under varying operational loads, from idle to full throttle, without compromising the integrity of surrounding components.
In conclusion, clamps are an indispensable component in securing the fuel pump on an 18 Briggs engine, offering stability, adjustability, and durability. By understanding their installation nuances and advantages, users can ensure optimal performance and longevity of their engine’s fuel system. Whether for routine maintenance or repairs, investing time in proper clamp application pays dividends in reliability and efficiency.
Will an Inline Fuel Pump Lift Fuel? Understanding Its Capabilities
You may want to see also
Explore related products
Replacement Steps: Proper steps to remove and reinstall the fuel pump securely
The fuel pump on an 18 HP Briggs & Stratton engine is typically secured by a combination of mounting bolts and a rubber gasket, ensuring a tight seal and stable operation. Before attempting any replacement, gather the necessary tools: a socket set, wrenches, a new fuel pump, and fresh gasket material. Always work in a well-ventilated area and ensure the engine is cool to prevent burns or fuel-related accidents.
Begin by disconnecting the fuel lines from the pump, taking care to relieve any residual pressure in the system. Use a wrench to loosen the hose clamps, and gently pull the lines free, keeping a container nearby to catch any spilled fuel. Next, locate the mounting bolts that secure the pump to the engine block. These are usually accessible from the underside of the engine. Use the appropriate socket or wrench to remove the bolts, setting them aside in a safe place. Be mindful of the gasket; it may stick to either the pump or the engine, so inspect both surfaces for residue.
With the bolts removed, carefully lift the fuel pump from its mounting position. If it resists, check for any hidden fasteners or debris that might be causing interference. Once removed, clean the mounting surface on the engine block, ensuring no old gasket material or debris remains. This step is crucial for achieving a proper seal with the new pump. Apply a thin layer of gasket sealant to the new pump’s mounting surface if recommended by the manufacturer, but avoid overapplication to prevent contamination of the fuel system.
Position the new fuel pump onto the engine block, aligning it with the mounting holes. Reinsert the bolts and tighten them in a diagonal pattern to ensure even pressure. Over-tightening can damage the gasket or the pump, so use a torque wrench if available to meet the manufacturer’s specifications. Reattach the fuel lines, ensuring the clamps are secure but not overtightened, as this can cause leaks or damage the hoses.
Finally, prime the fuel system by turning the ignition key to the "on" position without starting the engine. This allows the pump to build pressure and fill the lines. Check for leaks around the pump and fuel lines, addressing any issues before starting the engine. A properly installed fuel pump ensures reliable performance and prevents fuel delivery problems, making this a critical maintenance task for any Briggs & Stratton engine owner.
Diagnosing C6 Corvette Fuel Pump Issues: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump is typically held in place by a combination of mounting bolts or screws that secure it to the engine block or carburetor.
Basic hand tools such as a socket wrench, screwdriver, or wrench are usually sufficient to remove the mounting bolts or screws holding the fuel pump in place.
Yes, the bracket and mounting hardware can often be reused if they are in good condition and not damaged during removal. However, inspect them for wear or corrosion before reinstallation.
