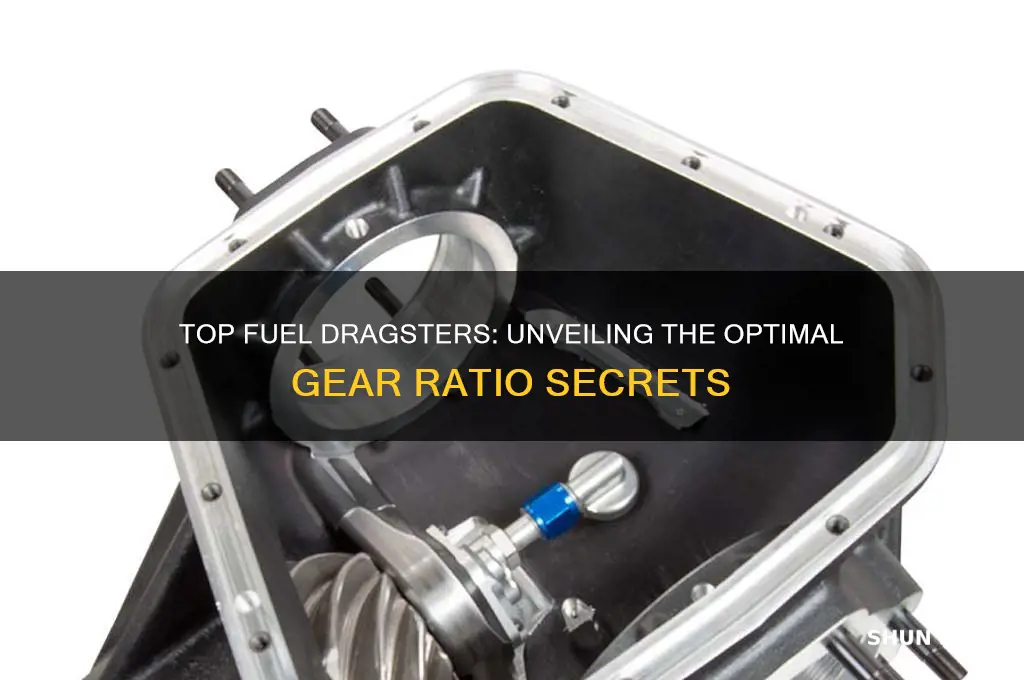

Top Fuel dragsters, the fastest accelerating vehicles on the planet, rely on extreme gear ratios to harness their monstrous power and achieve mind-boggling speeds. These machines, powered by supercharged V8 engines producing upwards of 11,000 horsepower, require gear ratios that prioritize top speed over low-end torque. While exact ratios are often closely guarded secrets, it's estimated that Top Fuel dragsters utilize gear ratios exceeding 3:1 in their final drive, allowing them to reach speeds exceeding 330 mph in a mere 1,000 feet. This extreme gearing sacrifices low-speed drivability, making these cars virtually undriveable outside the controlled environment of a drag strip.
Explore related products
What You'll Learn
- Transmission Gear Ratios: Primary and secondary ratios for maximum acceleration off the starting line
- Rear End Ratios: Differential gear ratios to optimize top speed and traction
- Clutch Setup: Multi-disc clutch ratios for controlled power delivery to the wheels
- Engine RPM Range: Matching gear ratios to the engine's peak power output RPM
- Tire Diameter Impact: How tire size affects gear ratio selection for performance
Transmission Gear Ratios: Primary and secondary ratios for maximum acceleration off the starting line
Top fuel dragsters are engineering marvels designed for one purpose: achieving mind-boggling acceleration from a standstill. Their transmission gear ratios are a critical component in this pursuit, meticulously tuned to harness the engine's colossal power and translate it into forward motion.
At the heart of this system lies the concept of primary and secondary gear ratios. The primary ratio, typically found in the first gear of the transmission, is extremely low. Imagine a bicycle's lowest gear – that's the principle at play here. This low ratio allows the engine to rev to its peak power band almost instantly, delivering a brutal surge of torque to the massive rear tires.
Secondary ratios, found in subsequent gears, progressively increase, allowing the dragster to maintain acceleration as speed builds. Each gear change must be lightning-fast and perfectly timed to keep the engine within its optimal power range.
Let's break down the "why" behind these ratios. Top fuel engines produce upwards of 10,000 horsepower, enough to obliterate an ordinary transmission in seconds. The low primary ratio acts as a buffer, preventing the drivetrain from disintegrating under the initial onslaught of power. As the dragster accelerates, the secondary ratios gradually increase, allowing the engine to operate at a more sustainable RPM while still delivering maximum thrust.
Think of it like a slingshot: the low primary ratio is the stretched elastic, storing immense potential energy. The secondary ratios are the release mechanism, gradually unleashing that energy in a controlled, yet explosive, manner.
Achieving the perfect gear ratio setup is a complex dance between engine characteristics, tire grip, and track conditions. Teams spend countless hours analyzing data and fine-tuning ratios to squeeze every last ounce of performance. A slight miscalculation can result in wheelspin, lost traction, or even a catastrophic failure. It's a testament to the precision engineering that goes into these machines that they can consistently launch from 0 to 100 mph in less than a second.
Understanding these gear ratios offers a glimpse into the sheer ingenuity behind top fuel drag racing. It's not just about raw power; it's about harnessing that power with surgical precision. The next time you witness a dragster rocket down the strip, remember the intricate dance of gears happening beneath the surface, a symphony of engineering designed for one thing: pure, unadulterated acceleration.
