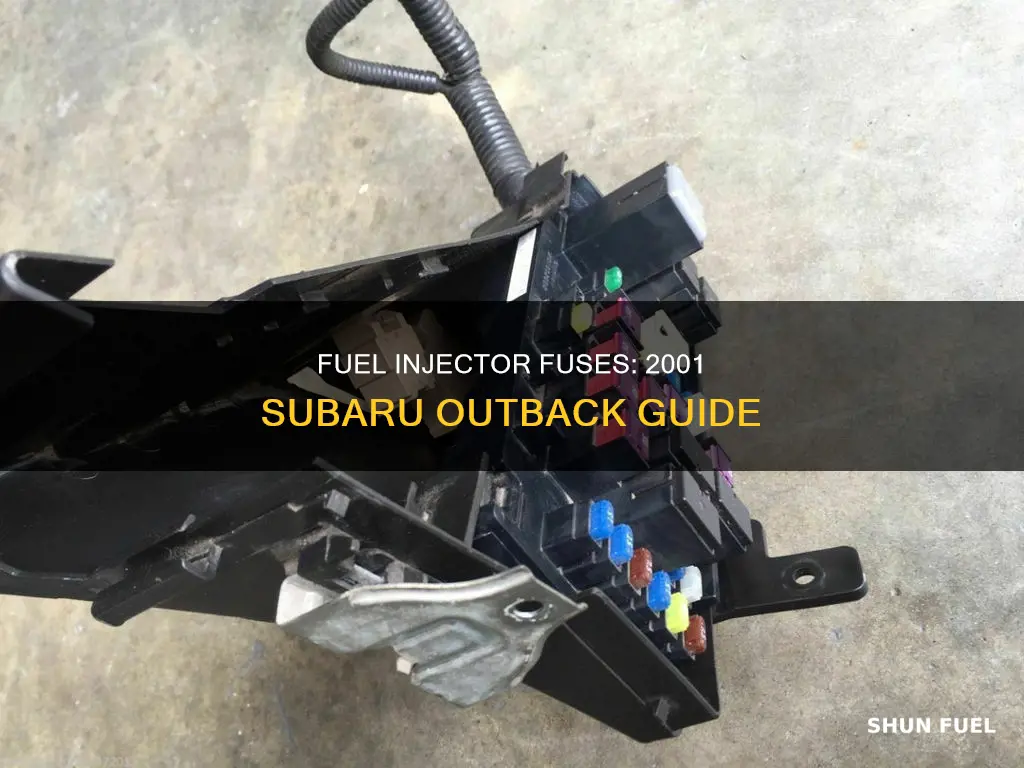

If you're experiencing issues with your 2001 Subaru Outback's fuel injectors, it could be due to a problem with the fuses. The second-generation Subaru Outback, produced from 1999 to 2004, has a fuse box with diagrams and information about the location of the fuse panels and the assignment of each fuse. One fuse that may be related to the fuel injectors is SBF-2, which powers the fuel pump and provides power to the injectors through the Main Relay. If there's no fire reaching your injectors, it's worth checking the voltage at the injector connectors and ensuring the Main Relay is functioning properly.
Explore related products
What You'll Learn
The source of power for the injectors is fuse SBF-2
The 2001 Subaru Outback is a second-generation model, produced from 1999 to 2004. The source of power for the injectors in this car is fuse SBF-2. This fuse provides 12V of power to the injectors, which is necessary for them to function correctly.
To check if the SBF-2 fuse is working correctly, you can perform a test with the injector connector off and the key in the 'ON' position. You should then check for continuity between the pins that had 4V at the fuse and 3V at the injector connector. There should be low resistance here. You can also check for a short or unusually low resistance to the ground.
It is important to note that the 12V from SBF-2 has to pass through the Main Relay to reach the injectors. If the main relay is not activated, the injectors will not receive power. The main relay is, in turn, activated by the ECM (Engine Control Module). There are multiple fuses that power the ECM, and if any of these are blown, the relay may not work. Therefore, it is important to check the continuity of the fuses powering the ECM with a meter. Fuse #15 in the cabin fuse panel, for example, might be related to the main relay energizing circuit.
Additionally, when checking the SBF-2 fuse, it is worth noting that many large Amperage SBFs are encased in a plastic cover that does not provide access for a voltmeter on both sides. In some cases, the top may be clear, allowing some visibility of the fuse element. However, a small break in the fuse may not always be visible. The best way to check is to pull the SBF and test for continuity with a meter.
Unclogging Diesel Fuel Injectors: DIY Guide and Tips
You may want to see also
Explore related products
The main relay is activated by the ECM
The Engine Control Module (ECM) is an essential component of a car's fuel injection system. In a 2001 Subaru Outback, the ECM plays a critical role in activating the main relay, which in turn powers the fuel injectors.
The ECM is responsible for receiving signals from various sensors and modules, such as the Cam sensor, crankshaft position sensors, and the ECU, to make critical calculations and adjustments to the engine's performance. In the case of the fuel injectors, the ECM is responsible for triggering the injector by grounding the "other side" of the injector, allowing current to pass through the injector coil and activating the valve. This process ensures that fuel is injected into the engine at the right moment and in the correct amount, enabling efficient combustion and engine performance.
The main relay serves as the intermediary between the ECM and the fuel injectors. When the ignition switch is turned to the "On" position, the ECM provides 12 volts to activate the main relay. This activation ensures that power can be distributed to the fuel injectors, allowing them to function as intended.
It is important to note that the ECM itself relies on a number of fuses to operate. If any of these fuses are blown, the ECM may not function properly, which in turn can affect the activation of the main relay and the fuel injectors. Therefore, it is crucial to regularly check the fuses and ensure they are in good condition to maintain the overall performance of the vehicle.
In some cases, issues with the ECM or the main relay can lead to problems with the fuel injection system. For example, a faulty ECM may not provide the necessary voltage to activate the main relay, resulting in fuel injector issues. In such cases, it may be necessary to replace or repair the ECM to restore the proper functioning of the fuel injectors and the vehicle.
Fuel Injector Maintenance: Clogged Nozzles and Performance
You may want to see also
Explore related products
The main relay must be checked for activation
The main relay is an essential component in your 2001 Subaru Outback, as it powers all engine-related functions, including the fuel injectors. Checking if it is activated properly can help you diagnose issues with your fuel injectors.
Location of the Main Relay
The main relay in the 2001 Subaru Outback is located on the driver's side wall under the dashboard. To access it, you'll need to open the driver's side door and look underneath the dashboard on the side wall.
Understanding the Main Relay's Function
The Main Relay in your 2001 Subaru Outback is responsible for sending power to various engine components, including the fuel injectors. When you turn the key to the "On" position, the Main Relay is triggered by the ECU (Engine Control Unit) to send power to the injectors. This power allows the injectors to spray fuel into the engine, facilitating the combustion process.
Checking the Activation of the Main Relay
To check if the Main Relay is activated, you can perform the following steps:
- Locate the Main Relay: As mentioned earlier, it is located on the driver's side wall under the dashboard.
- Check the ECU: Ensure that the ECU is functioning properly. If the ECU is not turning on, it may indicate an issue with the Main Relay.
- Verify Voltage Readings: With the key in the "On" position, use a voltmeter to check the voltage at the injector connectors. You should have close to battery voltage (around 12V) at the injector connectors. If you only measure 3-4 volts, it could indicate a connection problem with the Main Relay.
- Check Fuse SBF-2: The source of power going through the Main Relay to the injectors is fuse SBF-2. Ensure that this fuse is intact and functioning properly. Pull out the fuse and check it for continuity with a meter. There should be 12V on both sides of the fuse. If there isn't, the fuse may be blown and need replacement.
- Inspect the ECM: The Main Relay is activated by the ECM (Engine Control Module). There are multiple fuses that power the ECM, and if one of them is blown, the relay may not work. Check fuse #15 in the cabin fuse panel, as it may be related to the main relay energizing circuit.
- Consult a Mechanic: If you've checked the above items and still suspect an issue with the Main Relay, consult a certified Subaru mechanic. They can perform more advanced diagnostics and provide guidance on repairing or replacing the Main Relay if necessary.
Remember, working on vehicle electrical systems can be complex and should be approached with caution. If you're unsure or uncomfortable with any of the steps, it's best to seek assistance from a qualified technician.
How to Bypass Fuel Injectors: A Comprehensive Guide
You may want to see also
Explore related products
The 12 V from SBF-2 must go through the main relay
The SBF-2 fuse is a slow-blow fuse, which is a type of main high-amperage fuse that feeds many other circuits in a car. In the 2001 Subaru Outback, the SBF-2 fuse powers the fuel pump and the fuel injectors. The 12 V from SBF-2 must go through the main relay to reach the injectors.
The main relay is activated by the ECM (engine control module). The ECM triggers the injector by grounding the "other side", allowing current to go through the injector coil and activating the valve. The source of power going through the main relay to the injectors is the SBF-2 fuse. With the key in the "On" position, one side of each injector is connected to 12 V through the main relay. With the engine off, there should be close to battery voltage at the injector connectors. If there is only 3 V at the injector connectors, there may be a connection problem with the 12 V that should be coming through the main relay.
To check for a connection problem, you can perform the following steps:
- Turn the key to the "On" position.
- Remove the injector connector.
- Check for continuity between the pins that had 4 V at the fuse and 3 V at the injector connector.
- There should be low resistance.
- Check the resistance between that line for a short or unusually low resistance to ground.
- Check the fuses by measuring their continuity with a meter.
- Check fuse #15 in the cabin fuse panel, which may be related to the main relay energizing circuit.
It is important to note that there may be other fuses involved in powering the ECM, and if one of them is blown, the relay may not work. The 12 V from SBF-2 must go through the main relay to activate the fuel injectors in the 2001 Subaru Outback. This process involves the ECM, which triggers the injector by grounding one side, allowing current to flow through the injector coil and activating the valve.
Fuel Injector Cleaners: Car Maintenance Essential?
You may want to see also
Explore related products
The injectors should have a constant 12V on one wire
For a 2001 Subaru Outback, the injectors should have a constant 12V on one wire. The other side of each injector goes to the ECM, which grounds the "other side" to trigger the injector, allowing current to go through the injector coil and activating the valve.
The source of power going through the Main Relay to the injectors is fuse SBF-2. The 12V from SBF-2 has to go through the Main Relay to get to the injectors. If the main relay isn't being activated, that won't happen. The main relay is activated by the ECM. There are a number of fuses that power the ECM, and if one is blown, it's possible the relay won't work.
To check if the main relay is working, you can perform the following steps with the key in the "On" position:
- Disconnect the injector connector and the SBF.
- Check for continuity between the pins that had 4V at the fuse and 3V at the injector connector.
- There should be low resistance.
- Check the resistance between that line for a short or unusually low resistance to ground.
If there's only 3V at the injector connectors with the key in the "On" position and the engine off, there may be a connection problem with the 12V that should be coming through the Main Relay.
Testing Fuel Injectors: Detecting Leaks and Faults
You may want to see also
Frequently asked questions
The source of power going through the Main Relay to the injectors is fuse SBF-2.
The 12 V from SBF-2 has to go through the Main Relay to reach the injectors. If the main relay isn't activated, this won't happen.
The Main Relay is activated by the ECM.
If one of the fuses powering the ECM is blown, the relay won't work.
Check the continuity of the fuses with a meter. There should be 12V on both sides of the slow-blow fuse. If not, the fuse is blown.
