Nuclear power plants are fueled primarily by uranium, a dense, naturally occurring element found in the Earth's crust. The most commonly used isotope, U-235, is fissionable, meaning its atoms can be split when bombarded with neutrons, releasing a tremendous amount of energy in the form of heat. This heat is used to produce steam, which drives turbines connected to generators, ultimately producing electricity. Uranium fuel is typically enriched to increase the concentration of U-235 from its natural level of about 0.7% to around 3-5%, making it more effective for sustaining the nuclear chain reaction necessary for power generation.
| Characteristics | Values |
|---|---|
| Primary Fuel | Enriched Uranium (typically U-235, enriched to 3-5%) |
| Secondary Fuels | Plutonium (Pu-239), Mixed Oxide (MOX) fuel, Thorium (Th-232) |
| Fuel Form | Ceramic pellets of uranium oxide (UO₂) encased in zirconium alloy rods |
| Energy Density | ~1 million times greater than fossil fuels (e.g., coal or natural gas) |
| Fuel Consumption | ~20-30 tonnes of uranium per year for a 1,000 MW reactor |
| Fuel Lifespan in Reactor | 3-6 years before refueling is required |
| Waste Produced | High-level radioactive waste (spent fuel) requiring long-term storage |
| Fuel Recycling | Possible through reprocessing (e.g., PUREX process) to extract Pu and U |
| Alternative Fuels | Advanced fuels like TRISO particles for high-temperature reactors |
| Fuel Source | Mined uranium ore, processed and enriched for reactor use |
| Global Reserves | ~170 years of uranium at current consumption rates (without reprocessing) |
| Carbon Emissions | Near-zero greenhouse gas emissions during operation |
| Fuel Cost | ~20-30% of total nuclear power generation cost |
| Fuel Safety | Highly regulated and secured due to radioactive nature |
Explore related products
What You'll Learn
Uranium Mining & Processing
Uranium, the primary fuel for nuclear power plants, is extracted through mining and processed into a usable form. This journey begins deep within the Earth’s crust, where uranium ore is found in concentrations as low as 0.1% to 0.3%. Open-pit mining is the most common method for extracting uranium, particularly in countries like Canada and Australia, where deposits are closer to the surface. For deeper or less accessible reserves, underground mining is employed, though it is more costly and complex. Once extracted, the ore is transported to processing facilities, where the uranium is separated from the rock through a series of chemical reactions, typically involving crushing, grinding, and leaching with sulfuric acid or alkaline solutions.
The processing stage is critical, as it transforms raw uranium ore into yellowcake, a powdered form of uranium oxide (U₃O₈). This intermediate product is then refined further through a process called conversion, where it is turned into uranium hexafluoride (UF₆), a gas essential for enrichment. Enrichment is necessary because natural uranium contains only about 0.7% of the fissile isotope U-235, which is insufficient for most nuclear reactors. Through gaseous diffusion or centrifuge technology, the concentration of U-235 is increased to 3–5%, making it suitable for fueling light-water reactors, the most common type globally.
Environmental and safety concerns are paramount in uranium mining and processing. Mining operations can disrupt ecosystems and generate radioactive waste, known as tailings, which must be carefully managed to prevent contamination of soil and water. For instance, tailings are often stored in lined ponds or underground repositories to minimize leaching. Additionally, workers in these industries are exposed to radiation and hazardous chemicals, necessitating strict safety protocols, including personal protective equipment and regular health monitoring. The International Atomic Energy Agency (IAEA) provides guidelines to ensure these processes meet global safety standards.
Comparatively, uranium mining and processing are more energy-intensive than extracting fossil fuels, but the energy density of uranium far outweighs coal or natural gas. One kilogram of uranium can produce as much energy as 10,000 kilograms of coal, making it a highly efficient fuel source. However, the long-term environmental impact of uranium mining, including land rehabilitation and waste management, requires significant investment and planning. Countries like Finland and Sweden have set benchmarks for sustainable mining practices, emphasizing reclamation efforts to restore mined areas to their natural state.
For those involved in or affected by uranium mining, understanding the lifecycle of uranium is crucial. From extraction to processing, each step involves trade-offs between energy production, environmental impact, and safety. Practical tips for communities near mining sites include monitoring local water quality, participating in public consultations, and advocating for transparent reporting of mining activities. As nuclear power continues to play a role in the global energy mix, the responsible management of uranium resources will remain a key challenge and opportunity for the industry.
Efficient Helicopter Fueling: Essential Tips for Safe and Optimal Performance
You may want to see also
Explore related products
Nuclear Fission Reactions
Nuclear power plants derive their energy from the process of nuclear fission, a reaction where the nucleus of an atom splits into two or more smaller nuclei, releasing a tremendous amount of energy. This energy is harnessed to produce heat, which is then converted into electricity. The most commonly used fuel for this process is uranium-235 (U-235), a naturally occurring isotope that makes up about 0.7% of natural uranium. When a neutron strikes the nucleus of a U-235 atom, it becomes unstable and splits, releasing additional neutrons that can trigger a chain reaction. This controlled chain reaction is the heart of nuclear power generation.
To initiate and sustain fission reactions, nuclear reactors require a specific amount of fissile material, typically around 3–5% enriched U-235. Enrichment is a process that increases the concentration of U-235 from its natural abundance. For example, a typical 1,000-megawatt reactor uses about 20–25 metric tons of enriched uranium fuel annually. The fuel is formed into ceramic pellets, stacked into fuel rods, and then assembled into fuel assemblies. These assemblies are submerged in a reactor core, where the fission process occurs. Moderators like water or graphite slow down the neutrons, ensuring they have the right energy to cause further fissions, while control rods absorb excess neutrons to regulate the reaction rate.
One of the key advantages of nuclear fission is its energy density. A single uranium fuel pellet, about the size of a fingertip, contains the same amount of energy as 17,000 cubic feet of natural gas, 1,780 pounds of coal, or 149 gallons of oil. This efficiency makes nuclear power a highly effective alternative to fossil fuels, especially in terms of reducing greenhouse gas emissions. However, the process also generates radioactive waste, which must be managed carefully. Spent fuel remains hazardous for thousands of years, necessitating long-term storage solutions like deep geological repositories.
Despite its challenges, nuclear fission remains a critical component of the global energy mix, particularly for countries aiming to decarbonize their power sectors. Advanced reactor designs, such as small modular reactors (SMRs) and those using alternative fuels like thorium, are being developed to enhance safety, reduce waste, and improve efficiency. For instance, thorium-232, when bombarded with neutrons, can breed fissile uranium-233, offering a potentially more sustainable fuel cycle. These innovations highlight the ongoing evolution of nuclear fission technology, ensuring its relevance in the future energy landscape.
In practical terms, understanding nuclear fission reactions is essential for anyone involved in energy policy, engineering, or environmental science. For those considering a career in nuclear energy, gaining expertise in reactor physics, materials science, and radiation safety is crucial. Additionally, public awareness of how nuclear power works can foster informed discussions about its role in addressing climate change. By demystifying the science behind nuclear fission, we can better appreciate its potential and limitations, paving the way for smarter energy decisions.
Accurate Fuel Volume Measurement: Methods and Tools for Checking
You may want to see also
Explore related products
Reactor Core Components
Nuclear power plants rely on a carefully orchestrated dance of components within the reactor core to harness the energy released from nuclear fission. At the heart of this process lies the fuel assembly, typically composed of uranium dioxide (UO₂) pellets stacked into zirconium alloy tubes. These pellets, each about the size of a fingertip, contain a concentration of uranium-235 (U-235) ranging from 3% to 5%, sufficient to sustain a chain reaction. Each fuel assembly houses hundreds of these rods, forming the core’s energy-producing backbone.
Surrounding the fuel assemblies is the moderator, a critical component that slows down fast-moving neutrons, increasing the likelihood of fission. Light water reactors, the most common type globally, use ordinary water as both coolant and moderator. This dual role ensures efficient heat transfer while maintaining the chain reaction. In contrast, advanced reactors like Canada’s CANDU design use heavy water (deuterium oxide), which allows the use of natural uranium as fuel, eliminating the need for enrichment.
The control rods, made of neutron-absorbing materials like cadmium or boron, are the reactor’s throttle. Inserted or withdrawn from the core, they regulate the rate of fission by controlling neutron density. For instance, during startup, control rods are gradually withdrawn to allow the reaction to build, while in emergency shutdowns, they are fully inserted within seconds to halt the chain reaction. This mechanism ensures safety and operational flexibility, even under extreme conditions.
Finally, the pressure vessel encapsulates the entire core, withstanding temperatures up to 300°C and pressures exceeding 150 atmospheres. Constructed from specialized steel alloys, it prevents radioactive materials from escaping while containing the coolant. In pressurized water reactors (PWRs), the vessel houses the core and primary coolant loop, while boiling water reactors (BWRs) allow the coolant to boil directly within the vessel. This design difference highlights the adaptability of reactor core components to meet diverse operational requirements.
Together, these components form a symphony of precision engineering, transforming nuclear fuel into a reliable, high-density energy source. Understanding their interplay is key to appreciating the complexity and ingenuity of nuclear power generation.
Understanding Nike Fuel Calculation: Metrics, Methodology, and Meaning
You may want to see also
Explore related products

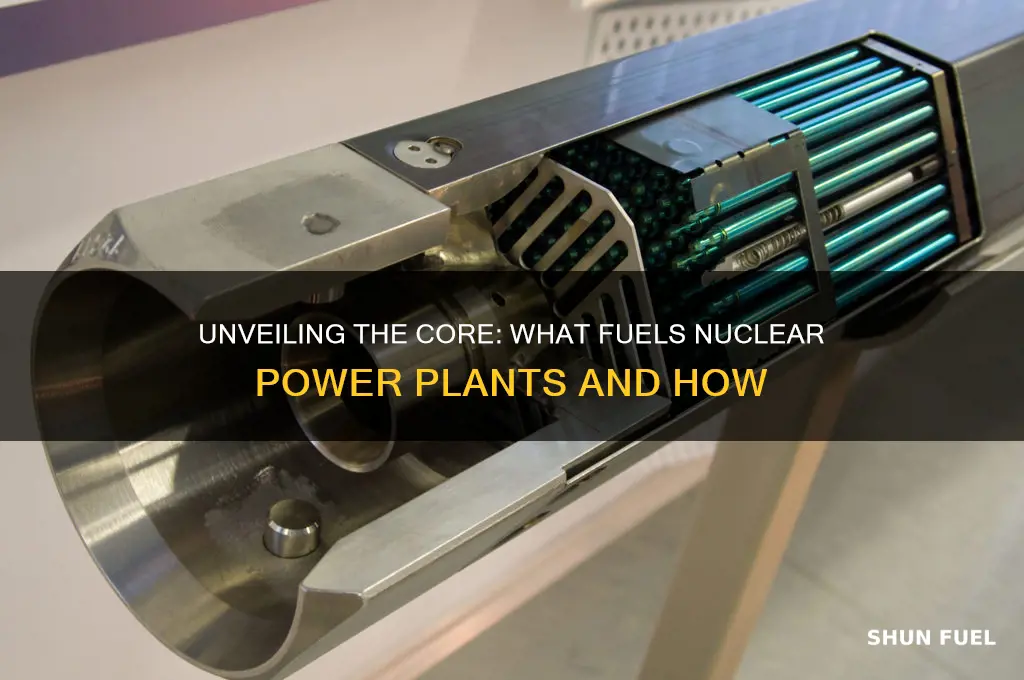

Fuel Rods & Assemblies
Nuclear power plants rely on uranium as their primary fuel, but it’s not the raw ore that powers reactors—it’s the meticulously engineered fuel rods and assemblies that make controlled fission possible. These components are the backbone of nuclear energy production, housing the fissile material in a form that ensures both efficiency and safety. Each fuel rod contains ceramic uranium dioxide (UO₂) pellets, stacked inside a zirconium alloy tube. These rods are then bundled into fuel assemblies, typically holding 179 to 264 rods, depending on the reactor design. This modular structure allows for precise control over the nuclear reaction and facilitates maintenance during refueling cycles.
Consider the lifecycle of a fuel assembly: it begins with uranium mining, followed by enrichment to increase the concentration of the fissile isotope U-235 from 0.7% to 3–5%. The enriched uranium is then fabricated into pellets, each about the size of a fingertip, and loaded into rods. These rods are sealed to prevent the release of radioactive material and arranged into assemblies that can withstand extreme temperatures and pressures inside the reactor core. A single fuel assembly can generate heat equivalent to burning 150 tons of coal annually, yet it operates with a fraction of the environmental footprint.
One critical aspect of fuel rods is their cladding—the zirconium alloy tube that encases the uranium pellets. This material is chosen for its low neutron absorption and resistance to corrosion, ensuring the structural integrity of the rod under reactor conditions. However, cladding degradation can lead to fuel failures, releasing radioactive fission products into the coolant. To mitigate this, operators monitor cladding thickness and temperature, replacing assemblies before they reach their operational limits, typically after 3–6 years of use.
Comparatively, fuel assemblies in pressurized water reactors (PWRs) differ from those in boiling water reactors (BWRs). PWR assemblies are shorter and more numerous, optimized for high-pressure environments, while BWR assemblies are longer and fewer, designed to allow water to boil directly in the core. Despite these differences, both types prioritize safety and efficiency, with features like control rods interspersed among fuel rods to regulate the reaction. This modular design ensures that even if one assembly fails, the reactor can continue operating safely.
For those involved in nuclear energy, understanding fuel rods and assemblies is essential for optimizing performance and safety. Practical tips include regular inspections using ultrasonic testing to detect cladding defects and maintaining coolant chemistry to minimize corrosion. Additionally, advancements like accident-tolerant fuels, which use silicon carbide cladding, promise to enhance safety further. By mastering these components, operators can maximize energy output while minimizing risks, ensuring nuclear power remains a reliable and sustainable energy source.
Understanding Fuel Dampers: Functions, Benefits, and Importance in Vehicles
You may want to see also
Explore related products
Plutonium as Alternative Fuel
Nuclear power plants traditionally rely on uranium-235 as their primary fuel, but plutonium offers a compelling alternative. Derived from the reprocessing of spent uranium fuel, plutonium-239 can sustain fission reactions in certain reactor designs. This reprocessing not only reduces nuclear waste volume but also extracts additional energy from material previously considered waste. For instance, one ton of plutonium can generate as much electricity as one million tons of coal, highlighting its energy density. However, its use is limited to specific reactor types, such as fast breeder reactors or advanced light-water reactors modified for plutonium oxide (MOX) fuel.
Adopting plutonium as fuel involves a precise process. Spent uranium fuel is chemically treated to separate plutonium from other fission products, a step requiring stringent safety and security measures to prevent proliferation risks. The extracted plutonium is then mixed with uranium oxide to form MOX fuel pellets, which can replace a portion of traditional uranium fuel in reactors. For example, some European reactors use MOX fuel assemblies, with up to 30% plutonium content, demonstrating its feasibility. However, this process demands advanced technical capabilities and adherence to international safeguards to ensure plutonium is used solely for energy production.
The case for plutonium is both practical and strategic. It addresses the issue of long-lived nuclear waste by converting it into usable fuel, extending the lifespan of uranium resources. Fast breeder reactors, in particular, can produce more plutonium than they consume, creating a self-sustaining fuel cycle. Yet, challenges persist. Plutonium’s toxicity and radiological hazards necessitate robust handling protocols, and its association with nuclear weapons raises geopolitical concerns. Despite these hurdles, countries like France and Japan have successfully integrated plutonium into their nuclear programs, showcasing its potential as a viable alternative fuel.
To implement plutonium fuel effectively, policymakers and industry leaders must balance its benefits against risks. Investment in reprocessing infrastructure and advanced reactor designs is essential, alongside international cooperation to establish non-proliferation standards. For instance, the Global Nuclear Energy Partnership (now defunct) aimed to promote plutonium recycling while preventing misuse. Practical steps include developing smaller, modular reactors optimized for MOX fuel and fostering public trust through transparent waste management practices. When executed responsibly, plutonium can play a pivotal role in a sustainable, low-carbon energy future.
Eco Mode Fuel Efficiency: Fact or Fiction? Unveiling the Truth
You may want to see also
Frequently asked questions
The primary fuel used in most nuclear power plants is uranium, specifically the isotope U-235, which is fissionable and releases energy when split.
Uranium fuel undergoes nuclear fission, where the nucleus of a U-235 atom splits when struck by a neutron, releasing energy and additional neutrons that sustain the chain reaction.
Yes, some advanced reactors use plutonium (in mixed oxide fuel, MOX) or thorium as alternative fuels, though uranium remains the most common.
Nuclear fuel typically lasts 3 to 5 years in a reactor before it needs to be replaced due to reduced efficiency in sustaining the fission chain reaction.
Spent nuclear fuel is highly radioactive and is stored in specially designed pools or dry casks for cooling and containment until it can be reprocessed or disposed of safely.
