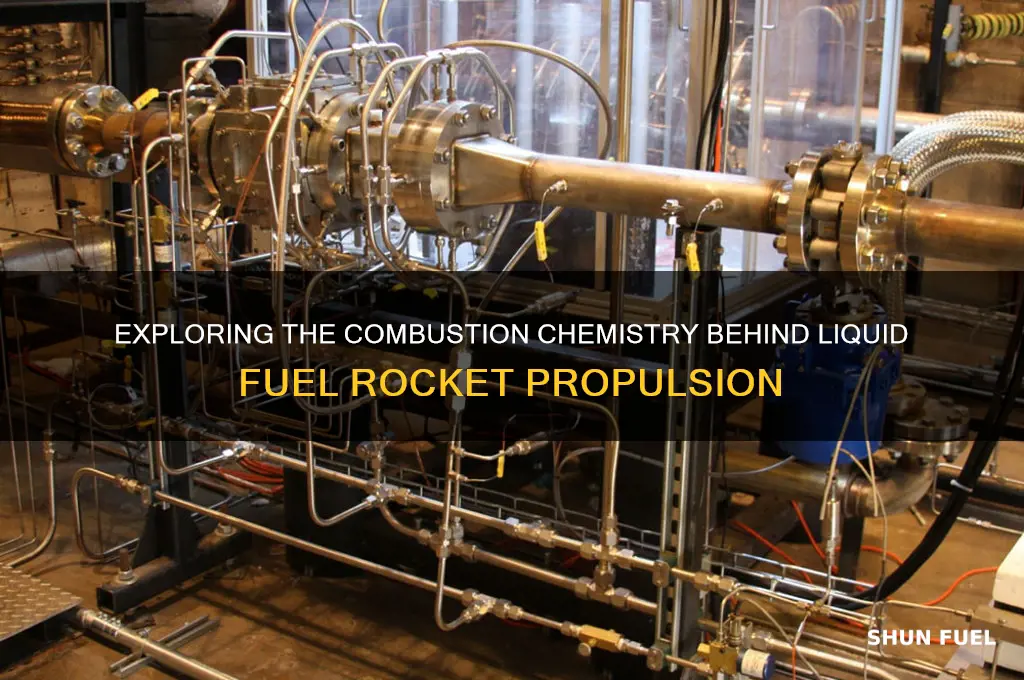

Liquid fuel rockets are powered by the combustion of liquid propellants, typically a combination of fuel and oxidizer, which are stored separately and mixed in the combustion chamber. Common fuel types include refined kerosene (RP-1) or liquid hydrogen, while oxidizers often consist of liquid oxygen. When ignited, the chemical reaction between the fuel and oxidizer produces a high-velocity exhaust gas, generating thrust in accordance with Newton's third law of motion. This efficient and controllable propulsion system makes liquid fuel rockets ideal for applications requiring precise maneuvering, such as launching satellites or crewed missions, as they offer the advantage of being throttleable and stoppable during flight.
| Characteristics | Values |
|---|---|
| Propellant Types | Liquid Oxygen (LOx) and Kerosene (RP-1), Liquid Hydrogen (LH2) and LOx, Hydrazine, Nitrogen Tetroxide (NTO), Monomethylhydrazine (MMH), Unsymmetrical Dimethylhydrazine (UDMH) |
| Oxidizer | Liquid Oxygen (LOx), Nitrogen Tetroxide (NTO) |
| Fuel | Kerosene (RP-1), Liquid Hydrogen (LH2), Hydrazine, Monomethylhydrazine (MMH), Unsymmetrical Dimethylhydrazine (UDMH) |
| Specific Impulse (Isp) | 250-450 seconds (sea level), 300-470 seconds (vacuum) depending on propellant combination |
| Density | Varies; e.g., RP-1: ~800 kg/m³, LH2: ~70 kg/m³, LOx: ~1,140 kg/m³ |
| Combustion Temperature | 2,500-3,500°C (4,532-6,332°F) depending on propellant |
| Storage Temperature | Cryogenic for LH2 and LOx (-253°C/-423°F for LH2, -183°C/-297°F for LOx) |
| Toxicity | Varies; hydrazine and its derivatives are highly toxic |
| Reusability | Some propellants (e.g., RP-1/LOx) are used in reusable rockets like SpaceX's Falcon 9 |
| Cost | RP-1/LOx is relatively inexpensive; LH2/LOx is more expensive due to cryogenic storage |
| Applications | Satellite launches, interplanetary missions, reusable launch systems |
| Environmental Impact | RP-1/LOx produces CO₂; LH2/LOx produces water vapor, considered cleaner |
| Ignition Method | Pyrotechnic igniters, spark igniters, or hypergolic ignition (e.g., MMH/NTO) |
| Thrust Control | Throttleable engines, allowing precise control of thrust |
Explore related products
What You'll Learn
- Propellant Types: Liquid oxygen, kerosene, hydrogen, and other chemicals used as rocket fuel
- Combustion Process: Fuel and oxidizer mix, ignite, and burn in the combustion chamber
- Engine Design: Nozzles, injectors, and pumps optimize fuel combustion and thrust
- Thrust Generation: Expanding gases exit the nozzle, creating forward propulsion
- Fuel Efficiency: Specific impulse measures efficiency; higher values mean better performance
Propellant Types: Liquid oxygen, kerosene, hydrogen, and other chemicals used as rocket fuel
Liquid fuel rockets rely on a combination of propellants to generate thrust, and the choice of these chemicals significantly impacts performance, efficiency, and mission suitability. Among the most common are liquid oxygen (LOx), kerosene, and liquid hydrogen (LH2), each with distinct properties and applications. Liquid oxygen, a cryogenic oxidizer, is widely used due to its high availability and ability to react vigorously with fuels like kerosene and hydrogen. Kerosene, a hydrocarbon-based fuel, is favored for its high energy density and ease of handling, making it a staple in rockets like SpaceX’s Falcon 9. Liquid hydrogen, though challenging to store due to its extremely low temperature, offers the highest specific impulse, ideal for deep space missions where efficiency is critical.
When selecting a propellant combination, engineers must balance energy output, storage requirements, and cost. For instance, the LOx/kerosene pair is robust and cost-effective, making it suitable for Earth-orbit missions. In contrast, LOx/LH2 provides superior efficiency but demands advanced insulation and larger fuel tanks, as hydrogen’s low density requires greater volume. Methane (CH₄) is emerging as a middle-ground option, offering better performance than kerosene and easier handling than hydrogen. Its use in rockets like SpaceX’s Starship highlights its potential for both Earth-to-orbit and interplanetary missions.
The chemistry of these propellants dictates their reactivity and combustion characteristics. LOx, being a strong oxidizer, enables rapid and complete combustion with fuels like kerosene or hydrogen. Kerosene’s high carbon content produces significant soot during combustion, which can affect engine performance over time. Hydrogen, despite its clean-burning nature, requires precise mixing ratios with LOx to avoid unstable combustion. Engineers often use additives or adjust injector designs to optimize these reactions, ensuring stable thrust and engine longevity.
Practical considerations also influence propellant choice. Cryogenic fuels like LOx and LH2 require insulated tanks and continuous cooling to prevent boil-off, adding complexity to rocket design. Kerosene, being non-cryogenic, simplifies storage but sacrifices some efficiency. Hybrid systems, such as those using hypergolic fuels (e.g., monomethylhydrazine and nitrogen tetroxide), eliminate the need for ignition systems but pose toxicity risks. For small-scale applications, like satellite propulsion, non-cryogenic monopropellants such as hydrogen peroxide or hydrazine are preferred for their simplicity and reliability.
In summary, the selection of liquid rocket propellants involves trade-offs between performance, practicality, and mission goals. LOx/kerosene remains a reliable workhorse for Earth-bound missions, while LOx/LH2 pushes the boundaries of deep space exploration. Emerging fuels like methane offer a balance, and specialized chemicals cater to niche applications. Understanding these propellant types empowers engineers to design rockets tailored to specific challenges, from launching satellites to reaching Mars.
Understanding Fuel Efficiency: What It Means and Why It Matters
You may want to see also
Explore related products
Combustion Process: Fuel and oxidizer mix, ignite, and burn in the combustion chamber
The combustion process in liquid fuel rockets is a finely tuned dance of chemistry and physics, where fuel and oxidizer combine to release the energy needed for propulsion. This process begins with the precise mixing of the propellant components—typically a fuel like liquid hydrogen or kerosene and an oxidizer such as liquid oxygen. The ratio of fuel to oxidizer is critical, often optimized to ensure complete combustion while maximizing thrust. For instance, the Saturn V rocket used a 5:1 mass ratio of liquid oxygen to kerosene in its first stage, achieving a balance between power and efficiency.
Once mixed, the fuel and oxidizer are injected into the combustion chamber, where they are ignited by a spark or flame. The ignition triggers an exothermic reaction, releasing vast amounts of energy in the form of hot gases. These gases expand rapidly, creating pressure that is directed through the nozzle to generate thrust. The combustion temperature can exceed 3,300°C (6,000°F), requiring the chamber and nozzle to be made of high-temperature materials like copper or niobium alloys. Proper cooling systems, such as regenerative cooling, are essential to prevent damage to these components.
A key challenge in this process is ensuring uniform mixing and combustion. Incomplete combustion can lead to reduced efficiency or even engine failure. Engineers achieve this through injector design, which atomizes the fuel and oxidizer into fine droplets, increasing the surface area for reaction. For example, the RS-25 engines on the Space Shuttle used a coaxial injector design, where fuel and oxidizer were injected through concentric rings to promote thorough mixing. This design is now a standard in many modern rocket engines.
The combustion process is not just about power but also control. Throttling, or adjusting the fuel and oxidizer flow rates, allows engineers to manage thrust during different phases of flight. For instance, the Merlin engines on SpaceX’s Falcon 9 can throttle between 70% and 100% of their maximum thrust, enabling precise maneuvering during landing. This flexibility is achieved by modulating the propellant valves and maintaining stable combustion even at reduced flow rates.
In summary, the combustion process in liquid fuel rockets is a complex interplay of chemistry, engineering, and control. From precise mixing ratios to advanced injector designs and cooling systems, every detail is optimized to harness the energy needed for space exploration. Understanding this process not only highlights the ingenuity behind rocket propulsion but also underscores the challenges of balancing power, efficiency, and reliability in extreme conditions.
Are Propane Torches Liquid Fuel? Understanding Torch Fuel Types
You may want to see also
Explore related products
Engine Design: Nozzles, injectors, and pumps optimize fuel combustion and thrust
Liquid fuel rockets rely on precise engine design to maximize efficiency and thrust, and at the heart of this design are nozzles, injectors, and pumps. These components work in harmony to ensure optimal fuel combustion, transforming chemical energy into kinetic energy with remarkable precision. The nozzle, for instance, is not merely a passive conduit for exhaust gases; its shape and size are meticulously engineered to accelerate the combustion products to supersonic speeds, generating thrust according to Newton’s third law. A well-designed nozzle can increase specific impulse—a measure of efficiency—by up to 10%, making it a critical factor in mission success.
Injectors play a pivotal role in the combustion process by atomizing and mixing fuel and oxidizer in the correct proportions. Modern injectors use intricate patterns of holes or impinging streams to ensure a homogeneous mixture, which burns more completely and uniformly. For example, the RS-25 engines on the Space Shuttle used over 1,000 injector elements per engine, delivering a fuel-oxidizer mixture at a combined flow rate of 1,500 gallons per second. Poor injector design can lead to unstable combustion, reduced thrust, or even engine failure, underscoring the need for precision in their construction and calibration.
Pumps are the unsung heroes of liquid rocket engines, responsible for delivering fuel and oxidizer to the combustion chamber at extreme pressures. Turbopumps, driven by a turbine spun by burning a portion of the propellant, can generate pressures exceeding 3,000 psi, ensuring a steady and reliable flow even in the vacuum of space. The SpaceX Merlin engine, for instance, uses a single-shaft turbopump that spins at over 20,000 RPM, delivering liquid oxygen and kerosene at a combined flow rate of 600 gallons per second. Without robust and efficient pumps, the engine would starve, rendering the rocket powerless.
Optimizing these components requires a delicate balance between thermodynamics, fluid dynamics, and materials science. Nozzles must withstand temperatures exceeding 3,000°C, often using regenerative cooling channels to prevent melting. Injectors must be resistant to coking—the buildup of carbon deposits—which can clog the system. Pumps must be both lightweight and durable, capable of handling cryogenic fluids without leakage or failure. Advances in additive manufacturing, such as 3D printing, are revolutionizing engine design, allowing for complex geometries that were previously impossible to produce.
In practice, engineers often simulate and test these components in stages, starting with computational fluid dynamics (CFD) models to predict flow behavior, followed by hot-fire tests to validate performance. For example, NASA’s RS-25 development program conducted over 500 tests, accumulating more than 10,000 seconds of firing time, to refine the engine’s design. The takeaway is clear: nozzles, injectors, and pumps are not just parts of a rocket engine—they are the linchpins of its performance, demanding meticulous design and testing to unlock the full potential of liquid fuel propulsion.
Can Bad Fuel Damage Your Throttle? Risks and Prevention Tips
You may want to see also
Explore related products
Thrust Generation: Expanding gases exit the nozzle, creating forward propulsion
Liquid fuel rockets operate on a principle as elegant as it is powerful: thrust generation through the expulsion of expanding gases. At the heart of this process lies the combustion of propellants—typically a fuel and an oxidizer—which produces a high-pressure, high-temperature gas. This gas is then accelerated through a nozzle, converting thermal energy into kinetic energy. As the gas exits the nozzle at supersonic speeds, it creates a reactive force in the opposite direction, propelling the rocket forward. This phenomenon is governed by Newton’s third law of motion: for every action, there is an equal and opposite reaction.
Consider the design of the nozzle, a critical component in maximizing thrust efficiency. The shape of the nozzle is not arbitrary; it is carefully engineered to expand the exhaust gases to match the ambient atmospheric pressure. In a vacuum, such as in space, the nozzle must be longer and narrower to achieve full expansion, while in Earth’s atmosphere, a shorter nozzle is more effective. For instance, the Saturn V rocket’s F-1 engines used a fixed nozzle design optimized for sea-level conditions, while the RL10 engines on the Centaur upper stage featured a expandable nozzle for vacuum operation. Understanding these nuances is essential for engineers aiming to optimize thrust across different environments.
To illustrate the practical application of thrust generation, examine the combustion process in a liquid oxygen (LOx) and kerosene (RP-1) engine, such as the Merlin engines used in SpaceX’s Falcon 9. The fuel and oxidizer are injected into the combustion chamber at precise ratios, typically around 2.5:1 by mass for RP-1 to LOx. Upon ignition, the mixture burns at temperatures exceeding 3,300°C (6,000°F), producing a gas mixture primarily composed of carbon dioxide, water vapor, and nitrogen. This gas is then expelled through the nozzle at speeds up to 3,000 meters per second (9,800 feet per second), generating thrust in the hundreds of thousands of newtons. The efficiency of this process hinges on complete combustion and minimal heat loss to the engine walls.
A comparative analysis reveals the advantages of liquid fuel rockets over solid fuel counterparts in thrust generation. Liquid propellants allow for precise control of the combustion rate, enabling throttling and shutdown capabilities—features absent in solid rockets. For example, the RS-25 engines on the Space Shuttle could throttle between 67% and 109% of their rated thrust, providing flexibility during ascent. Additionally, liquid fuels offer higher specific impulse (Isp), a measure of efficiency, with LOx/RP-1 combinations achieving around 300 seconds at sea level compared to 260 seconds for solid fuels. This makes liquid fuel rockets ideal for missions requiring high delta-v, such as interplanetary travel.
Finally, optimizing thrust generation requires attention to safety and operational considerations. The extreme pressures and temperatures involved pose significant engineering challenges. For instance, regenerative cooling—where propellant flows through channels in the nozzle and combustion chamber walls—is essential to prevent melting. Operators must also account for propellant density and viscosity, as cryogenic fuels like liquid hydrogen (LH2) require insulation to minimize boil-off. Practical tips include pre-chilling engines before ignition and using helium pressurization systems to maintain propellant flow. By mastering these details, engineers can harness the full potential of expanding gases to achieve unparalleled propulsion efficiency.
Understanding Biomass Fuel Production: A Step-by-Step Manufacturing Process
You may want to see also
Explore related products
Fuel Efficiency: Specific impulse measures efficiency; higher values mean better performance
Liquid fuel rockets rely on the combustion of propellants to generate thrust, and their efficiency is quantified by a critical metric: specific impulse (Isp). This measure, expressed in seconds, indicates how effectively a rocket engine converts propellant mass into velocity. Simply put, a higher Isp means more thrust per unit of fuel, translating to better performance and greater payload capacity. For instance, liquid oxygen (LOx) and liquid hydrogen (LH2) boast an Isp of approximately 450 seconds in a vacuum, making them a staple for high-efficiency applications like interplanetary missions.
To understand Isp’s practical implications, consider the trade-offs in propellant selection. While LOx/LH2 offers exceptional efficiency, its low density requires larger tanks, complicating design. In contrast, LOx/kerosene, with an Isp of around 350 seconds, is denser and easier to handle, making it ideal for launch vehicles like SpaceX’s Falcon 9. Engineers must balance Isp with factors like cost, storage, and mission requirements. For example, a satellite launch might prioritize moderate Isp and affordability, while a deep-space probe demands maximum efficiency despite logistical challenges.
Improving fuel efficiency isn’t just about propellant choice; it’s also about engine design and operational strategies. Modern engines like the RS-25, used in the Space Shuttle, achieve high Isp through advanced combustion chambers and regenerative cooling. Additionally, staging—shedding empty fuel tanks mid-flight—maximizes efficiency by reducing dead weight. For hobbyists or small-scale experiments, optimizing Isp can be as simple as ensuring precise fuel-oxidizer mixing ratios or using high-quality pumps to maintain consistent pressure.
A comparative analysis reveals that while chemical propellants dominate today’s rockets, emerging technologies like ion propulsion offer Isp values exceeding 3,000 seconds. However, their low thrust makes them unsuitable for Earth launches, highlighting the importance of matching propulsion systems to mission profiles. For liquid fuel rockets, incremental Isp improvements—even as small as 10 seconds—can significantly extend mission capabilities, such as enabling heavier payloads or longer journeys.
In practice, achieving optimal fuel efficiency requires a holistic approach. Start by selecting propellants with the highest feasible Isp for your mission. Next, invest in robust engine designs that minimize losses from heat or incomplete combustion. Finally, simulate and test rigorously to validate performance. Whether you’re designing a commercial satellite launcher or a student rocket, understanding and maximizing specific impulse is key to unlocking the full potential of liquid fuel propulsion.
Carbs and Brain Power: Unlocking Cognitive Fuel for Optimal Function
You may want to see also
Frequently asked questions
Liquid rocket fuels typically consist of a fuel (e.g., liquid hydrogen, kerosene, or hydrazine) and an oxidizer (e.g., liquid oxygen, nitrogen tetroxide, or nitric acid) that react to produce thrust.
Liquid hydrogen is used because of its high specific impulse (efficiency) and low molecular weight, which allows rockets to carry more payload while minimizing mass.
In a liquid fuel rocket, the fuel and oxidizer are pumped into a combustion chamber, where they mix and ignite. The resulting hot, high-pressure gases are expelled through a nozzle, generating thrust.
Liquid fuel rockets offer better control over thrust and can be throttled or shut down mid-flight, whereas solid fuel rockets burn continuously once ignited. Liquid fuels also generally provide higher specific impulse.
