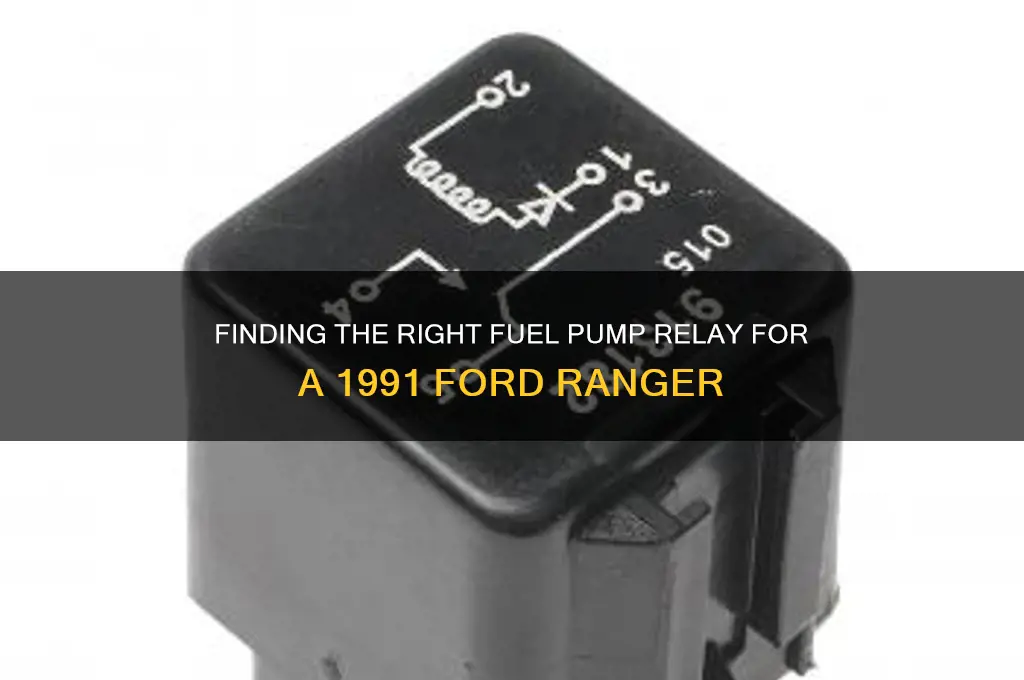

The fuel pump relay in a 1991 Ford Ranger is a critical component of the vehicle's fuel system, responsible for controlling the power supply to the electric fuel pump. Located in the main under-hood relay box, this relay ensures that the fuel pump operates only when the engine is running or being started, conserving energy and enhancing safety. Identifying the correct fuel pump relay for a 1991 Ford Ranger involves verifying the part number or consulting the vehicle’s manual, as using the wrong relay can lead to fuel delivery issues or potential damage to the fuel system. Understanding its function and location is essential for troubleshooting or replacing the relay if it fails, ensuring the vehicle’s fuel system operates efficiently.
| Characteristics | Values |
|---|---|
| Year & Model | 1991 Ford Ranger |
| Relay Type | Fuel Pump Relay |
| Part Number | E3TZ-9C406-A (varies by manufacturer, e.g., Ford, Standard Motor Products) |
| Terminals | 5-pin configuration |
| Voltage | 12V |
| Current Rating | Typically 30A (check specific relay for exact rating) |
| Mounting Location | Usually located in the engine compartment fuse box |
| Function | Controls power to the fuel pump to ensure proper fuel delivery |
| Compatibility | Specific to 1991 Ford Ranger with compatible engine types |
| Replacement Brands | Ford OEM, Standard Motor Products, AC Delco, etc. |
| Symptoms of Failure | No start, engine stalls, fuel pump not priming |
| Price Range | $10–$30 (varies by brand and retailer) |
| Wiring Diagram | Available in Ford Ranger service manuals or online resources |
| Interchangeable Parts | Some relays may be compatible with other Ford models (verify before use) |
Explore related products
What You'll Learn
- Relay Location: Where to find the fuel pump relay in a 1991 Ford Ranger
- Relay Function: How the fuel pump relay controls power to the fuel pump
- Symptoms of Failure: Signs indicating a faulty fuel pump relay in the vehicle
- Replacement Process: Steps to replace the fuel pump relay in a 91 Ranger
- Compatibility: Identifying the correct fuel pump relay part number for the model
Relay Location: Where to find the fuel pump relay in a 1991 Ford Ranger
Locating the fuel pump relay in a 1991 Ford Ranger is a straightforward task once you know where to look. The relay is typically housed in the power distribution box, which is located in the engine compartment. This box contains various fuses and relays that control essential electrical components of the vehicle, including the fuel pump. Understanding its exact location can save you time and frustration when troubleshooting fuel system issues or performing maintenance.
To find the fuel pump relay, start by opening the hood and identifying the power distribution box. It’s usually mounted on the driver’s side fender apron, near the firewall. The box is secured with a latch or clip, which you’ll need to release to access the interior. Inside, you’ll find a diagram on the lid or cover that labels each relay and fuse. Look for the designation “Fuel Pump” or “FP” to pinpoint the correct relay. If the diagram is missing or unclear, consult your Ford Ranger’s owner’s manual or a repair guide for accurate identification.
Once you’ve located the fuel pump relay, it’s important to handle it carefully. Relays are sensitive components, and rough handling can cause damage. To test or replace the relay, gently pull it straight out of its socket. If you’re testing it, swap it with a relay of the same type from another position in the box (e.g., the horn relay) to see if the fuel pump engages. If the fuel pump operates with the swapped relay, the original relay is likely faulty and needs replacement. Always ensure the ignition is off when working with electrical components to avoid accidents.
For added convenience, consider labeling the relay’s position with a permanent marker or sticker if the diagram is unclear. This small step can save time during future inspections or repairs. Additionally, keep a spare fuel pump relay in your vehicle’s emergency kit, as a failing relay can leave you stranded. By familiarizing yourself with the relay’s location and function, you’ll be better equipped to address fuel system issues efficiently and confidently.
Are US Motor Works Fuel Pumps Reliable and Worth the Investment?
You may want to see also
Explore related products
Relay Function: How the fuel pump relay controls power to the fuel pump
The fuel pump relay in a 1991 Ford Ranger acts as a critical intermediary between the vehicle’s electrical system and the fuel pump, ensuring power is delivered only when the engine is running or being started. This relay is essentially an electromagnetic switch that activates the fuel pump circuit when the ignition is turned on, preventing the pump from running continuously and conserving energy. Without this relay, the fuel pump would either operate nonstop, draining the battery, or fail to engage at all, leaving the engine without fuel.
Analyzing its function, the relay operates based on a signal from the ignition switch or the engine control module (ECM). When the key is turned to the "on" or "start" position, the ECM sends a low-voltage signal to the relay, energizing its coil. This creates a magnetic field that closes the relay’s internal contacts, allowing high-current power from the battery to flow to the fuel pump. Once the engine is running, the ECM maintains this signal to keep the pump active. If the engine stalls or the ignition is turned off, the signal ceases, de-energizing the relay and cutting power to the pump.
A practical tip for diagnosing relay issues: If your 1991 Ford Ranger fails to start or stalls immediately, test the relay by swapping it with another identical relay in the fuse box (e.g., the horn relay). If the problem resolves, the fuel pump relay is likely faulty. Additionally, listen for the fuel pump’s priming hum when turning the ignition to "on" but not starting the engine; a lack of sound could indicate a relay failure.
Comparatively, older vehicles without a fuel pump relay often relied on direct wiring, which posed safety risks and inefficiencies. The relay in the 1991 Ranger not only enhances safety by isolating the high-current circuit but also improves fuel efficiency by ensuring the pump operates only when necessary. This design reflects a shift toward smarter, more controlled vehicle systems in the early 1990s.
In conclusion, the fuel pump relay in a 1991 Ford Ranger is a small but vital component that orchestrates the precise delivery of power to the fuel pump. Understanding its function not only aids in troubleshooting but also highlights the ingenuity of automotive electrical systems. Regularly checking the relay’s condition and ensuring proper connections can prevent unexpected breakdowns and maintain optimal engine performance.
Do Fuel Pumps Automatically Stop? Understanding Your Vehicle's Fuel System
You may want to see also
Explore related products
Symptoms of Failure: Signs indicating a faulty fuel pump relay in the vehicle
A faulty fuel pump relay in a 1991 Ford Ranger can manifest through several distinct symptoms, each signaling potential issues with fuel delivery. One of the most immediate signs is difficulty starting the engine, particularly after the vehicle has been running and the engine is warm. This occurs because the relay fails to provide consistent power to the fuel pump, causing intermittent operation or complete shutdown. If the engine cranks but doesn't start, or if it starts only after multiple attempts, the fuel pump relay may be the culprit.
Another telltale symptom is stalling or misfiring during acceleration or under load. When the relay malfunctions, the fuel pump may not deliver sufficient fuel to meet the engine’s demands, leading to a lean fuel-air mixture. This can cause the engine to hesitate, sputter, or stall, especially when climbing hills or towing. Drivers may also notice a loss of power or rough idling, which worsens as the relay’s condition deteriorates.
Unusual noises from the fuel tank area can also indicate a failing relay. If the relay intermittently cuts power to the fuel pump, the pump may emit a whining or humming sound as it struggles to operate. While this noise is normal during startup, persistent or erratic sounds suggest an electrical issue with the relay. Ignoring this symptom can lead to premature fuel pump failure, as the pump is forced to work under inconsistent power conditions.
A less obvious but equally important sign is an illuminated check engine light. While this light can indicate various issues, a faulty fuel pump relay often triggers codes related to fuel system performance. Using an OBD-I scanner (appropriate for a 1991 model) can help diagnose specific trouble codes, such as those related to fuel pressure or pump circuit malfunctions. However, reliance on the check engine light alone is insufficient; combining it with other symptoms provides a clearer diagnosis.
Finally, a practical tip for testing the relay involves swapping it with a similar relay in the fuse box, such as the horn or A/C relay. If the issue resolves temporarily, the fuel pump relay is likely at fault. This method is cost-effective and can save time before purchasing a replacement. Always consult the vehicle’s manual for relay location and compatibility to avoid damaging other components. Addressing these symptoms promptly ensures reliable fuel delivery and prevents further damage to the vehicle’s fuel system.
Step-by-Step Guide to Removing a 2008 Toyota Avalon Fuel Pump
You may want to see also
Explore related products
Replacement Process: Steps to replace the fuel pump relay in a 91 Ranger
The fuel pump relay in a 1991 Ford Ranger is a critical component located in the engine bay fuse box, often labeled as "FPR" or "Fuel Pump." Before diving into the replacement process, ensure you have the correct replacement part, typically a Ford OEM relay or a compatible aftermarket option. This relay controls power to the fuel pump, and a faulty one can lead to starting issues or stalling. Replacing it is a straightforward task that requires basic tools and attention to detail.
Step 1: Locate the Relay
Open the hood and identify the fuse/relay box, usually on the driver’s side fender. Consult the lid or owner’s manual for the exact position of the fuel pump relay. It’s often a black or gray rectangular component with a diagram indicating its function. Gently pull the relay straight out of its slot, noting its orientation for proper reinstallation of the new one.
Step 2: Test and Prepare
Before installing the new relay, test the old one using a multimeter to confirm it’s faulty. Check for continuity across the terminals or swap it with a similar relay in the box (e.g., the horn relay) to see if the issue resolves. If the old relay is confirmed bad, ensure the new relay matches the pin configuration and voltage specifications (typically 12V).
Step 3: Install the New Relay
Insert the new relay into the same slot, aligning the pins correctly. Apply firm, even pressure until it clicks into place. Avoid forcing it, as misalignment can damage the relay or fuse box. Double-check the fit to ensure it’s secure and seated properly.
Step 4: Verify Functionality
Start the vehicle to confirm the fuel pump operates correctly. Listen for the pump’s hum, which should last 2-3 seconds when the ignition is turned on. If the engine starts and runs smoothly, the replacement was successful. If not, recheck connections or test for other fuel system issues, such as a clogged fuel filter or faulty pump.
Cautions and Tips
Always disconnect the battery before working on electrical components to prevent short circuits. Keep a diagram of the fuse box layout handy for future reference. If the issue persists after replacement, consider testing the fuel pump inertia switch (if equipped) or inspecting the wiring harness for damage. Regularly inspecting relays during routine maintenance can prevent unexpected breakdowns.
Testing a 1979 Dodge Fuel Pump: Step-by-Step Guide
You may want to see also
Explore related products
![OAW F1770 Engine Water Pump [2-Hose Outlet] for 90-97 Ford Aerostar, 91-00 Ford Explorer, 90-01 Ford Ranger, 94-00 Mazda B4000 V6 4.0L OHV VIN X (Will not fit SOHC Engine)](https://m.media-amazon.com/images/I/51MESwN3ZyL._AC_UL320_.jpg)
Compatibility: Identifying the correct fuel pump relay part number for the model
Identifying the correct fuel pump relay for a 1991 Ford Ranger requires precision, as using an incompatible part can lead to poor performance or even engine failure. The first step is to consult the vehicle’s service manual or a trusted parts database, such as Ford’s official parts catalog or reputable automotive platforms like RockAuto or AutoZone. These resources often list the specific part number based on the Ranger’s engine type (e.g., 2.3L, 2.9L, or 4.0L) and transmission configuration. For instance, the fuel pump relay for a 1991 Ford Ranger with a 2.9L engine may differ from one with a 2.3L engine, so accuracy is critical.
Once you’ve narrowed down the part number, cross-reference it with multiple sources to ensure consistency. Discrepancies can arise due to regional variations or updates in manufacturing. For example, some 1991 Rangers may have been equipped with a fuel pump relay bearing the part number E7TZ-9396-A, while others might use a different variant. Physical inspection of the existing relay can also provide clues; look for the part number stamped on the relay itself, though age and wear may make this difficult. If the original part number is illegible, compare the relay’s shape, pin configuration, and mounting style to online images or diagrams.
Compatibility isn’t just about the part number—it’s also about the relay’s function within the vehicle’s electrical system. The fuel pump relay in a 1991 Ford Ranger typically operates at 12 volts and controls the power supply to the fuel pump. Ensure the replacement relay matches the original’s amperage rating, usually around 30 amps, to avoid overloading the circuit. Aftermarket relays may offer similar specifications but verify their compatibility with your Ranger’s wiring harness to prevent installation issues.
A practical tip for DIY enthusiasts: test the relay before installation using a multimeter. Check for continuity between the relay’s input and output terminals when activated. If the relay fails this test, it’s a clear sign of incompatibility or malfunction. Additionally, consider purchasing relays from reputable suppliers who offer detailed compatibility charts or customer support to assist with part selection. This extra step can save time and prevent the frustration of incorrect orders.
Finally, while cost is a factor, prioritize quality and compatibility over price. Cheap, generic relays may fit physically but lack the durability or precise specifications required for your Ranger’s system. Opt for OEM (Original Equipment Manufacturer) parts or high-quality aftermarket brands known for their reliability. By combining thorough research, physical verification, and functional testing, you can confidently identify the correct fuel pump relay part number for your 1991 Ford Ranger, ensuring optimal performance and longevity.
Diagnosing Fuel Pump Issues: A Step-by-Step Power Check Guide
You may want to see also
Frequently asked questions
The fuel pump relay for a 1991 Ford Ranger is a component in the vehicle's electrical system that controls the power supply to the fuel pump. It ensures the fuel pump only operates when the engine is running or being started.
In a 1991 Ford Ranger, the fuel pump relay is typically located in the power distribution box under the hood. It may also be found near the fuse panel, depending on the specific model and configuration.
Symptoms of a faulty fuel pump relay in a 1991 Ford Ranger include difficulty starting the engine, stalling, or a complete failure to start. You may also notice the engine cranks but doesn’t fire, or the fuel pump doesn’t prime when the key is turned to the "on" position.
To replace the fuel pump relay in a 1991 Ford Ranger, locate the relay in the power distribution box, disconnect the battery, remove the old relay by pulling it straight out, and insert the new relay in the same position. Ensure it clicks into place securely, then reconnect the battery and test the vehicle.
