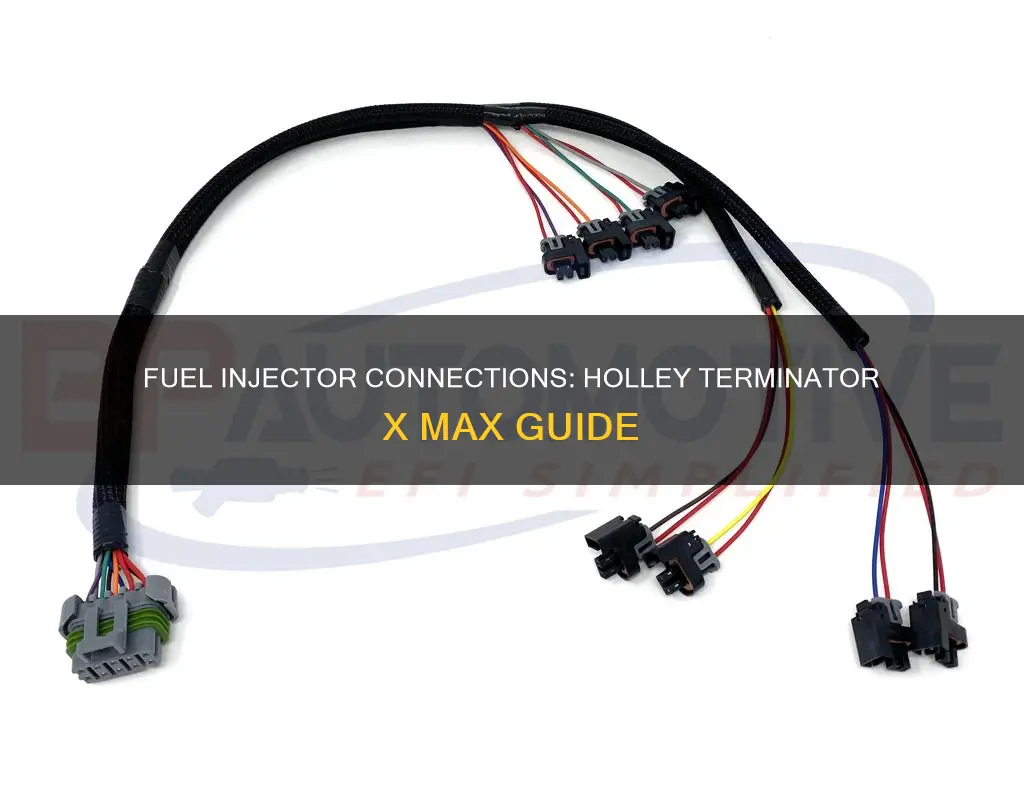

The Holley Terminator X Max is a powertrain management system that offers plug-and-play control for most domestic V8 engines. The system includes a range of features such as boost control functionality, nitrous control, and a robust boost control system. The Terminator X Max also comes with a range of kits, including Ford, LS, and Gen V LT Direct Injection kits, each with its own unique features and applications. One of the critical components of the system is the fuel injector connection, which plays a crucial role in delivering fuel to the engine. In this discussion, we will focus specifically on understanding the fuel injector connection within the Holley Terminator X Max system and its role in achieving optimal engine performance.
| Characteristics | Values |
|---|---|
| Main Harness Connector | J1A |
| Main Harness Connector Type | "Input" |
| Second Connector | J1B |
| Second Connector Type | "Output" |
| Number of Injector Outputs | 8 |
| MAP Sensor | Connect directly to full manifold vacuum port on the intake manifold |
| Main Power | Connects to the Main Power Harness |
| Connection Type | Wired directly to the Battery Terminals |
| Connection Point for the Drive-By-Wire Harness | J3 |
| Connection Point for the Transmission Harness | J4 |
| Number of Inputs | 4 |
| Input Types | 12v, Ground, 5v, and Frequency |
| Number of Outputs | 4 |
| Output Types | Ground, PWM |
Explore related products
What You'll Learn
Main Power wiring
The Main Power wiring for the Holley Terminator X Max connects to the Main Power Harness. The two wires must be wired directly to the battery terminals.
The Main Power wiring is part of the J1B - Main Harness Connector, which is the second connector and the "output" connector. It has 8 injector outputs and outputs for other devices.
The J1B connector is also used for the MAP Sensor, which is used on N/A applications. This should be connected directly to the full manifold vacuum port on the intake manifold.
The J1A connector is the "input" connector and contains all the sensor inputs and wideband oxygen sensor control.
The J3 connector is the connection point for the Drive-By-Wire harness, and the J4 connector is for the Transmission harness.
The Holley Terminator X Max has minimal wiring termination, requiring only Battery Power/Ground, Switched 12v, and a Clean Chassis Ground to get the engine up and running.
