The Apollo 11 mission, which successfully landed humans on the Moon in 1969, relied on a combination of fuels to power its various stages and components. The Saturn V rocket, which launched the mission, used liquid oxygen (LOX) and rocket-grade kerosene (RP-1) in its first stage, while the second and third stages utilized liquid hydrogen (LH2) and liquid oxygen. These powerful propellants provided the necessary thrust to escape Earth's gravity and propel the spacecraft toward the Moon. Additionally, the Apollo Service Module and Lunar Module carried their own fuel systems, primarily using Aerozine 50 (a hypergolic fuel) and nitrogen tetroxide (NTO) for their engines, ensuring precise maneuvers in space and during the lunar landing and ascent phases.
Explore related products
What You'll Learn
- Liquid Oxygen (LOX) and RP-1: Apollo 11's Saturn V rocket stages used LOX and RP-1
- Liquid Hydrogen (LH2): The second and third stages utilized LH2 for efficient propulsion
- Hypergolic Propellants: The Lunar Module relied on hypergolic fuels for ascent and descent
- Fuel Efficiency: The Saturn V's fuel mix maximized thrust and range for lunar missions
- Storage and Handling: Cryogenic fuels required advanced storage to maintain extremely low temperatures
Liquid Oxygen (LOX) and RP-1: Apollo 11's Saturn V rocket stages used LOX and RP-1

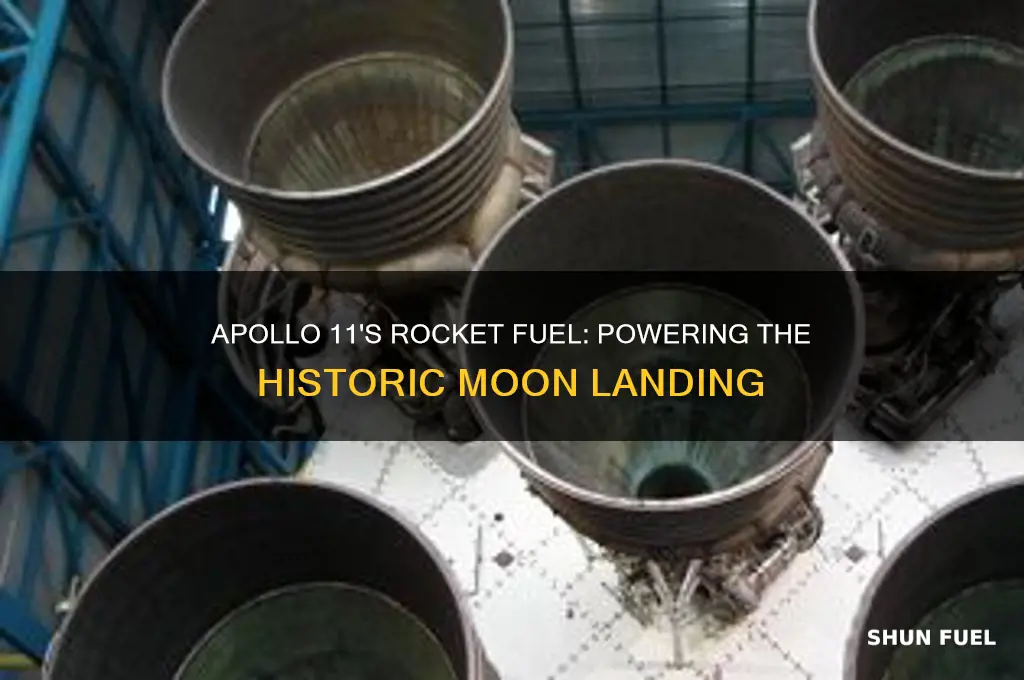

The Saturn V rocket, which propelled Apollo 11 to the Moon, relied on a combination of Liquid Oxygen (LOX) and Rocket Propellant-1 (RP-1) for its first stage. This powerful duo, known as a kerosene-liquid oxygen (kerolox) mixture, was chosen for its high energy density and reliability. The first stage, dubbed the S-IC, produced a staggering 7.7 million pounds of thrust at liftoff, consuming approximately 20,500 gallons of RP-1 and 318,000 gallons of LOX in just 2.5 minutes. This stage was critical for overcoming Earth’s gravity and setting the mission on its trajectory.
To understand why LOX and RP-1 were ideal, consider their roles. Liquid Oxygen acts as the oxidizer, enabling combustion by supplying oxygen in a liquid state, which is far denser than its gaseous form. RP-1, a highly refined kerosene, serves as the fuel, burning efficiently in the presence of LOX. This combination is not only powerful but also relatively stable and easy to handle compared to more volatile cryogenic fuels. For engineers, this meant fewer risks during fueling and storage, a critical factor for a mission as complex as Apollo 11.
Implementing LOX and RP-1 required precise engineering. The Saturn V’s first stage housed five F-1 engines, each consuming 1,500 gallons of RP-1 and 22,500 gallons of LOX per second at full throttle. To manage this, the rocket’s tanks were insulated to keep LOX at its cryogenic temperature of -297°F, while RP-1 was maintained at a cooler but non-cryogenic 85°F. This temperature balance ensured optimal performance without compromising structural integrity. For enthusiasts or engineers replicating such systems, maintaining these conditions is a non-negotiable step.
Comparatively, LOX and RP-1 offered a middle ground between simplicity and performance. While hydrogen-based fuels provide higher specific impulse (efficiency in vacuum), they require extreme cold and larger tanks, complicating design. LOX and RP-1, on the other hand, struck a balance, making them a practical choice for Earth’s atmosphere. This is why they remain a staple in modern rockets like SpaceX’s Falcon 9, proving their enduring relevance beyond Apollo 11.
In conclusion, the Saturn V’s use of LOX and RP-1 was a masterclass in engineering pragmatism. By combining high thrust, manageable logistics, and proven reliability, this fuel system played a pivotal role in humanity’s first lunar landing. For anyone studying rocket propulsion, the LOX-RP-1 pairing in Apollo 11 offers a timeless lesson in optimizing performance within real-world constraints.
Subaru WRX Fuel Requirements: Unleashing Performance with the Right Gasoline
You may want to see also
Explore related products
Liquid Hydrogen (LH2): The second and third stages utilized LH2 for efficient propulsion
The Apollo 11 mission, which successfully landed humans on the Moon, relied on a carefully engineered propulsion system to achieve its historic feat. Central to this system was the use of Liquid Hydrogen (LH2) in the second and third stages of the Saturn V rocket. LH2, stored at a cryogenic temperature of -253°C (-423°F), was chosen for its exceptional specific impulse—a measure of efficiency in rocket propulsion. This property allowed the rocket to generate more thrust per unit of propellant, making it ideal for the high-energy demands of escaping Earth's gravity and achieving lunar trajectory.
To understand why LH2 was critical, consider the energy density and mass requirements of space travel. While LH2 has a lower energy density by volume compared to traditional fuels like kerosene, its lightweight nature (being the lightest element on the periodic table) significantly reduces the overall mass of the rocket. This mass savings is crucial, as every kilogram saved allows for greater payload capacity or additional fuel for longer missions. For Apollo 11, the second stage (S-II) and third stage (S-IVB) of the Saturn V rocket carried approximately 1,000,000 liters (260,000 gallons) of LH2, paired with Liquid Oxygen (LOX) as the oxidizer, to produce the necessary thrust.
Implementing LH2 was not without challenges. Its cryogenic nature required advanced insulation and storage systems to prevent boil-off during the countdown and ascent phases. NASA engineers developed sophisticated vacuum-jacketed tanks and sun shields to minimize heat transfer, ensuring the LH2 remained in a liquid state. Additionally, the fuel’s low temperature demanded specialized materials for the rocket’s structure and plumbing to avoid embrittlement and failure. These innovations not only enabled the success of Apollo 11 but also laid the groundwork for future cryogenic propulsion systems in space exploration.
From a practical standpoint, LH2’s role in Apollo 11 underscores its value in modern rocketry. Today, LH2 continues to be used in upper stages of launch vehicles like the Space Launch System (SLS) and various satellite launchers. For enthusiasts or engineers working with cryogenic fuels, key considerations include maintaining thermal stability, ensuring leak-tight systems, and implementing robust safety protocols due to LH2’s flammability. While handling LH2 requires precision and expertise, its unparalleled efficiency makes it indispensable for missions beyond Earth’s orbit.
In conclusion, the use of Liquid Hydrogen in Apollo 11’s second and third stages exemplifies the marriage of scientific principles and engineering ingenuity. Its high specific impulse and low mass enabled the Saturn V to deliver astronauts to the Moon, while its challenges spurred advancements in cryogenic technology. As space exploration continues to push boundaries, LH2 remains a cornerstone of propulsion systems, proving that sometimes the coldest fuel can ignite the hottest achievements.
Fire Breathing Fuel: Unveiling the Secrets Behind the Fiery Art
You may want to see also
Explore related products
![[UPGRADED WHITE] RP-AP088 RP-AP088B Filter Compatible with RENPHO RP-AP088-F1 RP-AP088-F2 H13 True Replacement Filter for RP-AP088B RP-AP088W RP-AP088W/RP-AP088B Air Purifier Model RP-AP088, 1-Pack](https://m.media-amazon.com/images/I/81nwmrcbKGL._AC_UL320_.jpg)
Hypergolic Propellants: The Lunar Module relied on hypergolic fuels for ascent and descent
The Apollo 11 Lunar Module, known as the Eagle, relied on hypergolic propellants for both its descent to the lunar surface and its ascent back to lunar orbit. Hypergolic fuels, which ignite spontaneously upon contact with their oxidizer, were chosen for their reliability and simplicity in the harsh conditions of space. The Eagle’s descent stage used a combination of Aerozine 50 (a blend of hydrazine and unsymmetrical dimethylhydrazine) as the fuel and nitrogen tetroxide (NTO) as the oxidizer. This mixture provided the necessary thrust for a controlled landing, with the engine capable of throttling between 1,050 and 10,100 pounds of force to ensure precision during the final approach.
One of the key advantages of hypergolic propellants is their self-igniting nature, eliminating the need for an ignition system. This simplicity was critical for the Lunar Module, where every component had to function flawlessly in the vacuum of space. The ascent stage, which carried astronauts Neil Armstrong and Buzz Aldrin back to the Command Module, used the same hypergolic combination but in a smaller engine. This engine produced approximately 3,500 pounds of thrust, sufficient to lift the ascent stage off the lunar surface and rendezvous with Michael Collins in orbit. The hypergolic nature of the fuels ensured that the engine would start instantly, a non-negotiable requirement for a successful return.
However, hypergolic propellants are not without their challenges. Both Aerozine 50 and NTO are highly toxic and corrosive, requiring stringent safety measures during handling and storage. For instance, Aerozine 50 is a carcinogen and can cause severe skin burns, while NTO is a strong oxidizer that can react violently with organic materials. NASA engineers had to design specialized storage tanks and protective gear to mitigate these risks. Despite these hazards, the reliability of hypergolics outweighed the drawbacks, making them the preferred choice for critical missions like Apollo 11.
In practical terms, the use of hypergolic propellants allowed the Lunar Module to operate with minimal complexity, a vital factor given the limited computing power and communication capabilities of the era. The fuels’ stability and ease of use ensured that the Eagle could execute its mission without the need for complex ignition systems or extensive troubleshooting. This reliability was demonstrated during the Apollo 11 mission, where both the descent and ascent engines performed flawlessly, enabling humanity’s first steps on the Moon. For modern applications, hypergolic propellants remain a staple in spacecraft design, particularly for missions requiring precision and dependability in extreme environments.
Hydrogen Peroxide's Power: Unlocking Rocket Fuel Efficiency and Safety
You may want to see also
Explore related products
Fuel Efficiency: The Saturn V's fuel mix maximized thrust and range for lunar missions
The Saturn V rocket, which propelled Apollo 11 to the Moon, relied on a meticulously engineered fuel mix to achieve its historic mission. Its first stage used RP-1 (refined kerosene) and liquid oxygen (LOX), a combination chosen for its high energy density and reliability. This stage generated a staggering 7.6 million pounds of thrust, lifting the rocket off the launchpad and through Earth’s atmosphere. The second and third stages, however, employed liquid hydrogen (LH2) and LOX, a fuel mix prized for its exceptional specific impulse—a measure of efficiency in vacuum conditions. This dual-fuel strategy maximized both initial thrust and long-range capability, ensuring the rocket could escape Earth’s gravity and reach lunar orbit with precision.
To understand the brilliance of this fuel mix, consider the trade-offs involved. RP-1/LOX provides raw power but is less efficient in vacuum, while LH2/LOX offers superior efficiency but requires larger tanks due to its lower density. The Saturn V’s designers strategically allocated these fuels to the stages where they performed best. The first stage, operating in Earth’s dense atmosphere, prioritized brute force, while the upper stages, working in the vacuum of space, leveraged LH2/LOX’s efficiency to conserve fuel and extend range. This layered approach ensured the rocket could carry the necessary payload—the Apollo spacecraft and its crew—without compromising performance.
A closer look at the numbers reveals the fuel mix’s effectiveness. The first stage consumed approximately 200,000 gallons of RP-1 and 300,000 gallons of LOX in just 2.5 minutes, producing enough thrust to accelerate the rocket to 6,000 mph. The second stage, powered by LH2/LOX, operated for 6 minutes, further boosting the spacecraft to 15,000 mph. Finally, the third stage’s LH2/LOX engine provided the final push, achieving the 24,500 mph needed for lunar trajectory. This staged combustion process, combined with the optimized fuel mix, ensured every drop of propellant contributed to the mission’s success.
Practical lessons from the Saturn V’s fuel strategy extend beyond space exploration. Engineers today study its design to improve efficiency in modern rockets, such as SpaceX’s Starship, which also uses a combination of fuels tailored to specific stages. For hobbyists or students experimenting with model rocketry, the Saturn V’s approach underscores the importance of matching fuel properties to mission requirements. For instance, sugar-based composite fuels might mimic RP-1’s high thrust for initial liftoff, while liquid nitrous oxide could simulate LH2’s efficiency for sustained flight. The Saturn V’s fuel mix wasn’t just a technical achievement—it was a masterclass in optimizing resources for unprecedented goals.
In retrospect, the Saturn V’s fuel efficiency was a cornerstone of Apollo 11’s triumph. By balancing power and range through a carefully selected fuel mix, NASA engineers ensured the rocket could overcome Earth’s gravity and traverse the vast distance to the Moon. This legacy continues to inspire innovation in aerospace, proving that the right combination of fuels can turn the impossible into history. Whether designing interplanetary missions or backyard rockets, the Saturn V’s approach remains a blueprint for maximizing performance with limited resources.
Sodbusters' Fuel Sources: Uncovering Pioneers' Energy Solutions for Survival
You may want to see also
Explore related products
Storage and Handling: Cryogenic fuels required advanced storage to maintain extremely low temperatures
Cryogenic fuels, such as liquid oxygen (LOX) and liquid hydrogen (LH2), are essential for rocket propulsion due to their high energy density. However, their effectiveness hinges on maintaining temperatures below -183°C (LOX) and -253°C (LH2). Even slight temperature increases cause rapid vaporization, rendering the fuel unusable. This extreme sensitivity demands specialized storage systems that go beyond conventional fuel handling.
The Apollo 11 mission relied on a two-stage Saturn V rocket, with the first stage using RP-1 (a highly refined kerosene) and LOX, while the second and third stages used LH2 and LOX. The cryogenic tanks for these stages were engineering marvels. Constructed from lightweight, high-strength aluminum alloys, they were insulated with multiple layers of materials like Mylar and foam to minimize heat transfer. Vacuum jackets further reduced thermal conduction, creating a near-perfect barrier against external heat.
Handling cryogenic fuels introduces unique risks, including thermal shock, embrittlement of materials, and the formation of oxygen-rich environments that heighten fire hazards. Technicians wore specialized protective gear, including insulated gloves and face shields, to prevent frostbite from contact with the fuels. Procedures were meticulously designed to avoid spills, as even small amounts of cryogenic liquid could cause severe cold burns or displace oxygen in enclosed spaces, creating asphyxiation risks.
For long-duration missions like Apollo 11, maintaining fuel stability during pre-launch delays was critical. The Saturn V’s cryogenic tanks were equipped with active cooling systems that continuously circulated helium gas to remove heat leaking into the tanks. This process, known as "topping," ensured the fuels remained in a liquid state until ignition. Despite these measures, some boil-off was inevitable, requiring precise calculations to account for fuel loss during storage.
In summary, the storage and handling of cryogenic fuels for Apollo 11 were feats of engineering and operational discipline. These systems not only preserved the fuels’ efficacy but also safeguarded personnel and equipment from the unique hazards of extreme cold. The success of the mission underscores the importance of mastering cryogenic technology in space exploration, a challenge that continues to shape modern rocketry.
Petroleum on Duramax Fuel Rail Plug: Safe or Risky?
You may want to see also
Frequently asked questions
Apollo 11 used a combination of liquid oxygen (LOX) and RP-1 (refined kerosene) as fuel for the Saturn V rocket's first stage.
The lunar module used aerozine 50 as fuel and nitrogen tetroxide (NTO) as oxidizer for its descent and ascent engines.
No, different stages of the mission used different fuels. The Saturn V rocket used RP-1 and LOX for the first stage, liquid hydrogen (LH2) and LOX for the second and third stages, and the lunar module used aerozine 50 and NTO.
The service propulsion system (SPS) of the command module used aerozine 50 as fuel and nitrogen tetroxide (NTO) as oxidizer.
Different fuels were chosen based on their efficiency, energy density, and suitability for specific stages of the mission, such as Earth launch, orbital maneuvers, and lunar operations.
