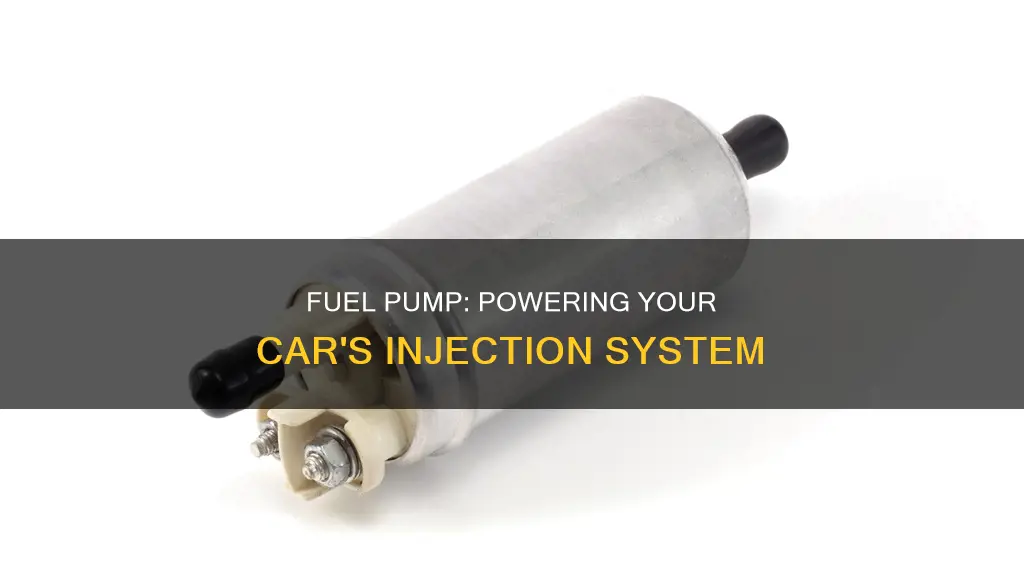

The fuel supply system is generally reliable, and fuel is delivered from the tank to the injection system via a pump. Fuel injection systems require a specific pressure to activate, and any issues with the system are usually related to the pump, fuel filter, or tank. In some cases, the fuel line between the tank and the engine may be the source of the problem. Mechanical fuel injection was used in the 1960s and 1970s for high-performance sports cars, with the Lucas PI system being a notable example. This system employed a high-pressure electric fuel pump mounted near the fuel tank to deliver fuel at a pressure of 100 psi to a fuel accumulator, which then distributed the fuel to each cylinder. Modern petrol injection systems use indirect injection, where a special pump sends fuel under pressure from the fuel tank to the engine bay, where it is distributed to each cylinder.
| Characteristics | Values |
|---|---|
| Type of injection system | Mechanical, indirect injection |
| Type of pump | Mechanical, electric, high-pressure |
| Pressure required | 20-50 psi, 100 psi |
| Fuel type | Petrol, diesel, LPG |
| Fuel delivery | Fuel passes through a pump and filter in the fuel rail before being delivered to injectors at high pressure |
Explore related products
Fuel pumps
Types of Fuel Pumps
Function of Fuel Pumps
The primary function of a fuel pump is to deliver fuel from the tank to the engine, where it is mixed with air and combusted to generate energy. This energy powers the crankshaft, enabling the vehicle to move. Fuel pumps ensure that the fuel injectors receive fuel at the required pressure. In carbureted engines, the fuel pump delivers fuel to the carburetor, where it is mixed with air before heading to the cylinder. In modern fuel-injected engines, the fuel and air mix directly in the cylinder.
Fuel Pump Maintenance
Maintaining the fuel pump is essential to ensure the vehicle's performance and longevity. Regular fuel system maintenance, including inspections and replacements of fuel pumps and filters, can help prevent issues. Running the vehicle with low fuel levels can strain the fuel pump as it has to work harder and endure more heat. Therefore, it is advisable to keep the fuel tank adequately filled to maintain the fuel pump's health.
Symptoms of a Failing Fuel Pump
Several symptoms indicate a failing fuel pump. If the vehicle struggles to start or doesn't start at all, the fuel pump may be damaged or clogged. Additionally, if the car requires excessive cranking to turn over, sputters, or stalls while driving, the fuel pump could be faulty. A low-pressure condition caused by a faulty fuel pump can lead to engine issues, especially during acceleration or when the vehicle is under stress.
Large Fuel Tank Storage: 500-Gallon Capacity Explored
You may want to see also
Explore related products
Fuel injection pressure
Fuel injection systems require a specific pressure to activate and feed gas from the fuel tank to the injection system. Fuel injection systems usually require at least 20 to 50 psi, and in some cases, up to 44,000 psi. If the required pressure is not achieved, there will be no fuel flow through the injectors.
Fuel pressure is critical to achieving the correct injection volume. The flow of fuel is directly proportional to the square root of the pressure ratio. For example, if the system has 25 psi when it should have 50 psi, the fuel flow will only be around 70% of the intended amount. Therefore, it is important to understand how fuel pressure works and how it is applied in different fuel systems.
There are two main types of fuel systems: returnless and return style. In a returnless system, excess fuel is not returned to the tank. In a return-style system, excess fuel is bled back into the tank through a regulator, maintaining a constant effective fuel pressure. This can extend the range of fuel injectors and improve their performance at lower fuel demands.
The effective pressure, or differential pressure, is the actual applied pressure across the injector. When an engine is idling, a vacuum is created in the intake manifold, pulling fuel out of the injectors and increasing the effective pressure. On the other hand, when a turbocharged vehicle is in boost, the pressure inside the manifold pushes fuel back into the injector, reducing the effective fuel pressure.
To achieve the required fuel pressure, fuel injection systems use devices such as fuel pumps to pressurise the fuel. Early mechanical injection systems utilised helix-controlled injection pumps, while modern systems employ electronic engine control units to meter the fuel and control various engine functions.
Venting Your Auxiliary Transfer Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel injectors
The process begins with fuel being pumped from the tank to the injectors. In some systems, such as the Lucas PI system used in the 1960s and 1970s, a high-pressure electric fuel pump mounted near the fuel tank pumps fuel at high pressure to a fuel accumulator. This accumulator acts as a temporary reservoir, ensuring a constant fuel supply and smoothing out the pulses of fuel coming from the pump. From the accumulator, the fuel passes through a filter and into the fuel distributor, which controls the timing and amount of fuel delivered to each injector.
In modern fuel injection systems, the fuel injectors are electronically controlled. An electronic control unit determines the duration for which the injector remains open, regulating the fuel flow. The injectors themselves are precision electro-mechanical solenoid valves, which open to release fuel when energised. This ensures that fuel is injected at precisely the right moment in the engine cycle, optimising cylinder filling and mixture preparation for efficient combustion and improved engine performance.
The pressure at which fuel is delivered to the injectors is critical to their function. Fuel injection systems typically require a minimum pressure of 20 to 50 psi for the injectors to activate. The fuel system employs mechanical or electric lift pumps to recover fuel from the tank and increase and regulate pressure. This ensures that fuel is delivered to the injectors at the correct pressure, allowing for accurate metering of the injected fuel quantity.
Cleaning Black Plastic Fuel Tanks: Tips and Tricks
You may want to see also
Explore related products
Fuel filters
Most internal combustion engines utilise fuel filters to safeguard the fuel system's components. Unfiltered fuel can contain various impurities, which, if not removed, can lead to rapid wear and failure of the fuel pump and injectors. The fuel filter acts as a barrier, trapping these harmful particles and ensuring they do not enter the engine.
The fuel system, including the fuel filter, plays a critical role in the overall combustion process. The system stores gasoline or diesel in the tank, which is then drawn through fuel lines. The fuel passes through the fuel filter, which purifies it, before continuing on to the carburetor or fuel injector. Subsequently, the fuel is supplied to the cylinder chamber, where it undergoes vaporisation and combustion to produce energy that powers the vehicle.
It is important to note that neglecting fuel filter maintenance can lead to issues such as inefficient fuel delivery, rough starts, sluggish acceleration, and decreased engine power. Therefore, vehicle owners should adhere to the recommended maintenance schedules provided by the auto manufacturer to ensure the fuel system, including the fuel filter, remains in optimal condition.
Fuel Tank Capacity: Gallons and Vehicle Efficiency
You may want to see also
Explore related products
Fuel lines
Overview of Fuel Lines
Fuel Line Types
There are two main types of fuel lines:
- Return-Style Fuel Lines: This type of fuel line system includes a return line that circulates excess fuel back to the tank. This design helps regulate fuel pressure and temperature, ensuring a consistent supply of fuel to the engine.
- Non-Return-Style Fuel Lines: In this system, there is no dedicated return line. Any excess fuel remains in the fuel injection system or is redirected through other means.
Fuel Line Connections
Fuel Line Maintenance
Proper maintenance of fuel lines is essential for vehicle safety and performance. Regular inspections for leaks, clogs, or damage are crucial. Replacing fuel filters at recommended intervals is also important to maintain fuel purity and prevent damage to the fuel lines and injection system.
Temporary Fuel Line Solutions
In certain situations, such as moving a vehicle with a faulty fuel pump, temporary fuel line setups may be employed. These typically involve using external fuel sources, such as jerry cans or auxiliary tanks, connected directly to the fuel injection system with appropriate hoses and clamps. However, it is important to exercise caution when attempting temporary solutions, as they may introduce risks if not executed properly.
In conclusion, fuel lines play a critical role in delivering fuel from the tank to the engine's fuel injection system. Understanding the types, connections, and maintenance requirements of fuel lines is essential for vehicle owners and technicians to ensure safe and efficient operation.
The Right Way to Add Fuel Additives
You may want to see also
Frequently asked questions
A fuel pump delivers fuel from the fuel tank to the injection system. The fuel pump is either located in the fuel tank or along the frame. Fuel injection systems require a specific pressure to activate, which is provided by the fuel pump.
A fuel accumulator, also known as a collector, acts as a short-term reservoir that maintains constant fuel supply pressure. It also smoothens out the fuel pulses coming from the pump. The accumulator then feeds the fuel into the fuel distributor, which controls the flow of fuel to the injectors.
The fuel supply system is generally reliable, but issues may arise due to problems with the pump, fuel filter, tank, or the fuel line between the tank and engine. Fuel temperature is also a concern, as higher temperatures reduce engine performance and make it challenging for the lift pumps to function effectively.
