Fuel filter regulators are an essential component of fuel systems, ensuring optimal performance and efficiency. They are designed to precisely control fuel pressure and manage excess fuel, maintaining a stable base pressure. The location of the regulator is important, as the longer the fuel line, the greater the potential for fuel pressure loss. While some believe it's best to place the regulator close to the fuel's destination, others opt for a more convenient or easily accessible location. The choice of regulator location depends on factors such as ease of installation, adjustment, and appearance, as well as performance requirements. Different types of regulators are available, such as return style, bypass, deadhead, and adjustable regulators, each serving a specific purpose based on fuel system characteristics.
Explore related products
What You'll Learn
- Fuel pressure regulators are designed to control fuel pressure
- Fuel filters are required before fuel rails and regulators
- A regulator close to the fuel rail can improve pressure regulation
- Return-style regulators are required for high-pressure fuel pumps
- Adjustable fuel pressure regulators allow for fine-tuning
Fuel pressure regulators are designed to control fuel pressure
The target power level will determine the amount of fuel needed from the fuel pumps. The higher the target power level, the more fuel flow is needed, and the larger the regulator needs to be to flow enough fuel to keep pressures at the desired level. For instance, streetcars that use pump fuel can use a smaller regulator, while race cars using race fuel or alcohol will need a larger regulator.
In mechanical systems, the regulator adjustment is based on the spring's tension and the diaphragm's position. In contrast, in electronic systems, the engine control unit (ECU) adjusts the pressure using input from sensors and control mechanisms. Electronic fuel pressure regulators offer more precision and can enhance engine output and fuel economy. They can also be adapted to different driving scenarios and integrated with modern engine management systems.
Fuel pressure regulators can be either return or bypass style. A return-style regulator bleeds off excess pressure in a return line back to the fuel tank. A bypass regulator uses a spring and diaphragm to control fuel system pressure and can be adjustable or preset. The regulator is typically installed between the fuel pump and carburetor or throttle body, but can also be at the end of a fuel injection rail.
Fuel Filter Installation in Dodge Ram 1500: Is It Possible?
You may want to see also
Explore related products
Fuel filters are required before fuel rails and regulators
Fuel filters are an essential component of any fuel system, and their placement is critical for optimal performance. When it comes to fuel delivery systems, fuel filters are required before fuel rails and regulators for several reasons.
Firstly, fuel filters play a vital role in ensuring the cleanliness of the fuel. They are designed to trap and remove contaminants such as dirt, rust, and debris from the fuel before it reaches the engine. By placing the fuel filter before the fuel rails and regulator, you can prevent these harmful particles from entering and damaging critical engine components. Contaminants can cause significant issues, such as clogged fuel injectors, reduced engine performance, and even engine failure.
Secondly, the placement of fuel filters before the fuel rails and regulator helps maintain consistent fuel pressure. Fuel filters contribute to creating a consistent flow of clean fuel, which is essential for the proper functioning of the fuel injectors. Without proper filtration, contaminants can disrupt the precise fuel delivery system, leading to uneven fuel distribution and affecting the engine's performance.
Additionally, fuel filters provide protection for the fuel rails and regulator themselves. By filtering out contaminants, they prevent the build-up of debris in these components, ensuring their longevity and optimal performance. Fuel rails and regulators are precision parts that require a clean fuel supply to function effectively.
In some fuel systems, the fuel filter and regulator may be integrated into a single unit. This design simplifies the fuel delivery system and can help reduce overall system cost. However, it is important to note that these integrated units may not be suitable for high-flow fuel pumps, as the regulator's capacity may be limited.
When selecting a fuel filter and regulator, it is crucial to consider the specific requirements of your engine and fuel system. Different systems may have varying pressure requirements, and choosing the appropriate filter and regulator combination ensures reliable and efficient engine performance. By consulting manufacturers' recommendations and seeking advice from reputable sources, you can make informed decisions regarding the setup of your fuel delivery system.
Filtering Fuel Oil: Techniques for Removing Impurities
You may want to see also
Explore related products
A regulator close to the fuel rail can improve pressure regulation
A fuel pressure regulator is a device that controls the pressure of fuel supplied to the fuel injectors on an engine. The regulator is usually mounted after the fuel rail, which ensures that the fuel rail has priority in fuel flow. The fuel is pumped from the fuel tank to the fuel rail by the fuel pump. The placement of the regulator is important as it can affect the performance of the vehicle.
The choice of regulator location can impact ease of installation, adjustment, and appearance. Some people may opt to mount the regulator in a convenient and easily accessible space. Others may prefer to mount it out of the way to achieve a neater look. However, the location of the regulator can influence fuel pressure regulation. The further away the regulator is from the fuel rail, the longer the fuel line is between them.
In certain cases, the distance between the regulator and the fuel rail can lead to pressure loss. For instance, in high power applications, a sudden increase in fuel flow rate when the throttle is applied quickly can result in fuel pressure loss between the regulator and the fuel rail. Placing the regulator closer to the fuel rail can help to reduce this pressure loss.
Additionally, vehicles used for drag racing experience high g-force launches, which can also cause a reduction in fuel pressure. The g-forces can push fuel away from the fuel rail, and the impact is directly related to the length of the fuel line. By positioning the regulator closer to the fuel rail, this error can be minimised or eliminated.
Cleaning Your XRP Fuel Filter: A Step-by-Step Guide
You may want to see also
Explore related products
Return-style regulators are required for high-pressure fuel pumps
Fuel filter regulators are an essential component of any vehicle, ensuring the fuel pressure is regulated to maintain optimal engine performance. While there are different types of regulators, return-style regulators are specifically designed for high-pressure fuel pumps, offering several advantages and unique functionalities. Here's an in-depth look at why return-style regulators are the preferred choice for high-pressure applications.
Return-style regulators, also known as bypass regulators, are commonly used in performance fuel systems. They get their name from their ability to bleed off excess pressure through a return line back to the fuel tank. This mechanism ensures that the fuel pressure remains within the desired range, preventing over-pressurisation. The key component in this process is the bypass valve, which is controlled by a spring. As fuel flows through the regulator, the pressure increase compresses the spring, causing the bypass valve to open and redirect some fuel back to the tank, thereby reducing the overall system pressure. This dynamic regulation of pressure ensures a consistent and accurate fuel supply to the engine.
One of the primary reasons return-style regulators are favoured for high-pressure fuel pumps is their ability to maintain fuel temperature within operating conditions. By constantly circulating fuel, the regulator prevents overheating and reduces the risk of Vapor Lock. This not only enhances the efficiency of the pump but also enables the engine to produce more power. Additionally, the constant circulation of fuel translates to longer pump life, as the pump operates just hard enough to maintain the required pressure, generating less heat and producing less noise.
Return-style regulators are also versatile, suitable for most EFI installations and carb installations with high-pressure pumps. They are particularly recommended when the fuel pump flow rate exceeds 255LPh, as seen in LS swaps with a higher flow fuel pump and other EFI systems requiring a pressure higher than 58 PSI. In such cases, an adjustable fuel pressure regulator with a return style, such as the Aeromotive 13129, is an excellent choice. This regulator features gauge ports and multiple ORB ports, allowing for adaptability to various fuel systems.
While return-style regulators offer significant advantages, it's important to recognise that they may not be suitable for all fuel systems. For example, they cannot be used in a nitrous system with a single pump and multiple regulators set at different pressures. Additionally, the return-style regulator setup requires extra plumbing, including additional hoses and fittings, which can be a consideration for certain vehicles.
Fuel Filter Facts for 2003 Cadillac DeVille Owners
You may want to see also
Explore related products
Adjustable fuel pressure regulators allow for fine-tuning
Fuel pressure regulators are an essential component of a vehicle's fuel system, ensuring that fuel pressure is carefully controlled and maintained for optimal engine performance. Adjustable fuel pressure regulators offer a distinct advantage by allowing for fine-tuning of fuel pressure, a feature that is particularly valuable for high-performance vehicles.
The ability to fine-tune fuel pressure is a critical aspect of achieving peak engine performance and efficiency. Adjustable fuel pressure regulators, such as those offered by Aeromotive, provide drivers with precise control over fuel pressure. This precision ensures that the engine receives the exact amount of fuel it requires, optimizing performance and fuel efficiency.
For instance, consider a high-powered race car that demands a delicate balance between power and fuel consumption. With an adjustable fuel pressure regulator, drivers and mechanics can fine-tune the fuel pressure to meet the specific requirements of the race, track conditions, or engine load. This customization ensures that the engine consistently delivers the desired power output while also preventing fuel starvation or flooding.
Additionally, adjustable fuel pressure regulators offer versatility. Whether it's a high-performance race car or a daily driver, these regulators can be adjusted to cater to different engine needs. This adaptability is especially useful for vehicles used in diverse conditions, such as street driving and track racing, where fuel requirements can vary significantly.
The fine-tuning capability of adjustable fuel pressure regulators also contributes to enhanced stability. By managing excess fuel and maintaining a steady pressure level, these regulators prevent sudden fluctuations in fuel delivery. This stability not only improves overall engine performance but also reduces the risk of engine knock and ensures a consistent power output.
In summary, adjustable fuel pressure regulators offer a level of customization that is essential for high-performance vehicles and those with diverse usage. The ability to fine-tune fuel pressure allows drivers and mechanics to optimize engine performance, enhance fuel efficiency, and ensure the vehicle's fuel system operates at its best under any conditions.
Where to Find the Fuel Filter on a 1998 Dodge Intrepid?
You may want to see also
Frequently asked questions

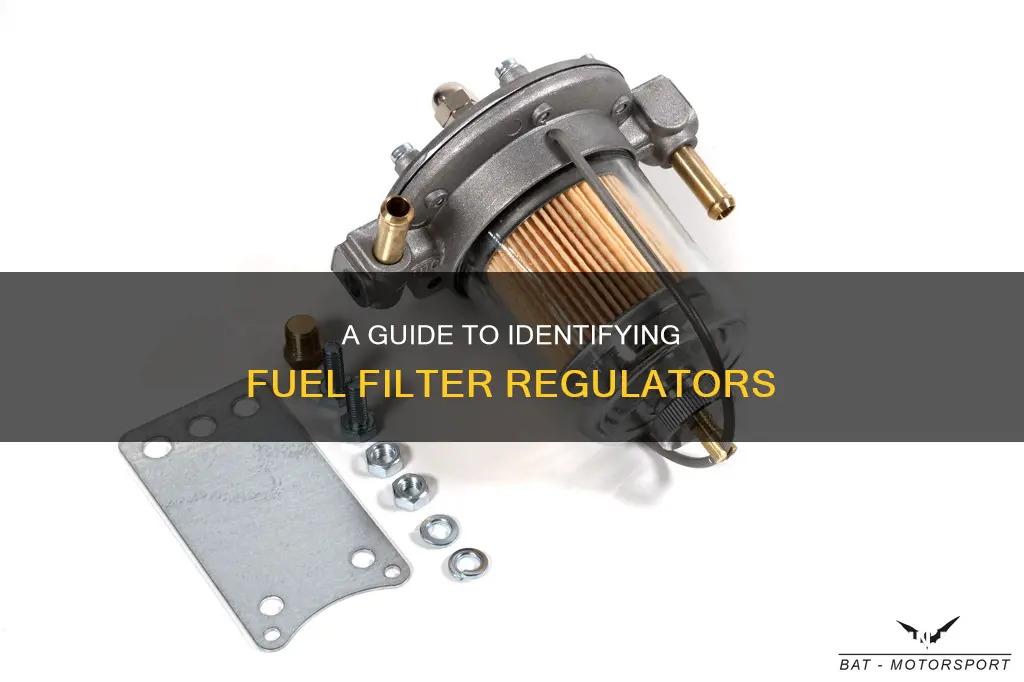

Fuel filter regulators vary in appearance depending on the make and model of the vehicle. They are typically located near the fuel tank or the engine, and can be identified by their fuel lines and mounting brackets. Some fuel filter regulators may also have a built-in fuel pressure regulator, which helps to control the fuel pressure and maintain optimal performance. These built-in regulators can be identified by their return port back to the tank.
The location of the fuel filter regulator can vary depending on the vehicle and the preference of the manufacturer or owner. Some regulators are placed closer to the fuel's destination (fuel rail, fuel log, carburetor, or injection pump), while others are located further away. The choice of location can impact fuel pressure regulation, ease of installation, adjustment, and appearance.
A fuel filter regulator is essential for maintaining optimal performance and ensuring your vehicle operates efficiently. It controls the pressure of the fuel supplied to the fuel injectors on the engine, allowing your engine to receive the precise amount of fuel needed. This helps to prevent issues such as fuel starvation or flooding, ensuring your engine runs smoothly and efficiently.
A fuel filter regulator works by bleeding off excess fuel pressure or fuel flow to the injectors from the fuel pump. This helps to maintain a stable base pressure and control the amount of fuel supplied to the fuel injectors. The regulator is usually mounted after the fuel rail to ensure priority in fuel flow, and it includes a valve that controls the amount of fuel bled from the fuel rail.
