Ameer Randolph

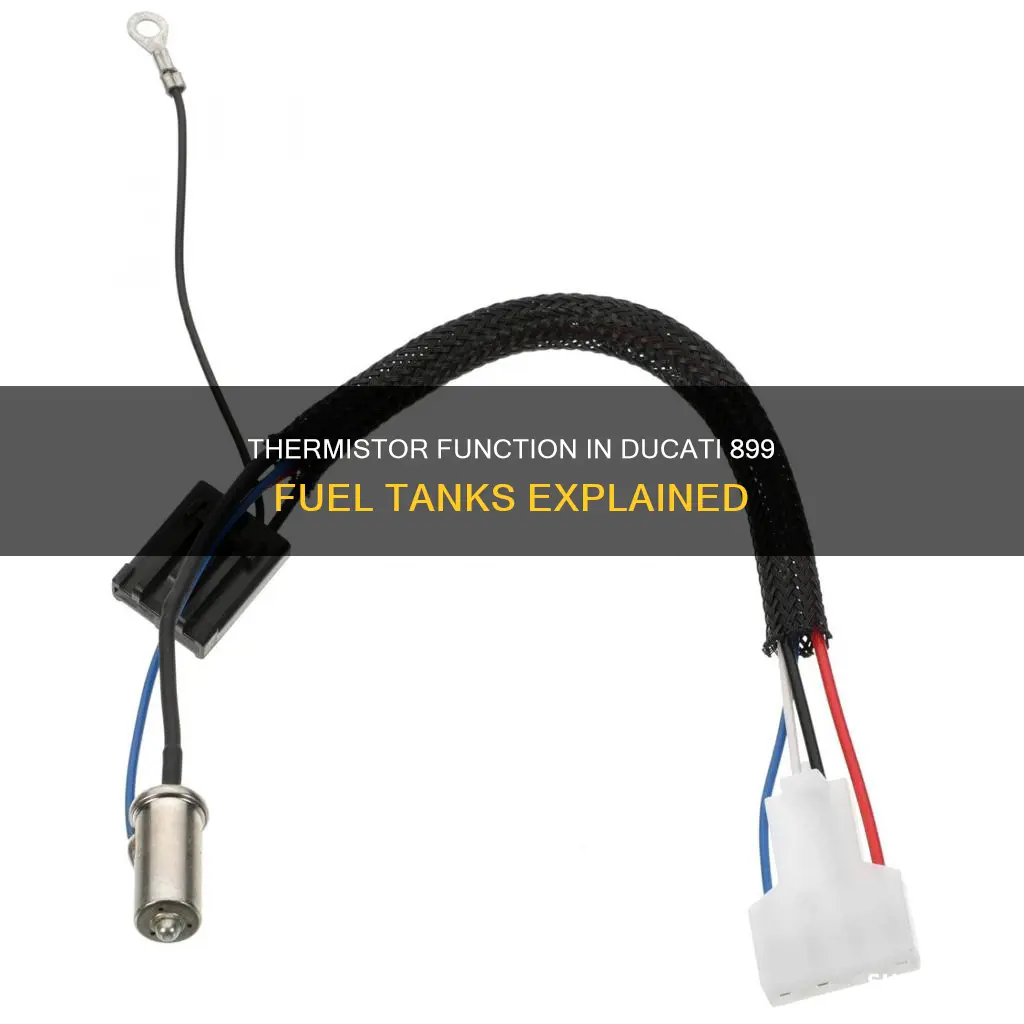

The thermistor is a low fuel sensor in the Ducati 899 fuel tank. It is enclosed in a device with a heating element that is always powered by 12V and submerged in fuel. When the tank is low, the heater can't cool and the temperature rises. The thermistor then becomes conductive with heat, which turns on the low fuel light. The basic function of a thermistor is that its resistance decreases as it heats up.
| Characteristics | Values |
|---|---|
| Basic Function | Resistance decreases as it heats up |
| Power | Fed 12V power to heat up |
| Resistance | Submerged in fuel: 3,000 ohm; Heated in open air: 300 ohm |
| Testing | Bench testing |
| Heat Dissipation | High when inside the fuel |
| Temperature | Should not exceed the fuel auto-ignite temperature |
Explore related products
What You'll Learn
The thermistor is a fuel level sensor
The thermistor is enclosed in a device with a heating element that is always powered by 12V. When the fuel tank is full, the mass of the fuel takes the heat away from the heating element. Once the tank is low, the heater can't cool and the temperature naturally rises. The thermistor then becomes conductive with heat, and the low fuel light comes on.
The basic function of a thermistor is that its resistance decreases as it heats up. It is fed 12V power to heat up. When the thermistor is submerged in fuel, the fuel dissipates the heat. Once the fuel level gets low enough that the thermistor is in open air, it begins to heat up, and the low fuel relay is tripped, turning on the light.
The thermistor is a low fuel sensor. It is not an essential component, but it is quite satisfying to have it working. The thermistor is wired in line with the warning bulb. When testing the thermistor, it is important to ensure that it does not get very hot, as this could cause the fuel inside the tank to ignite.
Fuel Tank Oversizing: Are There Drawbacks?
You may want to see also
Explore related products
It has a heating element powered by 12V
The thermistor in the Ducati 899 fuel tank is part of the fuel pump assembly and functions as a fuel level sensor. It is enclosed in a device with a heating element that is powered by 12V. The heating element is submerged in fuel, and the mass of the fuel takes away the heat. When the fuel level is low, the heating element can no longer be cooled, causing the temperature to rise. This temperature change triggers the thermistor to become conductive, turning on the low fuel light.
The thermistor is a device that changes resistance with temperature, with its resistance decreasing as the temperature increases. As it is a resistor, it generates heat, which in turn reduces its resistance, creating a feedback loop that continues to generate more heat. When the thermistor is submerged in fuel, the heat dissipation to the fluid exceeds the heat generated by the thermistor, preventing a continuous increase in temperature.
To test the thermistor, it can be connected to the appropriate wires at the fuel tank connector. This will activate the low fuel warning light when the thermistor heats up. Additionally, bench testing can be performed by connecting the thermistor to 12V and a series resistor to confirm its functionality.
It is important to ensure that the thermistor does not exceed the fuel auto-ignite temperature or the maximum temperature permitted. Proper sealing and maintenance of the fuel tank are crucial to prevent issues such as fuel sloshing over the thermistor and causing the low fuel light to flash. Overall, the thermistor plays a vital role in monitoring the fuel level in the Ducati 899 fuel tank, ensuring that riders are alerted when the fuel level is low.
Fuel Lift Pump: Does LMM Have One in the Tank?
You may want to see also
Explore related products
Resistance decreases as the thermistor heats up
The thermistor is a device enclosed in the Ducati 899's fuel tank that changes resistance with temperature. It is part of the fuel pump assembly and is powered by 12V. The thermistor is submerged in fuel, and the mass of the fuel takes away the heat generated by the device.
When the fuel level is low, the thermistor is no longer submerged in fuel, and its temperature naturally rises. This is because the heat is no longer being dissipated by the fuel. As the thermistor heats up, its resistance decreases, allowing more current to flow. This trips the low fuel relay, turning on the low fuel light.
The resistance of the thermistor can be measured using a multimeter. When the tank is full, the resistance should be around 3,000 ohms, and when heated in open air, it should be around 300 ohms.
The thermistor's unique temperature behaviour is due to it being a semiconductor. In a semiconductor, there is an energy gap between the filled valence band and the empty conduction band. At zero temperature, the system behaves like an insulator with infinite resistance. As the temperature increases, electrons move into the conduction band, lowering the resistivity.
Fuel Tanker Trucks: Capacity and Efficiency
You may want to see also
Explore related products
The thermistor is part of the fuel pump assembly
The thermistor is a critical component of the fuel pump assembly in the Ducati 899 fuel tank. It functions as a low fuel sensor, using changes in resistance to detect the level of fuel in the tank. The basic principle behind its operation is that the resistance of the thermistor decreases as its temperature increases.
The thermistor is enclosed in a device with a heating element that is always powered by 12V. When the fuel tank is full, the thermistor is submerged in fuel, and the mass of the fuel dissipates the heat, keeping the temperature low. As the fuel level decreases, the thermistor becomes exposed, and its temperature rises due to the absence of fuel to absorb the heat. This increase in temperature leads to a decrease in resistance, allowing more current to flow and triggering the low fuel relay to turn on the warning light.
The thermistor's functionality can be tested by connecting it to the appropriate wires at the fuel tank connector. It is also possible to perform a ""bench test" to check its operation. This involves measuring the resistance of the thermistor under different conditions, such as when it is submerged in fuel or heated in open air. By comparing the measured resistance values to the expected values, one can determine if the thermistor is functioning correctly.
In addition to its role in fuel level sensing, the thermistor's resistance properties can be utilized to monitor the temperature of the fuel. It is important to ensure that the temperature of the thermistor in open air does not exceed the fuel auto-ignite temperature or the maximum temperature specified for the thermistor. Proper testing and maintenance of the thermistor are crucial to ensure its accuracy and prevent potential issues.
The thermistor is an essential component for Ducati owners, providing valuable information about fuel levels and helping to ensure a safe and efficient riding experience. Regular testing and maintenance of the thermistor, as well as the fuel pump assembly, are recommended to keep the Ducati 899 fuel tank functioning optimally.
Fuel Tank Capacity of Cascadia Trucks: How Much Can They Hold?
You may want to see also
Explore related products
It can be bench-tested when the tank is empty
The thermistor in a Ducati 899 fuel tank is a low fuel sensor. It can be bench-tested when the tank is empty. This is done by connecting a 200-ohm resistor in series with the fuel sensor thermistor and then connecting it to 12V power. It takes about 5 minutes for the thermistor to heat up when the tank is empty. After disconnecting everything, the resistance of the thermistor can be measured. The expected measurement is between 500 and 1000 ohms.
The thermistor is a device that changes resistance with temperature. Its resistance decreases as its temperature increases. As it is a resistor, it generates heat, which in turn reduces its resistance, creating more heat. When the thermistor is inside the fuel, the heat dissipation to the fluid is high enough that it exceeds the heat being generated by the thermistor.
The basic function of a thermistor is that it is fed 12V power to heat up. When it is submerged in fuel, the fuel dissipates the heat. Once the fuel level is low enough that the thermistor is in open air, it begins to heat up, and the low fuel light comes on.
It is important to ensure that the thermistor in the air does not exceed the fuel auto-ignite temperature or the maximum temperature permitted by the thermistor. A basic test for the thermistor involves connecting it across the appropriate wires at the fuel tank connector.
Fuel Tanks in 1977 Corvettes: Are They Vented?
You may want to see also
Frequently asked questions
A thermistor is a device that changes resistance with temperature. It is a resistor that generates heat, which in turn reduces its resistance, generating more heat.
The thermistor is enclosed in a device with a heating element. The heater is always powered by 12V and is submerged in fuel, and the mass of the fuel takes the heat away. Once the tank is low, the heater can't cool and the temperature naturally rises. The thermistor then becomes conductive with heat and the low fuel light comes on.
For a basic test, connect a thermistor across the appropriate wires at the fuel tank connector. Once the thermistor is soldered in place, test it in and out of fluid.
The thermistor acts as a low fuel sensor. It is a part of the fuel pump assembly.
