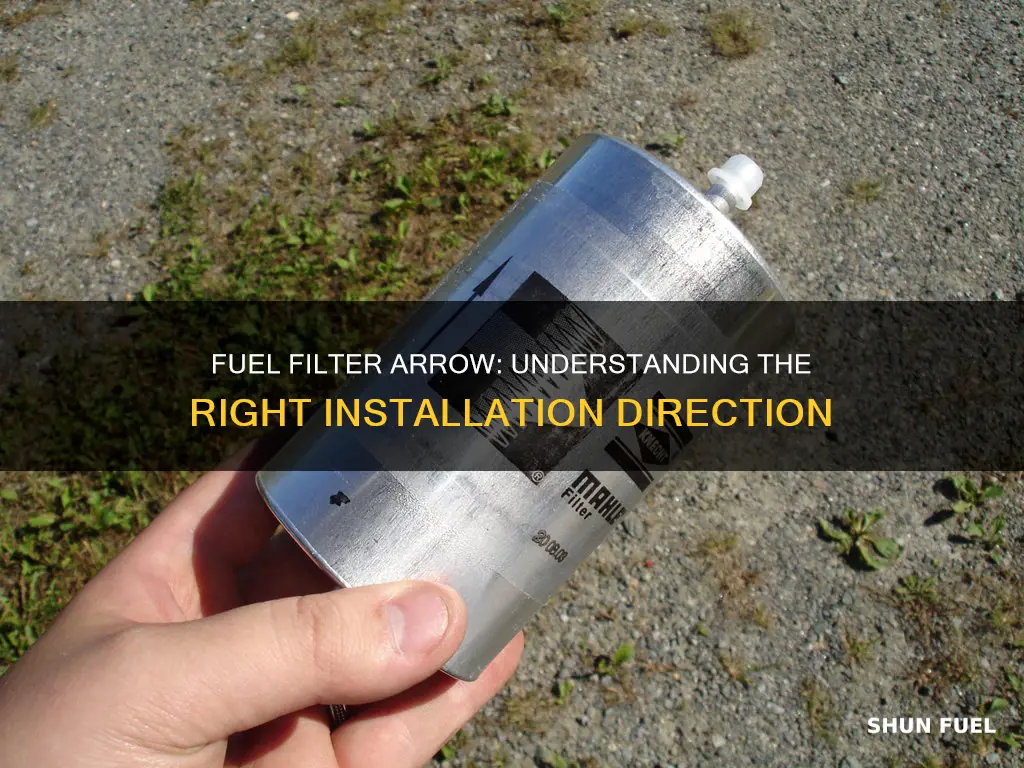

The arrow on a fuel filter indicates the direction of the fuel flow. In most cases, the arrow should point toward the engine, showing the direction of the fuel flow. However, there may be some exceptions, as seen in a 1994 Mazda truck where the arrows were pointing toward the fuel tank instead of the engine. Some fuel filters may not have a visible arrow, but the direction of the fuel flow can still be determined by examining the fuel lines and the placement of the filter between the fuel tank and the pump.
Explore related products
$6.08 $8.99
What You'll Learn
- The arrow on a fuel filter indicates the direction of fuel flow
- The arrow should point toward the fuel pump
- If the arrow points in the wrong direction, the filter may be improperly installed
- Some fuel filters have no arrow, but there is still an inlet and outlet
- The arrow on the filter can also indicate the side where the fuel is coming from
The arrow on a fuel filter indicates the direction of fuel flow
The arrow on a fuel filter is a vital indicator of the direction of fuel flow. This arrow is usually imprinted on the end of the filter, pointing towards the inlet port, and indicating the direction of fuel flow. It is important to note that some fuel filters may not have visible arrows, but the direction of fuel flow is still crucial to ensure optimal performance.
In most cases, the arrow on the fuel filter should point towards the engine, indicating the direction of fuel flow from the fuel tank to the engine. This is considered the "normal" way of installing the filter. However, there may be some exceptions, as seen in the example of a 1994 Mazda truck, where the arrows were pointing towards the fuel tank, indicating the direction of fuel flow from the tank to the filter.
It is important to trace the fuel lines to confirm the correct direction of fuel flow. In some cases, the line connected at the rear of the filter comes from the engine, which can be confusing if the arrow is pointing in the opposite direction. Therefore, it is recommended to consult experts or refer to manufacturer guidelines when replacing fuel filters to ensure proper installation.
The direction of fuel flow is essential to ensure unrestricted fuel flow to the engine. Installing the fuel filter in the wrong direction can lead to reduced performance or even damage to the engine. It is also important to regularly inspect the fuel lines for any signs of damage or cracks, as these can impact fuel flow and engine performance.
Some fuel filters, such as the WIX 33299, come with a directional flow arrow, making it easier for users to determine the correct installation. However, not all manufacturers provide arrows, and some have even stopped printing them on their filters. Therefore, it is crucial to consult reliable sources and experts when in doubt about the correct direction of fuel flow for a specific vehicle or engine.
