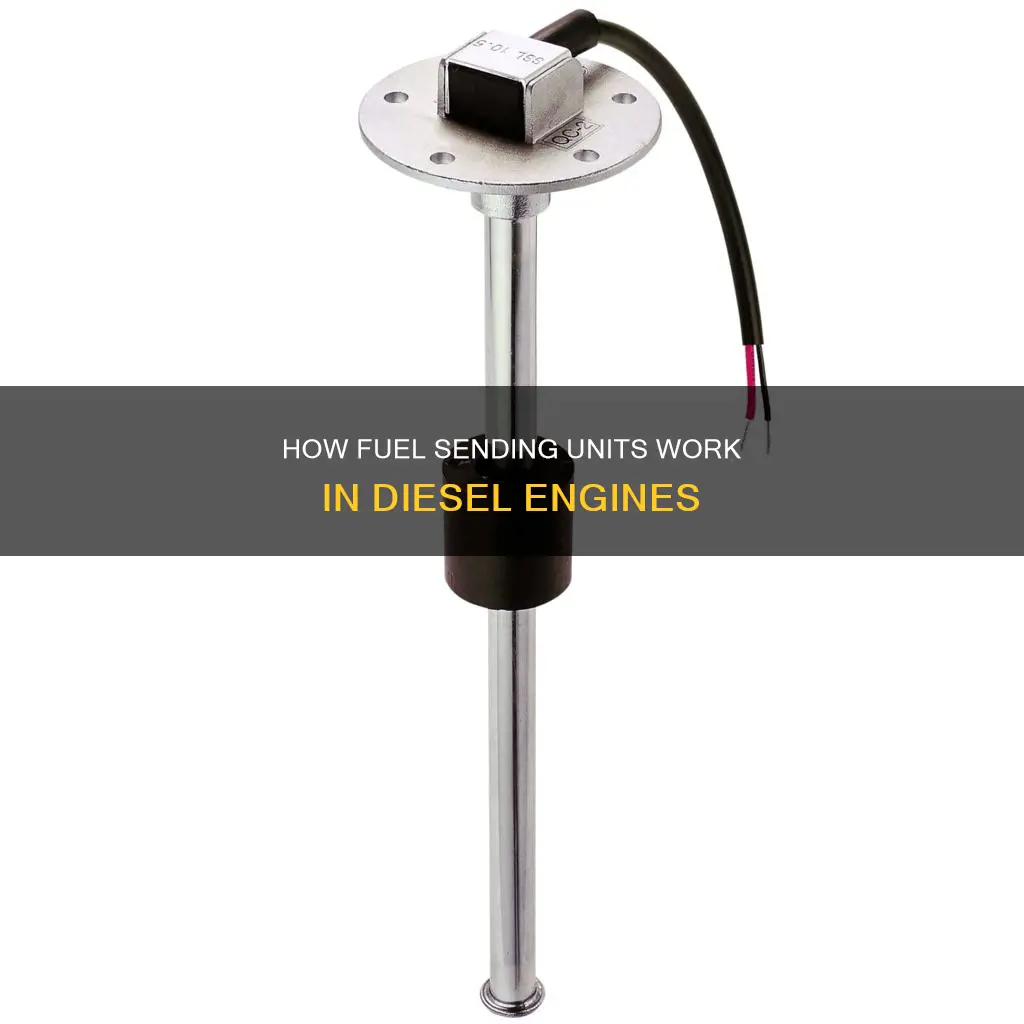

The fuel sending unit is an essential component of a vehicle's fuel system, acting as the middleman between the fuel tank and the fuel gauge. It provides drivers with crucial information about their fuel levels, allowing them to refuel before running out of gas. This unit consists of a float, a metal rod (arm), and a variable resistor, which work together to measure fuel levels and send signals to the fuel gauge. Regular maintenance and cleanliness are vital to ensuring the accuracy and longevity of this component. However, issues such as contaminated fuel, accident damage, electrical problems, or normal wear and tear can lead to inaccurate fuel gauge readings, requiring professional diagnosis and potential replacement of the unit.
| Characteristics | Values |
|---|---|
| Purpose | To measure the amount of fuel in the fuel tank and communicate the fuel level to the fuel gauge on the vehicle dashboard. |
| Function | Sends signals about the amount of fuel in the tank to the gauge. |
| Components | Float, arm, variable resistor |
| Maintenance | Regular maintenance is required to prevent issues. |
| Issues | Inaccurate or fluctuating fuel readings, erratic gauge readings, mechanical failure. |
Explore related products
What You'll Learn
The fuel sending unit measures the amount of fuel in the tank
The fuel sending unit plays a crucial role in keeping you informed about how much fuel is left in your tank. It measures the amount of fuel in the tank and communicates this information to the fuel gauge on the vehicle dashboard. This ensures that the driver is aware of the fuel level at all times and can take appropriate action, such as visiting a gas station before the tank is empty.
The fuel sending unit consists of three main components: a float, an arm, and a variable resistor. The float is a buoyant object that floats inside the fuel tank, moving up or down according to the fuel level. The arm is a metal rod attached to the float, pivoting based on the float's position. The variable resistor is connected to the arm and moves up and down with the fuel level, translating the resistance into different voltage signals sent to the fuel gauge.
Over time, the constant movement of the wiper in the variable resistor can wear down the resistive material strip, creating an open circuit. Additionally, the float may come loose or become saturated with fuel, leading to inaccurate or fluctuating fuel readings. The arm may also wear out or become loose, causing false fuel level readings. These issues can result in erratic or fluctuating fuel gauge readings, indicating a potential problem with the fuel sending unit.
To ensure optimal performance and longevity of the fuel sending unit, regular maintenance is essential. This includes keeping the unit clean and free from dirt and debris accumulation. By addressing any issues promptly and ensuring proper care, you can avoid costly repairs and maximise the efficiency and lifespan of this critical component of your vehicle's fuel system.
Diesel Fuel Lid Color: A Safety Guide
You may want to see also
Explore related products
It sends a signal to the fuel gauge on the dashboard
The fuel sending unit is an essential component of a vehicle's fuel system, playing a crucial role in keeping the driver informed about the amount of fuel in the tank. It achieves this by sending a signal to the fuel gauge on the dashboard, which then displays the fuel level to the driver.
The fuel sending unit consists of three main components: a float, an arm, and a variable resistor. The float is a buoyant object that moves up and down inside the fuel tank according to the fuel level. The arm is a metal rod attached to the float, pivoting based on the float's position. The variable resistor is connected to the arm and moves up and down with the fuel level, translating the resistance into different voltage signals sent to the fuel gauge.
When the fuel level in the tank changes, the float moves accordingly, altering the resistance in the unit. This change in resistance generates an electrical signal that is sent to the fuel gauge, resulting in an accurate reading of the fuel level. A high fuel level leads to low resistance and a high voltage signal to the fuel gauge, while a low fuel level results in high resistance and a low voltage signal.
Maintaining the fuel sending unit is crucial to ensure optimal performance and avoid issues. Over time, the constant movement of the wiper in the variable resistor can wear down the resistive material strip, creating an open circuit. Additionally, issues such as contaminated fuel, accident damage, electrical problems, or driving on rough terrain can contribute to fuel sending unit malfunctions.
By regularly maintaining the fuel sending unit and addressing any potential problems, drivers can ensure the accurate measurement of fuel levels and avoid the inconvenience of a malfunctioning fuel gauge. A faulty fuel sending unit can lead to inaccurate readings, with the gauge showing full even when the tank is low or vice versa. Fluctuating readings and erratic needle movements are also signs of a malfunctioning fuel sending unit.
How Bacteria Breaks Down Diesel Fuel
You may want to see also
Explore related products
Regular maintenance is important to prevent issues
The fuel sending unit is an important component of a vehicle's fuel system. It measures the amount of fuel in the tank and communicates this information to the fuel gauge on the dashboard. This ensures that the driver is aware of the fuel level and can refuel when necessary. While the vehicle will continue to perform normally if the fuel sending unit fails, not having an accurate reading of the fuel level can lead to being stranded with an empty tank.
Given the critical function of the fuel sending unit, regular maintenance is essential to prevent issues and ensure optimal performance. Here are some reasons why regular maintenance is crucial:
Prevent Costly Repairs
By proactively maintaining the fuel sending unit and other fuel system components, such as the fuel pump, filters, and injectors, you can avoid costly repairs in the future. Addressing potential issues early on through regular maintenance can help maximize efficiency and prolong the lifespan of these critical parts.
Accurate Fuel Level Readings
The fuel sending unit is constantly in motion when the vehicle uses fuel. Over time, this can cause wear and tear on its components, leading to inaccurate fuel gauge readings. Regular maintenance and inspections can help identify and address these issues promptly, ensuring you have a correct indication of the fuel level.
Avoid Safety Hazards
A faulty fuel sending unit can lead to incorrect assumptions about the fuel level, potentially resulting in running the tank dry. This not only leaves you stranded but can also damage other fuel system components. Regular maintenance helps prevent such safety hazards and ensures the overall reliability of your vehicle.
Maintain Fuel Efficiency
Issues with the fuel sending unit can affect the overall performance of the fuel system, including fuel efficiency. By regularly maintaining and cleaning the unit, you can maximize fuel efficiency and minimize the risk of contaminated fuel or electrical issues impacting your vehicle's performance.
Prolong Component Lifespan
The fuel sending unit is designed to be robust and resistant to corrosion, pressure, and wear. However, factors such as driving on rough terrain or using poor-quality fuel can shorten its lifespan. Regular maintenance can help identify and mitigate these factors, prolonging the lifespan of the fuel sending unit and other related components.
RV Diesel Generators: How Much Fuel Do They Guzzle?
You may want to see also
Explore related products
![A-Premium Manifold Pressure MAP Sensor [3 Pins] Compatible with Volkswagen Jetta, Passat, Golf, Beetle, Touareg, GTI, Golf Alltrack/R/SportWagen & Audi Q5, Q7, Q3, R8, A3/A6/A7/A8/TT/TTS Quattro](https://m.media-amazon.com/images/I/619pVjZUO5L._AC_UY218_.jpg)
A faulty unit may cause erratic gauge readings
The fuel sending unit is responsible for measuring the fuel level in the tank and relaying this information to the fuel gauge on the vehicle dashboard. This ensures that the driver is aware of the fuel level at all times.
A faulty fuel sending unit can cause erratic or inaccurate fuel gauge readings. The gauge may get stuck on empty or full, or display incorrect readings, making it hard to determine the actual fuel level. This can be due to a mechanical failure, such as the float arm 'sticking' at certain levels, or a problem with the wiring or resistors. For example, the resistive material strip can wear down over time, creating an open circuit. Corroded wires can also restrict the signal and cause the gauge to read empty.
It is important to pay attention to erratic gauge readings as they can indicate a problem with the fuel sending unit. Completing a full diagnosis is recommended before making any judgments, as the issue could also be caused by a defective fuel gauge or other components within the vehicle's fuel system. Regular maintenance and prompt attention to any issues can help prevent further problems and ensure the optimal function of the fuel system.
If you suspect a faulty fuel sending unit, it is recommended to consult a professional for confirmation and replacement unless you have the proper experience and tools.
Mixing Two-Stroke Oil with Diesel: Safe or Not?
You may want to see also
Explore related products
Driving on rough terrain can cause unit issues
The fuel sending unit is a crucial component of a vehicle's fuel system, responsible for measuring and communicating the fuel level to the fuel gauge on the dashboard. This helps drivers stay informed about their fuel levels and make timely visits to the gas station. While this unit is essential for all vehicles, diesel engines come with their own set of challenges and considerations.
Driving on rough terrain can be particularly tough on a diesel engine's fuel sending unit. The inherent vibrations of diesel engines, combined with the jarring impact of uneven surfaces, can accelerate wear and tear on the unit's components. The constant vibration can cause the float arm of the sending unit to stick at certain levels, resulting in inaccurate fuel gauge readings. This issue may resolve itself as the float arm falls back into place, but it indicates potential mechanical failure.
Additionally, rough terrain can increase the chances of fuel leaks, especially if the engine has accumulated significant service hours. Leaks can occur where a hard line and a fitting meet, or in the form of hairline cracks in steel fuel lines. Fuel leaks not only waste valuable diesel but can also lead to dangerous situations if sparks are present.
Contaminated fuel is another concern when driving on rough terrain. Diesel engines are sensitive to the quality of fuel they consume, and contaminants can lead to injection system failures. Water contamination, for instance, can cause deposit buildup and particle contamination, affecting the performance and longevity of the injectors.
To mitigate these issues, regular maintenance is key. Diesel engine owners should pay close attention to recommended service intervals and warning signs, such as erratic fuel gauge readings or sudden drops in gas mileage. Proper maintenance of the fuel sending unit and other vital parts, such as the fuel pump, filters, and injectors, can prevent costly repairs and ensure optimal performance.
In summary, driving on rough terrain can exacerbate common issues associated with diesel engines and their fuel sending units. By understanding these challenges and staying vigilant with maintenance, drivers can minimize the risk of unexpected breakdowns and keep their vehicles running smoothly, even in demanding conditions.
Burning Diesel: A Comprehensive Guide to Ignition
You may want to see also
Frequently asked questions
A fuel sending unit measures the amount of fuel in the fuel tank and communicates the fuel level to the fuel gauge on the vehicle dashboard.
A fuel sending unit consists of three main components: a float, an arm, and a variable resistor. The float is a buoyant object that floats inside the gas tank. The arm is a metal rod attached to the float, which pivots based on the float's position. The arm connects to the variable resistor, which moves up and down with the fuel level, translating the resistance into different voltage signals sent to the fuel gauge.
A faulty fuel sending unit can cause inaccurate fuel gauge readings. For example, the gauge may constantly show full even when the tank is low on gas, or it may read empty when there is still fuel remaining. Other signs to watch out for include fluctuating readings on the fuel gauge and erratic movements of the needle.
