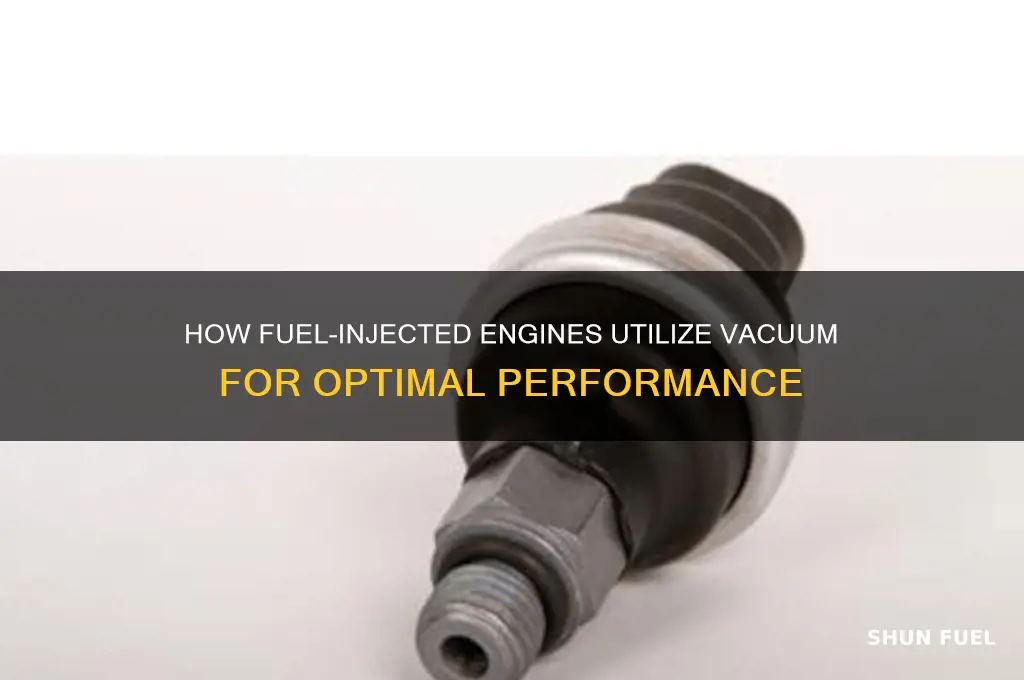

Fuel-injected engines utilize vacuum for various critical functions, primarily to optimize performance, efficiency, and emissions control. Vacuum is generated by the difference in pressure between the intake manifold and the atmosphere, created as air is drawn into the engine during operation. This vacuum is harnessed to power essential systems such as the brake booster, which enhances braking efficiency, and the vacuum advance mechanism in older engines, which adjusts ignition timing for better fuel combustion. Additionally, vacuum is used to operate emissions control devices like the exhaust gas recirculation (EGR) valve and the charcoal canister purge valve, which help reduce harmful emissions. In modern engines, vacuum may also assist in controlling turbochargers or superchargers, ensuring precise air-fuel mixture delivery under varying load conditions. Thus, vacuum plays a multifaceted role in maintaining the functionality and environmental compliance of fuel-injected engines.
| Characteristics | Values |
|---|---|
| Purpose | Fuel injected engines use vacuum for various purposes, primarily to assist in: |
| - Fuel metering: Modifying air/fuel mixture based on engine load and operating conditions. | |
| - Emission control: Operating EGR (Exhaust Gas Recirculation) systems and other emission control devices. | |
| - Brake booster operation: Providing power assistance for braking. | |
| - Accessory operation: Driving vacuum-powered accessories like HVAC controls or cruise control. | |
| Source of Vacuum | Engine intake manifold. As air is drawn into the engine, it creates a lower pressure (vacuum) compared to atmospheric pressure. |
| Vacuum Measurement | Inches of mercury (inHg) or kilopascals (kPa). |
| Typical Vacuum Range | 15-22 inHg (51-74 kPa) at idle, decreasing under load. |
| Vacuum Control | Controlled by the throttle body and other engine components. |
| Modern Trends | Many modern fuel injected engines are moving towards electronic throttle bodies and drive-by-wire systems, reducing reliance on vacuum for some functions. |
Explore related products
What You'll Learn
- Idle Speed Control: Vacuum modulates air intake to maintain stable RPM when the engine is idling
- Brake Booster Assistance: Vacuum reduces pedal effort, enhancing braking efficiency and driver comfort in vehicles
- Emission Control Systems: Vacuum operates EGR valves and charcoal canisters to manage pollutants effectively
- Transmission Shift Control: Vacuum assists in smooth gear shifts by regulating transmission pressure in older systems
- Accessory Operation: Vacuum powers HVAC controls, cruise control, and other auxiliary systems in some designs
Idle Speed Control: Vacuum modulates air intake to maintain stable RPM when the engine is idling
In a fuel-injected engine, vacuum plays a critical role in idle speed control by modulating air intake to maintain a stable RPM when the engine is idling. This process ensures the engine runs smoothly at rest, preventing stalls and optimizing fuel efficiency. The vacuum system achieves this by adjusting the amount of air entering the engine, compensating for varying loads and conditions. For instance, when the air conditioning compressor engages or the power steering is used, the vacuum system responds by increasing air intake to keep the RPM steady, typically around 600–900 RPM for most passenger vehicles.
The mechanism behind this involves a vacuum-operated idle air control (IAC) valve, which is controlled by the engine’s electronic control unit (ECU). The IAC valve opens or closes based on signals from the ECU, allowing a precise amount of air to bypass the throttle plate. This bypass air is crucial for maintaining idle stability, especially in modern fuel-injected engines where the throttle body is nearly closed at idle. Without this vacuum-assisted modulation, the engine would struggle to balance fuel and air mixtures under varying loads, leading to rough idling or stalls.
One practical example of this system in action is during cold starts. When an engine is cold, it requires a richer fuel mixture and higher idle speed to warm up efficiently. The vacuum-controlled IAC valve opens wider to allow more air, prompting the ECU to inject additional fuel. As the engine warms, the IAC valve gradually reduces airflow, lowering the idle RPM to its normal operating range. This dynamic adjustment is essential for reducing emissions and improving drivability during the initial minutes of operation.
To troubleshoot idle speed issues, mechanics often inspect the vacuum system for leaks or malfunctions. A vacuum leak can disrupt the IAC valve’s ability to regulate airflow, causing erratic idling or stalling. Common culprits include cracked vacuum hoses, a faulty IAC valve, or a malfunctioning ECU. Diagnosing these issues typically involves using a vacuum gauge to measure system integrity and a scan tool to check for error codes related to idle control. Regular maintenance, such as replacing aging vacuum hoses and cleaning the IAC valve, can prevent these problems and ensure consistent idle performance.
In summary, vacuum-based idle speed control is a cornerstone of fuel-injected engine efficiency and reliability. By precisely modulating air intake, it ensures the engine remains stable under varying conditions, from cold starts to accessory loads. Understanding this system not only highlights its importance but also empowers vehicle owners and mechanics to diagnose and address idle-related issues effectively. Whether through routine maintenance or targeted repairs, preserving the vacuum system’s functionality is key to a smooth-running engine.
