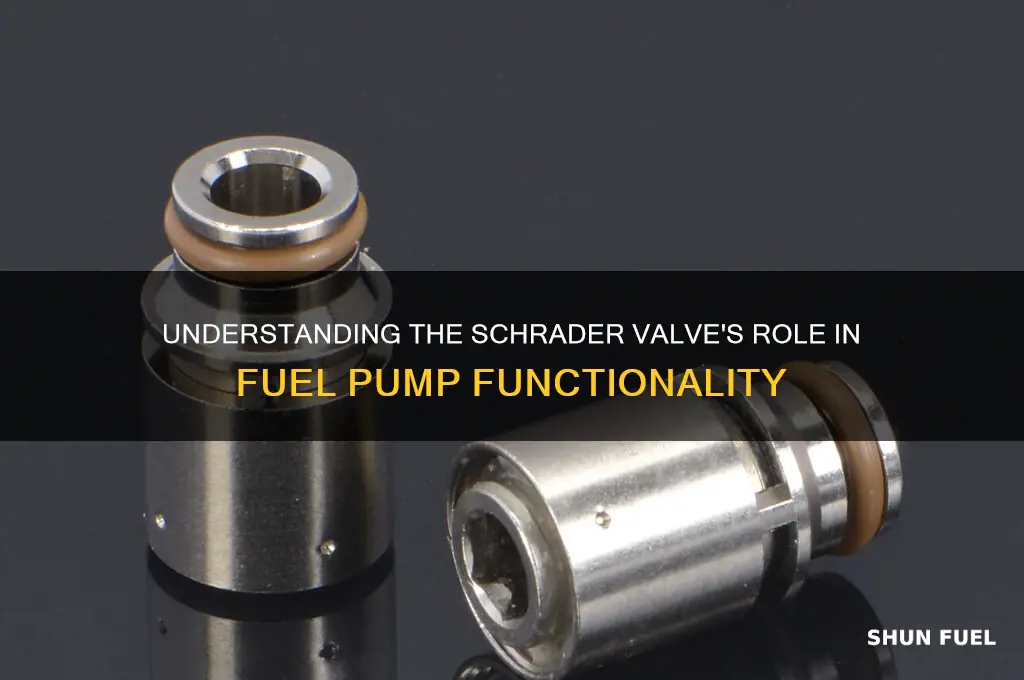

The Schrader valve on a fuel pump serves a critical function in modern vehicle fuel systems, primarily acting as a service port for pressure testing and diagnostics. Unlike its common use in tire inflation, the Schrader valve in a fuel pump is designed to withstand the high pressures and corrosive nature of fuel. It allows technicians to connect specialized tools to measure fuel pressure, ensuring the pump is operating within optimal parameters. This valve is typically located on the fuel pump assembly or fuel rail, providing a convenient access point without requiring disassembly of the fuel system. Its robust construction ensures a leak-free seal, maintaining the integrity of the fuel system while facilitating essential maintenance and troubleshooting procedures.
| Characteristics | Values |
|---|---|
| Function | Allows access to the fuel system for pressure testing and diagnostics. |
| Location | Typically found on the fuel rail or fuel pump assembly. |
| Design | Similar to a tire valve stem, with a spring-loaded core to seal the system. |
| Purpose | Enables connection of a fuel pressure gauge to measure fuel system pressure. |
| Maintenance | Can be replaced if damaged or leaking to maintain system integrity. |
| Compatibility | Standardized design, compatible with most fuel pressure testing tools. |
| Pressure Regulation | Does not regulate pressure; only provides access for measurement. |
| Material | Typically made of brass or steel for durability and corrosion resistance. |
| Sealing Mechanism | Uses a rubber O-ring or seal to prevent fuel leaks when not in use. |
| Application | Commonly used in gasoline-powered vehicles with fuel injection systems. |
| Diagnostic Use | Essential for diagnosing fuel delivery issues, such as low pressure or clogs. |
Explore related products
What You'll Learn
- Sealing Mechanism: Prevents fuel leakage by maintaining a tight seal under pressure in the fuel system
- Pressure Regulation: Helps regulate fuel pressure to ensure optimal engine performance and efficiency
- Access Point: Allows for easy fuel system testing, maintenance, and pressure gauge attachment
- Safety Feature: Releases excess pressure to prevent fuel pump or system damage during operation
- Compatibility: Standardized design ensures interchangeability with various fuel system tools and components
Sealing Mechanism: Prevents fuel leakage by maintaining a tight seal under pressure in the fuel system
The Schrader valve, a small yet critical component in the fuel pump, serves as the unsung hero of the fuel system's integrity. Its primary function is to act as a sealing mechanism, ensuring that fuel remains contained under pressure, thereby preventing leaks that could lead to inefficiency, safety hazards, or environmental damage. This valve is designed to withstand the rigorous demands of modern fuel systems, which operate under high pressure to deliver fuel efficiently from the tank to the engine.
Consider the fuel system as a high-pressure environment where even the smallest breach can have significant consequences. The Schrader valve’s sealing mechanism is engineered to maintain a tight seal, even when the system is under stress. This is achieved through its robust construction, typically featuring a metal valve stem and a rubber or synthetic seal that expands under pressure to create an airtight barrier. For instance, in vehicles with direct injection systems, where fuel pressures can exceed 2,000 psi, the Schrader valve’s ability to hold this seal is crucial for optimal performance and safety.
To understand its importance, imagine a scenario where the sealing mechanism fails. Fuel leakage not only reduces efficiency but also poses a fire risk, especially in the engine compartment where temperatures are high. Moreover, modern vehicles are subject to stringent emissions regulations, and a leaking fuel system can lead to non-compliance. The Schrader valve’s role in preventing such leaks is, therefore, not just mechanical but also regulatory and environmental.
Practical maintenance tips can enhance the longevity and effectiveness of the Schrader valve. Regularly inspect the valve for signs of wear, such as cracks in the seal or corrosion on the stem. During fuel system servicing, ensure that the valve is tightened to the manufacturer’s specified torque, typically ranging from 10 to 20 ft-lbs, depending on the vehicle model. Over-tightening can damage the seal, while under-tightening may lead to leaks. Additionally, when replacing the valve, use only OEM (Original Equipment Manufacturer) parts to ensure compatibility and reliability.
In comparison to other sealing mechanisms, the Schrader valve stands out for its simplicity and reliability. Unlike complex gaskets or O-rings that may degrade over time, the Schrader valve’s design allows for easy inspection and replacement. Its standardized size and threading make it a universal component across various vehicle makes and models, simplifying repairs and reducing downtime. This combination of durability, ease of maintenance, and universal applicability underscores its indispensability in modern fuel systems.
